Page 1

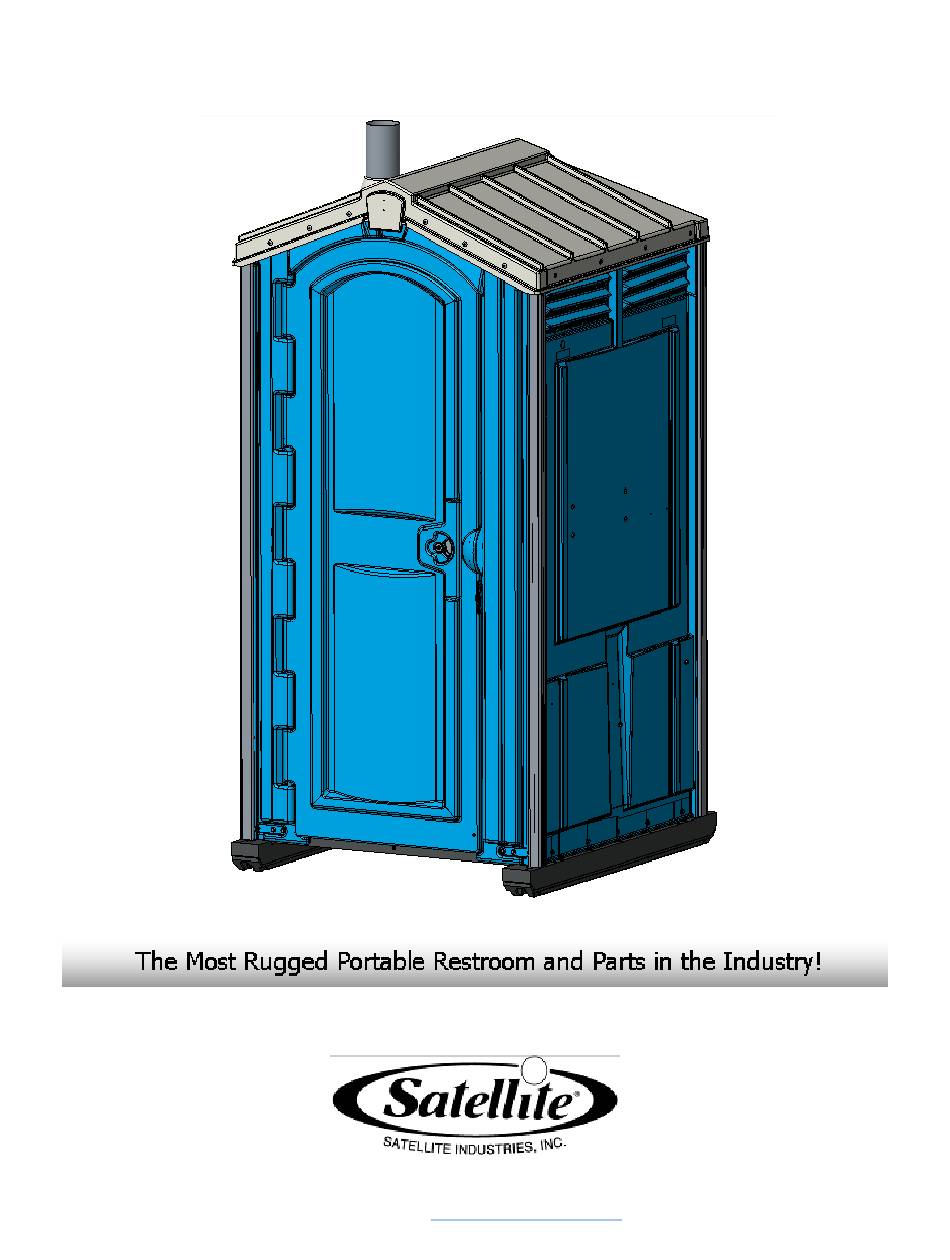

Assembly Instructions Global II Portable Restroom with HD Extrusion Molding 2530 Xenium Lane North, Minneapolis, MN 55441 Telephone: 763-553-1900 Fax: 763-553-1905 800-328-3332 / www.satelliteindustries.com 10/17/2018 REVC 40243 INSTRUCTION- GB II HD EXT...
Page 2
10/17/2018 REVC 40243 INSTRUCTION- GB II HD EXT...
Tools Needed: Drill / Driver 2. #10 Drill Bit 3. Rivet Gun 5. 7/16” Deep Well Socket Phillips Screw Driver 6. Ratchet Wrench Step 1: Assemble (3) side panels together using HD extrusion: *Tip: It may help to place panel on table or a stack of tanks before assembly. Slide the HD Extrusion between the (2) panels.
Page 4
Step 2: Assemble Base to side panels: Butt bottom of the rear panel up against the runners. Align rear panel center hole with center mark on base and fasten with Screw #13860. Finish remaining (4) holes. Align side panel’s center holes with grooves on base sides down to top of base runner and fasten with Screws #13860.
Page 5
Step 4: Fasten Tank to Unit: Position tank against the back wall and attach the tank starting with each side. Have (1) person stand in tank while lagging panels to tank. This ensures that the tank is in the correct position. Tighten screws #13860 until rubber washer begins to flatten. WARNING: DO NOT TO OVER TIGHTEN SCREWS.
Page 6
Step 6: Assemble Urinal to unit: 1. Using #10 Drill Bit, Drill (2) holes in side panel at dimples. 2. Insert round tube of Urinal in tank urinal hole. 3. Use (2) rivets #11054 and (2) washers #11315. Washers are installed on inside of Urinal. 4.
Page 7
Step 8: Assemble coat hook to doorframe. 1. Drill at dimple using #10 drill bit and fasten Coat Hook to the frame using Rivet #17436. Step 9: Install Door Handle. 1. Assemble Door Handle to Door using (1) Screw #40052, (1) Washer Fender #11360, on outside of front &...
Page 8
Step 10: Assemble Front to Panels. 1. Install HD Extrusions between the front and panel. Note: Fasten front to panels using the same method as STEP 3 Fasten Extrusion to Side Panel. (6)Places per side using rivets #18755. Warning: Do not drill through first layer of panel or front only.
Page 9
Step 12: Assemble Roof to unit. 1. Place roof on top of unit. Fasten roof to unit use (18) Rivets #11030 & (18) Washers #11315 Washers are installed on inside of unit. Step 13: Assemble Vent Pipe to unit. Insert Vent Tube through roof & down into top of urinal tube &...
