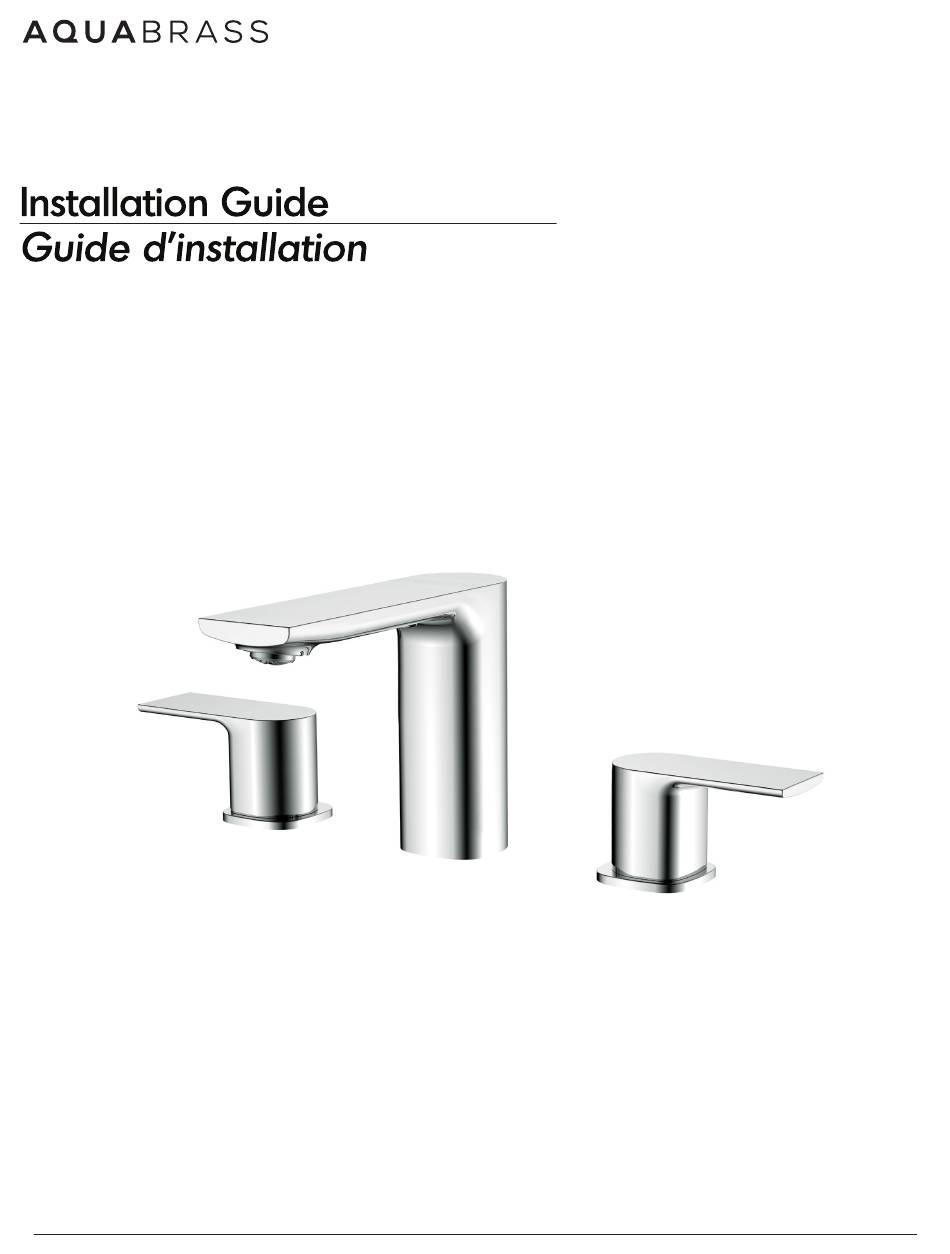

- Page 1 Midtown 15016 widespread lavatory faucet robinet de lavabo 8” c.c. Last revision: 08/28/2019 aquabrass.com...
- Page 2 Midtown 15016 widespread lavatory faucet robinet de lavabo 8” c.c. Service Parts / Schéma des pièces Item Code English Français Item Code English Français ABFC15236 Handle flange Base de poignée ABAE15239 Aerator Aérateur ABFC15235 Handle Poignée ABFP15242 Tie down kit for handle Ensemble de fixation pour poignée...
- Page 3 Midtown 15016 widespread lavatory faucet robinet de lavabo 8” c.c. General Dimensions / Dimensions générales [167.50] 6 5/8” [4.80] [120.00] [128.50] [120.00] 3/16” 4 3/4” 5 1/16” 4 3/4” [101.50] 4” [49.70] 1 15/16” Min. 1 1/4’’ [32.00] [45.00] Max. 1 3/8” [35.00] 1 3/4”...
- Page 4 Midtown 15016 widespread lavatory faucet robinet de lavabo 8” c.c. Connecting the hoses Installing the handles Installing the faucet Raccordement des Installation du robinet Installation des poignées boyaux flexibles Fig.1 Fig.2 Fig.3 During installation, ensure that hot water valve Connect the proper end of the hot water WE RECOMMEND DRILLING A 1-3/8”...
- Page 5 Midtown 15016 widespread lavatory faucet robinet de lavabo 8” c.c. Drain installation Cartridge replacement Cleaning the Aerator Installation du drain Remplacement de la cartouche Nettoyage de l’aérateur Fig.4 Fig.5 Fig.6 Unscrew the tube (2) and remove the Start by shutting off water supply lines and Remove the aerator (1) from the spout.
-
Page 6: Warranty
WARR ANT Y Aquabrass of fers a lifetime warranty against defects in materials and workmanship under normal conditions of use, care and maintenance of the product(s), for as long as the original purchaser owns their home. The warranty applies only when the product is purchased from an authorized Aquabrass dealer. -
Page 7: Garantie
9805 rue Clark Montréal, Québec H3L 2R5 1 888 239-9336 tech@ad-waters.com Pour les demandes internationales : communications@aquabrass.com Aquabrass se réserve le droit de modifier des caractéristiques de ses produits sans avis ni obligation ainsi que de remplacer ou de retirer certains modèles. - Page 8 Due to the characteristics of the Aquabrass custom finishes and their appropriate maintenance durabilit y dependenc y, the warrant y for custom finish products is three (3) years. There are no returns on custom finish products.
-
Page 9: Autres Informations
Net toyer ces résidus en tout temps avec de l’eau propre, puis sécher. En raison de la nature des finis sur mesure d’Aquabrass et de l’impor tance de les entretenir de manière appropriée, la garantie couvrant les fini sur mesure est de (3) ans. Aucun retour n’est accepté pour les finis sur mesure.
