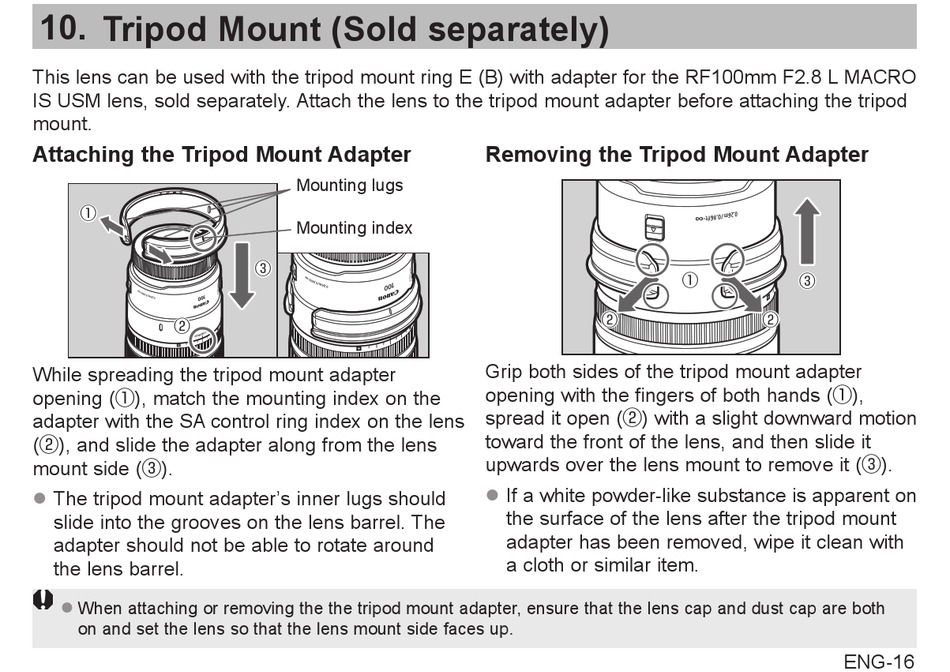

10. Tripod Mount (Sold separately)
This lens can be used with the tripod mount ring E (B) with adapter for the RF100mm F2.8 L MACRO
IS USM lens, sold separately. Attach the lens to the tripod mount adapter before attaching the tripod
mount.
Attaching the Tripod Mount Adapter
①
②
While spreading the tripod mount adapter
opening (①), match the mounting index on the
adapter with the SA control ring index on the lens
(②), and slide the adapter along from the lens
mount side (③).
The tripod mount adapter's inner lugs should
z
slide into the grooves on the lens barrel. The
adapter should not be able to rotate around
the lens barrel.
When attaching or removing the the tripod mount adapter, ensure that the lens cap and dust cap are both
z
on and set the lens so that the lens mount side faces up.
Mounting lugs
Mounting index
③
Removing the Tripod Mount Adapter
②
Grip both sides of the tripod mount adapter
opening with the fingers of both hands (①),
spread it open (②) with a slight downward motion
toward the front of the lens, and then slide it
upwards over the lens mount to remove it (③).
If a white powder-like substance is apparent on
z
the surface of the lens after the tripod mount
adapter has been removed, wipe it clean with
a cloth or similar item.
①
③
②
ENG-16
