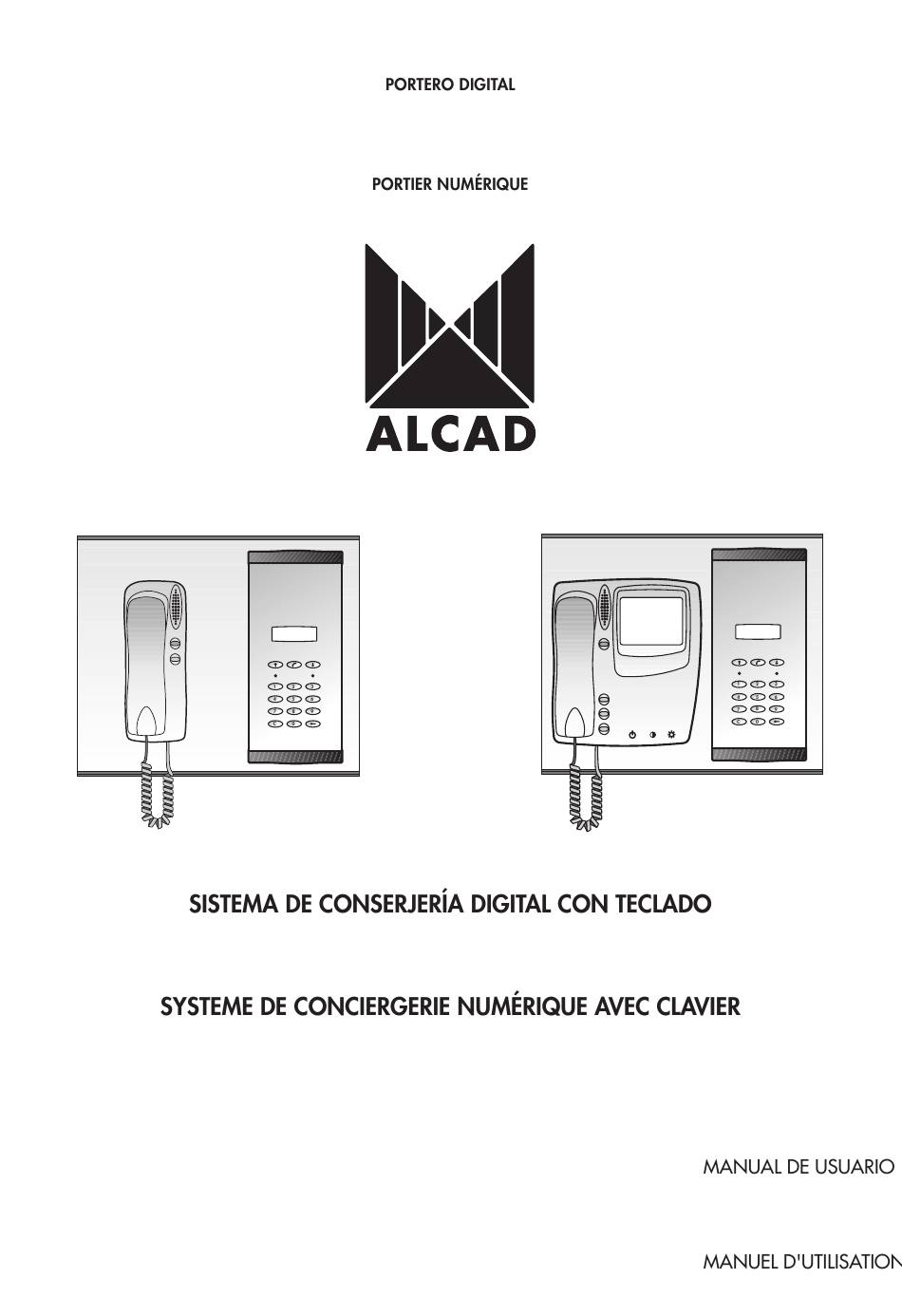

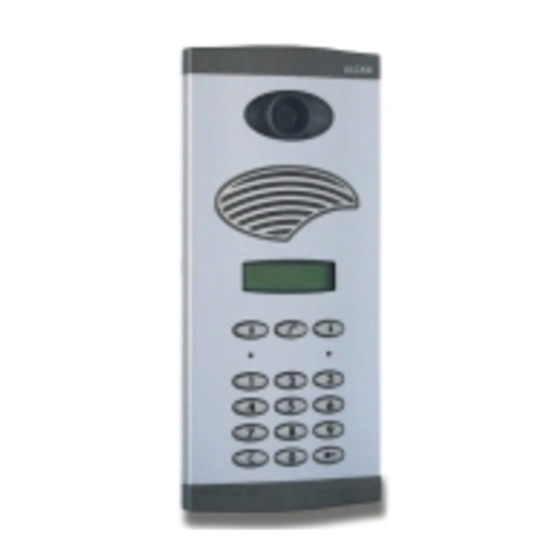

  • Page 1 DIGITAL DOOR ENTRY SYSTEM DIGITAL CONCIERGE SYSTEM WITH KEYPAD USER'S MANUAL...
  • Page 2 ENGLISH .......14 .....25...

  • Page 14: Table Of Contents

    ING - 14 DIGITAL CONCIERGE SYSTEM WITH KEYPAD INDEX GENERAL CHARACTERISTICS ..............................15 DESCRIPTION OF FEATURES OF THE CONCIERGE UNIT ......................16 ADJUSTMENT OPTIONS OF THE MONITOR HOW THE SYSTEM WORKS ..............................17 CONCIERGE UNIT DEACTIVATED..........................17 ACTIVATING / DEACTIVATING THE CONCIERGE UNIT....................18 CONCIERGE UNIT ACTIVATED.............................18 RECEIVING CALLS ............................19 CALLS MADE FROM ENTRANCE PANELS .....................19 CALLS MADE FROM DWELLINGS ......................20...

  • Page 15: General Characteristics

    DIGITAL CONCIERGE SYSTEM WITH KEYPAD ING - 15 GENERAL CHARACTERISTICS ALCAD’s digital concierge system provides a simple, handy way of controlling entry to a building or to a housing compound. The system can: Centralize calls made from the entrance panel.

  • Page 16: Description Of Features Of The Concierge Unit

    ING - 16 DIGITAL CONCIERGE SYSTEM WITH KEYPAD DESCRIPTION OF THE FEATURES OF THE CONCIERGE UNIT The multiple-function keys depend on the configuration of the concierge unit as well as on the state of the concierge unit at the moment that a given key is pressed.

  • Page 17: Adjustment Options Of The Monitor

    DIGITAL CONCIERGE SYSTEM WITH KEYPAD ING - 17 ADJUSTMENT OPTIONS OF THE MONITOR ADJUSTING THE CONTRAST AND BRILLIANCE OF THE IMAGE The characteristics of brilliance and contrast of the image can be adjusted from the monitor. To do so, simply adjust the controls (6) and (7) of the monitor.

  • Page 18: Activating / Deactivating The Concierge Unit

    ING - 18 DIGITAL CONCIERGE SYSTEM WITH KEYPAD ACTIVATING / DEACTIVATING THE CONCIERGE UNIT The steps required to activate and deactivate the concierge unit are the same. When the unit is deactivated, the steps will activate it; when the unit is activated, the same steps will deactivate it. With the concierge unit on standby, press the key.

  • Page 19: Receiving Calls

    DIGITAL CONCIERGE SYSTEM WITH KEYPAD RECEIVING CALLS CALLS MADE FROM ENTRANCE PANELS When a call is made from an entrance panel, it will ring on the concierge telephone/monitor. When the concierge unit is equipped with a monitor the screen will switch on and show the image of the person who has called. If there is more than one point of entry, the call tone will vary, depending on which entrance panel the call is made from.

  • Page 20: Calls Made From Dwellings

    ING - 20 DIGITAL CONCIERGE SYSTEM WITH KEYPAD CALLS MADE FROM DWELLINGS When a call is made from one of the dwellings, it will ring on the concierge telephone/monitor. The red indicator will light up. The call tone will differ from that of calls made from entrance panels. The concierge unit display will show the code of the dwelling from which the call is being made.

  • Page 21: Calling Dwellings From The Concierge Unit

    DIGITAL CONCIERGE SYSTEM WITH KEYPAD ING - 21 CALLING DWELLINGS FROM THE CONCIERGE UNIT Pick up the handset of the telephone/monitor. Enter the code corresponding to the dwelling with which you wish to establish communication. Press the key. The red indicator will light up. The telephone/monitor will ring in the dwelling.

  • Page 22: Putting A Call Made From An Entrance Panel Through To A Dwelling

    ING - 22 DIGITAL CONCIERGE SYSTEM WITH KEYPAD PUTTING A CALL MADE FROM AN ENTRANCE PANEL THROUGH TO A DWELLING When a call is received from the entrance panel, answer it as already indicated in this manual ("Receiving calls" page 19). If you wish call the dwelling whose code is indicated in the display, press the key.

  • Page 23: Record Of Unanswered Calls

    DIGITAL CONCIERGE SYSTEM WITH KEYPAD ING - 23 RECORD OF UNANSWERED CALLS The concierge unit can store as many as 125 unanswered calls. Unanswered calls include those which are made from a dwelling and which fail to establish communication with the concierge unit. An unanswered call is recorded in the following cases: The time allowed for answering expires.
  • Page 24 ING - 24 DIGITAL CONCIERGE SYSTEM WITH KEYPAD CONSULTING THE RECORD OF UNANSWERED CALLS Red indicator Blinking Dwelling does not answer Dwelling with code 26 Call dwelling Once the comunication has been established Delete value Value deleted of the record Next value...

  • Page 36: Concierge Unit Configuration Table

    TABLE SHOWING CONFIGURATION OF THE CONCIERGE (To be completed by the installer) Description Installation value Operating mode Normal mode Dwellings only Record of unanswered calls Allways Only activated Never CONCIERGE code DIRECTORY OF POINTS OF ENTRY Panel number Point of entry Comments...

  • Page 37: Directory Of Dwellings

    DIRECTORY OF DWELLINGS - Dwelling Code Name Comments...
  • Page 38 Dwelling Code Name Comments...
  • Page 39 Dwelling Code Name Comments...
