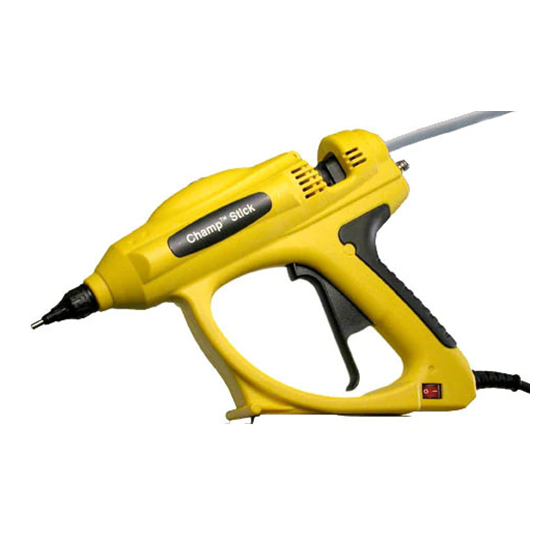

Model: CHAMP™STICK 400
Glue stick size: ½"(ø11.0~ ø11.5mm)
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY!
W
:
ARNING
-When using this hot melt glue gun, always follow basic safety precautions. This will reduce the possibility of
accidental injury due to burns or electrical shock.
-Always wear safety glasses, protective gloves, and protective clothing with long sleeve shirts and pants.
-This product must have a ground connection.
Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:
Champ™ Stick 400
Operating Instructions
Hot Melt Glue Gun
Glue Machinery Part # G25E03-001
Specification: AC 120 V 400W
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
www.gluemachinery.com
Hot Melt Stick Gun
