ChampStick
High Production - Heavy Duty - Industrial
½"Hot Melt Stick Gun
Part # G25E03-001
Specification: AC 120V - 400W Glue Stick size:
G25A77-002- clear glue stick is general purpose adhesive is for assembly and packaging
G25A77-003 – yellow glue stick adhesive is for aggressive bonding in packaging and product
assembly.
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY!
W
:
ARNING
-When using this hot melt glue gun, always follow basic safety precautions. This will reduce the possibility of accidental injury
due to burns or electrical shock.
-Always wear safety glasses, protective gloves, and protective clothing with long sleeve shirts and pants. This product must
have a ground connection.
Toll Free 1-888-202 2468 | Phone: 410-761-2727 | Fax: 410-761-5127
400
TM
Manual
Glue Machinery Corporation
4234 Boston St, Baltimore, Maryland 21224
Email:
info@gluemachinery.com
Champ Stick
Part # G25E03-001
7/16"x 11 ¾"
TM
| GlueMachinery.com
TM
400 Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G25E03-001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Glue Machinery G25E03-001

Summary of Contents for Glue Machinery G25E03-001

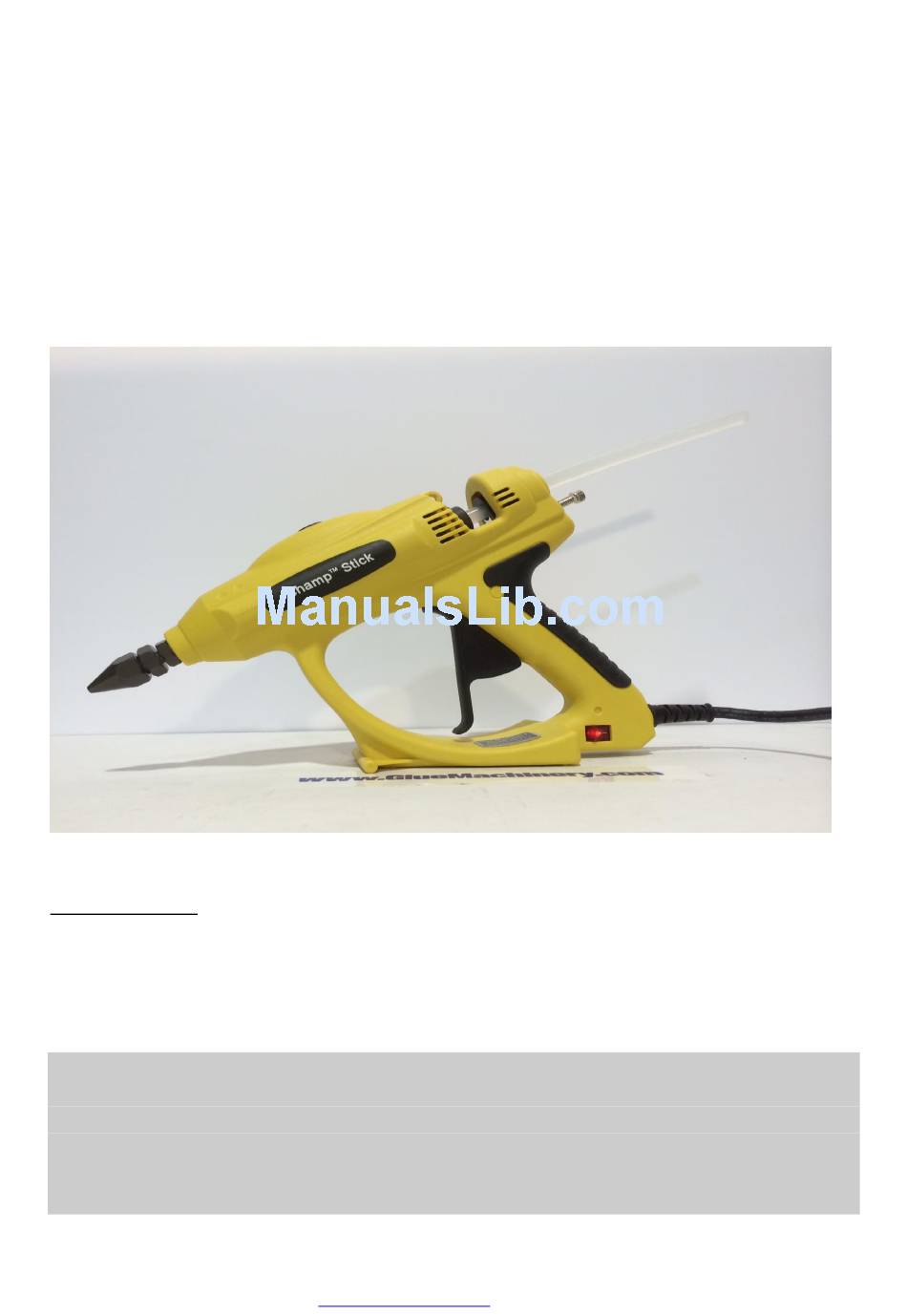

  • Page 1 Champ Stick 400 Manual Part # G25E03-001 ChampStick High Production - Heavy Duty - Industrial ½″Hot Melt Stick Gun Manual Part # G25E03-001 Specification: AC 120V - 400W Glue Stick size: 7/16″x 11 ¾″ G25A77-002- clear glue stick is general purpose adhesive is for assembly and packaging G25A77-003 –...
  • Page 2 Champ Stick 400 Manual Part # G25E03-001 Read all Safety Instructions: Never use the tool if it is damaged in any way. Do not attempt to remove unused portion of a glue stick from the tool. Never immerse glue gun in water or other liquids for any reason.

  • Page 3: Operation

    The adhesive can harden before you have extruded the required amount. Using a higher volume hot melt system from Glue Machinery Corporation such as the Champ 3, 600, 10 or Economelt can improve output, compression and resulting bond.

  • Page 4: Specifications

    Champ Stick 400 Manual Part # G25E03-001 Specifications: Connection 120VAC=3.3 amp/1ph/50-60Hz. Heating capacity 400W Temperature control Adjustable thermostat Approximate Heat-up time Approx. 10-15 min Adjustable thermostat control (284 F- 446 Weight: Champ Stick 400 1.8 lbs Cord Weight/length: .6 lbs. / 7.6in cord length 1 ounce (7/16″x 11 ¾″)

  • Page 5: Preventive Maintenance

    Champ Stick 400 Manual Part # G25E03-001 Preventive Maintenance 1. To prevent the clogging of the glue gun, keep the feed mechanism and melt chamber free from dirt and other foreign debris. Store unused glue sticks in a clean environment.
  • Page 6 Champ Stick 400 Manual Part # G25E03-001 CHAMP STICK 400 features  400 watts of power. high glue melt rate  Durable light weight ergonomic handle  Easy pull 4 finger trigger, with ergonomic handle. Stroke adjustor allows user to pre-set the output of glue per trigger pull.
  • Page 7 Champ Stick 400 Manual Part # G25E03-001 Standard and Additional nozzle parts G25E01-003- Adapter- Nozzle connection (.157″) (Standard) G25E01-004- Nozzle- (.118″) Metal Nozzle Tip (Standard) G25E01-011- Nozzle- (.790″) Metal Nozzle Tip G25E01-002- Nozzle- (.118″) (rubber) G25E01-005- Extension Nozzle, ( 1.25″) Length Tip, Single Orifice, (.790″) G25E01-006- Extension Nozzle, ( 1.25″) Length Tip, Single Orifice (.118″)
  • Page 8 Champ Stick 400 Manual Part # G25E03-001 CAMP STICK 400 Schematic Diagrams Name Part No. Handle Set G25E35-001 Trigger Set G25E76-001 Heater Set G25E50-001 Glue Machinery Corporation 4234 Boston St, Baltimore, Maryland 21224 Toll Free 1-888-202 2468 | Phone: 410-761-2727 | Fax: 410-761-5127 Email: info@gluemachinery.com...
  • Page 9 Champ Stick 400 Manual Part # G25E03-001 Internal Components Schematic Number 9 in the schematic shows the power cord. The photo to the left shows the new power cord strain relief spring. Number 9* in the chart and Part number G25E42-001.
  • Page 10 Champ Stick 400 Manual Part # G25E03-001 Examples 1, 2, and 3 show you how to install the power cord strain relief spring provided in contents of the box. Part Number is G25E42-001. This photo to the left shows the finished example of the power cord strain relief spring installed.

  • Page 11: Electrical Wiring Diagram

    Champ Stick 400 Manual Part # G25E03-001  Electrical wiring diagram: 1 20V 200W Heater Thermostat Fuse Heater 1 20V 200W AC 1 00~1 20V ON/OFF switch Glue Machinery Corporation 4234 Boston St, Baltimore, Maryland 21224 Toll Free 1-888-202 2468 | Phone: 410-761-2727 | Fax: 410-761-5127 Email: info@gluemachinery.com...

  • Page 12: Customer Service Policies

     Returns are acceptable at the sole discretion of Glue Machinery Corporation. No equipment or goods are to be returned without a Glue Machinery return authorization number. If an item is deemed returnable, a re-stocking fee of up to 50% will apply to special or non-stock items.

  • Page 13: Technical Service Policies

    Customer is responsible for all freight charges. Installation Supervision:  Glue Machinery Corporation provides in plant technical supervision at a rate of $850.00 per day, plus expenses.  Two weeks notice is necessary to schedule Glue Machinery Corporation technical personnel.

  • Page 14: Terms And Conditions Of Sale

    Champ Stick 400 Manual Part # G25E03-001 TERMS AND CONDITIONS OF SALE ENTIRE AGREEMENT: These Terms and Conditions, together with terms on the face of Seller’s invoice, shall constitute the entire and exclusive contract (“Agreement”) between Seller and Buyer. This Agreement is intended to be a final expression of the parties’...
  • Page 15 Champ Stick 400 Manual Part # G25E03-001 charges) in effect as of the date of shipment. All prices and extras, including all freight and transportation charges, are subject to change by Seller at any time without prior notice. In addition, all prices are subject to the addition of an applicable use, sales, excise or other taxes levied by any federal, state or local authority, and Buyer shall be responsible for any such taxes.
  • Page 16 Champ Stick 400 Manual Part # G25E03-001 FREIGHT: Buyer is responsible for all freight and forwarding charges, import fees, customs fees, duties, taxes, etc. LIMITED WARRANTY AND DISCLAIMERS: All equipment and goods are warranted by the Seller to be free from defects in material and workmanship as follows: All items except electrical components and hot melt hoses for a period of six (6) months from date of shipment or one thousand (1,000) hours of use, whichever occurs first.
  • Page 17 The documents and related images published on GlueMachinery.com or other advertising materials could include technical inaccuracies or typographical errors. Glue Machinery Corporation reserves the right to make improvements and/or changes to GlueMachinery.com at any time.
  • Page 18 Champ Stick 400 Manual Part # G25E03-001 such as to preclude the remedying of a breach of any warranty by replacement, Seller shall refund to Buyer, by issuance of a credit or otherwise, the applicable part of the purchase price theretofore paid to Seller.
  • Page 19 Champ Stick 400 Manual Part # G25E03-001 prohibition, failure, interruption or delay in manufacture or delivery, Seller may, at its option, extend the delivery time or cancel the order in whole or in part. IN NO EVENT SHALL SELLER BE LIABLE UNDER ANY CIRCUMSTANCES FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR CLAIMS OF ANY NATURE RESULTING FROM FAILURE OR DELAY IN DELIVERY.

  • Page 20: Governing Law

    Champ Stick 400 Manual Part # G25E03-001 shareholders and employees (collectively “Seller”) from and against any and all manner of actions, claims, demands, damages, losses, liabilities, penalties, judgments, costs and expenses of any kind whatsoever (including without limitation, attorneys’ and consultants’...
  • Page 21 Champ Stick 400 Manual Part # G25E03-001 WAIVER OF BREACH AND SEVERABILITY: Any failure by Seller at any time, or from time to time, to enforce or require the strict keeping and performance by Buyer of any of the terms or conditions of this Agreement shall not constitute a waiver by Seller of a...
