- Page 1 Operating Instructions for Champ™3/Champ™5 Champ ™ Champ™ 5 INDUSTRIAL HOT MELT GLUE GUN Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email: info@gluemachinery.com...
-
Page 2: Table Of Contents
General Safety Instructions .......... Start-up ................Operation ................ Additional Information ........... 10 Spare Parts Legend Champ™3…........11 Spare Parts Legend Champ™5........13 Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:... -
Page 3: Product Description
Weight hand gun 750 g 1200 g Accessories • Special nozzles available on request. Please ask for our accessory nozzle leaflet. Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:... -
Page 4: Trouble-Shooting
5 Hot Melt Glue Gun ™ ™ Trouble-Shooting Possible Fault Signals and Assistance in Trouble-Shooting In case of damage, send glue gun to Glue Machinery Corporation™. We will not be responsible for any repair made by the customer. Problems Possible Causes/ Trouble-Shooting Faulty Operation •... -
Page 5: General Safety Instructions
Hot surfaces such as machine parts, tanks or materials, but also hot liquids cannot always be perceived. The utmost caution is advised when this symbol is attached to a component. Always wear protective gloves when you have to touch hot surfaces! Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com... - Page 6 - Never work without having mounted a nozzle - Stop using the gun, if casing is damaged due to shock, breakage or heavy wear. Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:...
-
Page 7: Start-Up
The quantity to be applied can be determined by pressing the trigger: the longer you press, the more glue comes out. The cover must only be opened when the gun has warmed up! Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com... - Page 8 Never start working without having mounted a nozzle! Do not direct glue jet towards people! Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:...
-
Page 9: Operation
If the gun is used frequently, to ensure peak performance and durability, it is important that it be maintained and serviced regularly. To set a date, please call our service department. 1-888-202-2468 Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com... -
Page 10: Additional Information
An original version of the operating instructions for the glue gun, in the national language of the user - here English - is enclosed. Date: December 2001 Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:... -
Page 11: Spare Parts Legend Champ™3

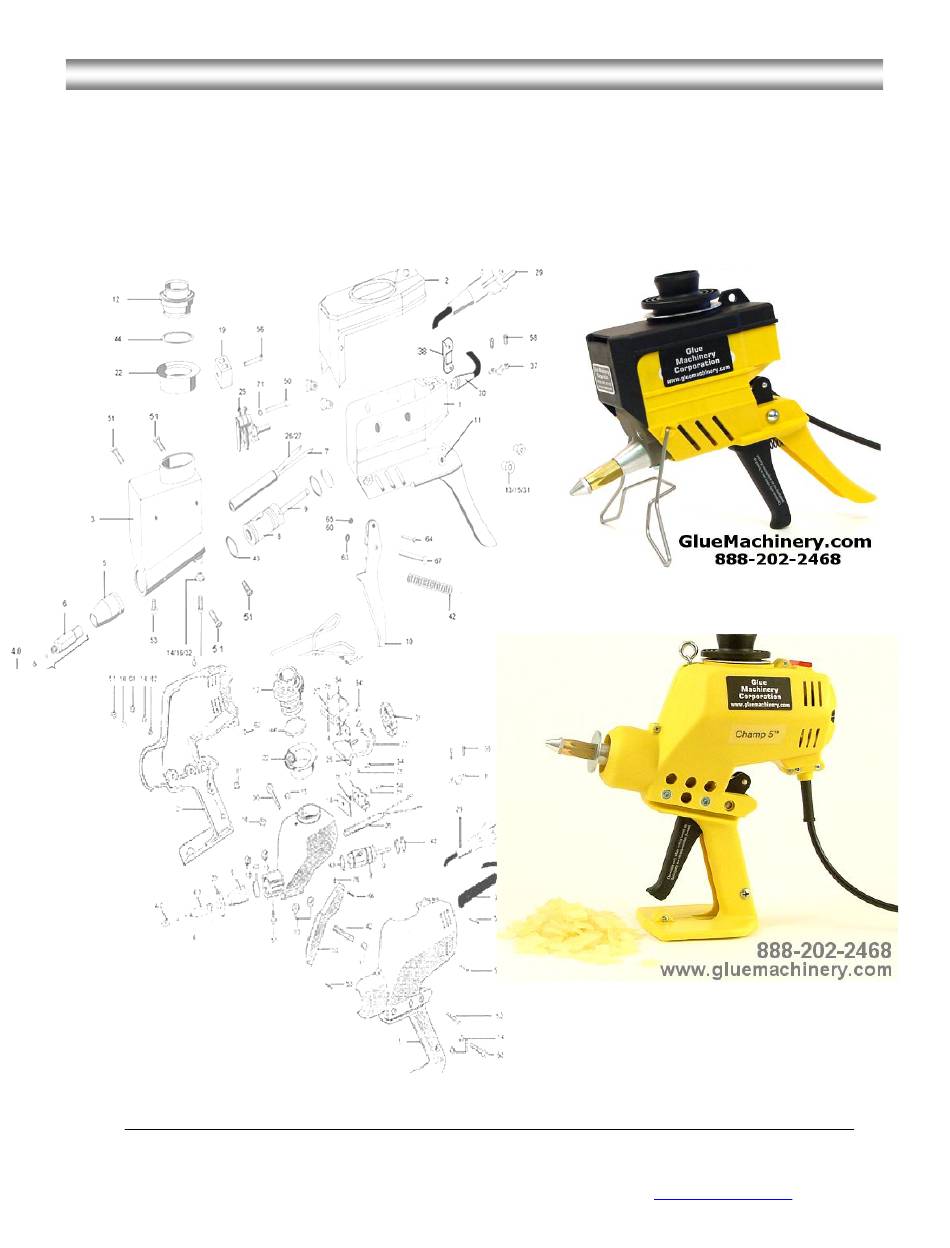

Champ 3 & Champ 5 Hot Melt Glue Gun ™ ™ Spare Parts Champ™3 Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:... - Page 12 Champ 3 & Champ 5 Hot Melt Glue Gun ™ ™ SPARE PARTS – CHAMP™3 01-02-2002 Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:...
-
Page 13: Spare Parts Legend Champ™5
3879 Cyl. Screw 3788 C Cyl. Screw 3818 Ring 3880 Washer 3802 Adaptor sleeve 3814 Adaptor sleeve 3867 Rivet Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:... - Page 14 3 & Champ 5 Hot Melt Glue Gun ™ ™ SPARE PARTS – CHAMP™5 01-02-2002 SPARE PARTS - CHAMP™5 01-01-2002 Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:...
- Page 15 Screw 3x18 3797 Cyl. Screw 3798 Screw 3x16 3799 Screw 3800 3801 3802 Rivet 3803 Washer 3818 Ring NOTES: Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:...
- Page 16 Champ 3 & Champ 5 Hot Melt Glue Gun ™ ™ Glue Machinery Corporation™ 4234 Boston St, Baltimore, Maryland 21224 info@gluemachinery.com Toll Free 1-888-202-2468 | Phone: 410-761-2727 | Fax: 410-761-5127 | Email:...
