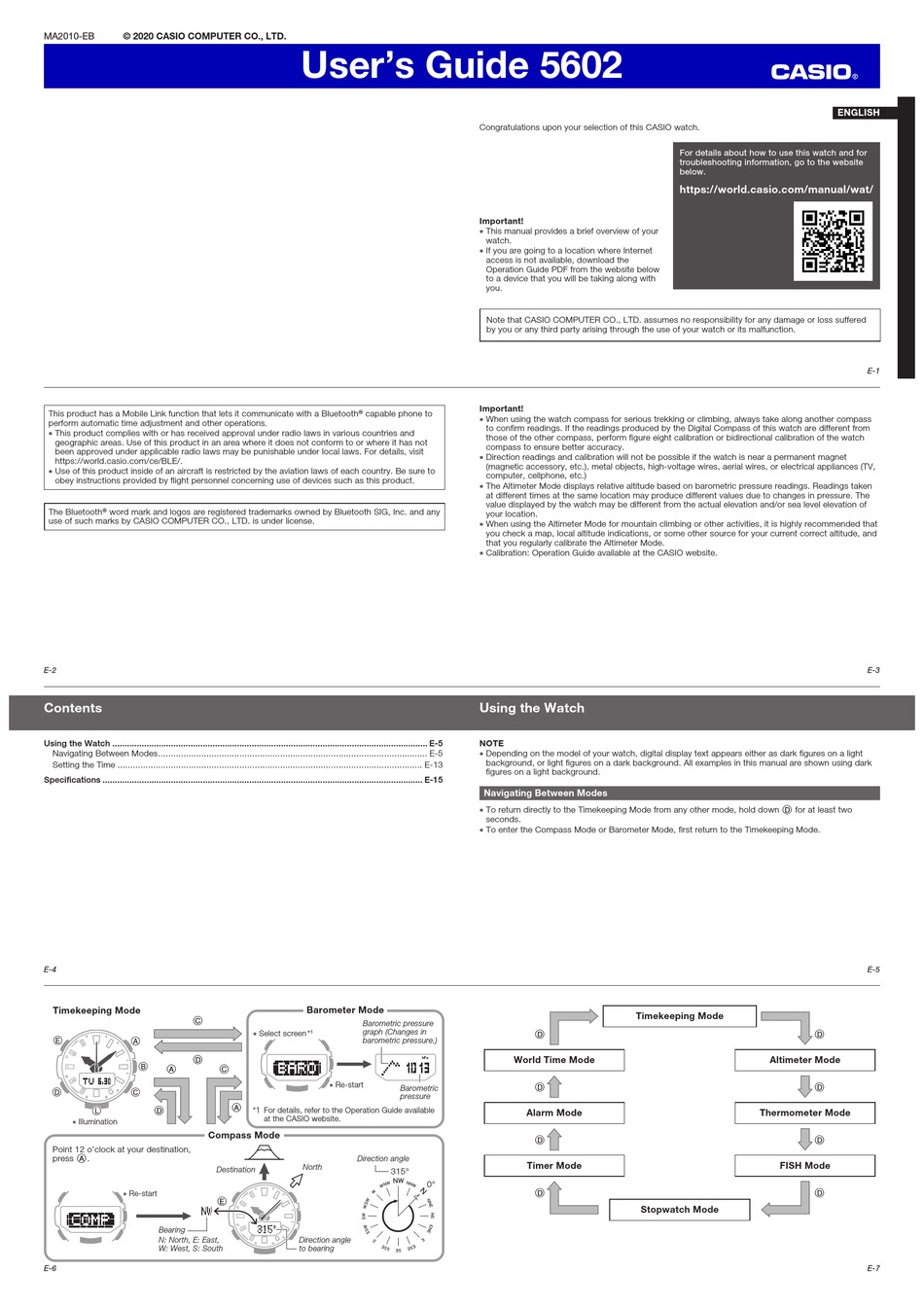

Casio 5602 User Manual

MA2010-EB © 2020 CASIO COMPUTER CO., LTD.
This product has a Mobile Link function that lets it communicate with a Bluetooth
perform automatic time adjustment and other operations.
This product complies with or has received approval under radio laws in various countries and
geographic areas. Use of this product in an area where it does not conform to or where it has not
been approved under applicable radio laws may be punishable under local laws. For details, visit
https://world.casio.com/ce/BLE/.
Use of this product inside of an aircraft is restricted by the aviation laws of each country. Be sure to
obey instructions provided by flight personnel concerning use of devices such as this product.
The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by CASIO COMPUTER CO., LTD. is under license.
E-2
Contents
Using the Watch ................................................................................................................................. E-5
Navigating Between Modes .......................................................................................................... E-5
Setting the Time ........................................................................................................................ E-13
Specifications ................................................................................................................................... E-15
Operating Precautions ...................................................................................................................... E-21
User Maintenance ............................................................................................................................. E-28
E-4
Timekeeping Mode
C
D
A
D
Illumination
Compass Mode
Point 12 o'clock at your destination,
press A.
Destination
Re-start
E
Bearing
N: North, E: East,
W: West, S: South
E-6
User's Guide 5602
® capable phone to
Barometer Mode
Barometric pressure
graph (Changes in
Select screen * 1
barometric pressure.)
C
Re-start
A
*1 For details, refer to the Operation Guide available
at the CASIO website.
Direction angle
North
315°
Direction angle
to bearing
Congratulations upon your selection of this CASIO watch.
To ensure that this watch provides you with the
years of service for which it is designed, carefully
read and follow the instructions in this manual,
especially the information under "Operating
Precautions" and "User Maintenance".
Be sure to keep all user documentation handy
for future reference.
Important!
This manual provides a brief overview of your
watch.
If you are going to a location where Internet
access is not available, download the
Operation Guide PDF from the website below
to a device that you will be taking along with
you.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage or loss suffered
by you or any third party arising through the use of your watch or its malfunction.
Important!
When using the watch compass for serious trekking or climbing, always take along another compass
to confirm readings. If the readings produced by the Digital Compass of this watch are different from
those of the other compass, perform figure eight calibration or bidirectional calibration of the watch
compass to ensure better accuracy.
Direction readings and calibration will not be possible if the watch is near a permanent magnet
(magnetic accessory, etc.), metal objects, high-voltage wires, aerial wires, or electrical appliances (TV,
computer, cellphone, etc.)
The Altimeter Mode displays relative altitude based on barometric pressure readings. Readings taken
at different times at the same location may produce different values due to changes in pressure. The
value displayed by the watch may be different from the actual elevation and/or sea level elevation of
your location.
When using the Altimeter Mode for mountain climbing or other activities, it is highly recommended that
you check a map, local altitude indications, or some other source for your current correct altitude, and
that you regularly calibrate the Altimeter Mode.
Calibration: Operation Guide available at the CASIO website.
Using the Watch
NOTE
Depending on the model of your watch, digital display text appears either as dark figures on a light
background, or light figures on a dark background. All examples in this manual are shown using dark
figures on a light background.
Navigating Between Modes
To return directly to the Timekeeping Mode from any other mode, hold down D for at least two
seconds.
To enter the Compass Mode or Barometer Mode, first return to the Timekeeping Mode.
D
World Time Mode
D
Barometric
pressure
Alarm Mode
D
Timer Mode
0°
D
For details about how to use this watch and for
troubleshooting information, go to the website
below.
https://world.casio.com/manual/wat/
Timekeeping Mode
Altimeter Mode
Thermometer Mode
FISH Mode
Stopwatch Mode
ENGLISH
E-1
E-3
E-5
D
D
D
D
E-7
