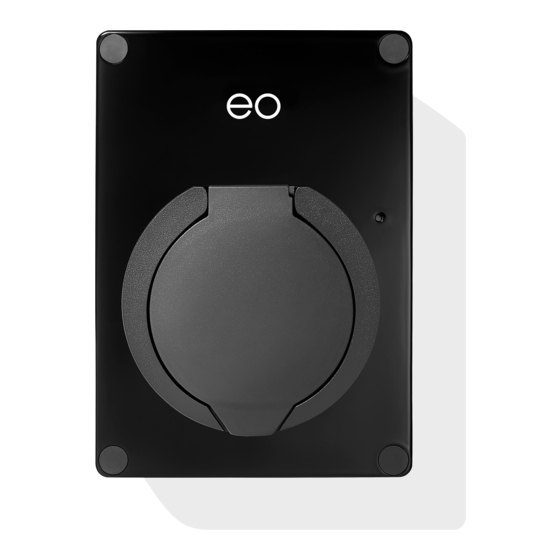

EO Mini Pro 2 User Manual

EO Mini Pro 2

User Manual.

Table of Contents

Need help?

Do you have a question about the Mini Pro 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for EO Mini Pro 2

Page 2: Table Of Contents
EO Mini Pro 2 User Manual Contents 1.0 Introduction (p2) 2.0 Charging a vehicle (p3) 3.0 Main screen (p5) 4.0 Charging Options (p9) 5.0 Session Details (p14) 6.0 Menu Options (p16) 7.0 Troubleshooting Guide (p18) 8.0 Further Technical Support (p20)
Page 3: Introduction (P2)
EO Mini Pro 2 User Manual Introduction This document details the user instructions for the EO Mini Pro 2 solution. It details how to use both the charging station as well as the key features of the associated EO Smart Home app.
Page 5 Ensure that the EO Mini Pro 2 is powered and that the Status LED is pulsing blue. Insert the cable into the vehicle first. Insert the other end of the cable into the EO Mini Pro 2. The vehicle should start to charge immediately or will charge at the scheduled time.
Page 7 EO Mini Pro 2 User Manual Main Screen. No Vehicle Vehicle Connected. Connected. This is the default screen of the The only option available is to When a vehicle is connected EO Smart Home app. It presents disable the charging station –...
Page 8 EO Mini Pro 2 User Manual Disable Charger. State of Charge. It is possible to disable the charger so that if a vehicle is connected, then it won’t When a vehicle is charging or plugged in, then it is possible to set the state of charge.
Page 9 EO Mini Pro 2 User Manual Pause/Play. When a vehicle is connected to the EO Mini Pro 2 then it is possible to pause and resume the charging session by pressing the pause and play buttons. The pause action or play action shall operate until the next schedule boundary.
Page 11 EO Mini Pro 2 User Manual By swiping left from the main screen, the charging options are shown. This screen allows the user to define the charging windows when they want the vehicle to charge. There are three options: Off Peak 2.
Page 12 EO Mini Pro 2 User Manual Off-Peak. Selecting a specific Energy Tariff It is possible to define a EO Charging have integrated with two UK Energy suppliers charging window where the to offer two EV biased electricity deals: electricity is cheap e.g. 00:30 to Octopus Go 04:30.
Page 13 EO Mini Pro 2 User Manual Solar Charging. It is possible to define a time window during which the vehicle will charge according to the output of the solar array: This will charge your vehicle at the same rate as the output of the solar array. Any house consumption shall be taken from the power grid.
Page 14 EO Mini Pro 2 User Manual Scheduled Charging. It is possible to define a time window when the vehicle can charge at full rate. This could used in a variety of scenarios: Define a small window when the EV driver returns...
Page 16 EO Mini Pro 2 User Manual Session Details. This screen is designed to present detailed information about the charging sessions to the end user. It is designed to help the end user make informed decisions about when to charge. For example, the end user could look at this...
Page 18 EO Mini Pro 2 User Manual Menu Options Charging Session History. From the menu (three horizontal It is possible to review the charging session history from the app. bars on the left of the app) it is possible to select other options...
Page 20 What do I do if I change my Wi-Fi router? It is possible to change the Wi-Fi settings of the EO Mini Pro by using the “Update Wi-Fi Network” function on the EO Smart Home app. © EO Charging 2020...
Page 22 EO Mini Pro 2 User Manual All EO Charging technical documentation is published in the EO Resource Centre, this is found at: www.eocharging.com/resource-centre The EO Support team can be reached at: support@eocharging.com +44 (0) 333 77 20383 © EO Charging 2020...
