Barco BARCOGRAPHICS 9200 Specifications

B G
ARCO
Ultra-High Brightness, High Resolution
LCD Light-Valve Graphics Projector

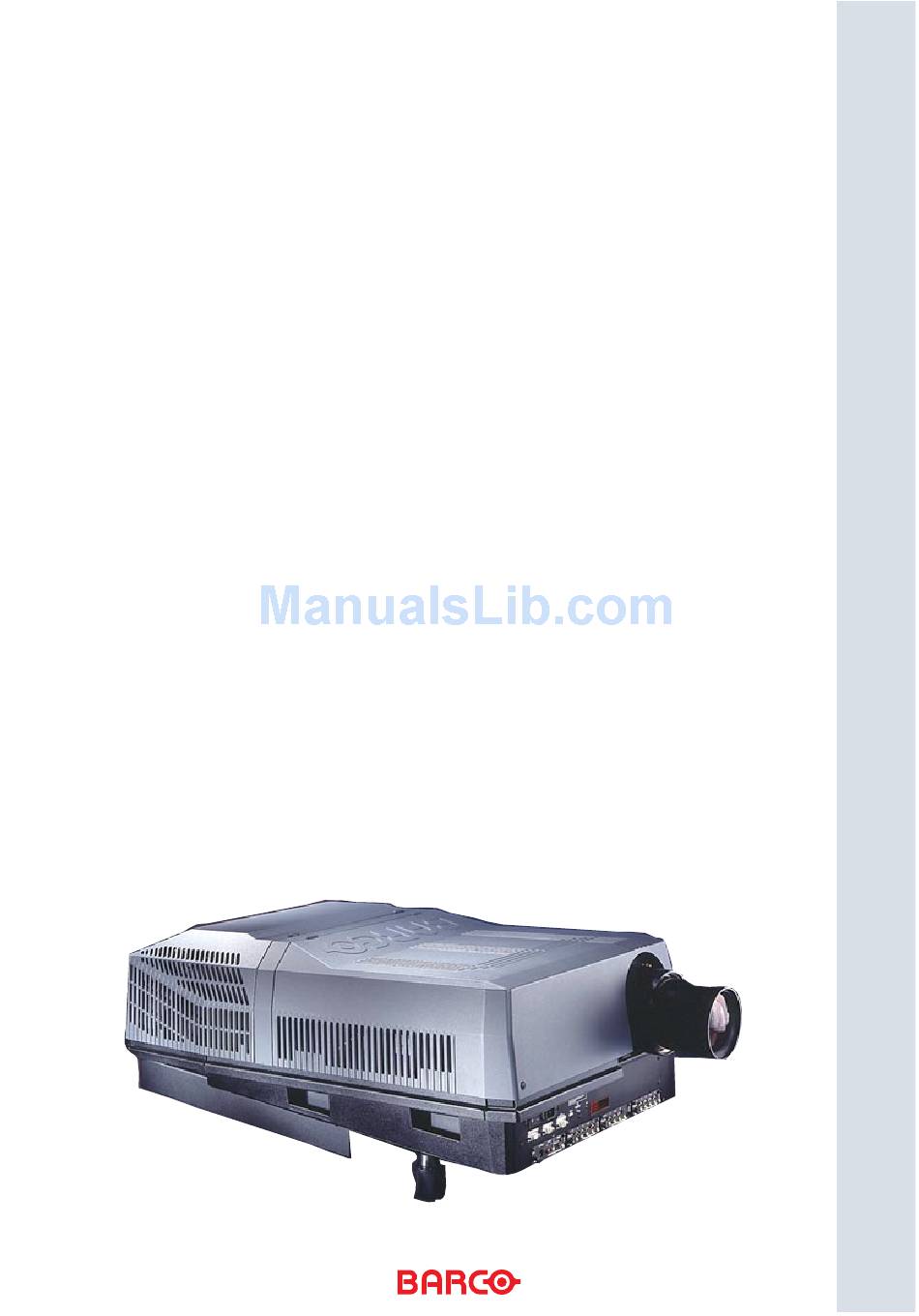

The BarcoGraphics 9200 is an
ultra-high brightness LCD light-
valve graphics projector.
Equipped with an extremely
powerful, state-of-the-art optical
system, based on a 1500 Watt
metal-halide lamp and high
resolution XGA LCD panels, the
BarcoGraphics 9200 offers an
incredible light output of 4,000
lumens full white. This makes it a
powerful display device for
demanding applications in high
ambient light conditions such as
simulation, CAD/CAM, process
control and virtual reality.
RAPHICS 9200
Unequalled compatibility
• Video sources (PAL, SECAM, NTSC 3.58, NTSC 4.43)
in Composite, S-VHS, Component (Y, R-Y, B-Y) and
RGB format
• Most computer signals from PC graphics boards: CGA,
EGA, VGA, S-VGA, XGA, up to S-XGA (1,280 x 1,024
pixels)
• Most Macintosh computers
• Electronic workstations with a resolution up to 1,280 x
1,024 pixels
• Most computer sources with a pixel clock <135 MHz
Extremely high brightness optical system
The BarcoGraphics 9200 is based on an innovative,
highly efficient optical system, which is capable of
delivering extremely bright projected images on
screens up to 15 m (50 ft.) wide.
• Powerful 1500 Watt metal-halide lamp
• Three active matrix 5.8" LCD panels with a resolution
of 1,024 x 768 pixels
Ultimate flexibility
• Wide range of high definition lenses
• User adjustable geometry corrections (keystone, image
size,shift...)
• Built-in test patterns
• Freeze facility
• Can be easily installed in table or ceiling mount
configuration and can project onto any front or rear
screen
• Dual or triple mount configurations
