th
One Blue Hill Plaza, 16
Floor, PO Box 1546
Pearl River, NY 10965
1-800-PC-AMERICA, 1-800-722-6374
(Voice) 845-920-0800 (Fax) 845-920-0880

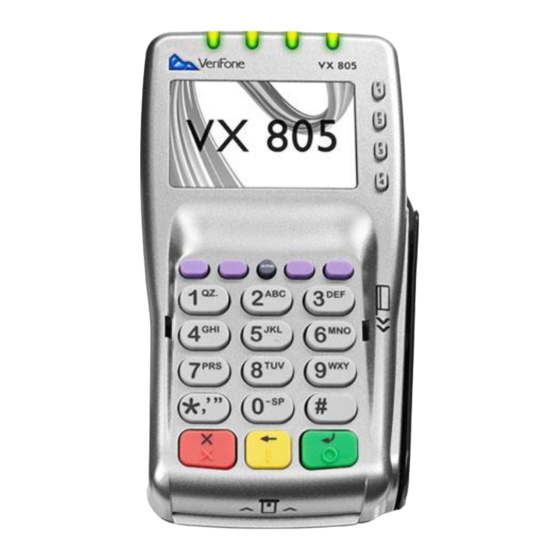

Verifone VX 805 with Chase Paymentech
through DataCap
This document provides step-by-step instructions on installing the Verifone VX 805, configuring settings,
and processing transactions in CRE/RPE using Chase Paymentech through DataCap. You must be on
version 12.70160 or higher to use this processor with the VX 805.
Note:
You must have a Deployment ID for the computer acting as the NetEpay server created prior to
attempting this installation. You must also have a License for each station that is processing
transactions through the NetEpay server. If you do not have them, please contact your reseller or
processor for information on how to obtain them.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX 805 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VeriFone VX 805

Summary of Contents for VeriFone VX 805

  • Page 1 Verifone VX 805 with Chase Paymentech through DataCap This document provides step-by-step instructions on installing the Verifone VX 805, configuring settings, and processing transactions in CRE/RPE using Chase Paymentech through DataCap. You must be on version 12.70160 or higher to use this processor with the VX 805.

  • Page 2: Table Of Contents

    REVISION HISTORY INSTALLING THE VX 805 DRIVER INSTALLING DSIEMVUS CONTROL (REQUIRED ON EACH PC USING A VX 805) INSTALLING DSIPDCX CONTROL (REQUIRED ON EACH PC USING A VX 805) INSTALLING NETEPAY (REQUIRED ON PC THAT WILL ACT AS DATACAP SERVER ONLY) CONFIGURING SETTINGS IN CRE/RPE (REQUIRED ON EACH PC THAT WILL PROCESS CARD PAYMENTS)21 CONFIGURING CASH BACK WITH A DEBIT CARD &...

  • Page 3: Revision History

     It is recommended to install the NETePay Software on a back office computer that can act as a server.  The VX 805 driver, dsiPDCX software, and dsiEMVUS software needs to be installed on each station that will process card payments.

  • Page 4: Installing The Vx 805 Driver

    Installing the VX 805 driver Download the VX 805 driver from the following link: http://download2.pcamerica.com/drivers/Manufacturer/Verifone/VX805_Driver.zip 1. Locate the downloaded file VX805_Driver.zip. Right- click on the file and extract its contents. 2. Right-click on the VX805_Driver.exe file that was just extracted and click on Run as administrator.
  • Page 5 4. Wait while the driver installs. When it is finished the installer window will close automatically. 5. On the VX 805, take the USB connector, and connect it to any available USB port on the computer. P a g e...
  • Page 6 6. The screen should display a Welcome message when fully booted. 7. In Windows, go to Control Panel > Device Manager. 8. Expand the Ports branch. You should now see the VX 805 with a COM port assigned to it in parenthesis. This is usually configured for COM9.
  • Page 7 9. In Windows Control Panel > Programs and Features, 10. An entry for VeriFone Vx Installer version should also be created if the driver installed correctly. P a g e...

  • Page 8: Installing Dsiemvus Control (Required On Each Pc Using A Vx 805)

    Installing dsiEMVUS control (required on each PC using a VX 805) Download the latest dsiEMVUS control software for Chase from the following link, Select NETePay5.0 to expand the list, and select Paymentech Host EMV - PNH. 11. Under dsiEMVUS 1.##, click on Download.
  • Page 9 14. Accept the agreement and click Next. 15. Enter a User Name and Organization then click Next. 16. Click on Install. P a g e...
  • Page 10 17. Click on Finish. 18. Click on Yes when prompted to restart. 10 | P a g e...

  • Page 11: Installing Dsipdcx Control (Required On Each Pc Using A Vx 805)

    Installing dsiPDCX control (required on each PC using a VX 805) Download the latest dsiPDCX control software for Chase from the following link, Select NETePay5.0 to expand the list, and select Paymentech Host EMV - PNH. 1. Under dsiPDCX 1.4*, click on Download.
  • Page 12 4. Accept the agreement and click Next. 5. Enter a User Name and Organization then click Next. 6. Click Install. 12 | P a g e...
  • Page 13 7. Click Finish. 8. Click on Yes when prompted to restart. 13 | P a g e...

  • Page 14: Installing Netepay (Required On Pc That Will Act As Datacap Server Only)

    Installing NETePay (required on PC that will act as DataCap server only) If the Computer that is running NetEpay is turned off or NetEpay is running on that computer, all other stations will not be able to process Credit Cards. Download the latest NETePay for Chase from the following link, Select NETePay5.0 to expand the list, and select Paymentech Host EMV - PNH.
  • Page 15 4. Click Next. 5. Accept the agreement and click Next. 6. Enter a User Name and Organization then click Next. 15 | P a g e...
  • Page 16 7. Click Install. 8. Click Finish. 9. Click on Yes when prompted to restart. 16 | P a g e...
  • Page 17 10. In Programs and Features you should now see an entry for the NETePay PaymentTech host installation. 11. Locate DSINetConnectIP_Host.exe. It can typically be found at the following path on your computer after the NETePay installation: C:\Program Files (x86)\Datacap Systems\NETePay Right-click on the file DSINetConnectIP_Host.exe and select Run as...
  • Page 18 13. If NETePay is successful in obtaining a serial number but is unable to locate merchant parameters for the assigned serial number, you will see the dialog box on the left. The dialog contains the 10- digit serial number that was automatically assigned to NETePay.
  • Page 19 16. You will see the Setup Merchant Parameters screen. Click Load New Parameters. 17. Click Yes to Attempt Activation. 18. Click I Have My Deployment ID. 19 | P a g e...
  • Page 20 19. In the dialog box that displays, enter the Deployment ID you received, then click OK. 20. Click Yes, This is the Correct Merchant. If the information is not correct, click Cancel and retry entry from the beginning of Step 21.

  • Page 21: Configuring Settings In Cre/Rpe (Required On Each Pc That Will Process Card Payments)21

    5. Select Chase Paymentech from the Processing Company dropdown 6. Enter the IP address of the PC acting as the NETePay server 7. Select Verifone VX805 from the Pinpad dropdown. 8. Enter the # of the COM port configured in the Device Manager 9.
  • Page 22 CRE version 12.8030 and older configuration steps In older versions of CRE you must select the PINpad and its communication port in the Hardware section of the setup screen before configuring the payment processing parameters. 1. In CRE/RPE go to Options/Manager > Setup > Setup Screen >...

  • Page 23: Configuring Cash Back With A Debit Card & Ebt Cash Sale

    Configuring cash back with a debit card & EBT Cash sale 1. Go to Options/Manager > Setup > Setup Screen. 2. Go to Payment Processing > Other Options; in the Max Debit Cashback field, enter the maximum Cashback amount allowed then hit Update to save the setting.

  • Page 24: Configuring The Vx 805 To Accept Ebt Cards

    Configuring the VX 805 to accept EBT Cards Note: the steps for configuring the payment processing settings has changes in 12.8031 and newer. Please check your version of CRE and follow the steps for the version you are using. 1. From the Options/Manager screen, select Setup >...

  • Page 25: Ringing Up An Emv Credit Card Sale Using The Chip Reader

    You can cancel by hitting the red button on the keypad or by waiting for the process to time out. 3. On the VX 805 hit the green key on the keypad to proceed with the sale. 25 |...
  • Page 26 5. Fully insert the chip card face up into the slot on the bottom of the VX 805. You should feel the card “catch” when it is fully inserted and a Do Not Remove Card message should appear.
  • Page 27 7. An APPROVED response should appear on the screen indicating the transaction was successful. 8. Remove the card when prompted. The device will beep if the card is left inserted. 9. The screen will then go back to the WELCOME standby screen.

  • Page 28: Performing A Debit Sale With Cashback

    You can cancel by hitting the red button on the keypad or by waiting for the process to time out. 10. On the VX 805 hit the green key on the keypad to proceed with the sale. 28 |...
  • Page 29 11. Press the F3 button for YES. 12. In this example we will press the F1 button for $20 cashback. 13. Press the green key to accept the sale with the cashback amount. 29 | P a g e...
  • Page 30 14. Swipe the debit card to process the transaction. Note: You cannot insert EMV cards for debit sales at this time. Debit sales must be swiped. 15. Wait while the transaction processes. 16. Wait for the approval. 30 | P a g e...
  • Page 31 17. The screen will then go back to the WELCOME standby screen. 31 | P a g e...

  • Page 32: Performing A Manual Entry Sale

    Performing a manual entry sale 1. Ring up a sale and from the amount tendered screen select Credit/Debit as the payment method. 2. The Credit Card Information screen may appear grayed out like the picture on the left. 3. Hit the red key on the keypad. 32 | P a g e...
  • Page 33 4. Click Ok to the message that appears in CRE. 5. Click on Manual Entry. 6. Enter the card number using the keypad on the pinpad, then press the green key on the keypad. 33 | P a g e...
  • Page 34 7. Enter the expiry date using the keypad on the pinpad, then press the green key on the keypad. 8. Enter the CVV code on the back of the card using the keypad on the pinpad, then press the green key on the keypad.
  • Page 35 10. Press the green key on the keypad to select YES if it is an EMV chip card. 11. You should see an “APPROVED” message on the pinpad once the transaction has completed successfully. 35 | P a g e...

  • Page 36: Performing A Batch Settlement

    Performing a batch settlement 1. Go to Options/Manager > Administrative > Credit Card Settlement. 2. Click Settle. 3. Click OK once the settlement has successfully completed. Note: The settlement can be done on any station and only needs to be done once for the whole store/restaurant.
