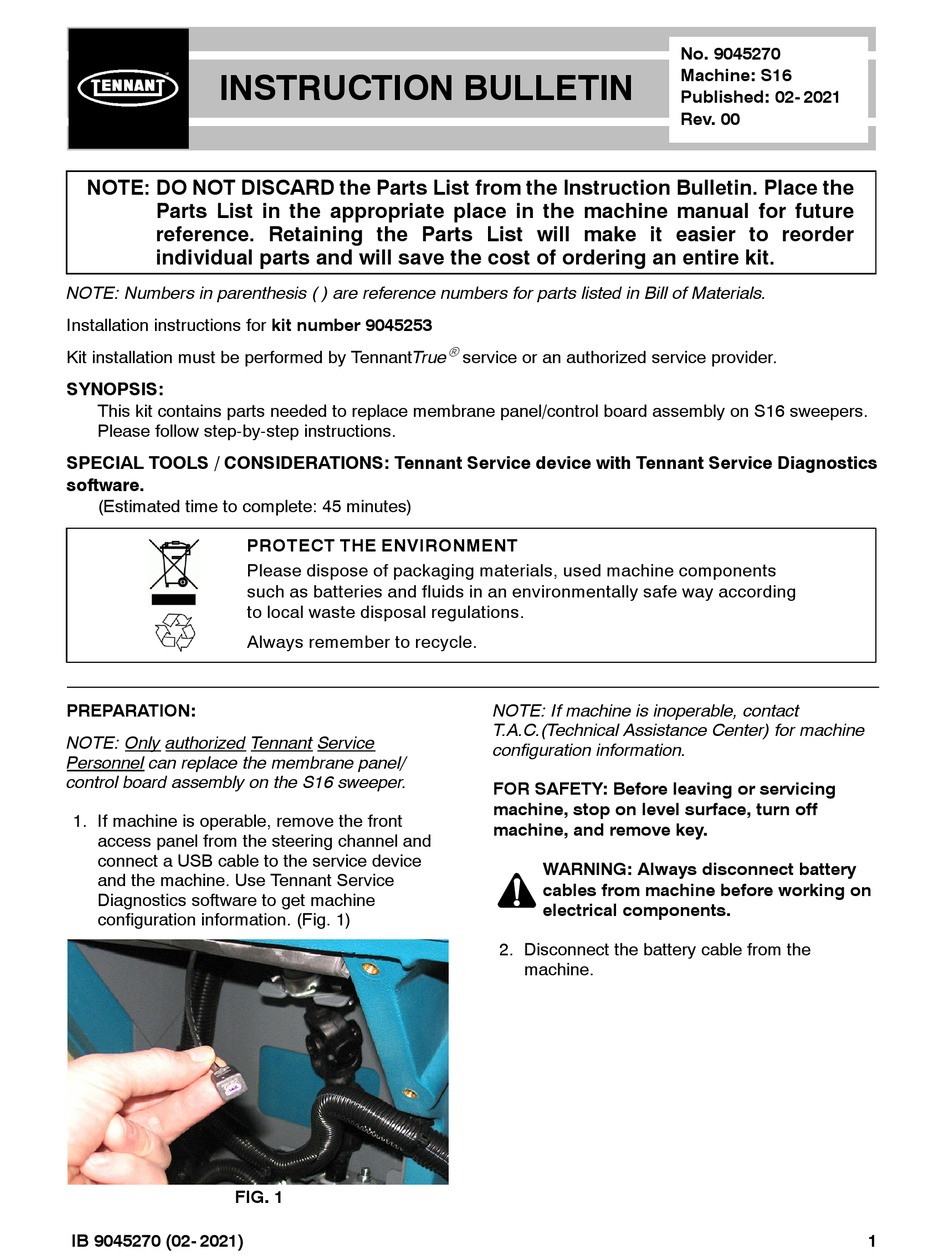

Tennant TennantTrue 9045253 Instruction Bulletin

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9045253
Kit installation must be performed by TennantTrue

SYNOPSIS:

This kit contains parts needed to replace membrane panel/control board assembly on S16 sweepers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: Tennant Service device with Tennant Service Diagnostics
software.
(Estimated time to complete: 45 minutes)

PREPARATION:

NOTE: Only authorized Tennant Service
Personnel can replace the membrane panel/
control board assembly on the S16 sweeper.
1. If machine is operable, remove the front
access panel from the steering channel and
connect a USB cable to the service device
and the machine. Use Tennant Service
Diagnostics software to get machine
configuration information. (Fig. 1)
FIG. 1
IB 9045270 (02- 2021)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.

service or an authorized service provider.
NOTE: If machine is inoperable, contact
T.A.C.(Technical Assistance Center) for machine
configuration information.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
2. Disconnect the battery cable from the
machine.
No. 9045270
Machine: S16
Published: 02- 2021
Rev. 00
1
