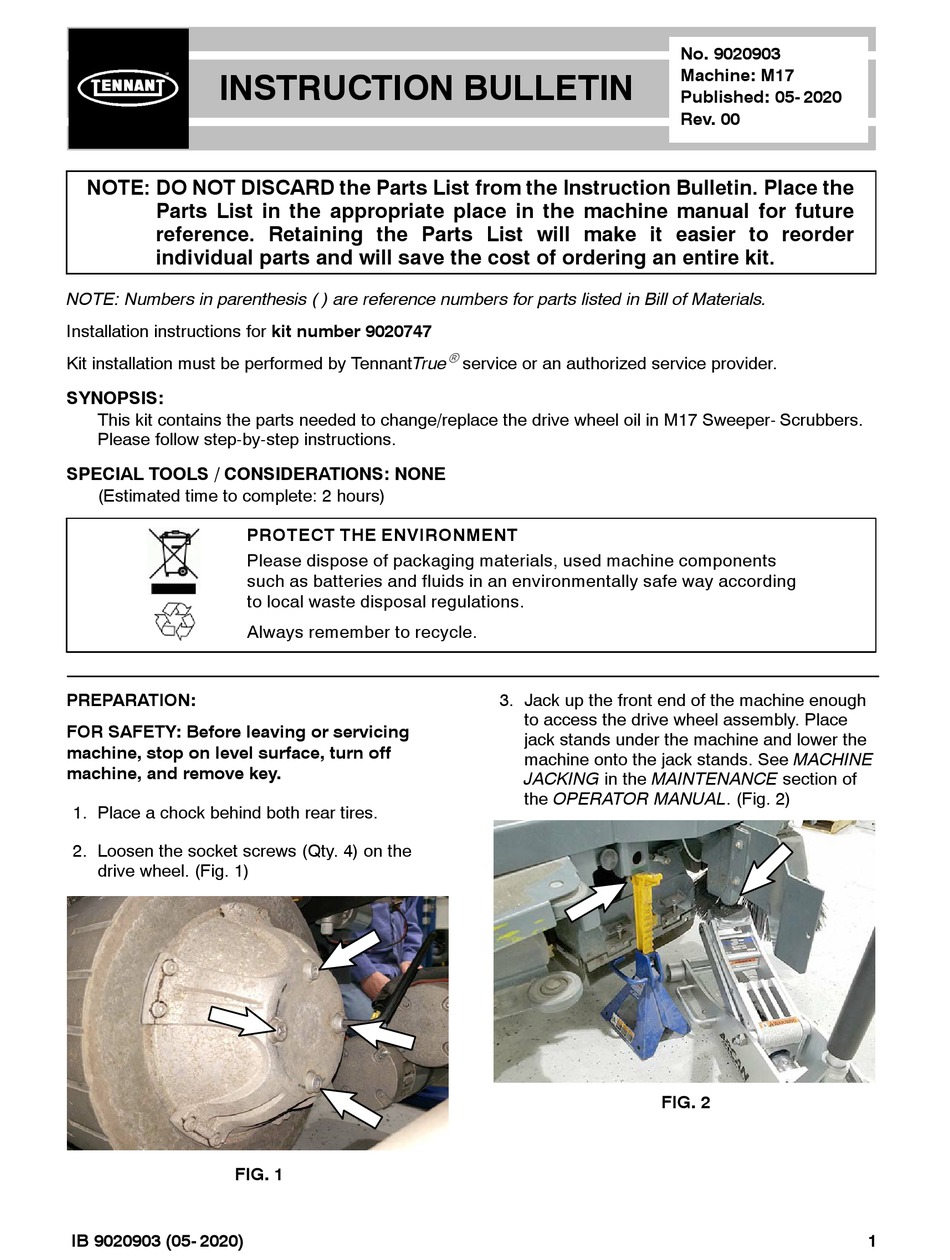

Tennant 9020747 Instruction Bulletin

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9020747
Kit installation must be performed by TennantTrue
SYNOPSIS:
This kit contains the parts needed to change/replace the drive wheel oil in M17 Sweeper- Scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 2 hours)
PREPARATION:
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
1. Place a chock behind both rear tires.
2. Loosen the socket screws (Qty. 4) on the
drive wheel. (Fig. 1)
FIG. 1
IB 9020903 (05- 2020)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.

service or an authorized service provider.
3. Jack up the front end of the machine enough
to access the drive wheel assembly. Place
jack stands under the machine and lower the
machine onto the jack stands. See MACHINE
JACKING in the MAINTENANCE section of
the OPERATOR MANUAL. (Fig. 2)
No. 9020903
Machine: M17
Published: 05- 2020
Rev. 00
FIG. 2
1
