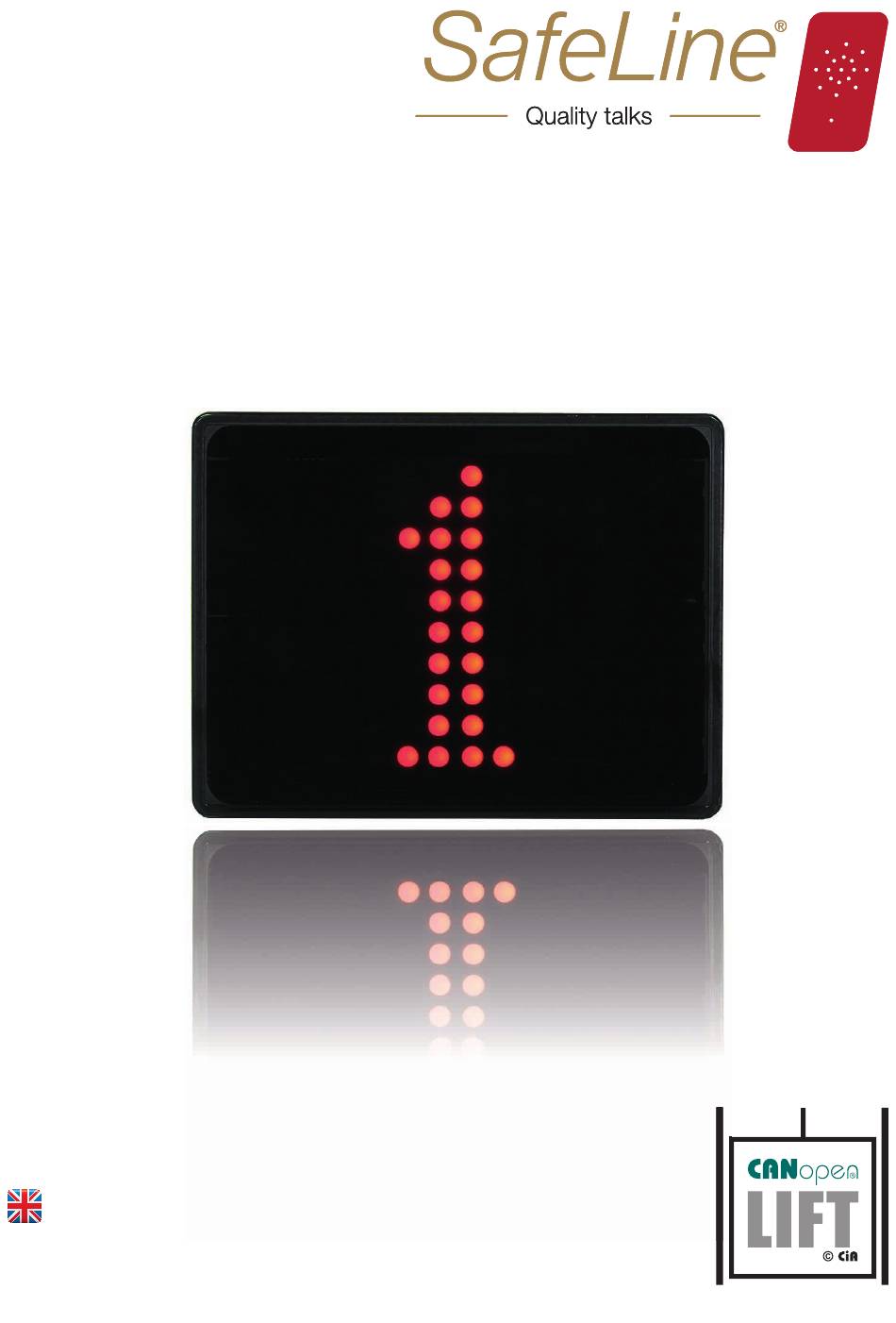

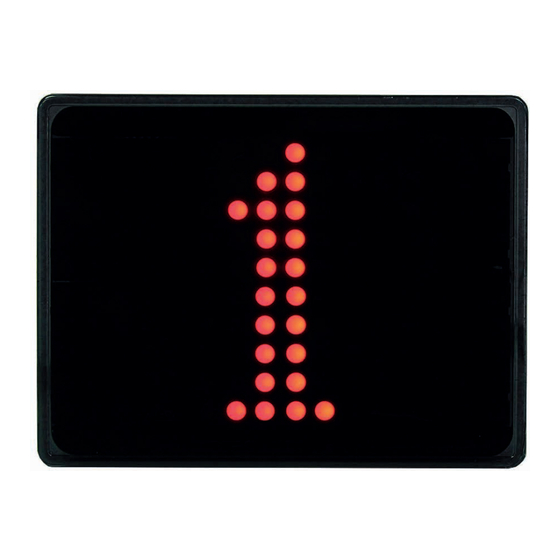

- Page 1 SafeLine FD4-CAN Operating instructions Displays fl oor designations, arrows and scrolling messages. ENGLISH v1.06 05.2014...
- Page 2 Kingston and Verbatin 1, 2 or 4 GB SD-card: 0,6W at 8Ω Speaker output: 0,3W at 16Ω All output are shortcut protected. safeline.eu FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 3 Table of contents Installation Wiring instructions Wiring instructions for FD4-AX Configuration Settings FD4-AX, Direction of the button Programming FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 4 20-30 VDC Red LED steady CAN L CAN error CAN SHLD WWW.SAFELINE.SE CAN H FD4-CAN V3 R1.01 20-30 VDC Heartbeat SD-CARD Flashing 2Hz FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 5 Installation WIRING INSTRUCTIONS FOR FD4-AX *AX-FD4-VW-B1 *AX-FD4-VW-B2 BROWN 20-30 V GREEN CAN H GREY Shield YELLOW CAN L WHITE FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 6 Insert a micro SD card, that has the new software located in the folder named FIRMWARE for eg. “X:\FIRMWARE\FD4-CAN-03_1.0.0.bin” Press and hold the down-button on the backside of the FD4-CAN, and power up the unit. Hold the down-button until the upper part of the display reads “BLT” and the lower half reads the software version.
- Page 7 SD-card into the unit. Power the FD4-CAN. The transfer starts automatically. Note that sound fi les cannot be transfered this way, as they never are stored directly onto the FD4-CAN. Replacing FD4 Disconnect the power to new unit.
- Page 8 Hold both buttons a set LED-brightness couple of seconds Mode to set Node-ID Press both buttons Press up/down to simultaneously set FD4-CAN Unit will reboot FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 9 To turn it around, and have the button directing up instead, do the following: Take out the lens/display and the circuite board. Disassemble the two parts. FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 10 Place it back in the circuit borad with an angle, and turn it to its correct position. Reassemble the components by doing the steps in reverse order (i.e., step 3, step 2 and step 1). FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 11 Notes FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 12 Fax: +44 (0)1303 81 45 29 E-mail: order@safeline.uk.com SafeLine Denmark Erhvervsvej 19 2600 Glostrup DENMARK Tel: +45 44 91 32 72 E-mail: order@safeline.eu safeline.eu/support FD4-CAN v1.06 EN © 2014 SafeLine and all the SafeLine products and accessories are copyrighted by law.
