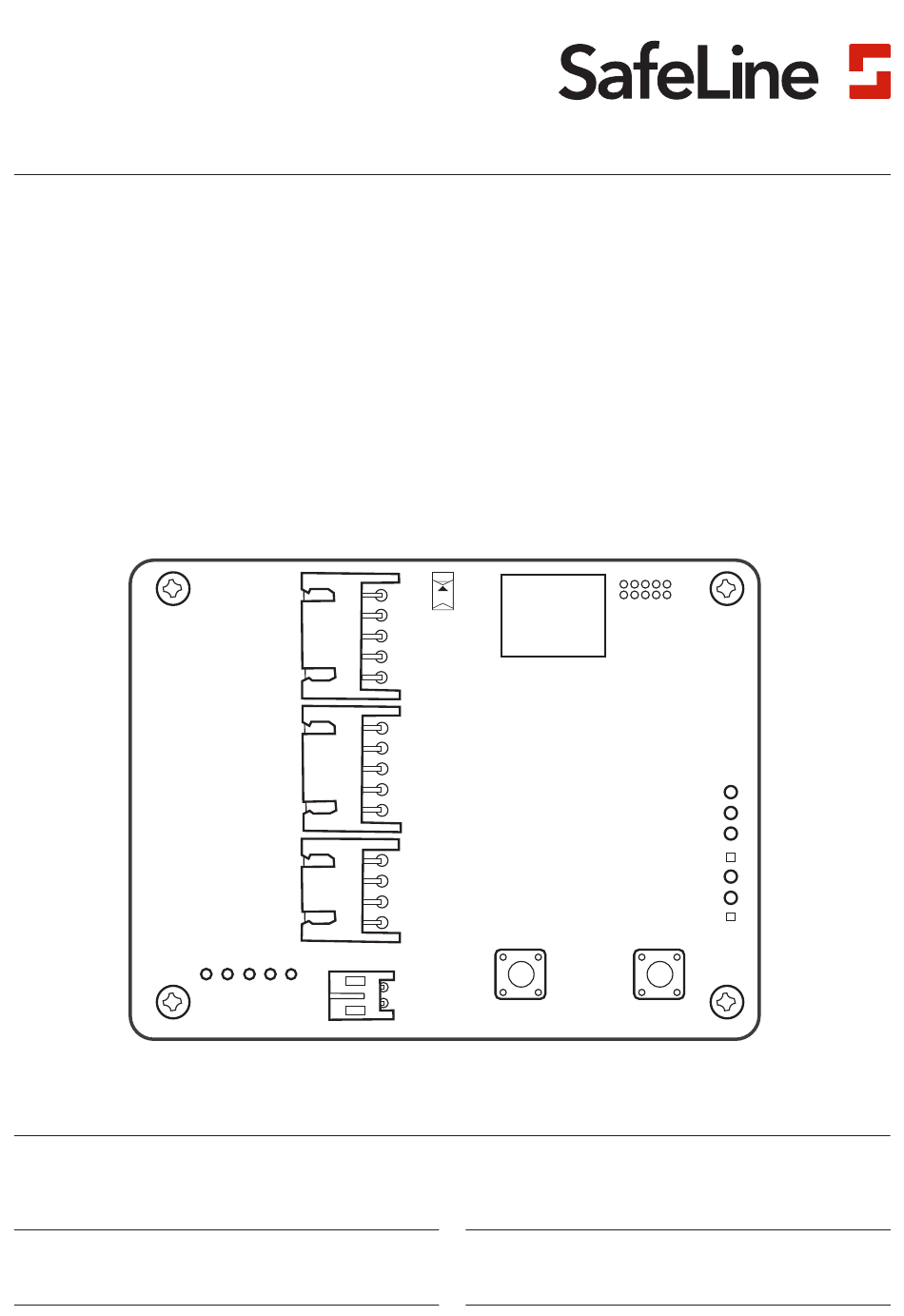

- Page 1 FD4-CAN Manual Floor display Reliability – brought to you from Tyresö, Sweden www.safeline-group.com © 2019 SafeLine and all the SafeLine products and 03.2019 FD4-CAN v.2.01 EN accessories are copyrighted by law.
-
Page 2: Table Of Contents
Content Introduction Technical data General information Installation Wiring instructions Settings Configuration Programming Configuration Certificate Programming Introduction FD4-CAN v.2.01 EN... -
Page 3: Technical Data
1 A / 24 VDC Power input: 20-30 VDC Input current on each input: 8 mA / 24 VDC SD-card: Kingston and Verbatin 1, 2 or 4 GB Speaker output: 0,6W at 8Ω 0,3W at 16Ω All outputs are shortcut protected. Introduction FD4-CAN v.2.01 EN... -
Page 4: General Information
gure this product. - This quality product is dedicated for the lift industry. It has been designed and manufactured to be used for its specifi ed purpose only. If it is to be used for any other purpose, SafeLine must be contacted in advance. - It should not be modifi ed or altered in any way, and should only be installed and confi gured strictly following the procedures described in this manual. -
Page 5: Wiring Instructions
TERM CAN L CAN L CAN SHLD CAN H CAN H 20-30 VDC 20-30 VDC CAN L CAN L CAN SHLD CAN H CAN H 20-30 VDC 20-30 VDC SD-CARD 0 VDC Micro SD-card 4GB (HC) Installation FD4-CAN v.2.01 EN... -
Page 6: Led
TERM CAN L CAN SHLD Green LED steady: CAN H CAN OK 20-30 VDC Red LED steady: CAN L CAN error CAN SHLD CAN H 20-30 VDC Heartbeat Flashing 2Hz SD-CARD Installation FD4-CAN v.2.01 EN... -
Page 7: Settings
FIRMWARE When needed updated software can be added here to update the unit. Update of software: Disconnect the power to FD4-CAN. Insert a micro SD card, that has the new software located in the folder named FIRMWARE for eg. “X:\FIRMWARE\FD4-CAN-03_1.0.0.bin”... -
Page 8: Programming
Programming Save settings from FD4-CAN on to a micro SD-card Disconnect the power to FD4-CAN. insert an empty micro SD-card into the unit. Power the FD4-CAN. The transfer starts automatically. Note that sound files cannot be transfered this way, as they never are stored directly onto the FD4-CAN. Replacing FD4 Disconnect the power to new unit. - Page 9 Press both buttons simultaneously Mode to set LED-brightness Press up/down to set LED-brightness Hold both buttons a couple of seconds Mode to set Node-ID Press up/down to set FD4-CAN Press both buttons simultaneously Unit will reboot Configuration FD4-CAN v.2.01 EN...
- Page 10 EMC: Emission, Electromagnetic compatibility EN 12016:2013 EMC/Lifts: Immunity, Electromagnetic compatibility EN 50581:2012 RoHS: Technical doc. for assessment of restriction of RoHS. Tyresö, 2017-04-07 Lars Gustafsson, Technical Manager, R&D , SafeLine Group Antennvägen 10, 13548 Tyresö, Sweden +46 (0)8-447 79 32, www.safeline-group.com...
- Page 12 Support: +32 (0)4 85 89 08 95 SafeLine Deutschland GmbH Kurzgewannstraße 3 · D-68526 Ladenburg · Germany Tel.: +49 (0) 6203 - 840 60 03 · sld@safeline.eu SafeLine Group UK Unit 47 · Acorn Industrial Park · Crayford · Kent · DA1 4AL · United Kingdom info@safeline-group.uk...
