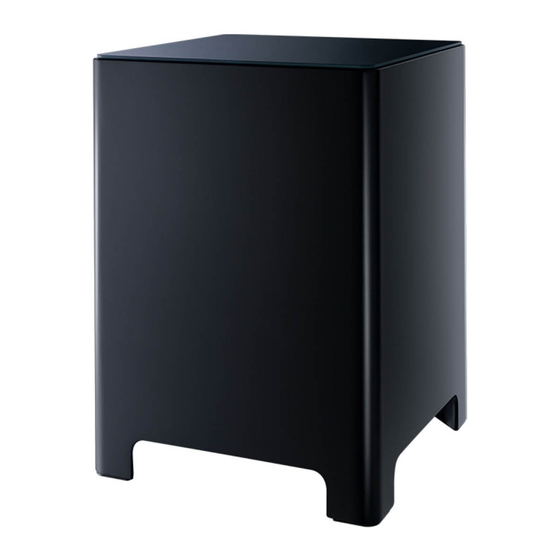

B100 Bass Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STUDIOART B100 and is the answer not in the manual?

Questions and answers

Related Manuals for Revox STUDIOART B100

Summary of Contents for Revox STUDIOART B100

  • Page 1 User manual STUDIOART B100 Bass Module...

  • Page 2: Table Of Contents

    Contents Introduction ............................2 Unpacking ....................................2 Features ....................................2 Commissioning ..................................2 Scope of delivery ..................................2 Connector panel ............................. 3 Power switch: On / Off ................................3 Overvoltage / lightning strike..............................3 Status indicator LED .................................. 3 Mains input jack (AC) ................................3 Volume control ..................................

  • Page 3: Introduction

    Introduction Congratulations on your purchase of the new STUDIOART B100 Bass Module and thank you for your trust in our high quality products. To enjoy excellent sound quality in your home, carefully read the following instructions before first-time operation. General safety instructions, disposal of your old device and warranty conditions can be found in the enclosed leaflet.

  • Page 4: Connector Panel

    Connector panel Power switch: On / Off The unit can be completely disconnected from the power supply via the power switch – there is no power consumption in the off position (off). Overvoltage / lightning strike The off position does not protect against damage caused by overvoltage or lightning strikes. In thunderstorms, please unplug the power cord.

  • Page 5: Pairing Button

    The B100 bass module can also be connected via cable to any stereo or home theater amplifier that has a preamp / subwoofer output outside the STUDIOART series; e.g. with a Revox Joy Receiver S119 or S120. STUDIOART B100 Bass Module...

  • Page 6: How Do I Connect The B100 Bass Module

    How do I connect the B100 Bass Module? The STUDIOART B100 Bass Module has been designed to be used as a subwoofer in high quality stereo and home theater systems and can be connected to your music system in two different ways: Wireless connection to other STUDIOART products, e.g.

  • Page 7: Connect B100 Bass Modules Via Radio To A100

    Connect B100 Bass Modules via radio to A100 When pairing, an A100 is defined first, either directly on the device or via the STUDIOART App, as the chief speaker. Then you do the pairing process on the B100 Bass Module itself. After successful pairing, the B100 will be listed as a paired Speaker in the STUDIOART app and can be further configured there.

  • Page 8: Cable Connection Between B100 And Stereo / Home Theater Amplifiers Line Input (L / R)

    The B100 bass module can also be connected via cable to any stereo or home theater amplifier that has a preamp / subwoofer output outside the STUDIOART series; e.g. with a Revox Joy Receiver S119 or S120. Classic stereo amplifiers with a stereo preamp output, connect to a 1: 1 RCA cable.

  • Page 9: Placement

    - mostly reliable - reports an overload. This sign is expressed in a timely manner by a very strong growth of distortions in the sound image. A short-term overload (30 sec.) will not damage your Revox speaker.

  • Page 10: Faqs

    FAQs Status LED does not light up Possible causes: Power line interruption Mains switch in off position (Off) Automatic switch-on does not work Possible causes: The level of the line input is too low. This can occur with music material with soft passages. Increase the input signal while reducing the volume.

  • Page 11: Technical Data B100

    Technical data B100 Audio data Loudspeaker principle Active bass reflex system (downfire) Frequency response 35 Hz –40... 200 Hz* (*dependent of lowpass control ) Max. sound pressure 106 dB / 1m [> 40 Hz] Electrical data supply Voltage range 100 -240V AC [50-60 Hz] Power consumption 230 W max.
  • Page 12 Kontakt/ Contact www.studioart-revox.com Deutschland / Germany Revox Deutschland GmbH Am Krebsgraben 15, D 78048 VS-Villingen tel +49 7721 8704 0, fax +49 7721 8704 29 info@revox.de www.revox.de Schweiz / Switzerland Revox (Schweiz) AG Wehntalerstrasse 190, CH 8105 Regensdorf tel +41 44 871 66 11, fax +41 44 871 66 19 info@revox.ch...
