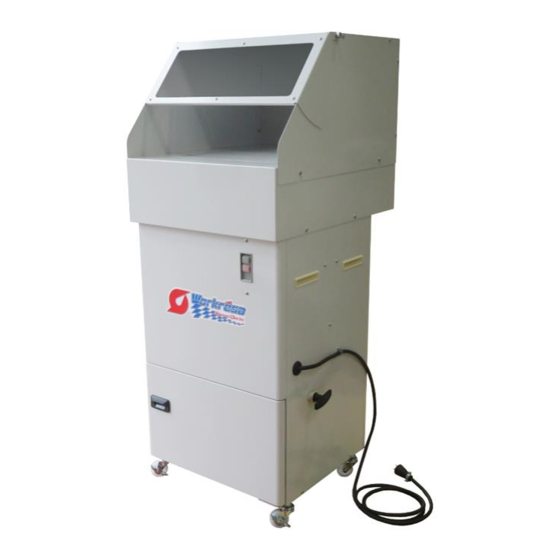

- Page 1 YFWA11A-Y000E Instruction Manual Dust Collector with Worktable Workrésa (WRM)
- Page 2 Thank you for purchasing our Showa Denki “Dust Collector with Worktable (WRM).” We at Showa Denki Co., Ltd., as a special manufacturer of blowers and dust collectors, have strived to produce products by making the best use of “Flow technology” and “Rotating machine technology.”...
-
Page 3: Table Of Contents
Table of contents Page Chapter 1 Safety precautions Chapter 2 Equipment Overview Equipment overview Structure of this machine Parts diagram - 3- Chapter 3 Installation Installation Electric wiring Test run Chapter 4 Operation Daily operation Precautions Hood Shakingr Coupler Chapter 5 Maintenance and inspection -10- Inspection item and frequency... -
Page 4: Safety Precautions
◼ Chapter 1 Safety precautions WARNING Never intake the following: Lit cigarettes, cigarette butts or ash, fire sources like matches, and other high- temperature powder dusts. Sparks generated by sanders, grinders, etc. The filter cloth is flammable. It may ignite due to sparks, etc., resulting in a fire. If a fire should occur in this machine, immediately turn off the switch and insert, through the suction inlet, an extinguishant suitable for the collected materials, then close both the suction inlet and discharge outlet. - Page 5 CAUTION Never Intake the following, as they may cause malfunction. High-temperature gas and heat-generating substances Gas at 40°C or higher that is suctioned in or generated within the machine by heat- generating materials may cause insulation failure of internal electric components. ...
-
Page 6: Parts Diagram
◼ Chapter 2 Equipment Overview This machine separates and collects dusts and mists scattered in the worktable hood when workpiece cutting powder/oil are air-blown or generated when grinding with electric tools. It cannot process large amounts of powder or mist in a short time, intake liquids not in a mist state, nor perform shaking during operation. - Page 7 ◼ Chapter 3 Installation When you receive the product, confirm the product is as ordered by checking the model, voltage, frequency, etc. on the nameplate. In addition, check accessories. We take all possible precautions when packing, but if damages from transportation or missing parts are observed, contact your dealer or our nearest branch or sales office immediately.
-
Page 8: Installation -4
Installation This machine can be easily moved with the equipped casters. However, use the stoppers on the front wheels to lock the machine during operation. In addition, avoid operation on a slope. When moving this machine, move it slowly on a flat floor and be careful not to tip it over. - Page 9 The main body front door is closed completely: No tools, bolts, nuts, etc. left on the worktable: For dust explosion countermeasure (Simple explosion-proof specification) models, the explosion outlet port lid is not displaced. - 6 -...
-
Page 10: Daily Operation -7
◼ Chapter 4 Operation Daily operation Operation steps (1) Check that the front door is closed. (2) For dust explosion countermeasure (Simple explosion-proof specification) models, ensure the explosion outlet port lid is not displaced. (3) Turn on the switch to start operation. Shutdown (1) Turn off the switch. -
Page 11: Hood -8
Hood The door on the hood front side with protective acrylic window can be slid open upwardly. Operate this machine with the door closed. The blowing speed decreases if the door is slid upward. Also, do not operate with the protective cover opened just partway. The protective cover with acrylic window may close suddenly, causing injury, rotective cover with acrylic window closed (Recommended state during operatio... -
Page 12: Coupler -9
Shaking Pull the shaking handle approx. 3 times while supporting the main body with hand to prevent it from moving. Return the handle so that the handle does not slack. Coupler (When optionally included) • The machine is equipped with a coupler for attaching the compressor and air tool hose couplers. -
Page 13: Maintenance And Inspection -10
◼ Chapter 5 Maintenance and inspection Perform maintenance and inspections to prevent malfunctions and accidents and ensure long life of this machine Be sure to turn off the power supply before inspecting internally. While performing maintenance and inspection work or replacing the filter cloth, wear protective glasses, a dust mask, and gloves. -
Page 14: Filter Cloth Replacement -11
Filter cloth replacement Pull out the dust pan, then pull up the Pull out the filter cloth and lower the filter cloth clip toward you. front side of the filter cloth. Remove filter cloth. Insert a new filter cloth in the direction Lift up the front side of the filter cloth shown in the following photo. -
Page 15: Size Of Replacement Filter Cloth -12
Replacement Starter rope Φ4 mm 50-60 cm rope (Nylon solid braided rope) Ropes are also available at home improvement stores, etc. Size of replacement filter cloth Number of Size of filter cloth cloths used 420 mm x 420 mm x 75 mm Use our genuine filter cloth for replacement. -
Page 16: Specifications -13
Specifications (Standard specifications, Spark countermeasure specifications) Frequency 50Hz or 60Hz Hood face velocity 1.2m/sec 545mm 537mm H1281mm Body dimensions (H1476mm when protective cover with acrylic window is fully open) Body mass 70/68kg (Spark countermeasure type: 72/70kg) Outer dimensions (mm) - 13 -... - Page 17 Specifications (Simple explosion-proof specifications) 50Hz or 60Hz Frequency Hood face velocity 1.2m/sec 545mm 537mm H1281mm Body dimensions (H1476mm when protective cover with acrylic window is fully open) 74/72kg Body mass Outer dimensions (mm) - 14 -...
- Page 18 ◼ Chapter 6 Disposal Collected materials Properly dispose in accordance with relevant national and local laws and regulations. Used filters Properly dispose in accordance with relevant national and local laws and regulations. Waste cloth for cleaning containing collected materials Properly dispose in accordance with relevant national and local laws and regulations.
-
Page 19: Warranty Statement
◼ Chapter 7 Warranty statement If a malfunction of the machine occurs within the warranty period despite normal usage conditions in accordance with cautions in the instruction manual and labels on the main body, we will repair the product free of charge according to the contents of this warranty statement. Warranty period The warranty period shall be 12 months after the date of delivery. - Page 20 Notes ：We are not responsible for any accident or malfunction caused by usage not in accordance with this manual, or improper repair or remodeling. Business Promotion Dpt. 1-25 Shinden Kita-machi, Daito-city, Osaka, Japan 574-0052 Tel: +81-72-870-5708 Fax: +81-72-870-7243 Email: sales@showadenki.co.jp http://www.showadenki.co.jp...
