Beschreibung und Betriebsanleitung
Optischer Transceiver
Description and Operating Instructions
Optical Transceiver
Hirschmann. Simply a good Connection.

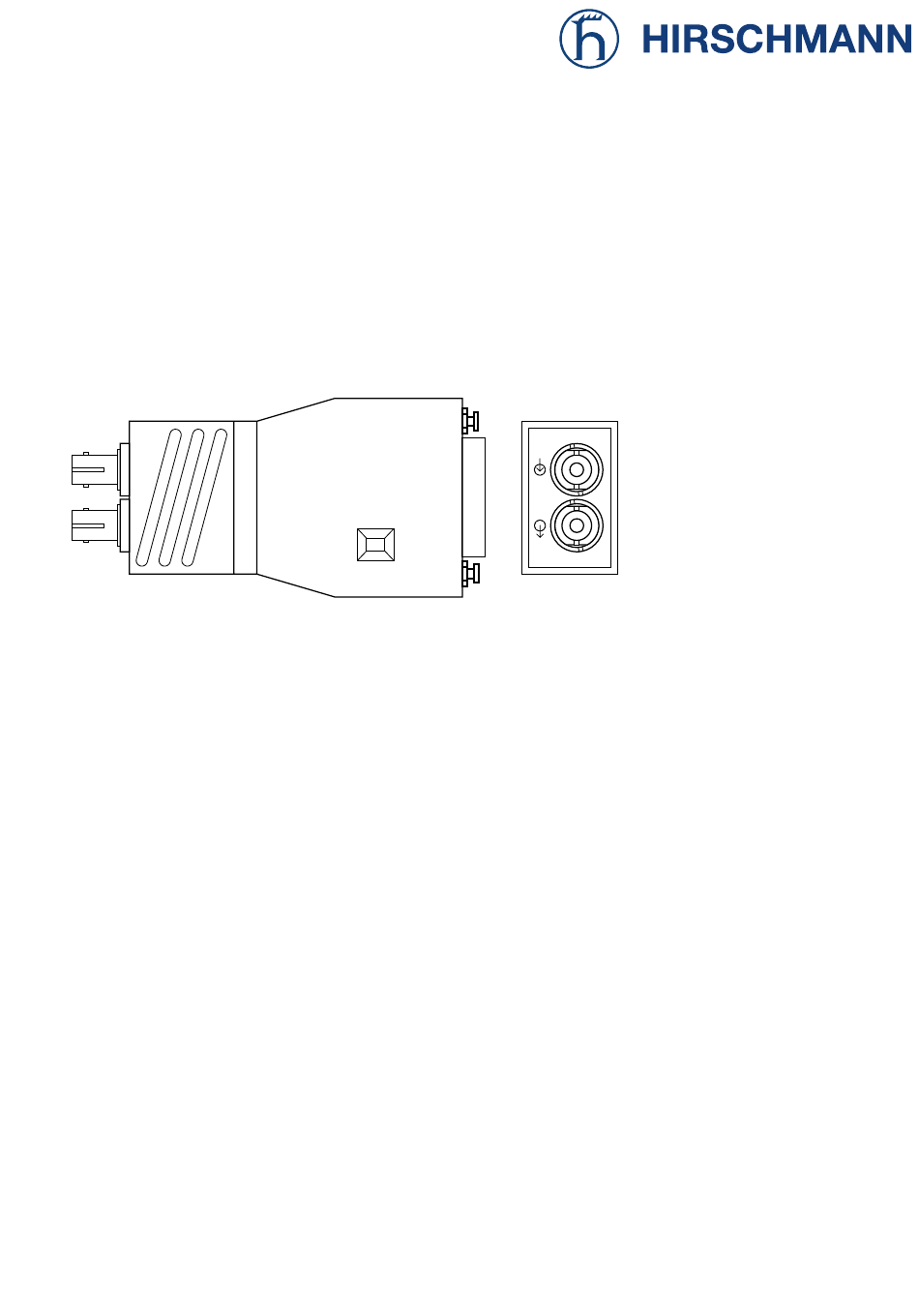

Mini-OTDE
Bestell-Nr. / Order Code
943 303-022 (BFOC)
Ermöglicht den Anschluß eines Gerätes
(DTE) mit AUI-Schnittstelle an ein 10 Mbit/s
CSMA/CD LAN (ISO/IEC 8802-3, 10BASE-FL)
über ein LWL-Kabel.
Kontroll-LEDs für
– Power,
– Collision/Jabber-Control
– TxData,
– RxData und
– Link-Status
SQE-Test von außen abschaltbar
Direkt steckbar auf Geräteschnittstelle
Geringe Stromaufnahme
Kompakte Bauform

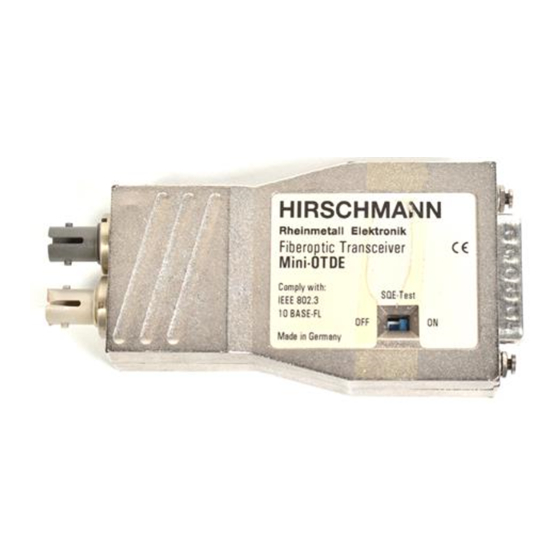

Enables a device (DTE) with an AUI inter-
face to connect to a 10 Mbit/s CSMA/CD
LAN (ISO/IEC 8802-3, 10BASE-FL) via a fiber
optic cable.
Monitoring LEDs for
– Power
– Collision/jabber control
– TxData
– RxData
– Link status
SQE test can be disabled externally
Can be plugged directly to the device inter-
face
Low current consumption
Compact construction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini-OTDE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hirschmann Mini-OTDE

  • Page 1 Monitoring LEDs for – Power – Collision/jabber control – TxData – RxData – Link status SQE test can be disabled externally Can be plugged directly to the device inter- face Low current consumption Compact construction Hirschmann. Simply a good Connection.
  • Page 2: Sicherheitstechnische Hinweise

    Rechtsverhältnisses ist oder Aufstellung und Montage sowie FCC-Hinweis: diese abändern soll. Sämtliche Verpflich- sorgfältige Bedienung und Instand- tungen von Hirschmann ergeben sich aus haltung voraus. Es wurde nach entsprechender Prüfung dem jeweiligen Kaufvertrag, der auch die festgestellt, daß dieses Gerät den Anforde- vollständige und allein gültige Gewährlei-...
  • Page 3: Weitere Unterstützung

    LWL-Kabel max. 3000 m (62,5/125) das Gerät einen Betrieb des Transceivers Hinweis: Vermeiden Sie das Stecken des mit ein- oder ausgeschaltetem SQE-Test Mini-OTDE während des Betriebes des PC, erfordert. denn dieser Vorgang kann zum Reset Werkseitige Einstellung: SQE-Test ON (ein- führen.
  • Page 4 LWL-Kabel Schnittstelle Sender Optische Quelle Wellenlänge 820 nm Fasertyp Gradienten Min. in LWL-Kabel einkoppelbare optische Spitzenleistung [in dBm / µW] 50/125 –19 / 12,6 62,5/125 –16 / 25 IDLE-Signal 1 MHz ± 10% Preamble loss transmit typ. 1 bit; max. 2 bit Steady State Delay 20 ns Jabber protect time out...
  • Page 5: Safety Instructions

    Class I, Division 2. tions, you can request the necessary infor- mation from your local Hirschmann sales Warning! partner or directly from the Hirschmann Recycling Note: Explosion hazard – Do not dis-...
  • Page 6: Installation

    Installation Connection 1. Connection of two devices Fiber optic connection Two BFOC sockets are available for connec- ting the Mini-OTDE transceiver to a fiber optic segment. One connection is used for Mini-OTDE transmitting and one for receiving data over the fiber optic cable.
  • Page 7 Fiber optic interface Transmitter Light source Wave length 820 nm Fiber type gradient Minimum peak optical power [in dBm/µW] fed into the fiber optic cable 50/125 –19 / 12.6 62.5/125 –16 / 25 IDLE-Signal 1 MHz ± 10% Preamble loss transmit typ.
  • Page 8 Hirschmann Automation and Control GmbH Stuttgarter Straße 45-51 D-72654 Neckartenzlingen Germany Tel.: ++49 / 1805 / 14-1538 Fax: ++49 / 7127 / 14-1551 E-Mail: ans-support@hirschmann.de Internet: http://www.hirschmann.com 045755001060805000 Printed in Germany Subject to alterations...
