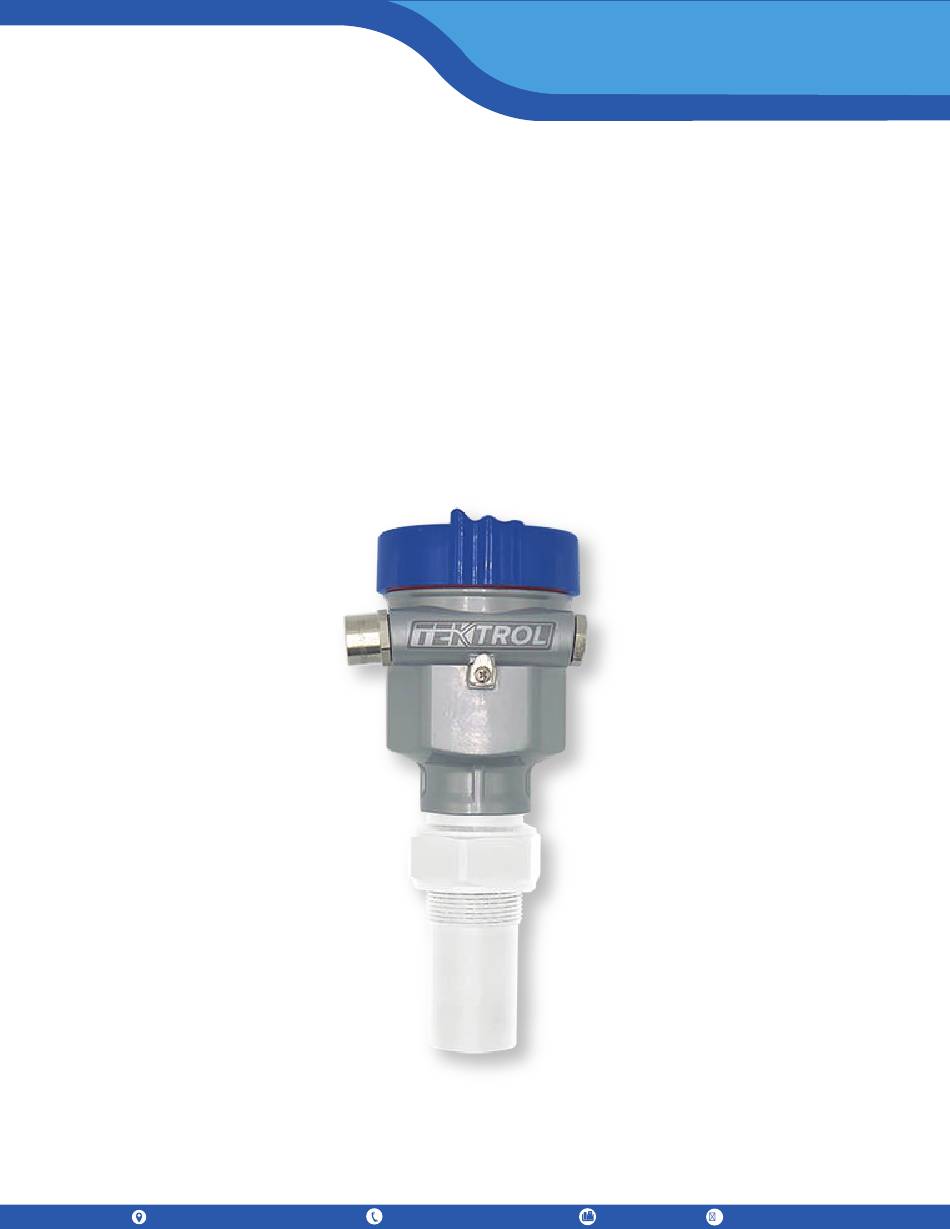

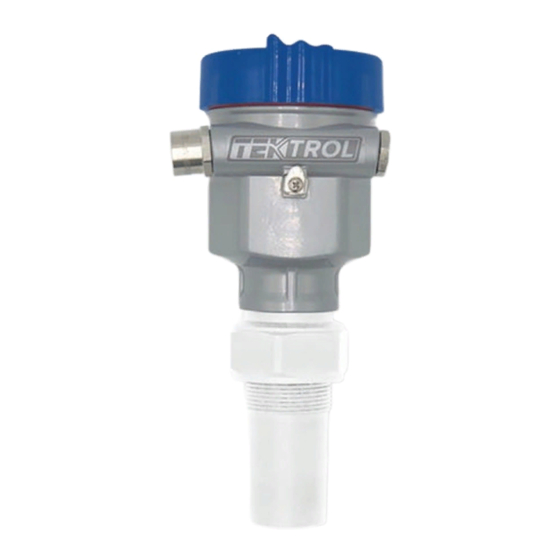

- Page 1 Quick Start Guide Tek-Sound 4200B Two Wire Ultrasonic Level Transmitter With Display +1 847 857 6076 | +1 847 655 7428 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 655 6147 www.tek-trol.com...
-
Page 2: Before You Begin
2. Unpack Tek-Sound 4200B Two-Wire Ultrasonic Level Transmitter With Display 3. Dimensional Drawing 3.84" (0.32 ft) -
Page 3: Mounting Requirement
The lower edge of the probe is the reference plane for measurement. Blanking Zone Empty Max. Adjustment Min. Adjustment Note: The highest level of measured medium must not enter into the blanking zone while ultrasonic level instrument is in operation. Tek-Bar 3100 Tek-Sound 4200B... - Page 4 The best mounting position for a conical vessel with at top is the centre of its top, as the e ective measure- ment can reach the bottom of the vessel. +1 847 857 6076 | +1 847 655 7428 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 655 6147 www.tek-trol.com...
- Page 5 2 Incorrect: Device’s Antenna is mounted in the centre of concave or arched vessel tops, resulting in multiple echoes. 3 Correct Installations 1 Incorrect: Device is mounted directly above the lling stream. This results in a measurement of the lling stream, and not the target medium 2 Correct Installation Tek-Bar 3100 Tek-Sound 4200B...
- Page 6 Socket The antenna’s end must protrude at least 0.4 ft out of socket. +1 847 857 6076 | +1 847 655 7428 www.tek-trol.com 796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 655 6147...
- Page 7 You are advised to opt for installation with standpipe if foam or wave is generated due to the action of agitators. Tek-Bar 3100 Tek-Sound 4200B...
-
Page 8: Power Supply
If the measurement is undertaken by Tek-Sound 4200B inside the standpipe the inner diameter of standpipe should be at least bigger than the outside diameter of transducer. Please see Dimensional Drawings for actual sizes. Avoid large cracks or welding seam when connecting standpipe. -
Page 9: Adjustment Instructions
Choose the digit of parameters to edit • • Con rm modi cations to parameters Display the contents of parameters ] Keypad [ BK ] Keypad • • Modify parameter values Programming mode exit • Return to higher menu level Tek-Bar 3100 Tek-Sound 4200B... - Page 10 HART adapter 4200B Software HART Convertor RS232 Connect Cable/USB port HART Handheld Programmer Adjust Tek-Sound 4200B with HART Handheld Programmer 250 Ω Resistance 4200B HART Handheld Programmer +1 847 857 6076 | +1 847 655 7428 www.tek-trol.com 796 Tek Drive, Crystal Lake, IL 60014 USA...
- Page 11 Technology Solutions 796 Tek Drive Crystal Lake, IL 60014 Tel: +1 847 857 6076, +1 847 655 7428 Fax : +1 847 655 6147 Email: tektrol@tek-trol.com www.tek-trol.com Tek-Sound 4200B...
