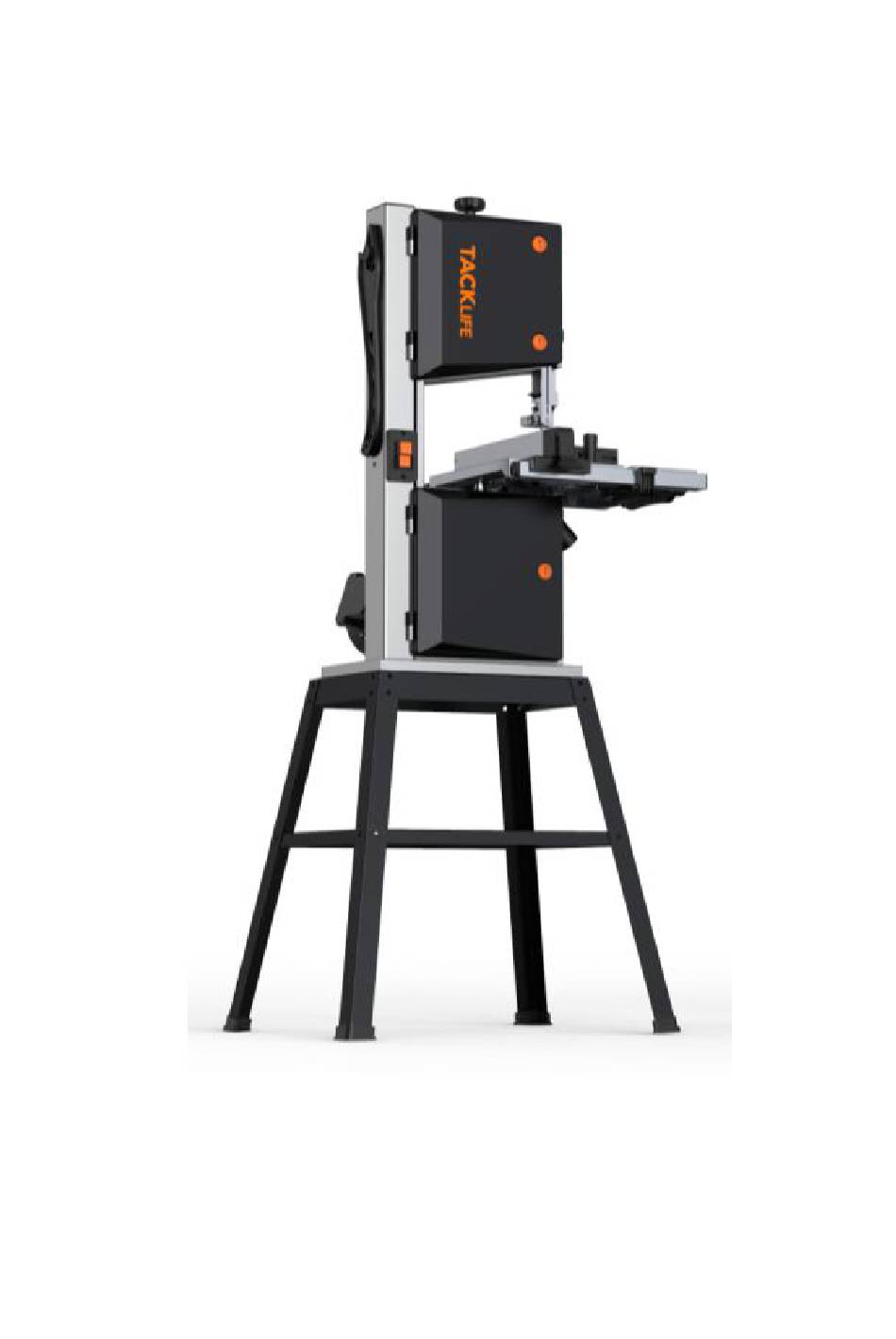

- Page 1 Model:PBS01A...
- Page 5 Fig. 7.4 Fig. 7.3 Fig.8.1 Fig. 8 8.18.1...
- Page 9 Table of contents 1.Introduction 2.Device description (Fig. 1-16) 3.Scope of delivery 4.Intended use 5.General safety information 6.Technical data 7.Remaining hazards 8.Attachment and operation 9.Transport 10.Working instructions 11.Cleaning and maintenance 12.Storage 13.Electrical Connection 14.Disposal and recycling 15.Troubleshooting...
- Page 10 Explanation of the symbols on the equipment Warning! Danger to life, risk of injury or damage to the tool are possible by ignoring!. Caution - Read the operating instructions to reduce the risk of inquiry! Wear safety goggles! Wear ear-muffs! Wear a breathing mask! Important! Risk of injury.
- Page 11 1，Introduction Dear Customer, We hope your new tool brings you much enjoyment and success. Note: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to: Improper handling, Non-compliance of the operating instructions, Repairs by third parties, not by authorized service technicians,...
- Page 12 6 Table width enlargement 7 Tabletop 8 Clamping lever 9 Frame On/Off switch 11 Handle for saw blade tensioning 12 Handle for belt tensioning 13 Adjustment handle for sawblade guard 14 Mitre gauge 15 Underframe 3，Scope of delivery • Open the packaging and remove the device carefully. •...
- Page 13 • Original operating instructions 4，Intended use The bandsaw is designed to perform longitudinal and cross cuts on timber or wood-type materials. To cut round materials you must use suitable holding devices. The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.
- Page 14 Read all these notices before using the electric tool and keep the safety instructions for later reference. Safe work 1 Keep the work area orderly – Disorder in the work area can lead to accidents. 2Take environmental influence into account –...
- Page 15 – Use the clamping devices or a vice to hold the workpiece in place. In this manner, it is held more securely than with your hand. – An additional support is necessary for long work- pieces (table, trestle, etc.) in order to prevent the machine from tipping over.
- Page 16 dam- aged. All parts must be correctly mounted and all conditions must be fulfilled to ensure faultfree operation of the electric tool. in the open position. – The moving protective hood may not be fixed – Damaged protective devices and parts must be properly repaired or replaced by a recognised workshop, insofar as nothing different is specified in the operating manual.
- Page 17 well as all other generally recognized rules of safety. • Note the information published by your professional associations. • Adjustable protective devices have to be adjusted as close as possible to the workpiece. • Important! Support long workpieces (e.g. with a roller table) to prevent them sagging at the end of a cut.
- Page 18 the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the fist-aid kit immediately after it has been used. If you seek help, state the following pieces of information: 1.
- Page 19 work piece. • Risk of injury through the hurling work piece due to improper handling, such as working without the push stick. • Risk of damaging your health due to wood dust and wood chips. Wear personal protective cloth such goggles. Use a fitting dust extractor. •...
- Page 20 wash- er M6, 4 hex nuts M6) Hand-tighten all screws lightly during the installation. • Attach one stand brace below (B) each with 2 screws M8 x 16, 2 washer and 2 nuts to the stand feet (A). • Mount the frame struts above (C), each with 4 carriage bolts M8 x 14, 4 washers and 4 nuts on the frame feet (A) as shown in Fig.
- Page 21 • Place the parallel stop (5) on the guide rail (Q) to the left or right of the sawing blade • 2 scales (L/M) are printed on the guide rail for the parallel stop (5), which show the distance between the stop rail and sawing blade. •...
- Page 22 • Put the belt into the desired position. (S1 or S2). • Retension the belt with the tension handle (12). • Close the lower guard. Rpm range: Rpm stage 1 360 m/min. For processing hardwood, materials similar to hardwood and for fine cuts Rpm stage 2 720 m/min.
- Page 23 • Turn the lateral stop (o) until the desired angular dimension has been set. The arrow on the lateral stop indicates the set angle. • Retighten the grip screw (l). • The stop rail (n) can be slid against the lateral stop (o). To do so, loosen the knurled screws (m) and slide the stop rail (n) into the desired position.
- Page 24 • All protective and safety devices must be securely mounted on the machine before beginning work. • Never clean the sawband or the sawband guide with a hand-held brush or scraper while the sawband is running. Resin-covered sawbands impair working safety and must be cleaned regularly.
- Page 25 wards from 0° - 45°. • Release the locking handle (E). • Tilt saw bench (7) forwards, until the desired angle is set on the degree scale (I). • Retighten the locking handle (E). • Attention: With a tilted saw bench (7), the longitudinal fence (5) must be positioned on the downward facing side to the right of the saw band in the working direction (if the workpiece width allows this), in order to secure the workpiece against slipping.
- Page 26 • We recommend that you clean the device immediately each time you have finished using it • Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.
- Page 27 • The mains voltage must be 110 - 120 V~ • Extension cables up to 25 m long must have a cross-section of 1.5 mm. Connections and repairs of electrical equipment may only be carried out by an electrician. Please provide the following information in the event of any enquiries: •...
- Page 28 The motor starts up Voltage too low, coils damaged, capacitor Contact the utility provider to check the slowly and does not burnt voltage. reach operating speed. Arrange for inspection of the motor by a specialist. Arrange for replacement of the capacitor by a specialist Motor makes excessive Arrange for inspection of the motor by a...
