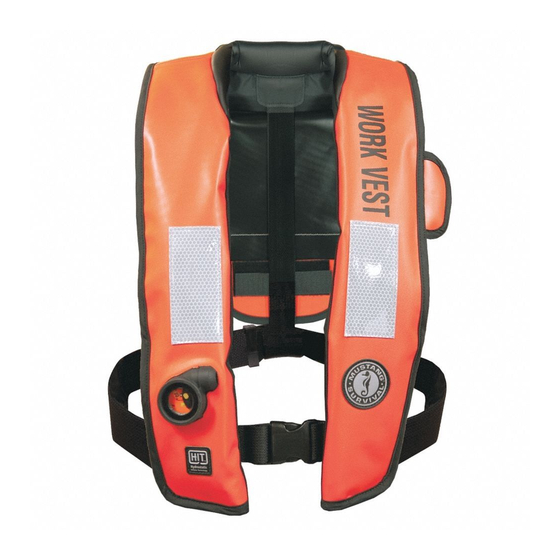

Inflatable personal flotation device
Hide thumbs Also See for MD3188:

Advertisement

Quick Links

MANUfAcTURER'S MANUAL
MD3188
United States coast Guard Approvals:
- Type V Work Vest
- Type V Uninspected Commercial Vessels
- Type II Recreational PFD
INfLATAbLE PERSONAL fLOTATION DEVIcE
DO NOT REMOVE PRIOR TO SALE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD3188 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mustang Survival MD3188

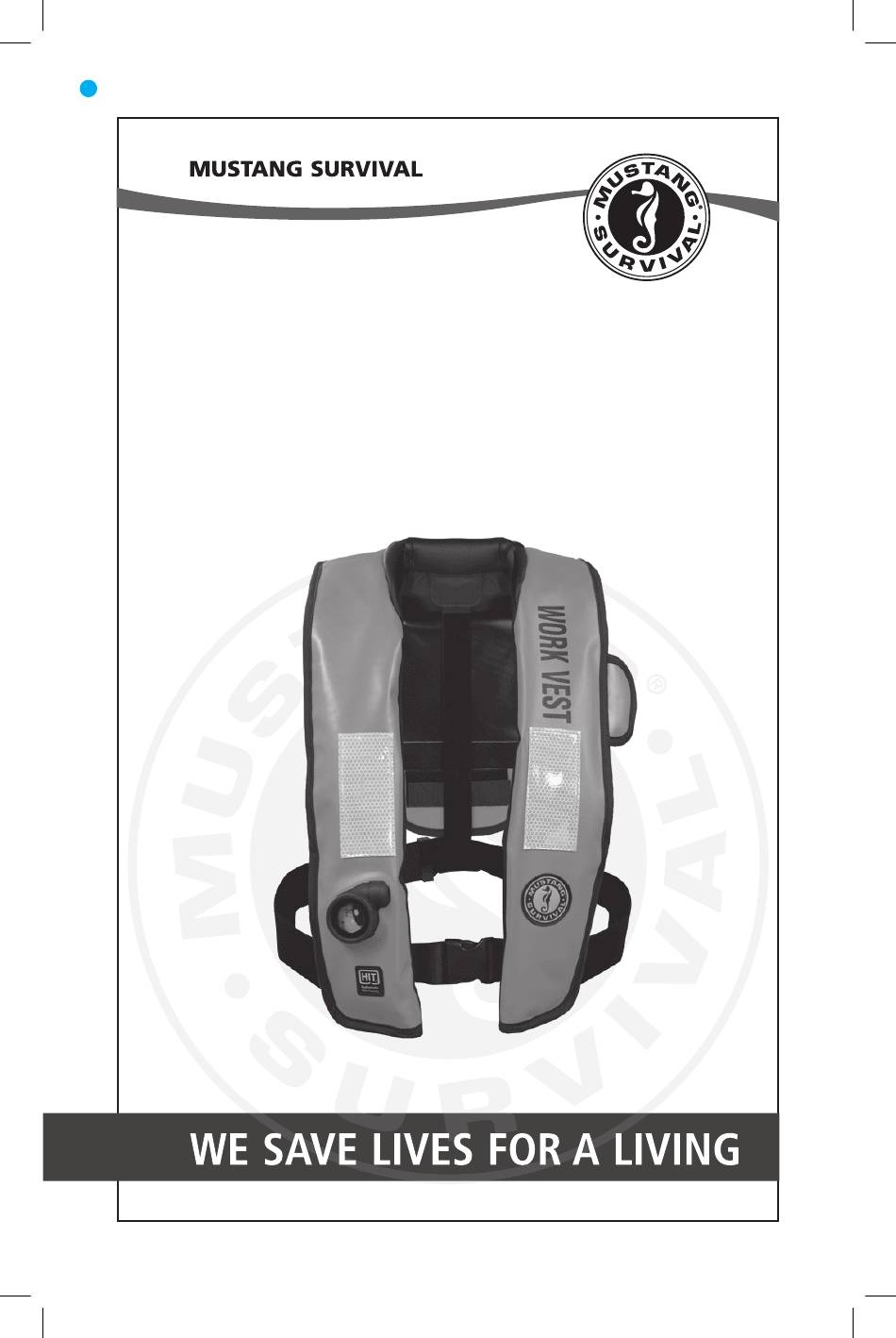

  • Page 1 MANUfAcTURER'S MANUAL MD3188 United States coast Guard Approvals: - Type V Work Vest - Type V Uninspected Commercial Vessels - Type II Recreational PFD INfLATAbLE PERSONAL fLOTATION DEVIcE DO NOT REMOVE PRIOR TO SALE...
  • Page 2 Copyright © 2009 Mustang Survival Corp. No part of this document may be reproduced, transmitted, or transcribed in any form or by any means without the express permission of Mustang Survival Corp. While every effort possible has been made to ensure technical accuracy, information within this document is subject to change without notice.
  • Page 3: Table Of Contents

    Each of These Devices is Intended to Help You Save Your Life ......24 Inflatable PFD Safety Accessories ................24 Additional information ......................24 Do Not Attach PFDs to Your Boat ................24 Airline Operator Policy on Carriage of Inflatable PFDs and CO Cartridges ..24 Glossary ..........................25 Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 5: Introduction

    Full gear in-water testing is recommended to validate performance and to become familiar with the use and feel of the PFD. The MD3188 PFD provides flotation, helping to keep the head above water, to stay face up, and to increase chances for survival and rescue. The PFD inflates automatically on submersion using a hydrostatic inflator that significantly reduces the potential for accidental inflation due to humidity, sea spray, or wet storage.
  • Page 6: Approval Conditions And Carriage Regulations

    Type V and/or Work Vest Approval in commercial Applications The MD3188 must be worn before getting underway and whenever above deck and not within an enclosed space to meet the carriage requirement. The operator of a commercial vessel is responsible for servicing and maintaining the MD3188 in good serviceable condition in accordance with this manufacturer’s manual.
  • Page 7: Mandatory Carriage Requirements

    It is recommended that you familiarize yourself with the procedures outlined in Instructions for Use (page 3). INSTRUcTIONS fOR USE This manual supplies instructional, maintenance and safety information for model MD3188. The PFD model number is listed on the underside label. commercial Vessel Use This Inflatable PFD is not approved for “hot work”.
  • Page 8: Visual Inspection Instructions And Readiness Checklist

    Check the seams for secure attachment. • Check the cell cover, straps, and hardware for strength. • Ensure the hardware is not deformed. • If the device shows damage, it may need servicing or replacement. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 9: Donning Instructions

    The belt should fit below your rib cage, adjusted to a tight personal fit. Put the Inflatable PFD on just like a jacket (Figure 3) and fasten the front buckle. Figure 3 WARNING: LOOSE VEST OR LOOSE ENDS cAN kILL OR MAIM yOU. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 10: Removal Instructions

    PFD will slowly escape through the fabric over time. A slight reduction of pressure will be observed after several hours of inflation. Topping up by oral inflation may be required in the event of prolonged immersion. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 11 The Inflatable PFD could inflate when you are in an awkward place or position. If this Inflatable PFD should inflate inadvertently, a re-arm kit (MA7214) is required to re-arm the device. IMPORTANT: The Inflatable PfD should be re-armed according to the instructions (Re-arming your PfD, page 8). Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 12: Usage Below Freezing

    Do not incinerate, expose to sunlight or store above 120°f (50°c). • Do not throw into open fire or dump at sea. • keep away from children. • Dispose of gas cylinders only when empty. • Discharge and dispose of corroded or rusty cylinders. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 13 Squeeze the sealing ring to elongate and remove the inflator body through the sealing ring (Figure 11). Dispose of the used inflator body (Figure 12). Red Indicator Red Indicator Inflator Body Trash Sealing Ring Figure 11 Figure 12 Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 14 (Figure 17). Pull on the cap to make sure it has locked onto the inflator body. 10. Check: To see that the single point status indicator on the cap is green; the pull-to-inflate lanyard is present and that the locking ring is locked. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 15: Repacking Your Pfd

    Repeat step 2 with side (C) (Figure 22), cover (D) (Figure 23). Ensure the inflator body is still located within its protective cap cover and that the single point status indicator is visible through the inflator cap cover’s window (Figure 18). Figure 19 Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 16 Fold over the top side (E) (Figure 24) and cover (F) (Figure 25). Mustang Survival uses advanced 2-step zippers. ZIP 1 -Reset the long zipper by pulling the slider (G) around the top to the Velcro™ tab (H). ZIP 2 -Close by pulling the slider (G) in the opposite direction to the end of the zipper (Figure 27).
  • Page 17: Is Your Pfd In Good And Serviceable Condition

    Rearm – Replace CO2 cylinder and inflator Test Oral-Inflation Leak Check – 16 hours Clean Record and date Service Record label on PFD *Perform more often if exposed to potential damage or used in extreme conditions. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 18 Repack the Inflatable PFD as outlined in the Repacking section (page 11). cAUTION: To avoid inflation, don't submerge the hydrostatic inflator. NOTE: conduct these tests more often if exposed to potential damage or used in extreme conditions. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 19 WARNING: If you are not confident in the self-inspection and servicing of your Inflatable PfD in accordance with these instructions, take your Inflatable PfD to a Mustang dealer for professional servicing or contact Mustang Survival (see contact information on back of manual). Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 20 A leaking cell – perform the Leak Test as specified in the “Care and Maintenance Instructions” section under “Every Three (3) Months” If your PFD exhibits any of the above, contact your Mustang dealer for professional servicing or Mustang Survival (see contact information on the back of this manual). Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 21: Commercial Training Content And Procedure

    The MD3188 features Hydrostatic Inflator Technology (HIT)™, which reduces instances of inadvertent inflation due to moisture or spray. The inflator must be submerged in at least four (4) inches of water before it automatically inflates. See “How to Inspect the Device Prior to Use”...
  • Page 22 Check the date of the Inflator cap to ensure it has not expired. • If you need to jump from any height, always fold your arms over your chest to keep the PFD in place when entering the water. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 23: Service Record And Inspection Log Procedure

    (example log is shown below). Space is provided on the label to record the User’s Name, Date Maintained, and Name of person who inspected and serviced the PFD. This record must be maintained and made available at all times for inspection to meet carriage requirements. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 24: Why Are Pfds Required Safety Equipment

    A flow of bubbles should not appear (see Care and Maintenance Instructions for Leak Tests, page 14). It should inflate quick and easily. Learn how it works by: • Activating the CO inflation system • Re-arming the CO inflation system • Using the Oral inflator tube Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 25 Get out of the water and remove the Inflatable PFD. Completely deflate the Inflatable PFD using the oral inflator (see Deflating the Inflatable PFD page 8). Let the Inflatable PFD dry thoroughly. Re-arm (page 8) and Repack the PFD (page 11). Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 26: Hypothermia

    Prolonged exposure to cold water causes a condition known as hypothermia - a substantial loss of body heat, which leads to exhaustion and unconsciousness. Most drowning victims first suffer from hypothermia. The following chart shows the effects of hypothermia. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 27: How Hypothermia Affects Most Adults

    If there is more than one person in the water, huddling is recommended while waiting to be rescued. This action tends to reduce the rate of heat loss and thus increase the survival time. Figure 33 Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 28: Each Of These Devices Is Intended To Help You Save Your Life

    75.10(a)(25): With the approval of the aircraft operator, one small carbon dioxide cylinder fitted into a self-inflating jacket, plus one spare cartridge, may be carried by a passenger or crew in checked or carry-on baggage. Please refer to the governing body’s documentation, found online at http://hazmat.dot.gov. Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 29: Glossary

    GLOSSARy Term Definition carbon dioxide Hot Work burning, welding, riveting, grinding, etc. Permeation passage or diffusion of a gas through a barrier Personal Flotation Device USCG United States Coast Guard Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 30 Manufacturer's Manual MD3188 Inflatable PFD...
  • Page 32 TOLL FREE: 1.800.526.0532 EMAIL: custserv@mustangsurvival.com Mustang Survival and seahorse design is a registered trademark of Mustang Survival Corp. Our commitment to quality has earned our Burnaby facilities ISO 9001 registration, the highest of all international standards. This is our guarantee you are receiving the ultimate in design and manufacturing.
