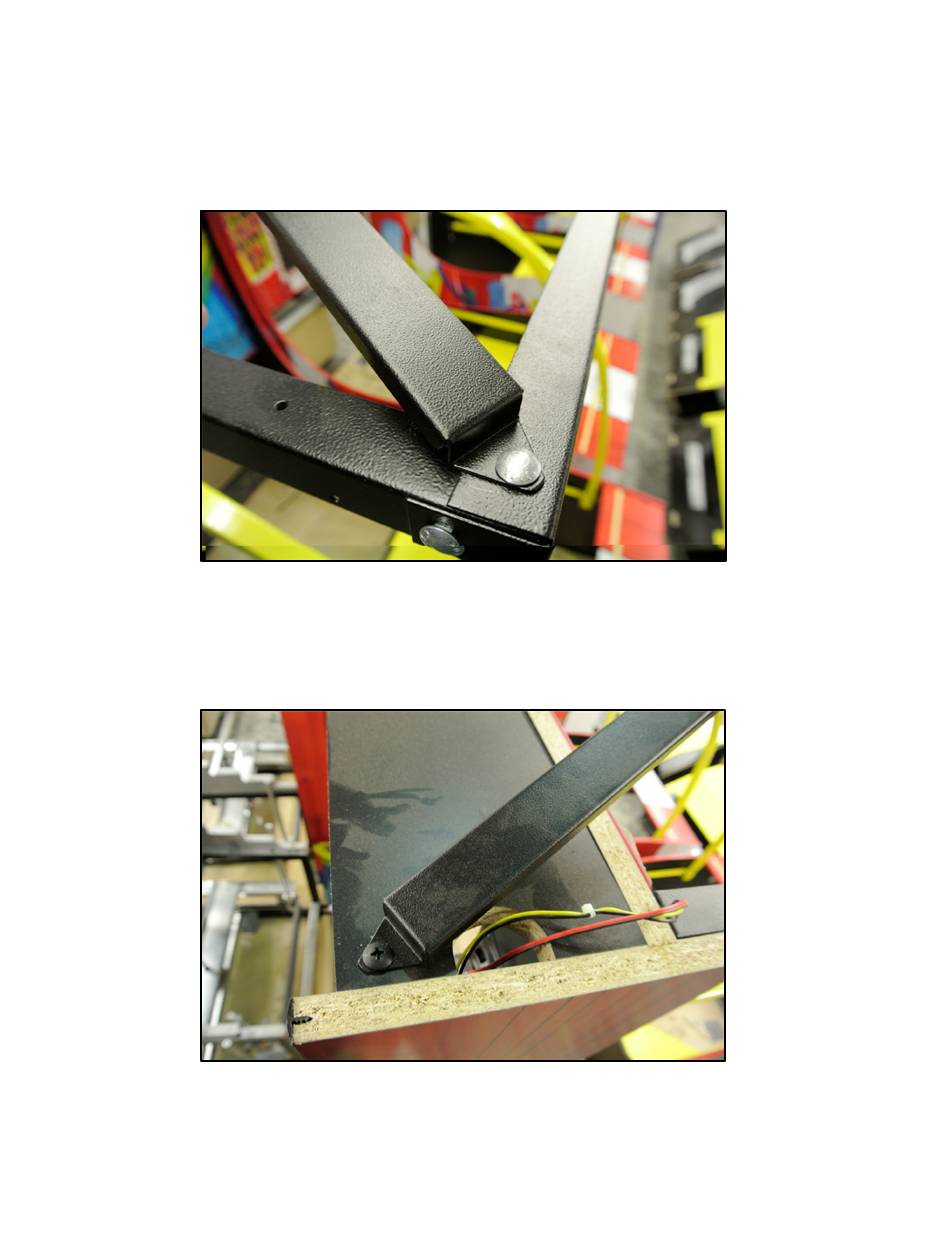

Repeat for the other Pem stud on bracket. Invert the assembly and mount to the four
corners of the top of upper frame of the game (2 persons are recommended to perform this
part) using ¼-20x3/4" carriage bolts (2) on front of game (see below),
and ¼-20x1" black #3 Philips screws (2) at rear of game (see below).
The canopy rests on top of this frame with "Ring Toss" graphics facing front of game. The
canopy has Velcro straps that surround and hold it to the frame.
Coastal Amusements Inc. | Ring Toss
11
