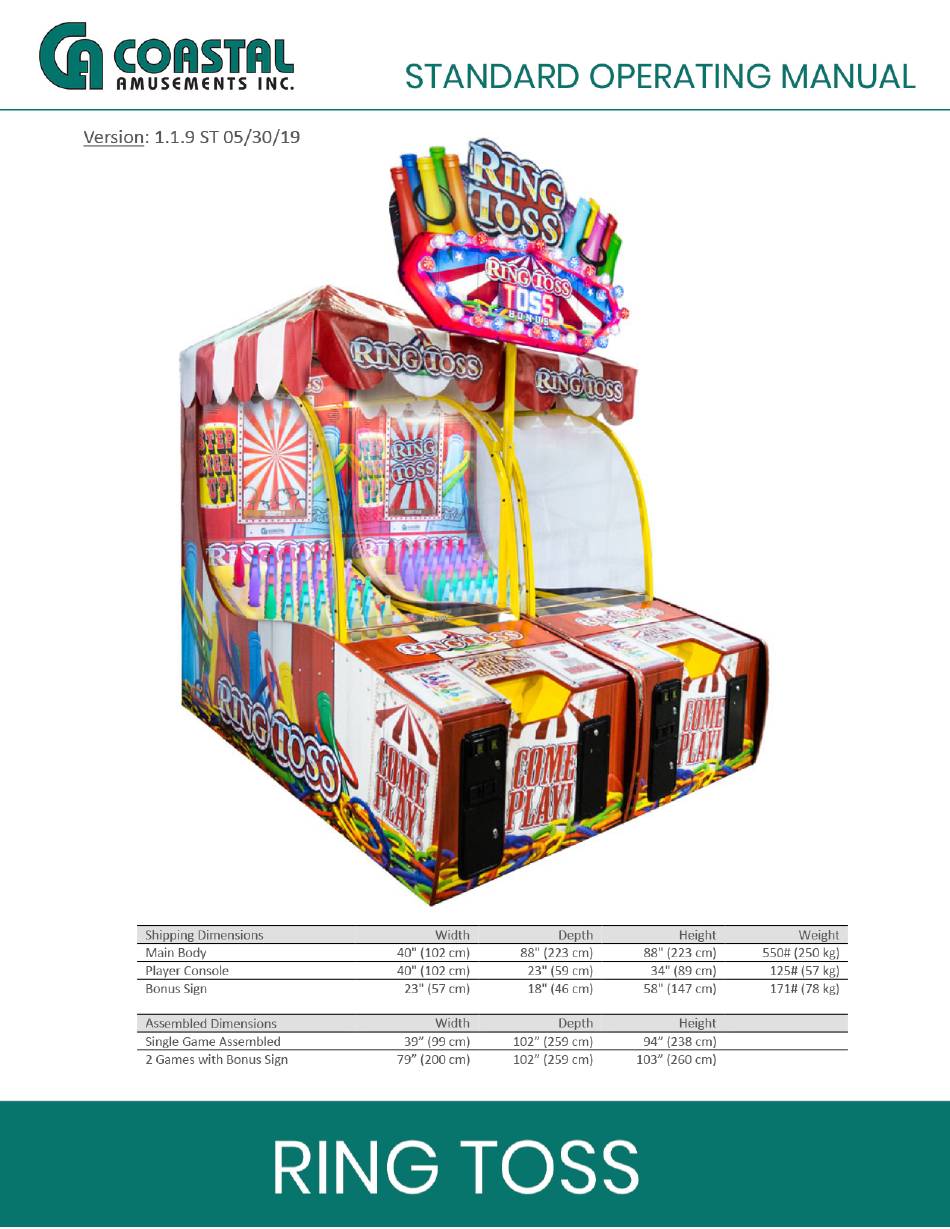

CA RING TOSS Standard Operating Manual

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the RING TOSS and is the answer not in the manual?

Questions and answers

Summary of Contents for CA RING TOSS

Page 2: Table Of Contents
......................7 ASSEMBLY ....................... 9 CAMERA CALIBRATION ..................17 INTERNET OPTIONS INSTRUCTIONS ..............20 MENU OPTIONS ....................23 MAINTENANCE ..................... 29 TROUBLESHOOTING ....................30 EXPLODED DIAGRAMS ..................33 SCHEMATICS ......................40 FACTORY WARRANTY .................... 45 Coastal Amusements Inc. | Ring Toss...
Page 3: Introduction
INTRODUCTION RING TOSS is an amusement redemption game where the player tosses rings onto lighted bottles to score points. Further bottle rows are worth more points. A player can win the Progressive Bonus by reaching the required amount of points. Tickets are awarded based on the number of points scored.
Page 4 Make sure all doors are installed and the console top is closed before attempting to play a game, otherwise the game will not work correctly. The photos on the next pages show the location of the interlock switches. Coastal Amusements Inc. | Ring Toss...
Page 5 REAR DOOR SWITCH CONSOLE TOP SWITCH HOPPER ASSEMBLY SWITCH Coastal Amusements Inc. | Ring Toss...
Page 6 POWER SOURCE IMPORTANT! GAME MUST BE CONNECTED TO A GROUNDED POWER SOURCE. GAME MUST HAVE GROUND CONNECTION FOR PROPER OPERATION AND USER SAFETY PROTECTION. DO NOT OPERATE GAME WITH GROUND LEAD CUT OFF POWER CORD. Coastal Amusements Inc. | Ring Toss...
Page 7: Installation
4. The lighted bottles; (46 total in alternating rows of 7 and 6) have serial addressable LED strips inside. The LEDs are fault tolerant, so that if one fails the others “down-stream” Coastal Amusements Inc. | Ring Toss...
Page 8 10 amps, 250 volts. For the dual-game configuration (2 games side by side) the left-side game (viewed from front) has an extra power supply providing 5 and 24 volts for the bonus sign mounted between the games. Coastal Amusements Inc. | Ring Toss...
Page 9: Assembly
The console attaches to the game using 4 Southco latches (2 high, 2 low, left and right). To secure the console to the main body, turn the latches with 5/16” Allen wrench (see pictures for reference). Coastal Amusements Inc. | Ring Toss...
Page 10 Place canopy connection bracket so that the PEM studs stick up through two brackets on the left, and two on the right. Use an 8-32 nut with captive star washer to secure brackets on stud (see below). Coastal Amusements Inc. | Ring Toss...
Page 11 ¼-20x1” black #3 Philips screws (2) at rear of game (see below). The canopy rests on top of this frame with “Ring Toss” graphics facing front of game. The canopy has Velcro straps that surround and hold it to the frame.
Page 12 3. Bonus sign; The bonus sign is mounted between two Ring Toss games. An extra power supply is mounted in the upper part of one game, this ‘master’ game should be the left side game (when viewed from the front). At front of and between both games a “boat board”...
Page 13 The nub or bump of board goes towards the rear and sits above the profile of the game. Two ¼-20x3-3/4” bolts go through the right side game (in upper hopper area), through the board and are secured with captured outer-star washer nuts on the left game (see below). Coastal Amusements Inc. | Ring Toss...
Page 14 Place one end of bonus sign pole (the end without the holes to pass bolts) over the nub of the boat board (see picture), and secure it to the post holder bracket with a ¼-20x2 1/2 carriage bolt, using a nut. Coastal Amusements Inc. | Ring Toss...
Page 15 Plug the 4 pin Molex connector into the harness coming from the game. There is a J- channel bracket to mount between the games at the rear. Use three ¼-20 bolts to go through one game side, then the bracket, then the other game (see pictures below). Coastal Amusements Inc. | Ring Toss...
Page 16 Coastal Amusements Inc. | Ring Toss...
Page 17: Camera Calibration
You will see a screen similar to the following: All bottles are within the red Bottle outlines Bottle outlines line up with line up with bottles bottles Line up red line with black T- molded area. Green box should be within tape Coastal Amusements Inc. | Ring Toss...
Page 18 3. Once you have the camera aligned left-to-right and have tightened the nuts back up, you can loosen the screws on the sides of the camera mount to adjust the angle of the camera (green arrows are pointing to the screws): Coastal Amusements Inc. | Ring Toss...
Page 19 If you have any questions or comments, please our service department at +1 732 905 6662. We are open Monday through Friday 09:00 AM – 16:30 PM EST (USA). Coastal Amusements Inc. | Ring Toss...
Page 20: Internet Options Instructions
‘TAB’ until the ‘Scan’ button is highlighted in yellow and then press space. (If you ever need to ‘TAB’ back to a previous item, hold down ‘SHIFT’ when you press ‘TAB’). You will then see a screen similar to the following: Coastal Amusements Inc. | Ring Toss...
Page 21 8.8.8.8 or 8.8.4.4 to use Google’s DNS servers or find another public DNS server on the web. When all fields are correctly filled out, tab down to the ‘Save’ button and press the spacebar. You will then see the following screen: Coastal Amusements Inc. | Ring Toss...
Page 22 You can now remove the keyboard and reboot the game. Upon reboot, the game will then attempt to make an initial contact with our server. If you have any questions, call Coastal Amusements at +1 (732) 905-6662. Support is available from 08:00 to 16:30 PM EST, Monday through Friday. Coastal Amusements Inc. | Ring Toss...
Page 23: Menu Options
This option should be set to the cash value of TICKET VALUE $0.01 $0.10 one ticket. $0.001 Note: This setting must be accurate in order to increments) correctly calculate the overall percentage payout of the game. Coastal Amusements Inc. | Ring Toss...
Page 24 AFTER 3 FOULS, player then continue play. No points are END GAME scored while a foul is detected. IMMEDIATELY, DELAY GAME & CONTINUE FOULS IN ATTRACT ON/OFF When on, fouls will be detected in attract mode. Coastal Amusements Inc. | Ring Toss...
Page 25 This setting is the minimum value that the THRESHOLD threshold can decrease to. (by 50s) START / MAX BONUS 500-950 This setting sets the starting points threshold THRESHOLD value. It will also never go above this number. (by 50s) Coastal Amusements Inc. | Ring Toss...
Page 26 (2-10). When you are in this screen on the MASTER game, it will show you if any games are linked by changing the text NOT LINKED in red to LINKED in green. Coastal Amusements Inc. | Ring Toss...
Page 27 0.00 0.00 TOTAL FOULS This screen will show all bookkeeping information. Pressing RESET on this screen will clear the current audits. A screen will appear asking to confirm that you want to do this. Coastal Amusements Inc. | Ring Toss...
Page 28 Follow the on-screen instructions to use. EXIT WITHOUT SAVING Exit the menu without saving any changes. SAVE AND EXIT Save any changes made and exit the menu. Coastal Amusements Inc. | Ring Toss...
Page 29: Maintenance
DIAGNOSTICS menu. Also, see that there are no foreign objects inside the hopper, as this can cause a hopper jam. WE RECOMMEND THAT YOU LOAD ALL 100 RINGS INTO THE HOPPER TO AVOID ANY CHANCE OF ‘HOPPER STARVATION’. Coastal Amusements Inc. | Ring Toss...
Page 30: Troubleshooting
E. Should the game run out of rings (all rings are on bottles), hopper error will appear since no rings are passing by the hopper sensor. This is a rare ‘starvation’ occurrence Coastal Amusements Inc. | Ring Toss...
Page 31 If they are not, you can loosen the screws securing the camera assembly and move the camera so that it is correctly aligned. Then you can press the menu button to recalibrate the camera. Coastal Amusements Inc. | Ring Toss...
Page 32 ATTENDANT button will use the factory default calibration image, which should correct any problems you may have. If you have any questions or comments, please our service department at +1 732 905 6662. We are open Monday through Friday 09:00 – 16:30 EST (USA). Coastal Amusements Inc. | Ring Toss...
Page 33: Exploded Diagrams
LIFTING TRAY DECAL SET RT-KIT-RT-BOTTLE BOTTLE ASSEMBLY RT-SCP-01 RING SCREEN CA-SWI-RT-SPDT15A TRAY ACTION MICROSWITCH RT-SM-30 MICRO SWITCH SUPPORT CA-BRG-RT-GROMMET NYLON 5/8" BEARING FOR 11/16" INSERT RT-SM-68 SNAP IN BEARING BRACKET CA-MOT-RT-ACTUATOR LINEAR ACTUATOR "B" STYLE GEARBOX Coastal Amusements Inc. | Ring Toss...
Page 34 QTY. RT-PLS-02 TUMBLER SIDE WALL RT-PLS-09 RING WALL RT-IMP-03 RING TOSS RING RT-PLS-14 ELEVATOR PLATE HOLD DOWN RT-PLS-03 TUMBLER ELEVATOR RT-SM-77 TUMBLER HUB RT-SM-105 ELEVATOR PINCH PLATE RT-PLS-10 LONG AGITATOR RT-PLS-11 HOPPER RING PAD Coastal Amusements Inc. | Ring Toss...
Page 35 RING DETECT OPTO SWITCH CA-SEN-RT-OPB100SZ RING DETECT OPTO SENSOR RT-SM-22 OPTO HOLD DOWN RT-SM-107 HOPPER SINGLE OPTO MOUNT CA-MOT-RT-SP7456 HOPPER MOTOR RT-SM-111 INTERLOCK BRACKET CA-SWI-RT-E6930A CHERRY INTERLOCK SWITCH CA-FUS-RT-F6669ND FUSE 8AMP SLO-BLO FOR MOTOR Coastal Amusements Inc. | Ring Toss...
Page 36 Coastal Amusements Inc. | Ring Toss...
Page 37 ITEM # Partno DESCRIPTION QTY. CA-PS-RT-SE6005 POWER SUPPLY MEANWELL SE-600-5 CA-PS-RT-SE35012 POWER SUPPLY MEANWELL SE-350-12 CA-SUB-PCB-PIBOARD PI I/O BOARD ASSEMBLY CA-MOT-RT-218CYT3 CYTRON 13A DC MOTOR DRIVER MD133 Coastal Amusements Inc. | Ring Toss...
Page 38 ITEM # PARTNO DESCRIPTION QTY. CA-KIT-RT-CAMERA CAMERA HOUSING ASSEMBLY RT-SM-118 CAMERA SLIDE C BRACKET RT-SM-94 CAMERA CROSSBAR Coastal Amusements Inc. | Ring Toss...
Page 39 ITEM # Part # DESCRIPTION QTY. RT-SCP-03 MONITOR COVER RT-WD-06 MONITOR BACK DOOR 49-0067-00 HAPP VENT HANDLE CA-SPE-MM-BRS40 SPEAKER CA-MON-LCD-32 MONITOR CA-PLU-RT-716WX201 AC RECEPTACLE RT-SM-113 IEC PLATE Coastal Amusements Inc. | Ring Toss...
Page 40: Schematics
SCHEMATICS Coastal Amusements Inc. | Ring Toss...
Page 41 Coastal Amusements Inc. | Ring Toss...
Page 42 Coastal Amusements Inc. | Ring Toss...
Page 43 Coastal Amusements Inc. | Ring Toss...
Page 44 Coastal Amusements Inc. | Ring Toss...
Page 45: Factory Warranty
 Defective parts covered under warranty must be returned within 30 days.  Defective parts returned after 30 days and before 60 days will incur a 25% restocking charge.  Defective parts returned after 60 days will receive no credit. Coastal Amusements Inc. | Ring Toss...
