CA RING TOSS Standard Operating Manual page 10

Be sure to adjust the front/rear feet on the console to match height of the main body to
make it easier to attach the console and body.

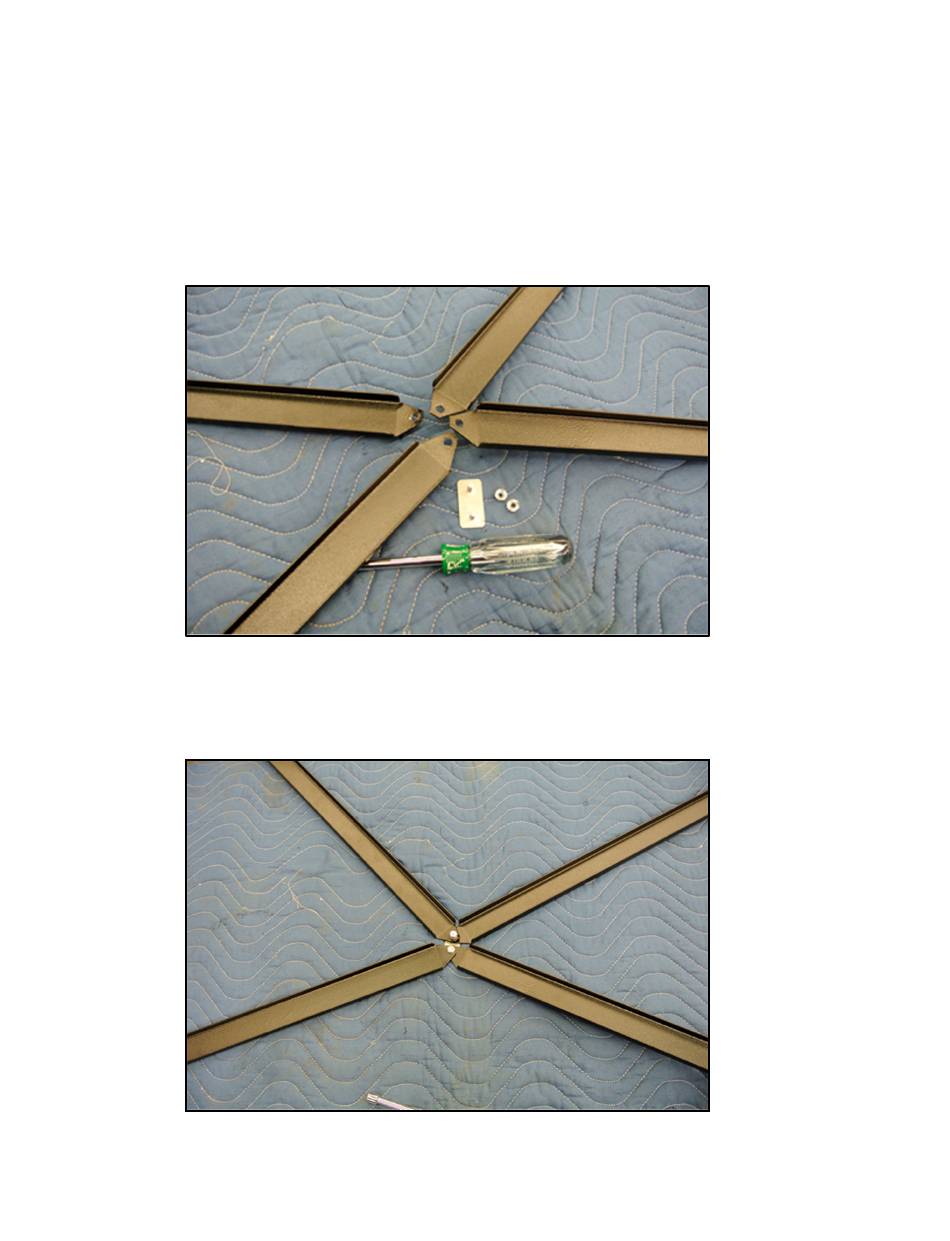

2. Canopy; 4 steel brackets are required per game to support the canopy. On one end of each
bracket there will be a round hole, and on the opposite end a square or "diamond" shape
hole. Align the brackets on their flat part so that they form a longish "X" with round holes
in the center (see below).
Place canopy connection bracket so that the PEM studs stick up through two brackets on
the left, and two on the right. Use an 8-32 nut with captive star washer to secure brackets
on stud (see below).
Coastal Amusements Inc. | Ring Toss 10
