PARTS & ASSEMBLY
PARTS
1
LED INDICATOR LIGHTS
POWER INDICATOR (1)
When the LED light is constantly lit it indicates
that power is being supplied to the unit.
HEATER INDICATOR (2)
When the LED light is flashing it indicates that the heating system is working. When the
LED light is constantly lit, it indicates that the hot water is ready. When the
LED light is off it shows that the heating system is off.
COOLING INDICATOR (3)
When the LED light is flashing it indicates that the cooling system is working. When the
LED light is constantly lit, it indicates that the cold water is ready. When the LED light is off
it indicates that the cooling system is off.
EMPTY BOTTLE INDICATOR (4)
The LED light is constantly lit when the water bottle has enough water for normal
operation. When the LED light is flashing it indicates that the level of water in the bottle is
low and a new full bottle should be installed.
SELF CLEAN INDICATOR (5)
When the LED light is flashing it indicates that the self cleaning takes place. When the
LED light is constantly lit it indicates that the self clean protection is on.
1
2
3
4

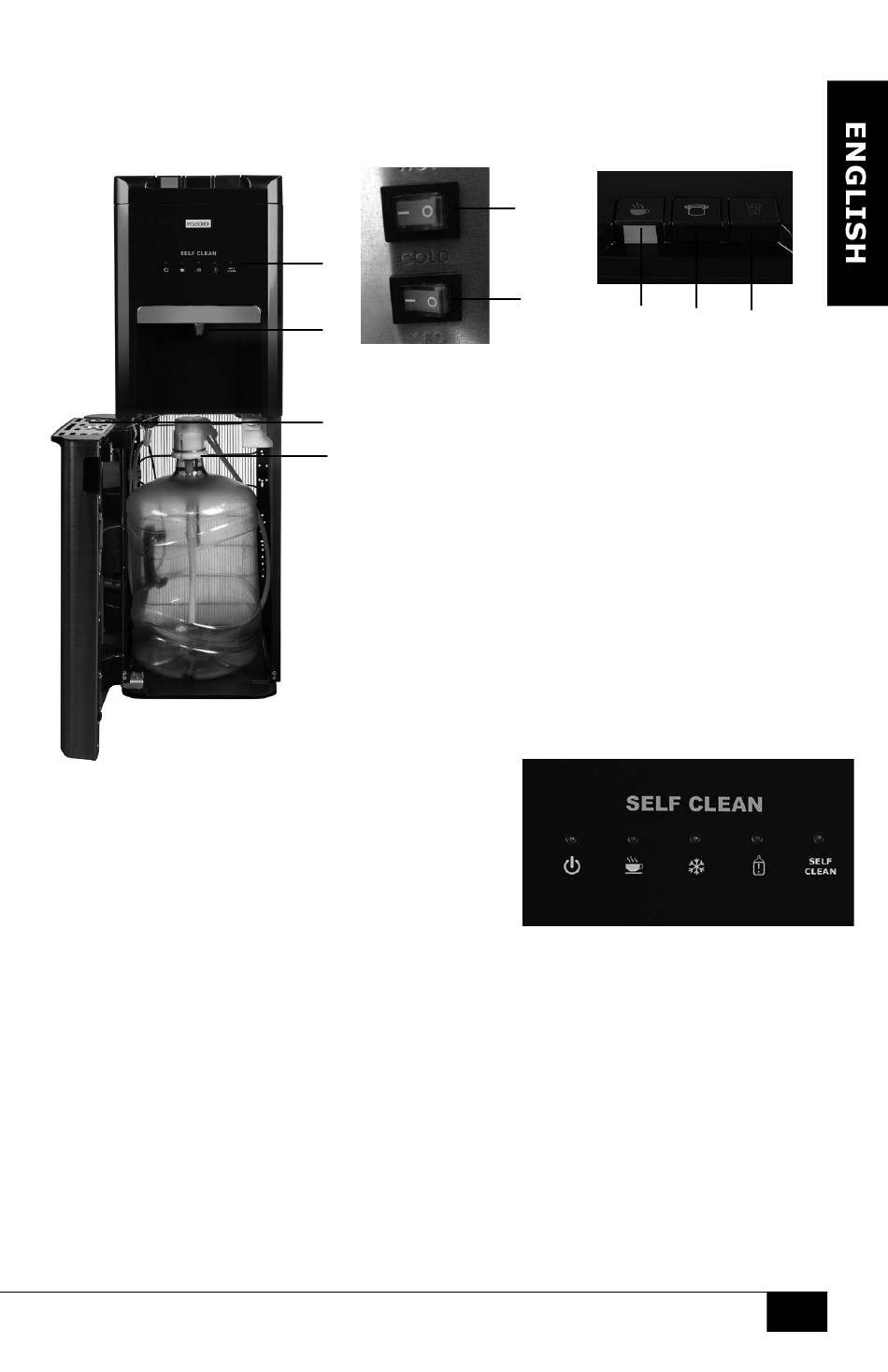

1- Indicator Lights
2- Water Spigot
3- Removable Drip Tray
4- Retractable Siphon Pump/Cover
5- Hot Water Push Button/Safety Lock
6- Room Temperature Push Button
7- Cold Water Push Button
8- Hot Water On/Off Switch
9- Cold Water On/Off Switch
8
9
6
5
7
6
