Aerogen Solo Directions For Use

Single Patient Use Nebulizer
Directions for Use
• The Aerogen Solo is suitable for intermittent and continuous nebulization of pediatric (29 days or older) and
®
adult patients.
• It can be used with the Aerogen Pro‑X Controller or the Aerogen USB Controller.
• The Aerogen Solo is compatible with other systems having an integrated Aerogen controller.
• It is a single patient use device, with an expected maximum life of 28 days or for a maximum of 7 days if used in
Continuous mode.
WARNING
Refer to the Aerogen Solo System Instruction Manual (AG-AS3050-US), the Aerogen USB Controller
System Instruction Manual (AG-UC1050-US) or the corresponding integrated system Instruction
Manual for complete instructions.
Rx Only: Federal (US) Law restricts this device to sale by or on the order of a physician.
Note: Aerogen recommend that the Aerogen Solo nebulizer be used in conjunction with an Aerogen Solo
disposable T‑Piece.
Refer to Figures A, B, C, D, E & F
1

Intermittent Nebulization (Option 1)

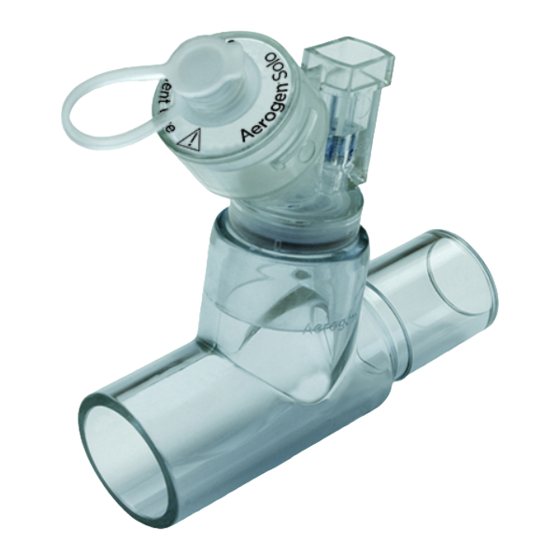

• Ensure the Aerogen Solo (1) is firmly pushed into the Aerogen Solo T‑Piece (2).
• Insert the nebulizer and T‑Piece assembly into the inspiratory limb of the ventilation circuit (3)
as shown in Figure A.
• Introduce prescribed medication into the nebulizer cup (4) and insert the tethered silicone plug (5).
• Turn on the 30 Minute Mode option (Intermittent) on the Aerogen Pro‑X Controller or integrated
controller (as per system Instruction Manual).
2

Intermittent Nebulization (Option 2)

The Aerogen Solo can be placed between the ventilator and the dry side of the humidifier. Figure B illustrates a
set up for the Aerogen Solo at the dry side of the humidifier. The Aerogen Solo can be used with a nasal interface
in this configuration.
The Aerogen Solo can be placed between the wye and endotracheal tube as shown in Figure C. The Aerogen
Solo can be used with a Heat and Moisture Exchange Device (HME) which may contain a filter.
Only a HME approved for use with a nebulizer should be used in this configuration (Figure D). Follow the HME
manufacturer instructions regarding use with a nebulizer. Ensure the combination of nebulizer, T‑piece and/or
HME volumes is suitable for the tidal volume being delivered. Adult T‑piece volume = 34.3 mL and Pediatric
T‑piece volume = 19.5 mL.
Refer to system Instruction Manual for other configurations.
3

Continuous Nebulization

• Place nebulizer as shown in Figure A or Figure B.
• Fill and prime the Aerogen Continuous Nebulization Tube Set (6) with medication as per Aerogen Solo
System Instruction Manual (AG‑AS3050‑US).
• Screw the nebulizer end of the tube set (7) onto the top of the Aerogen Solo (1) as indicated in Figure E.
• Turn on the continuous mode option on the Aerogen Pro‑X Controller or integrated controller (as per
Aerogen Solo System or integrated system Instruction Manual) and turn on the syringe pump (refer
to Aerogen Solo System Instruction Manual and pump manual or pump manufacturer for guidance).
4
For optimum use of the Aerogen Solo, ensure it is correctly orientated as shown in Figure F.
This applies to both Continuous and intermittent settings.
