UNI 321
Quick Start Guide V0.3
mPower Electronics Inc.
3046 Scott Blvd. Santa Clara, CA 95054
www.mpowerinc.com
info@mpowerinc.com
Read Before Operating
The User's Guide must be carefully read by all
individuals who have or will have the responsibility
of using, maintaining, or servicing this product.
The product will perform as designed only if it is
used, maintained, and serviced in accordance
with the manufacturer's instructions.

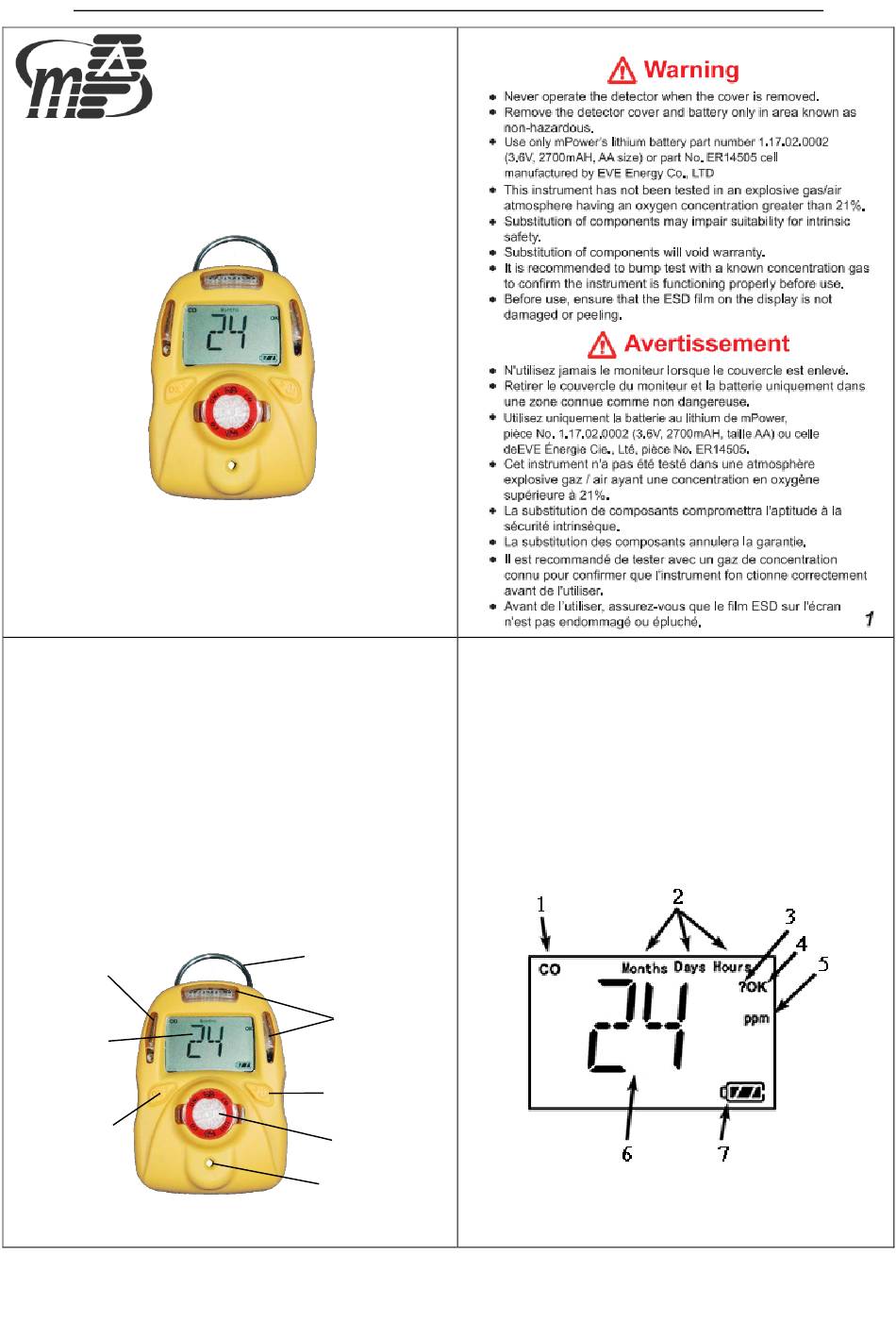

User Interface
The UNI 321's user interface consists of the LCD
display, LEDs, an alarm buzzer, two keys: Left Key
[Confirm/Increase Number] and Right Key
[Power/Move Cursor], an alligator clip, & a sensor.
LED alarm
window
LCD
Confirm/
Number
Increasing
key
1. Gas name, includes: CO, H
2. Remaining time unit: Months, Days or Hours
3. Question mark
4. Unit status indicator "OK"
5. Gas unit, for alarm setting display
6. Remaining operating time
7. Battery status
Alligator clip
LED alarm
window
Power/Cursor
Moving key
Sensor
Buzzer
2
Display
S, O
2
2
3
