Summary of Contents for MPower MP100
- Page 1 MP100 User’s Guide Rev.F Sep 2018...
-
Page 2: Table Of Contents
Read Before Operating ........................2 General Information ........................3 User Interface ..........................3 Display .............................. 4 Using MP100 ............................ 5 Turn the unit on ........................5 Warm up sequence ........................5 Normal mode ........................... 6 Real time reading ......................6 STEL screen ........................ -
Page 3: Read Before Operating
Retirer le couvercle du moniteur et la batterie uniquement dans une zone connue comme non dangereuse. ⚫ Utilisez uniquement la batterie au lithium de mPower, pièce No. 1.17.02.0002 (3.6V, 2700mAH, taille AA) ou celle de EVE Énergie Cie., Lté, pièce No. ER14505. -
Page 4: General Information

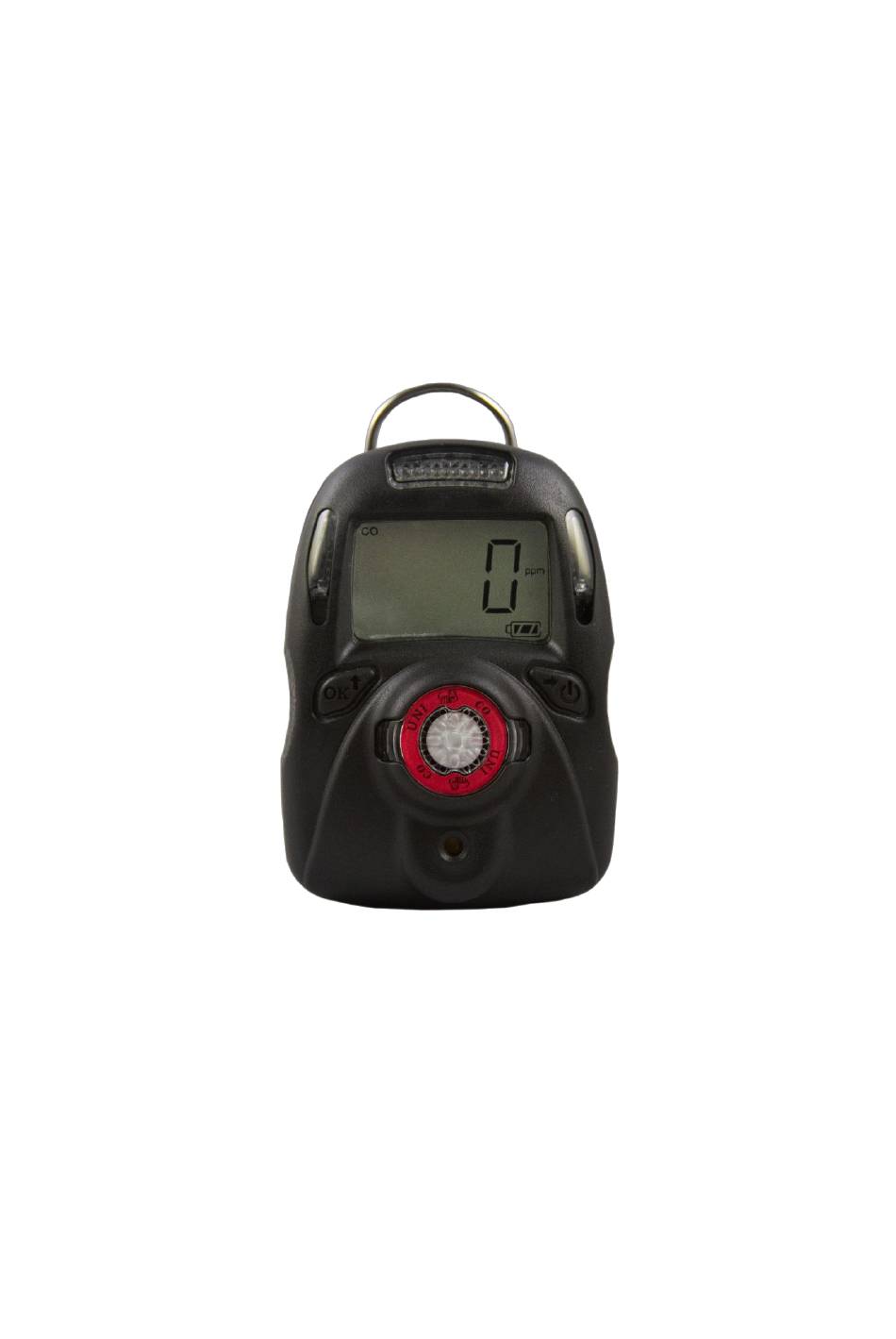

MP100 User’s Guide General Information UNI (MP100) is a single sensor, portable, personal toxic gas monitor. It displays gas concentration continuously on a big segment LCD. It also monitors STEL, TWA, peak and min (for O only) value of the gas and can be displayed on demand. -
Page 5: Display
MP100 User’s Guide Display 1. Gas name, includes: CO, H S, SO , VOC 2. Question mark 3. OK 4. Gas unit, includes: x10 , ppm, %, mg/m , µ mol/mol 5. Battery 6. HIGH, LOW, STEL, TWA alarm 7. Span calibration 8. -
Page 6: Using Mp100
MP100 User’s Guide Using MP100 Turn the unit on Press and hold the Right Key for 3 seconds, until LCD displays , buzzer beeps, green LED flashes, then release the button, the unit is powered on. Warm up sequence After powered on, the unit enter warm up and self-test sequence, show the firmware version as... -
Page 7: Normal Mode
MP100 User’s Guide TWA (time-weighted average) alarm threshold value: Normal mode Real time reading The unit enters normal mode, start monitoring gas concentration and display on the LCD screen. User can check some other values like STEL,TWA, PEAK, and MIN (for O only) by pressing the Right Key . -
Page 8: Min Screen (For Oxygen Sensor Only)
MP100 User’s Guide Press the Left Key again, peak value is cleared. Min screen (for Oxygen sensor only) Press the Left Key to clear min value Press the Left Key again, minimum value is cleared Turn the unit off In normal display mode, press and hold the Right Key, then the unit will display a 5 second count down, LEDs will flash and buzzer will beep once per second. -
Page 9: Sensor Calibration
2. Before span calibration (in the following section), attach the Calibration Adapter over the inlet port on the front of MP100 by pressing it into place. 3. Open the gas cylinder valve, then press the Left Key to start the calibration count down. -
Page 10: Zero Calibration
4. Take off the Calibration Adapter and complete calibration. When monitoring, never operate the MP100 with the Calibration Adaptor attached. The MP100’s sensor operates by diffusion. If the Calibration Adapter is attached during normal operation, inconsistent and lower-than-normal readings will occur because of decreased concentration of the gas being monitored. -
Page 11: Bump Test
MP100 User’s Guide different sensors (normally 60 seconds), after count-down is finished, span calibration result will be displayed on the LCD, pass or fail If user does not want to do span calibration during count-down, press the Right Key, LCD displays , span calibration is aborted. -
Page 12: Change Bump/Cal Interval
After all digits are done, use the Right Key to move cursor to “OK” symbol, press the Left Key to confirm the changing. * MP100 will show “Err”, if the input data is invalid as follows, - Low alarm setting is bigger than high alarm setting. -
Page 13: Change Span Value
MP100 User’s Guide press the Left Key to confirm the changing. * MP100 will show “Err”, if the input data is out of valid range:0~180 day(s). Change span value The span calibration preset value can also be changed, the change process is similar with the alarm limit. -
Page 14: Power On Zero Enable/Disable
Power on zero enable/disable Sensor base line may have some changes due to the environment (temperature, humidity), that will require a zero calibration. MP100 can do zero calibration every time the unit is powered on; this feature can be enabled/disabled. -
Page 15: Exit Config Mode
User needs to replace the battery. To replace battery: 1） Turn off the MP100. 2） Place the MP100 face down on a soft surface. 3） Use a T10 Torx screwdriver to loosen each of the four screws by turning them counterclockwise. -
Page 16: Replace The Sensor Filter
Replace the sensor filter A “peel-and-stick” filter should be used on the MP100 in order to keep debris from fouling the sensor. Sheets of 5 filters are available. When the filter appears dirty, replace it with a new one and dispose of the dirty filter. - Page 17 Caution ⚫ Change battery only in area known to be non-hazardous. ⚫ Use only mPower battery, PN: 1.17.02.0002 or part No. ER14505 cell manufactured by EVE Energy Co., LTD. Attention ⚫ Changez la batterie uniquement dans une zone connue pour être non dangereuse.
-
Page 18: Ordering Information
MP100 User’s Guide Ordering information Kit Package ⚫ MP100 instrument (with sensor, AA size lithium battery and alligator clip) ⚫ Quick start guide ⚫ Calibration adapter Calibration Kits（Optional） ⚫ Test gas (for sensor as specified) ⚫ Gas regulator with flow controller ⚫... -
Page 19: Specifications
MP100 User’s Guide Specifications Size 3.46 x 2.44 x 1.3 in. (88 x 62 x 33mm) Weight 4.4 oz. (125g) Temperature -4℉ ~ 122℉(-20℃ ~ 50℃) Humidity 5 ~ 95% relative humidity(non-condensing) Alarm type High alarm, low alarm, STEL alarm & TWA alarm adjustable. -
Page 20: Sensor Configuration
MP100 User’s Guide Sensor configuration Sensor Range Resolution Span High STEL Panel T90(s) (ppm) (ppm) (ppm) (ppm) (ppm) (ppm) (ppm) Ring 0-1999 35 Red 0-1000 0-500 0~50 10 Light Blue 0-100 0~200 0~1000 0-50 Orange 150 0-10 Orange 0.01 Orange 120... -
Page 21: Alarm Signal Summary
MP100 User’s Guide Alarm signal summary LCD Display Reason/Alarm Signals Over range： Buzzer 3 beeps per second LED 3 flashes per second 1 vibration per second “OVER” and “500” 1 flash per second High alarm： Buzzer 3 beeps per second... - Page 22 MP100 User’s Guide Bump over due alarm: Buzzer 1 beep per minute LED 1 flash per minute 1 vibration per minute Cal over due alarm: Buzzer 1 beep per minute LED 1 flash per minute 1 vibration per minute Battery empty alarm：...
-
Page 23: Trouble Shooting
MP100 User’s Guide Trouble shooting Problem Possible reason Solution Can not turn on unit Battery not installed Install battery. Depleted or defective battery Replace battery. Reading abnormally low Calibration Adapter is attached. Remove Calibration Adapter. Incorrect calibration. Calibrate the MP100. - Page 24 MP100 User’s Guide mPower Electronics Inc. 3046 Scott Blvd Santa Clara, CA 95054 www.mpowerinc.com Tech Support: info@mpowerinc.com...
