MPower UNI MP100 Series Quick Start Manual

MP100 Series
Quick Start Guide
mPower Electronics Inc.
3046 Scott Blvd. Santa Clara, CA 95054
www.mpowerinc.com
info@mpowerinc.com
PN: M001-4029-000

Read Before Operating

The User's Guide must be carefully read by all
individuals who have or will have the responsibility of
using, maintaining, or servicing this product. The
product will perform as designed only if it is used,
maintained, and serviced in accordance with the
manufacturer's instructions.

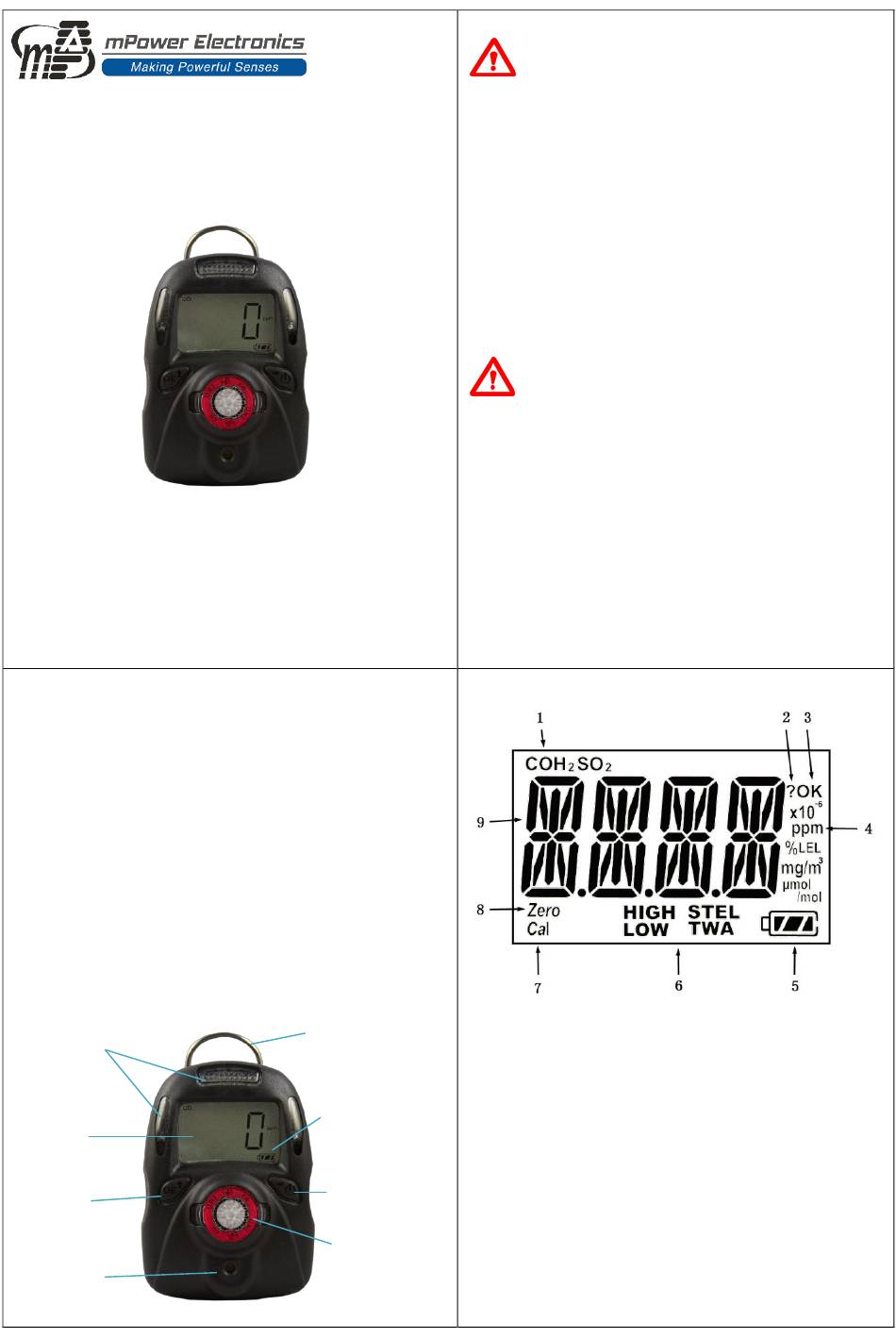

User Interface

The UNI's user interface consists of the LCD
display, LEDs, an alarm buzzer, two keys: Left Key
[Confirm/Number increasing] and Right Key
[Power/Cursor moving], an alligator clip, and a
chemical sensor.
LED alarm
window
LCD
Display
Confirm/
Number
increasing key
Buzzer
UNI
Alligator clip
Battery
status
Power/Cursor
moving key
Sensor with
ID on label

Warning

•
Never operate the monitor when the cover is removed.
•
Remove the monitor cover and battery only in area known
as non-hazardous.
•
Use only mPower's lithium battery part number
1.17.02.0002 (3.6 V, 2700 mAH, AA size).
•
This instrument has not been tested in an explosive gas/air
atmosphere having an oxygen concentration greater than
21%.
•
Substitution of components will impair suitability for
intrinsic safety and void warranty.
•
It is recommended to bump test with a known
concentration gas to confirm the instrument is functioning
properly before use.
•
Before use, ensure that the ESD film on the display is not
damaged or peeling.
Avertissement
•
N'utilisez jamais le moniteur lorsque le couvercle est enlevé.
•
Retirer le couvercle du moniteur et la batterie uniquement
dans une zone connue comme non dangereuse.
•
Utilisez uniquement le numéro de pièce de la batterie au
lithium mPower 1.17.02.0002.
•
Cet instrument n'a pas été testé dans une atmosphère
explosive gaz / air ayant une concentration en oxygène
supérieure à 21%.
•
La substitution de composants compromettra l'aptitude à la
sécurité intrinsèque et annulera la garantie.
•
Il est recommandé de tester avec un gaz de concentration c
onnu pour confirmer que l'instrument fonctionne correctem
ent avant de l'utiliser.
•
Avant de l'utiliser, assurez-vous que le film ESD sur
l'écran n'est pas endommagé ou épluché.
v1.3
1. Gas name, including CO, H
2. Question mark (perform operation?)
3. OK status indicator (or accept number entry)
4. Concentration unit, e.g. ppm, %, mg/m
5. Battery charge status
6. Alarm type indicator
7. Zero in progress indicator
8. Calibration in progress indicator
9. Concentration or other numerical value
3

Display Detail

S, SO
2
2
, or O
2 2
3
, etc.
4
