2018 promaster city, battery went dead. Got new battery, engine will start but van will not move. If try to put in gear it slams real hard. Will not move. Is this something I can fix or does it need to go to dealer?

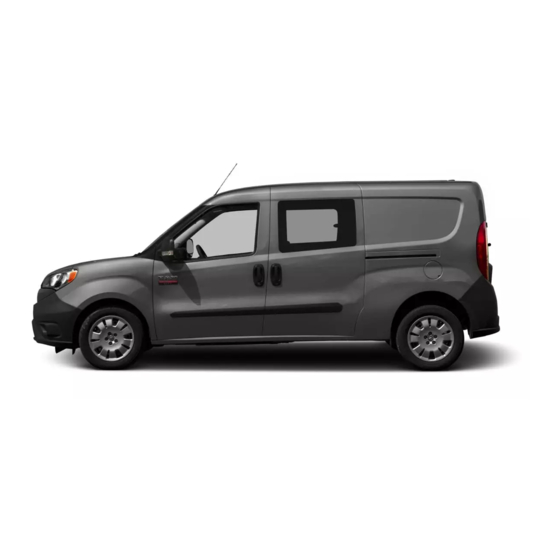

Summary of Contents for RAM PROMASTER CITY

Page 1 RAM PROMASTER CITY 20 2 1 OWNER’ S M ANUAL...
Page 2 This Owner’s Manual illustrates and describes the operation of features and equipment that are either standard or optional on this vehicle. This manual may also include a description of features and equipment that are no longer available or were not ordered on this vehicle. Please disregard any features and equipment that are no longer available or were not ordered on this vehicle.
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........................6 GETTING TO KNOW YOUR VEHICLE ................. 10 GETTING TO KNOW YOUR INSTRUMENT PANEL ............43 STARTING AND OPERATING ....................58 MULTIMEDIA ..........................86 SAFETY ............................145 IN CASE OF EMERGENCY ..................... 188 SERVICING AND MAINTENANCE ..................217 TECHNICAL SPECIFICATIONS ....................
Page 4 INTRODUCTION WIPERS AND WASHERS ........30 HEAD RESTRAINTS ..........21 Front Adjustment ......... 21 Front Wiper Operation......... 30 Symbols Key............7 Rear Adjustment — If Equipped ....22 Rear Wiper Operation — If Equipped ..31 WARNINGS AND CAUTIONS ......... 7 Front Removal..........
Page 5 VEHICLE LOADING ..........75 INSTRUMENT CLUSTER DISPLAY ......44 AUTOMATIC TRANSMISSION ......62 Location And Controls ......... 45 Key Ignition Park Interlock ......62 Vehicle Certification Label ......75 Change Engine Oil — If Equipped....46 Brake/Transmission Shift Interlock (BTSI) Gross Vehicle Weight Rating (GVWR)..76 Instrument Cluster Display Menu Items..
Page 6 IN CASE OF EMERGENCY ENHANCED ACCIDENT RESPONSE SYSTEM Media Mode ..........142 HAZARD WARNING FLASHERS......188 (EARS) ..............212 RAM TELEMATICS - IF EQUIPPED ....142 FUSES ..............188 EVENT DATA RECORDER (EDR)....... 212 Ram Telematics General Information ..143 General Information ........188 BULB REPLACEMENT ........213 RADIO OPERATION AND MOBILE PHONES..
Page 7 SERVICING AND MAINTENANCE DEPARTMENT OF TRANSPORTATION UNIFORM Fuel System Cautions........258 Carbon Monoxide Warnings .....258 TIRE QUALITY GRADES ........250 SCHEDULED SERVICING ........217 FLUID CAPACITIES..........259 Treadwear ..........250 Maintenance Plan........217 ENGINE FLUIDS AND LUBRICANTS ....259 Traction Grades .........251 ENGINE COMPARTMENT ........221 Temperature Grades .........251 CHASSIS FLUIDS AND LUBRICANTS ....
Page 8: Introduction
For this reason, it reserves the right to make changes to the model described for technical and/or commercial reasons. For further information, contact an authorized dealer. When it comes to service, remember that authorized dealers know your Ram® best, have factory-trained technicians and genuine MOPAR® parts, and care about your satisfaction.
Page 9: Symbols Key
SYMBOLS KEY VAN CONVERSIONS/CAMPERS The New Vehicle Limited Warranty does not apply to body modifications or These statements are against operating special equipment installed by van conversion/camper manufacturers/ WARNING! procedures that could result in a collision, body builders. U.S. residents refer to the Warranty Information, Section bodily injury and/or death.
Page 10: Vehicle Modifications/Alterations
SYMBOL GLOSSARY Red Warning Lights Some car components have colored labels with symbols indicating Door Open Warning Light precautions to be observed when using this component. It is important to Ú page 51 follow all warnings when operating your vehicle. See below for the definition of each symbol Ú...
Page 11 Yellow Warning Lights Green Indicator Lights Anti-Lock Brake System (ABS) Warning Light Turn Signal Indicator Lights Ú page 52 Ú page 55 Low Fuel Warning Light Park/Headlight On Indicator Light Ú page 52 Ú page 55 Generic Warning Light Front Fog Indicator Light — If Equipped Ú...
Page 12: Getting To Know Your Vehicle
GETTING TO KNOW YOUR VEHICLE KEYS 1 — Mechanical Key Release Button Key Fob 2 — Driver/Passenger Unlock Button 3 — Lock Button Your vehicle uses a key start ignition system 4 — Cargo Lock/Unlock Button which supports Remote Keyless Entry (RKE). The key fob allows you to lock or unlock the doors from distances up to approximately 66 ft To Lock/Unlock The Doors...
Page 13 GETTING TO KNOW YOUR VEHICLE Replacing The Battery In The Key Fob WARNING! The recommended replacement battery is Always remove the key fobs from the  CR2032. vehicle and lock all doors when leaving the NOTE: vehicle unattended. Always remember to place the ignition in Customers are recommended to use a ...
Page 14: Sentry Key
GETTING TO KNOW YOUR VEHICLE SENTRY KEY NOTE: WARNING! A key which has not been programmed is also The Sentry Key Immobilizer system prevents considered an invalid key, even if it is cut to fit Before exiting a vehicle, always shift the ...
Page 15: Vehicle Security System - If Equipped
GETTING TO KNOW YOUR VEHICLE VEHICLE SECURITY SYSTEM — IF EQUIPPED The Vehicle Security system will also disarm if a WARNING! (Continued) programmed Sentry Key is inserted into the The Vehicle Security system monitors the ignition switch. To exit the alarm mode, push Do not leave the key fob in or near the ...
Page 16: Doors
GETTING TO KNOW YOUR VEHICLE DOORS NOTE: Opening/Unlocking With A Key Fob In the If the front passenger door, or the rear or side Canadian Cargo Vehicle — If Equipped Power Door Locks door is opened, only the rear or side door is Push and release the unlock button on the key unlocked.
Page 17 GETTING TO KNOW YOUR VEHICLE Closing/Locking With A Key Fob Closing And Locking From Outside Key Emergency Lock (KEL) Device Push and release the lock button on the key fob Grab the side door handle and push towards The sliding side doors are provided with a to lock all doors, including the cargo area (side the front of the vehicle.
Page 18: Double Rear Swing Doors
GETTING TO KNOW YOUR VEHICLE The device is released and the doors can be Opening/Closing The First Swing Door From opened as follows: The Outside If the power is restored: To open the door, turn the key in the lock or push the cargo unlock button on the key fob and By remote control.
Page 19: Getting To Know Your Vehicle
GETTING TO KNOW YOUR VEHICLE SEATS Child-Protection Door Lock System 3. Repeat steps 1 and 2 for the opposite rear door. This system prevents the sliding side doors from Seats are a part of the Occupant Restraint being opened from the inside. System of the vehicle.
Page 20: Manual Adjustment (Front Seats)
GETTING TO KNOW YOUR VEHICLE Manual Adjustment (Front Seats) Forward And Rearward Adjustment Height Adjustment — If Equipped The adjustment bar is at the front of the seat, The height adjustment lever is located on the The front driver and passenger seats can be near the floor.
Page 21 GETTING TO KNOW YOUR VEHICLE Recliner Adjustment Lumbar Support — If Equipped WARNING! The recliner knob is on the rear outboard side of This feature allows you to increase or decrease Adjusting a seat while the vehicle is moving  the seat.
Page 22: Folding Rear Seat - If Equipped
GETTING TO KNOW YOUR VEHICLE Folding Rear Seat — If Equipped Heated Seats — If Equipped To provide additional storage area, each rear The controls for the front heated seats are seat can be folded flat to allow for extended located on the lower outboard side of the seat.
Page 23: Head Restraints
GETTING TO KNOW YOUR VEHICLE HEAD RESTRAINTS Front Adjustment WARNING! To raise the head restraint, pull upward on the Head restraints are designed to reduce the risk Persons who are unable to feel pain to the  head restraint. To lower the head restraint, of injury by restricting head movement in the skin because of advanced age, chronic push the adjustment button, located on the...
Page 24: Rear Adjustment - If Equipped
GETTING TO KNOW YOUR VEHICLE Rear Adjustment — If Equipped Front Removal The center head restraint is adjustable and To remove the head restraint, raise it as far as it removable. To raise the head restraint, push can go then push the release button and the and hold the adjustment button, located on the adjustment button at the base of each post base of the head restraint and pull upward on...
Page 25: Rear Removal - If Equipped
GETTING TO KNOW YOUR VEHICLE STEERING WHEEL Rear Removal — If Equipped Center Head Restraint To remove the head restraint, push the release Outboard Head Restraints Tilt/Telescoping Steering Column button and adjustment button while pulling The outboard head restraints can be removed upward on the whole assembly and raise it as This feature allows you to tilt the steering by pushing the release buttons, located at the...
Page 26: Uconnect Voice Recognition Quick Tips
GETTING TO KNOW YOUR VEHICLE To unlock the steering column, push the Basic Voice Commands steering column control downward. To tilt the The basic Voice Commands below can be given steering column, move the steering wheel at any point while using your Uconnect system. upward or downward as desired.
Page 27: Mirrors
GETTING TO KNOW YOUR VEHICLE MIRRORS Outside Mirrors Outside Mirrors Folding Feature The door mirrors are hinged to allow the mirror The outside mirror(s) can be adjusted to the Inside Rearview Mirror to be folded forward or rearward to help avoid center of the adjacent lane of traffic to achieve damage.
Page 28: Vanity Mirror
GETTING TO KNOW YOUR VEHICLE Manual Outside Mirrors — If Equipped NOTE: Vanity Mirror Operation of the power mirrors is only available From the inside of the vehicle, use the control The driver and passenger sun visors are located with the ignition in the MAR (ACC/ON/RUN) lever to adjust the mirror.
Page 29: Exterior Lights
GETTING TO KNOW YOUR VEHICLE Sun Visor “Slide-On-Rod” Feature Daytime Running Lights (DRLs) — If Equipped The sun visor “Slide-On-Rod” feature allows for additional flexibility in positioning the sun visor NOTE: to block out the sun. When the headlights are turned on, the Daytime Running Lights will be deactivated.
Page 30: High/Low Beam Switch
GETTING TO KNOW YOUR VEHICLE High/Low Beam Switch Follow Me Home/Headlight Delay Push the switch once to turn the fog lights on. Push the switch a second Pull the multifunction lever toward the steering When this feature is selected, the driver can time to turn the fog lights off.
Page 31: Interior Lights
GETTING TO KNOW YOUR VEHICLE INTERIOR LIGHTS Push the left-hand side of the lens to switch  the light off when the doors are open. Courtesy/Interior Lights Push the right-hand side of the lens to switch  These lights are mounted between the sun the light on when the doors are open.
Page 32: Wipers And Washers
GETTING TO KNOW YOUR VEHICLE WIPERS AND WASHERS Windshield Wiper Off CAUTION! This is the normal position of the The windshield wiper/washer lever is located on Turn the windshield wipers off when driving  wiper lever. the right side of the steering column. through an automatic car wash.
Page 33: Rear Wiper Operation - If Equipped
GETTING TO KNOW YOUR VEHICLE CLIMATE CONTROLS Rear Wiper Operation — If Equipped A/C Button Push the A/C button to engage the Rear Windshield Wiper Operation The Climate Control system allows you to Air Conditioning (A/C). A LED will Rotate the windshield wiper lever center ring regulate the temperature, air flow, and direction illuminate when the A/C system is upwards to operate the rear window wiper as...
Page 34 GETTING TO KNOW YOUR VEHICLE Recirculation Button Front Defrost Button Blower Control Press and release this button to Use Defrost mode with maximum There are four blower speeds. Use change the system between temperature settings for best this control to regulate the amount of recirculation mode and outside air windshield and side window air forced through the system in any...
Page 35: Operating Tips
GETTING TO KNOW YOUR VEHICLE Bi-Level Mode Operating Tips Vacation/Storage Air comes from the instrument panel Any time you store your vehicle or keep it out of NOTE: outlets and floor outlets. A slight service (i.e., vacation) for two weeks or more, Refer to the chart at the end of this section for amount of air is directed through the run the air conditioning system at idle for about...
Page 36 GETTING TO KNOW YOUR VEHICLE Cabin Air Filter CONTROL CAUTION! WEATHER The Climate Control system filters out dust and SETTINGS Failure to follow these cautions can cause pollen from the air. Contact an authorized Set the mode control damage to the heating elements: dealer to service your cabin air filter, and to (Mix Mode) have it replaced when needed.
Page 37: Windows
GETTING TO KNOW YOUR VEHICLE WINDOWS NOTE: Automatic Window Features Auto-Down Feature The key off power delay feature will allow the  Power Window Controls — If Equipped power windows to operate for up to three The driver and passenger door power window The window switches on the driver’s door minutes after the ignition is turned off.
Page 38: Power Windows System Initialization
GETTING TO KNOW YOUR VEHICLE If the window runs into any obstacle during The auto-reverse system is activated  auto-closure, it will reverse direction and then while the window is moving and the door go back down. Remove the obstacle and use is opening the window switch again to close the window.
Page 39: Hood
GETTING TO KNOW YOUR VEHICLE HOOD Opening To open the hood, two latches must be released. 1. Pull the release lever located below the instrument panel and in front of the driver's door. Hood Safety Latch Lever Location Hood Prop Rod Closing 3.
Page 40: Cargo Area Features
GETTING TO KNOW YOUR VEHICLE CARGO AREA FEATURES NOTE: WARNING! (Continued) Power washing is not allowed inside the cargo Rear Cargo Tie-Downs area. Always place cargo evenly on the cargo  floor. Put heavier objects as low and as far To make it easier to secure your load, there are forward as possible.
Page 41 GETTING TO KNOW YOUR VEHICLE NOTE: Dash Storage Overhead Console Storage The glove compartment handle is equipped with The dash storage is located on the right side of There is additional shelf storage above the front a lock. To lock the glove compartment, insert the instrument panel above the glove sun visors.
Page 42: Usb Control - If Equipped
GETTING TO KNOW YOUR VEHICLE USB Control — If Equipped powered. Power outlets labeled with a “key” are Load Compartment Power Outlet powered when the ignition is in the MAR (ACC/ The Load Compartment Power Outlet is located The USB Input is located on the instrument ON/RUN) position, while the outlets labeled on the left side of the rear cargo compartment.
Page 43: Roof Rack - If Equipped
GETTING TO KNOW YOUR VEHICLE WARNING! (Continued) CAUTION! (Continued) If this outlet is mishandled, it may cause an After the use of high power draw accesso-   electric shock and failure. ries, or long periods of the vehicle not being started (with accessories still plugged in), the vehicle must be driven a sufficient CAUTION!
Page 44 GETTING TO KNOW YOUR VEHICLE To move the crossbars, loosen the WARNING! CAUTION! (Continued) attachments, located at the upper edge of each crossbar, approximately eight turns using the Cargo must be securely tied down before Loads should always be secured to cross- ...
Page 45: Getting To Know Your Instrument Panel
GETTING TO KNOW YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER Instrument Cluster...
Page 46: Instrument Cluster Descriptions
GETTING TO KNOW YOUR INSTRUMENT PANEL Instrument Cluster Descriptions WARNING! 1. Speedometer A hot engine cooling system is dangerous. Indicates vehicle speed.  You or others could be badly burned by steam or boiling coolant. You may want to call an 2.
Page 47: Getting To Know Your Instrument Panel
GETTING TO KNOW YOUR INSTRUMENT PANEL Location And Controls The system allows the driver to select Up And Down Arrow Buttons:  information by pushing the following buttons The instrument cluster display features a driver Using the up or down arrow button mounted on the instrument panel to the right of interactive display that is located in the...
Page 48: Change Engine Oil - If Equipped
GETTING TO KNOW YOUR INSTRUMENT PANEL 3. Briefly push and release the MENU button Unless reset, this message will continue to Instrument Cluster Display Menu Items to select the displayed submenu option and display each time you turn the ignition switch to Speed Beep to open the relevant setup menu.
Page 49: Trip Computer
GETTING TO KNOW YOUR INSTRUMENT PANEL Push the MENU button briefly to return to the Push the MENU button briefly to return to the NOTE: menu screen or hold the MENU button down to menu screen or hold the MENU button down to This is a one-time occurrence to enable the return to the standard screen without storing.
Page 50: Trip Button
GETTING TO KNOW YOUR INSTRUMENT PANEL Trip Button NOTE: Trip Functions If the reset operation occurs in the presence of The TRIP button, located on the right steering Both trip functions are resettable (reset — start the screens concerning Trip A or Trip B, only the column stalk, can be used to display and to of new trip).
Page 51: Values Displayed
GETTING TO KNOW YOUR INSTRUMENT PANEL Values Displayed Current Fuel Consumption based upon equipment options and current vehicle status. Some telltales are optional and This indicates the fuel consumption. The value Range may not appear. is constantly updated. The message “----” will This indicates the distance which may be appear on the display if the vehicle is parked Red Warning Lights...
Page 52 GETTING TO KNOW YOUR INSTRUMENT PANEL If the light remains on when the parking brake NOTE: seconds. The light should then turn off unless has been disengaged, and the fluid level is at The light may flash momentarily during sharp the parking brake is applied or a brake fault is the full mark on the master cylinder reservoir, it cornering maneuvers, which change fluid level...
Page 53 GETTING TO KNOW YOUR INSTRUMENT PANEL Door Open Warning Light If the light continues to flash when the vehicle is Oil Pressure Warning Light running, immediate service is required and you This indicator will illuminate when one This warning light will illuminate to may experience reduced performance, an or more door(s) are not fully closed.
Page 54: Yellow Warning Lights
GETTING TO KNOW YOUR INSTRUMENT PANEL Transmission Fault Warning Light system will continue to operate normally if the WARNING! brake warning light is not on. This light will illuminate (together with If you continue operating the vehicle when If the ABS light is on, the brake system should a message in the instrument cluster the Transmission Temperature Warning Light be serviced as soon as possible to restore the...
Page 55 GETTING TO KNOW YOUR INSTRUMENT PANEL Tire Pressure Monitoring System (TPMS) indicated on the vehicle placard or tire inflation approximately one minute and then remain pressure label, you should determine the continuously illuminated. This sequence will Warning Light proper tire inflation pressure for those tires. continue upon subsequent vehicle start-ups as The warning light switches on and a long as the malfunction exists.
Page 56 GETTING TO KNOW YOUR INSTRUMENT PANEL Engine Check/Malfunction Indicator Warning When the engine is running, the MIL may flash CAUTION! Light (MIL) to alert serious conditions that could lead to The TPMS has been optimized for the original immediate loss of power or severe catalytic The Engine Check/Malfunction equipment tires and wheels.
Page 57: Green Indicator Lights
GETTING TO KNOW YOUR INSTRUMENT PANEL Electronic Stability Control (ESC) Warning The ESC system will make buzzing or clicking NOTE:  sounds when it is active. This is normal; the Light — If Equipped A continuous chime will sound if the vehicle is ...
Page 58: Blue Indicator Lights
GETTING TO KNOW YOUR INSTRUMENT PANEL Blue Indicator Lights technician in making repairs. Although your WARNING! vehicle will usually be drivable and not need High Beam Indicator Light towing, see an authorized dealer for service as ONLY an authorized service technician ...
Page 59: Emissions Inspection And Maintenance
GETTING TO KNOW YOUR INSTRUMENT PANEL EMISSIONS INSPECTION AND NOTE: If your OBD II system is not ready, you should If you crank or start the engine, you will have to see an authorized dealer or repair facility. If your MAINTENANCE PROGRAMS start this test over.
Page 60: Starting And Operating
STARTING AND OPERATING STARTING THE ENGINE Automatic Transmission To prevent possible engine damage while starting at low temperatures, this vehicle will The gear selector must be in the PARK (P) or Before starting your vehicle, adjust your seat, inhibit engine cranking when the ambient NEUTRAL (N) position before you can start the adjust both inside and outside mirrors, and temperature is less than -31°F (-35°...
Page 61: If Engine Fails To Start
STARTING AND OPERATING 3. If the engine fails to start within ten Leave the ignition key in the MAR (ON/RUN) CAUTION! seconds, place the ignition in the STOP position, release the accelerator pedal and (OFF/LOCK) position, wait five seconds to repeat the “Normal Starting”...
Page 62: Engine Break-In Recommendations
STARTING AND OPERATING 1. Locate the engine block heater cord WARNING! CAUTION! (behind the driver’s side headlamp). Remember to disconnect the engine block Never use Non-Detergent Oil or Straight 2. Undo the hook-and-loop strap that secures heater cord before driving. Damage to the Mineral Oil in the engine or damage may the heater cord in place.
Page 63 STARTING AND OPERATING When parking on a hill, it is important to turn the WARNING! (Continued) front wheels toward the curb on a downhill grade and away from the curb on an uphill Do not leave the key fob in or near the ...
Page 64: Automatic Transmission
STARTING AND OPERATING AUTOMATIC TRANSMISSION CAUTION! WARNING! (Continued) You must press and hold the brake pedal while Shift into or out of PARK or REVERSE only When leaving the vehicle, always remove   shifting out of PARK. after the vehicle has come to a complete the ignition key from the vehicle and lock the vehicle.
Page 65: Brake/Transmission Shift Interlock (Btsi) System
STARTING AND OPERATING Brake/Transmission Shift Interlock (BTSI) NOTE: Only shift from DRIVE to PARK or REVERSE In the event of a mismatch between the gear when the accelerator pedal is released and the System selector position and the actual transmission vehicle is stopped.
Page 66 STARTING AND OPERATING gear selector to the right (into the DRIVE [D] PARK (P) WARNING! (Continued) position) for access to PARK, REVERSE, and The engine can be started in this range. Never NEUTRAL. Your vehicle could move and injure you and attempt to use PARK while the vehicle is in ...
Page 67 STARTING AND OPERATING NEUTRAL (N) WARNING! (Continued) CAUTION! (Continued) Use this range when the vehicle is standing for When exiting the vehicle, always remove DO NOT race the engine when shifting from   prolonged periods with the engine running. the ignition key from the vehicle and lock PARK or NEUTRAL into another gear range, Apply the parking brake and shift the...
Page 68 STARTING AND OPERATING DRIVE (D) During cold temperatures, transmission In the event of a momentary problem, the operation may be modified depending on transmission can be reset to regain all forward This range should be used for most city and engine and transmission temperature as well gears by performing the following steps: highway driving.
Page 69: Power Steering
STARTING AND OPERATING Torque Converter Clutch You can switch between DRIVE and ERS mode NOTE: at any vehicle speed. When the gear selector is To select the proper gear position for maximum A feature designed to improve fuel economy in the DRIVE position, the transmission will deceleration (engine braking), move the gear has been included in the automatic operate automatically, shifting between all...
Page 70: Power Steering Fluid Check
STARTING AND OPERATING CRUISE CONTROL — IF EQUIPPED NOTE: Coordinate inspection efforts through an authorized dealer. Increased noise levels at the end of the When engaged, the Cruise Control takes over  steering wheel travel are considered normal WARNING! accelerator operations at speeds greater than and do not indicate that there is a problem 25 mph (40 km/h).
Page 71: To Activate
STARTING AND OPERATING To Activate To Vary The Speed Setting To Accelerate For Passing Push the on/off button to activate the Cruise To Increase Or Decrease The Set Speed Press the accelerator as you would normally. Control. The cruise indicator light in the When the pedal is released, the vehicle will When the Cruise Control is set, you can increase instrument cluster display will illuminate.
Page 72: To Resume Speed
STARTING AND OPERATING To Resume Speed Interaction With Trailer Towing The ParkSense system is automatically To resume a previously set speed, push the deactivated when a trailer equipped by Mopar is RES (+) button and release. Resume can be used hitched to the vehicle.
Page 73: Parksense Rear Park Assist Alerts
STARTING AND OPERATING ParkSense Rear Park Assist Alerts If an obstacle is behind the vehicle when REVERSE gear is engaged, an audible alert is activated. The tones emitted by the loudspeaker inform the driver that the vehicle is approaching an obstacle. The pauses between the tones are directly proportional to the distance from the obstacle.
Page 74: Parksense Rear Park Assist Failure Indications
STARTING AND OPERATING ParkSense Rear Park Assist Failure Cleaning The ParkSense Rear Park Assist so can result in the system not working prop- erly. The ParkSense system might not detect Indications System an obstacle behind the fascia/bumper, or it A malfunction of the ParkSense sensors or Clean the ParkSense sensors with water, car could provide a false indication that an system is indicated, during REVERSE gear...
Page 75: Parkview Rear Back Up Camera
STARTING AND OPERATING The Rear Back Up Camera can also be activated WARNING! (Continued) CAUTION! (Continued) when the vehicle is not in REVERSE through the Uconnect system Ú page 87. Before using ParkSense, it is strongly The vehicle must be driven slowly when ...
Page 76: Refueling The Vehicle
STARTING AND OPERATING When displayed, static grid lines will illustrate 1. Open the fuel filler door. CAUTION! the width of the vehicle and will show separate 2. Remove the fuel cap by rotating it counter- zones that will help indicate the distance to the To avoid vehicle damage, ParkView should ...
Page 77: Vehicle Loading
STARTING AND OPERATING 4. Fill the vehicle with fuel. If seats are removed for carrying cargo, do not CAUTION! exceed the specified GVWR and GAWR. NOTE: Damage to the fuel system or emissions  Vehicle Certification Label When the fuel nozzle “clicks” or shuts off, the control system could result from using an fuel tank is full.
Page 78: Gross Vehicle Weight Rating (Gvwr)
STARTING AND OPERATING Gross Vehicle Weight Rating (GVWR) Rim Size Figure out the weight on the front and rear of the vehicle separately. It is important that you The GVWR is the total allowable weight of your This is the rim size that is appropriate for the tire distribute the load evenly over the front and rear vehicle.
Page 79: Trailer Towing
STARTING AND OPERATING TRAILER TOWING Gross Trailer Weight (GTW) Tongue Weight (TW) The GTW is the weight of the trailer plus the The TW is the downward force exerted on the In this section you will find safety tips and weight of all cargo, consumables and hitch ball by the trailer.
Page 80: Trailer Hitch Classification
STARTING AND OPERATING Weight-Distributing Hitch recommended for heavier Tongue Weights (TW) WARNING! (Continued) and may be required depending on vehicle and The weight-distributing hitch works by applying trailer configuration/loading to comply with Weight Distributing Systems may not be  leverage through spring (load) bars. They are Gross Axle Weight Rating (GAWR) requirements.
Page 81: Trailer Towing Weights (Maximum Trailer Weight Ratings)
STARTING AND OPERATING Trailer Towing Weights (Maximum Trailer Towing Requirements CAUTION! Weight Ratings) To promote proper break-in of your new vehicle Always load a trailer with 60% of the weight in drivetrain components, the following guidelines NOTE: the front of the trailer. This places 10% of the are recommended.
Page 82 STARTING AND OPERATING Towing Requirements — Tires WARNING! WARNING! (Continued) Do not attempt to tow a trailer while using a  Make certain that the load is secured in the Vehicles with trailers should not be parked   compact spare tire. trailer and will not shift during travel.
Page 83 STARTING AND OPERATING Towing Requirements — Trailer Brakes NOTE: CAUTION! Do not interconnect the hydraulic brake  Disconnect trailer wiring connector from the  If the trailer weighs more than 1,000 lbs system or vacuum system of your vehicle vehicle before launching a boat (or any other (453 kg) loaded, it should have its own with that of the trailer.
Page 84: Towing Tips
STARTING AND OPERATING Towing Tips Electronic Range Select (ERS) When using the ERS shift control, select the Before towing, practice turning, stopping, and  highest gear that allows for adequate perfor- backing up the trailer in an area located away mance and avoids frequent downshifts.
Page 85: Recreational Towing (Behind Motorhome)
STARTING AND OPERATING RECREATIONAL TOWING (BEHIND MOTORHOME) Towing This Vehicle Behind Another Vehicle Towing Condition Wheels OFF The Ground Automatic Transmission Flat Tow NONE NOT ALLOWED Front Dolly Tow Rear NOT ALLOWED On Trailer NOTE: 1. Properly secure the dolly to the tow vehicle, CAUTION! When towing your vehicle, always follow appli- following the dolly manufacturer's...
Page 86: Driving Tips
STARTING AND OPERATING DRIVING TIPS Traction Driving Through Water When driving on wet or slushy roads, it is Driving through water more than a few inches/ Driving On Slippery Surfaces possible for a wedge of water to build up centimeters deep will require extra caution to between the tire and road surface.
Page 87 STARTING AND OPERATING Shallow Standing Water CAUTION! CAUTION! (Continued) Although your vehicle is capable of driving Always check the depth of the standing Driving through standing water may cause   through shallow standing water, consider the water before driving through it. Never drive damage to your vehicle’s drivetrain compo- following Cautions and Warnings before doing through standing water that is deeper than...
Page 88: Multimedia
MULTIMEDIA UCONNECT SYSTEMS Your vehicle may be equipped with certain WARNING! security features to reduce the risk of For detailed information about your Uconnect unauthorized and unlawful access to vehicle It is not possible to know or to predict all of the ...
Page 89: Uconnect Settings
MULTIMEDIA UCONNECT SETTINGS NOTE: Push the Back Arrow button to exit out of a menu or certain option on the Uconnect system. FCA US LLC or your dealer may contact you  The Uconnect system uses a combination of directly regarding software updates. NOTE: buttons on the touchscreen and buttons on the The NAV button in the middle of your Uconnect...
Page 90 MULTIMEDIA Push the Settings button on the faceplate to When making a selection, press one button on display the menu setting screen. In this mode the touchscreen to enter the desired menu. the Uconnect system allows you to access Once in the desired menu, press and release programmable features that may be equipped.
Page 91 MULTIMEDIA Display When the Display button is pressed on the touchscreen, the system will display the options related to the theme (if equipped), brightness, and color of the touchscreen. The available settings are: Setting Name Description This setting will change the languages of the Uconnect system. The Language available language are English, Français, and Español.
Page 92 MULTIMEDIA Voice When the Voice button is pressed on the touchscreen, the system displays the options related to the vehicle’s Voice Recognition feature. Setting Name Description This setting will change the response length for the Voice Recognition system. When set to “Brief”, the system provides a shortened audio Voice Response Length description.
Page 93 MULTIMEDIA Clock & Date When the Clock & Date button is pressed on the touchscreen, the system displays the different options related to the vehicle’s internal clock. Setting Name Description This setting will sync the time to the system’s GPS receiver. The system Sync Time will control the time via GPS location.
Page 94 MULTIMEDIA Safety/Assistance When the Safety/Assistance button is pressed, the system displays the options related to the vehicle’s safety settings. These options will differ depending on the features equipped on the vehicle. The settings may display in list form or within sub-folders on the screen. To access a sub-folder, select the desired folder;...
Page 95 MULTIMEDIA Doors & Locks When the Doors & Locks button is pressed on the touchscreen, the system displays the options related to locking and unlocking the vehicle’s doors. Setting Name Description This setting will sound the horn when the key fob’s Lock button is pushed. The “Off”...
Page 96 MULTIMEDIA Audio When the Audio button is pressed on the touchscreen, the system displays options related to the vehicle’s sound system. These settings can change the audio location within the vehicle, adjust the bass or treble levels, and auto-play music from an audio device or smartphone. Setting Name Description This setting will adjust audio levels from specific speakers in the front/...
Page 97 MULTIMEDIA Phone/Bluetooth® When the Phone/Bluetooth® button is pressed on the touchscreen, the system displays the options related to Bluetooth® connectivity from an external audio device or smartphone. The list of paired audio devices or smartphones can be accessed from this menu. Setting Name Description Paired Phones/Devices...
Page 98 MULTIMEDIA Restore Settings — If Equipped When the Restore Settings button is pressed on the touchscreen, the system displays the options related to resetting the Uconnect system back to its factory settings. These settings can clear personal data and reset selected settings from other menus. Setting Name Description This setting will return all the previously changed settings to their factory...
Page 99: Uconnect Introduction
MULTIMEDIA UCONNECT INTRODUCTION NOTE: Uconnect screen images are for illustration Identifying Your Radio purposes only and may not reflect exact soft- ware for your vehicle. Uconnect 3/3 NAV With 5-inch Display 1 — Settings Button 2 — Back Button 3 — Enter/Browse & Tune/Scroll Knob 4 —...
Page 100 MULTIMEDIA Feature Description Settings Press the Settings button to access the Uconnect Settings. Back Press the Back button to return to a previous page. Push the Enter/Browse button to accept a highlighted selection on the Enter/Browse & Tune/Scroll Knob screen. Rotate the Tune/Scroll rotary knob to scroll through a list or tune a radio station.
Page 101: Safety And General Information
MULTIMEDIA Safety And General Information Glance at the screen only when it is safe to do NOTE:  so. If prolonged viewing of the screen is Many features of this system are speed depen- Safety Guidelines required, park in a safe location and set the dent.
Page 102: Uconnect Modes
MULTIMEDIA UCONNECT MODES The radio is equipped with the following modes: Seek Functions  Seek Up And Seek Down Radio Mode Press and release the Seek Up or Seek  Operating Radio Mode Down button on the touchscreen to tune SiriusXM®...
Page 103 MULTIMEDIA Direct Tune Setting The Presets SiriusXM® Satellite Radio uses direct satellite-to-receiver broadcasting technology to The Presets are available for all Radio Modes, provide clear, coast to coast radio content. and are activated by pressing any of the four SiriusXM® is a subscription-based service. Preset buttons, located at the top of the screen.
Page 104 MULTIMEDIA This functionality is only available for radios NOTE: equipped with a Satellite receiver. In order to You will need to provide the SiriusXM® ID (RID) receive satellite radio, the vehicle needs to be located at the bottom of the Channel 0 screen. outside with a clear view to the sky.
Page 105 MULTIMEDIA Press the Pause/Play button on the touchscreen to pause the playing of live or Play/Pause rewound content at any time. Play can be resumed again by pressing the Pause/Play button on the touchscreen. Press the Rewind button on the touchscreen to rewind the content in steps of five seconds.
Page 106 MULTIMEDIA Favorites Browse In SXM Press the Favorites button on the touchscreen Press the All button on the Browse Screen. to activate the favorites menu, which will time When pressing the All button, the following out within 20 seconds in absence of user categories become available: interaction.
Page 107 MULTIMEDIA Remove Favorites Add/Delete — If Equipped Audio Settings Press the Remove Favorites tab at the top of the Press the Add/Delete button on the Press the Audio button within the Settings main screen. Press the Delete All button on the touchscreen to activate the League Scroll List.
Page 108 MULTIMEDIA Audio Setting Description Press the Balance/Fade button on the touchscreen to balance audio between the front speakers or fade the audio between the rear and front Balance/Fade speakers. Press the Front, Rear, Left or Right buttons or press and drag the red Speaker icon to adjust the Balance/Fade.
Page 109: Media Mode
MULTIMEDIA Radio Voice Commands Media Mode Audio Source Selection Use your voice to quickly get to the AM, FM, or Once in Media Mode, press the Source button Operating Media Mode SiriusXM® Satellite Radio stations you would and the desired mode button. USB and like to hear.
Page 110 MULTIMEDIA Seek Up/Seek Down Shuffle Connect your multimedia device directly to the USB port using the specific connection cable for Press the Shuffle button on the touchscreen to Seek Up /Seek Down the device if necessary. play the selections on the USB or Bluetooth® Press and release the Right Arrow button on device in random order to provide an interesting...
Page 111: Phone Mode
MULTIMEDIA Once the Bluetooth® device is paired to the Did You Know: Press the Browse button on the Calling back the last incoming call number  Uconnect system, push the Media button touchscreen to see all of the music on your USB (“Call Back”).
Page 112 MULTIMEDIA NOTE: calls, view phonebook, etc. When you press the WARNING! Your phone must be capable of SMS messaging button you will hear a BEEP. The BEEP is your via Bluetooth® for messaging features to work ALWAYS drive safely with your hands on the signal to give a command.
Page 113 MULTIMEDIA You will be prompted for a specific command Natural Speech Help Command and then guided through the available options. Your Uconnect Phone Voice system uses a If you need assistance at any prompt, or if you Prior to giving a voice command, one must want to know your options at any prompt, say Natural Language Voice Recognition (VR) ...
Page 114 MULTIMEDIA Pair (Link) Uconnect Phone To A Mobile Phone NOTE: 4. Search for available devices on your Bluetooth®-enabled mobile phone. To begin using your Uconnect Phone, you must You must have Bluetooth® enabled on your  pair your compatible Bluetooth®-enabled Press the Settings button on your mobile phone to complete this procedure.
Page 115 MULTIMEDIA 8. When prompted on the mobile phone, NOTE: 3. Press the Bluetooth® button on the accept the connection request from During the pairing procedure, you may receive a touchscreen to display the Paired Audio Uconnect Phone. pop-up on your mobile phone for the Uconnect Devices screen.
Page 116 MULTIMEDIA NOTE: Disconnecting or Deleting A Phone Or Audio 4. The option’s pop-up will be displayed. For devices which are not made a favorite, the Device 5. Press the Disconnect Device or the Delete device priority is determined by the order in Device button on the touchscreen.
Page 117 MULTIMEDIA Phonebook Download (Automatic Phonebook A maximum of 5,000 contact names with Managing Your Favorites — If Equipped  Transfer From Mobile Phone) — If Equipped four numbers per contact will be downloaded There are two ways you can add an entry to your and updated every time a phone is If supported by your phone, Uconnect Phone favorites:...
Page 118 MULTIMEDIA To Remove A Favorite — If Equipped Voice Commands (Dial by Saying a Name, Other phone call features include:  Call by Saying a Phonebook Name, Redial or End Call  1. To remove a Favorite, select “Favorites” Call Back) from the Phone main screen.
Page 119 MULTIMEDIA These can be accessed by pressing the Recent Answer Or Ignore An Incoming Call — Call Do Not Disturb can automatically reply with a Calls button on the phone main screen. Currently In Progress text message, a call, or both when declining an incoming call and send it to voicemail.
Page 120 MULTIMEDIA Place/Retrieve A Call From Hold You can also push the Phone button to toggle Call Continuation between the active and held phone call. During an active call, press the Hold or Call On Call continuation is the progression of a phone Hold button on the Phone main screen.
Page 121 MULTIMEDIA Things You Should Know About Uconnect Audio Performance WARNING! Phone Audio quality is maximized under: ALWAYS drive safely with your hands on the Low-To-Medium Blower Setting  Voice Command wheel. You have full responsibility and Low-To-Medium Vehicle Speed assume all risks related to the use of the For the best performance: ...
Page 122 MULTIMEDIA 2. “Reply” after an incoming text message has NOTE: Push the Phone button and wait for the beep been read. Only use the numbering listed in the provided to say a command. See some examples below: table. Otherwise, the system will not transpose “Call John Smith”...
Page 123: Navigation Mode - If Equipped
MULTIMEDIA Siri® Eyes Free — If Equipped Power-Up Using Search When used with your Apple® iPhone® Press the Search button in the Main menu After switching the ignition key from OFF to connected to your vehicle, Siri lets you use your to start searching.
Page 124 MULTIMEDIA Feature Description Back Button Press the Back button to return to the previous screen. Enter your search term in the search input box. As you type, matching Search Box addresses and Points of Interests (POI) are shown. Press this button to change the type of search to any of the following: Whole Map: Select this option to search your current map with no limit ...
Page 125 MULTIMEDIA Feature Description View Button Press this button to return to the map view or guidance view. Show/Hide Keyboard Button Press this button to show or hide the keyboard. Select this button to switch between showing the results in a list or List/Map Button showing the results on the map.
Page 126 MULTIMEDIA 4. Select Drive. 2. Select a POI category, such as Planning A Route — Searching By Entering “Restaurant”. If you select a POI category, Coordinates only POIs from that category are shown. You 1. Press the Search Type button. can then select an the desired POI.
Page 127 MULTIMEDIA Planning A Route Using My Places planned, the map shows parking lots near your NOTE: current location. You also have an option to You also have an option to view the gas stations 1. Select the Main Menu button. view the parking lots in a list by pressing the in a list by pressing the Menu button.
Page 128 MULTIMEDIA Changing Your Route Making Changes To Your Route After planning a route, the route and destination can be changed. There are various ways to change the route without the need to completely replan the entire journey. To change the current route, press the Current Route button in the main menu.
Page 129 MULTIMEDIA Route Option Description Press the button to avoid an unexpected obstacle that is blocking the road on the route. A new route will be found that avoids blocked roads. You may be shown a maximum of two alternatives depending on the road network between you and your destination.
Page 130 MULTIMEDIA Route Option Description Select the button to avoid some types of route features that are on Avoid Toll Roads And More your currently planned route. These include ferries, toll roads and unpaved roads. Press the button to see a list of turn-by-turn instructions for the planned route.
Page 131 MULTIMEDIA Route Option Description Press the button to change the type of route used to plan the route. The route will be recalculated using the new route type selected. You can select the following types of routes: Fastest Route  Change Route Type Shortest Route ...
Page 132 MULTIMEDIA Voice Command — If Equipped The following example shows how to use voice NOTE: control to plan a journey to your Home address: If the command is incorrect, say “No” and About Voice command repeat the command after you hear the prompt 1.
Page 133 MULTIMEDIA NOTE: When you have planned a route and the 3D guidance view is shown, select the switch view button to change to the map view and use the interactive features. Guidance View 1 — Switch View Button 2 — Instruction Panel 3 —...
Page 134 MULTIMEDIA Feature Description Select the Switch View button to change between the map view and the Switch View Button guidance view. Press this button to view the following information: The direction of your next turn  Instruction Panel The distance to your next turn ...
Page 135 MULTIMEDIA Feature Description Main Menu Button Press the Main Menu button to show the main menu. Press the zoom in + button to zoom in and the zoom out – button to zoom Zoom Button out. Advanced Lane Guidance NOTE: Lane guidance is not available for all intersec- tions or in all countries.
Page 136 MULTIMEDIA Feature Description Press the Back button to return to an overview of the route. If no route is Back Button planned, pressing this button moves the map to put your current location at the center. Symbols are used on the map to show the destination and saved places Ú...
Page 137 MULTIMEDIA Feature Description Press the zoom in + button to zoom in and the zoom out – button to zoom Zoom Button out. Press the Switch View button to change between the map view and the Switch View Button guidance view. Voices Read Road Numbers Out Loud (if equipped): Changing The Volume Level...
Page 138 MULTIMEDIA Appearance Show Remaining Time: Select this setting to Automatic Map View Switching  show the remaining time left to travel in the To change how your navigation screen looks, Automatic changing of views is on by default. arrival information panel during navigation. select “Appearance”...
Page 139 MULTIMEDIA Route Planning Shortest Route Safety Warnings: You can change settings for   whether you want to be warned, never Select this setting to control how your system You can choose whether you would like the warned, or warned only if you are speeding. plans routes.
Page 140 MULTIMEDIA Points Of Interest the list called “Addresses.” POIs, types of My Places POIs, and Places are shown in the list About Points Of Interest About My Places called “Points of Interest.” You can also Points Of Interest (POI) are useful places on the select a POI category to only see POI My Places provides an easy way to map.
Page 141 MULTIMEDIA Using My Places Adding A Location From The Map You can use My Places as a way of navigating to 1. In Map View, move the map and zoom in a place without having to enter the address. To until you can see the destination that you navigate to a saved destination in My Places, want to navigate to.
Page 142 MULTIMEDIA 4. Press “Add To My Places”. 4. The map view will show the location. Press Deleting A Location From My Places the pop-up menu button. Deleting A Recent Destination From My Places 5. Press “Add to My Places”. 1. In the main menu, select “My Places”. 6.
Page 143 MULTIMEDIA Getting Help navigation system. TomTom® does not accept © 2020 TomTom®. All rights reserved. This material is proprietary and the subject of any liability for the availability and accuracy of Press the Help button in the Main menu or from copyright protection and/or database rights GPS.
Page 144: Steering Wheel Audio Controls - If
The left-hand control is a rocker type switch with a push button in the center. The function of the EQUIPPED Ram Telematics is designed to help improve left hand control is different depending on safety, efficiency, and productivity. It gives you which mode you are in.
Page 145: Ram Telematics General Information
If your radio l'appareil ne doit pas produire de brouillage, et Ram Telematics General Information performance does not satisfactorily “clear” by (2) l'utilisateur de l'appareil doit accepter tout the repositioning of the phone, it is Modification Statement brouillage radioélectrique subi, même si le...
Page 146: Regulatory And Safety Information
MULTIMEDIA Regulatory And Safety Information The radio manufacturer believes the internal wireless radio is safe for use by consumers. The USA/CANADA level of energy emitted is far less than the Exposure to Radio Frequency Radiation electromagnetic energy emitted by wireless The radiated output power of the internal devices such as mobile phones.
Page 147: Safety
SAFETY SAFETY FEATURES WARNING! WARNING! (Continued) Four-Wheel Anti-Lock Brake System (ABS) The ABS contains sophisticated electronic The ABS cannot prevent collisions,   equipment that may be susceptible to inter- including those resulting from excessive ABS is designed to aid the driver in maintaining ference caused by improperly installed or speed in turns, following another vehicle vehicle control under adverse braking...
Page 148: Electronic Brake Control (Ebc) System
SAFETY Electronic Brake Control (EBC) System continuous braking pressure during the Electronic Stability Control (ESC) stopping sequence (do not “pump” the brakes). ESC enhances directional control and stability Your vehicle is equipped with an advanced Do not reduce brake pedal pressure unless of the vehicle under various driving conditions.
Page 149 SAFETY ESC Activation/Malfunction Indicator Light WARNING! WARNING! (Continued) And ESC OFF Indicator Light Electronic Stability Control (ESC) cannot Vehicle modifications, or failure to properly   The ESC Activation/Malfunction prevent the natural laws of physics from maintain your vehicle, may change the Indicator Light in the instrument acting on the vehicle, nor can it increase handling characteristics of your vehicle,...
Page 150 SAFETY The ESC Activation/Malfunction Indicator Light Electronic Roll Mitigation (ERM) Hill Start Assist (HSA) (located in the instrument cluster) starts to ERM anticipates the potential for wheel lift by HSA is designed to assist the driver when flash as soon as the tires lose traction and the monitoring the driver’s steering wheel input and starting a vehicle from a stop on a hill.
Page 151: Auxiliary Driving Systems
SAFETY HSA will work in REVERSE and all forward gears wheel. This will allow more engine torque to be WARNING! when the activation criteria have been met. The applied to the wheel that is not spinning. This system will not activate if the vehicle is placed feature remains active even if TCS and ESC are If TSC activates while driving, slow the vehicle in the “Partial Off”...
Page 152 SAFETY tire sidewall. The tire pressure will also increase NOTE: CAUTION! as the vehicle is driven — this is normal and When filling warm tires, the tire pressure may there should be no adjustment for this need to be increased up to an additional 4 psi The TPMS has been optimized for the orig- ...
Page 153 SAFETY NOTE: Base System Tire Pressure Monitoring Low Pressure Warnings This is the TPMS warning indicator The TPMS is not intended to replace normal  located in the instrument cluster. The Tire Pressure Monitoring System Warning tire care and maintenance or to provide Light will illuminate in the instrument cluster, an warning of a tire failure or condition.
Page 154 SAFETY Check TPMS Warnings 4. Using tire chains on the vehicle. 3. Regular size spare tire (not equipped with TPMS sensor): When mounted, during the The Tire Pressure Monitoring Warning Light will 5. Using wheels/tires not equipped with TPM normal drive the system will turn on the flash on and off for 75 seconds and remain on sensors.
Page 155: Occupant Restraint Systems
SAFETY OCCUPANT RESTRAINT SYSTEMS 1. Children 12 years old and under should 8. Do not lean against the door or window. If always ride buckled up in the rear seat of a your vehicle has side air bags, and Some of the most important safety features in vehicle with a rear seat.
Page 156: Seat Belt Systems
SAFETY Seat Belt Systems Initial Indication has completed, the Seat Belt Reminder Light will remain on until the seat belts are buckled. If the driver is unbuckled when the ignition Buckle up even though you are an excellent The BeltAlert warning sequence may repeat switch is first in the AVV/START or MAR/RUN driver, even on short trips.
Page 157 SAFETY BeltAlert can be activated or deactivated by an WARNING! WARNING! (Continued) authorized dealer. FCA US LLC does not recommend deactivating BeltAlert. Relying on the air bags alone could lead to Be sure everyone in your vehicle is in a seat ...
Page 158 SAFETY Lap/Shoulder Belt Operating Instructions WARNING! WARNING! (Continued) 1. Enter the vehicle and close the door. Sit A lap belt worn too high can increase the A seat belt that is worn under your arm is   back and adjust the seat. risk of injury in a collision.
Page 159 SAFETY 3. When the seat belt is long enough to fit, Lap/Shoulder Belt Untwisting Procedure insert the latch plate into the buckle until Use the following procedure to untwist a twisted you hear a “click.” lap/shoulder belt. 1. Position the latch plate as close as possible to the anchor point.
Page 160 SAFETY WARNING! Wearing your seat belt incorrectly could  make your injuries in a collision much worse. You might suffer internal injuries, or you could even slide out of the seat belt. Follow these instructions to wear your seat belt safely and to keep your passengers safe, too.
Page 161 SAFETY Seat Belts And Pregnant Women performance of the seat belt by removing slack Switchable Automatic Locking Retractors from the seat belt early in a collision. (ALR) Pretensioners work for all size occupants, Vehicle Without Rear Seat including those in child restraints. The seat belt in the passenger seating position is equipped with a Switchable Automatic NOTE:...
Page 162 SAFETY Vehicle With Rear Seat necessary to comfortably wrap around the How To Engage The Automatic Locking Mode occupant’s mid-section. Slide the latch plate The seat belts in the passenger seating 1. Buckle the combination lap and shoulder into the buckle until you hear a "click." positions are equipped with a Switchable belt.
Page 163: Supplemental Restraint Systems (Srs)
SAFETY Air Bag System Components The ORC contains a backup power supply WARNING! (Continued) system that may deploy the air bag system even Occupant Restraint Controller (ORC)  if the battery loses power or it becomes Failure to replace the seat belt assembly ...
Page 164 SAFETY The Air Bag Warning Light does not come on Front Air Bags  WARNING! during the four to eight seconds when the This vehicle has front air bags and lap/shoulder ignition switch is first in the MAR/ACC/ON/ Being too close to the steering wheel or ...
Page 165 SAFETY Driver and Passenger Front Air Bag Features Front Air Bag Operation WARNING! The Advanced Front Air Bag system has Front Air Bags are designed to provide No objects should be placed over or near  multistage driver and front passenger air bags. additional protection by supplementing the seat the air bag on the instrument panel or This system provides output appropriate to the...
Page 166 SAFETY The steering wheel hub trim cover and the enhanced protection during a frontal impact by The SABs may help to reduce the risk of upper passenger side of the instrument panel working together with the seat belts, occupant injury during certain side impacts, in separate and fold out of the way as the air bags pretensioners, and front air bags.
Page 167 SAFETY Supplemental Side Air Bag Inflatable Curtains edge of the headliner out of the way and covers Side Impacts (SABICs) the window. The SABICs inflate with enough The Side Air Bags are designed to activate in force to injure occupants if they are not belted This vehicle is equipped with Supplemental certain side impacts.
Page 168 SAFETY Side Air Bags are a supplement to the seat belt Rollover Events WARNING! restraint system. Side Air Bags deploy in less Side Air Bags and seat belt pretensioners are time than it takes to blink your eyes. Side Air Bags need room to inflate. Do not ...
Page 169 SAFETY Air Bag System Components If A Deployment Occurs eye irritation, rinse the area with cool water. For nose or throat irritation, move to fresh air. The front air bags are designed to deflate NOTE: If the irritation continues, see your doctor. If immediately after deployment.
Page 170 SAFETY Enhanced Accident Response System Cut off battery power to the: Enhanced Accident Response System Reset  Procedure In the event of an impact, if the communication Engine  network remains intact, and the power remains In order to reset the Enhanced Accident Electric Motor (if equipped) ...
Page 171 SAFETY Maintaining Your Air Bag System related to vehicle dynamics and safety systems WARNING! (Continued) for a short period of time, typically 30 seconds WARNING! or less. The EDR in this vehicle is designed to Do not attempt to modify any part of your ...
Page 172: Child Restraints
SAFETY To read data recorded by an EDR, special Before buying any restraint system, make sure WARNING! equipment is required, and access to the that it has a label certifying that it meets all vehicle or the EDR is needed. In addition to the In a collision, an unrestrained child can applicable Safety Standards.
Page 173 SAFETY Summary Of Recommendations For Restraining Children In Vehicles Child Size, Height, Weight Or Age Recommended Type Of Child Restraint Children who are two years old or younger and Either an Infant Carrier or a Convertible Child Infants and Toddlers who have not reached the height or weight limits Restraint, facing rearward in a rear seat of the of their child restraint...
Page 174 SAFETY Children should remain in a forward-facing child WARNING! WARNING! (Continued) seat with a harness for as long as possible, up Never place a rear-facing child restraint in to the highest weight or height allowed by the After a child restraint is installed in the ...
Page 175 SAFETY Children Too Large For Booster Seats If the answer to any of these questions was WARNING! “no”, then the child still needs to use a booster Children who are large enough to wear the seat in this vehicle. If the child is using the lap/ Never allow a child to put the shoulder belt shoulder belt comfortably, and whose legs are shoulder belt, check seat belt fit periodically...
Page 176 SAFETY Recommendations For Attaching Child Restraints Use Any Attachment Method Shown With An “X” Below Combined Weight of LATCH – Lower Restraint Type the Child + Child LATCH – Lower Seat Belt + Top Seat Belt Only Anchors + Top Tether Restraint Anchors Only Tether Anchor...
Page 177 SAFETY Lower Anchors And Tethers For CHildren Your vehicle is equipped with the child restraint LATCH Positions For Installing Child anchorage system called LATCH, which stands (LATCH) Restraint System Restraints In This Vehicle — Vehicles for Lower Anchors and Tethers for CHildren. The Equipped With Rear Seating LATCH system has three vehicle anchor points for installing LATCH-equipped child seats.
Page 178 SAFETY Frequently Asked Questions About Installing Child Restraints With LATCH Use the LATCH anchorage system until the combined weight of the child and the child What is the weight limit (child’s weight + weight restraint is 65 lbs (29.5 kg). Use the seat belt of the child restraint) for using the LATCH 65 lbs (29.5 kg) and tether anchor instead of the LATCH system...
Page 179 SAFETY Frequently Asked Questions About Installing Child Restraints With LATCH The child seat may touch the back of the front passenger seat if the child restraint Can the rear-facing child restraint touch the manufacturer also allows contact. See your back of the front passenger seat? child restraint owner’s manual for more information.
Page 180 SAFETY LATCH-compatible child restraint systems will Always follow the directions of the child 3. Attach the lower hooks or connectors of the be equipped with a rigid bar or a flexible strap restraint manufacturer when installing your child restraint to the lower anchorages in on each side.
Page 181 SAFETY installing a child restraint using the LATCH Installing Child Restraints Using The Vehicle Lap/Shoulder Belt Systems For Installing system, buckle the seat belt behind the child Seat Belt In Vehicles With Rear Seating Child Restraints In This Vehicle restraint and out of the child’s reach. If the Child restraint systems are designed to be buckled seat belt interferes with the child secured in vehicle seats by lap belts or the lap...
Page 182 SAFETY Frequently Asked Questions About Installing Child Restraints With Seat Belts What is the weight limit (child’s weight + weight Always use the tether anchor when using the of the child restraint) for using the Tether Anchor seat belt to install a forward facing child Weight limit of the Child Restraint with the seat belt to attach a forward facing restraint, up to the recommended weight limit of...
Page 183 SAFETY 4. Pull on the webbing to make the lap portion 9. Test that the child restraint is installed WARNING! (Continued) tight against the child seat. tightly by pulling back and forth on the child seat at the belt path. It should not move 5.
Page 184 SAFETY 3. Attach the tether strap hook of the child WARNING! WARNING! (Continued) restraint to the top tether anchorage as shown in the diagram. Rear-facing infant restraints must never be If your vehicle is equipped with a split rear  seat, make sure the tether strap does not secured in the passenger seat of a vehicle 4.
Page 185 SAFETY The seat belt in the passenger seating position Installing A Child Restraint With A Switchable 2. Pull enough of the seat belt webbing from is equipped with a Switchable Automatic the retractor to pass it through the belt path Automatic Locking Retractor (ALR): Locking Retractor (ALR).
Page 186: Transporting Pets
SAFETY 8. If the child restraint has a top tether strap 2. Route the tether strap to provide the most WARNING! and the seating position has a top tether direct path for the strap between the anchor anchorage, connect the tether strap to the and the child seat.
Page 187: Safety Tips
SAFETY SAFETY TIPS Exhaust Gas Whenever a change is noticed in the sound of the exhaust system, when exhaust fumes can Transporting Passengers WARNING! be detected inside the vehicle, or when the underside or rear of the vehicle is damaged, NEVER TRANSPORT PASSENGERS IN THE Exhaust gases can injure or kill.
Page 188 SAFETY Air Bag Warning Light fasteners so it cannot slip out of position and WARNING! (Continued) interfere with the accelerator, brake or clutch The Air Bag Warning Light will turn on for four pedals or impair safe operation of your vehicle ONLY install floor mats designed to fit your ...
Page 189: Periodic Safety Checks You Should Make Outside The Vehicle
SAFETY Periodic Safety Checks You Should Make Door Latches WARNING! (Continued) Outside The Vehicle Check for proper closing, latching, and locking. NEVER place any objects under the floor  Tires Fluid Leaks mat (e.g., towels, keys, etc.). These objects Examine tires for excessive tread wear and could change the position of the floor mat Check area under the vehicle after overnight uneven wear patterns.
Page 190: In Case Of Emergency
IN CASE OF EMERGENCY HAZARD WARNING FLASHERS FUSES Push the switch to turn on the Hazard Warning Flashers. When the switch is activated, all The Hazard Warning Flashers switch is located General Information directional turn signals will flash on and off to on the instrument panel below the climate warn oncoming traffic of an emergency.
Page 191: Underhood Fuses
IN CASE OF EMERGENCY Also, please be aware that when using power Underhood Fuses WARNING! (Continued) outlets for extended periods of time with the The Front Distribution Unit is located on the engine off may result in vehicle battery If the replaced fuse blows again, contact an ...
Page 192 IN CASE OF EMERGENCY Cavity Maxi Fuse Mini Fuse Description 60 Amp Blue – Body Controller Rear Power Windows, Fog Lamps, Front Heated Seats 40 Amp Orange – (If Equipped) 30 Amp Green – Rear Power Windows, Front Heated Seats (If Equipped) 30 Amp Green –...
Page 193 IN CASE OF EMERGENCY Cavity Maxi Fuse Mini Fuse Description – 30 Amp Green Rear Defroster (If Equipped) – 5 Amp Tan Key Unlock – 10 Amp Red Primary ECM Loads – 20 Amp Yellow BSM System – 5 Amp Tan BSM System, Positive Key and Steering Angle Sensor –...
Page 194: Interior Fuses
IN CASE OF EMERGENCY Interior Fuses The interior fuse panel is part of the Body Control Module (BCM) and is located on the driver's side under the instrument panel. Fuse Panel Cover Fuse Panel Cavity Locations Cavity Mini Fuse Description 5 Amp Beige KL 30 (+30) - IPC, FTM 20 Amp Yellow...
Page 195: Central Unit Fuse Panel
IN CASE OF EMERGENCY Central Unit Fuse Panel The central power fuse panel is located on the driver’s side under the instrument panel. Fuse Panel Cover Fuse Panel Cavity Mini Fuse Description 10 Amp Red Front Heated Seat Passenger (If Equipped) 10 Amp Red Front Heated Seat Driver (If Equipped) 20 Amp Yellow...
Page 196: Jacking And Tire Changing
IN CASE OF EMERGENCY JACKING AND TIRE CHANGING Jack Location — If Equipped Removing The Spare Tire — If Equipped The jack bag is placed on the front passenger 1. Remove the spare tire before attempting to WARNING! floor or in the rear cargo area depending on the jack up the vehicle.
Page 197 IN CASE OF EMERGENCY 2. To access the winch mechanism open the NOTE: rear doors of the vehicle to expose the The winch mechanism is designed for use with winch mechanism access hole. Install the the winch extension only. Use of an air wrench or other power tools is not recommended and winch extension into the winch mechanism.
Page 198: Preparations For Jacking
IN CASE OF EMERGENCY 5. Remove the wing nut prior to removing the 7. Pull the retainer through the center of the 4. Place the gear selector into PARK (P). retainer from the wheel. wheel. 5. Turn the ignition to the STOP (OFF/LOCK) position.
Page 199: Jacking Instructions
IN CASE OF EMERGENCY Jacking Instructions WARNING! (Continued) WARNING! Do not get under the vehicle when it is on a  jack. If you need to get under a raised Carefully follow these tire changing warnings vehicle, take it to a service center where it to help prevent personal injury or damage to can be raised on a lift.
Page 200 IN CASE OF EMERGENCY 1. Loosen (but do not remove) the wheel lug bolts with the wrench handle by turning them to the left one turn while the wheel is still on the ground. 2. There are two jack engagement locations on each side of the vehicle body.
Page 201 IN CASE OF EMERGENCY 3. Turn the handle on the jack screw to the 6. Install the spare tire. Lightly tighten the right until the jack head is properly engaged wheel lug bolts using the bolt install wrench. in the described location. Do not raise the WARNING! vehicle until you are sure the jack is securely engaged.
Page 202: Vehicles With Alloy Wheels
IN CASE OF EMERGENCY Vehicles With Alloy Wheels 2. The plastic fin must be directed downwards WARNING! and perfectly coincide with the flange cut For stowing a damaged tire on vehicles with A loose tire or jack thrown forward in a part;...
Page 203: Vehicles Equipped With Wheel Covers
IN CASE OF EMERGENCY 3. Position the tire vertically and lay the 6. Reach underneath and shake tire by hand mounted adapter on the inner part of the to confirm that it is secure. The tire should rim, using the supplied bolts fasten the not move.
Page 204: Tire Service Kit - If Equipped
IN CASE OF EMERGENCY TIRE SERVICE KIT — IF EQUIPPED 4. Install the remaining wheel bolts with the Tire Service Kit Usage threaded end of the wheel bolt toward the If a tire is punctured, you can make a first Small punctures up to ¼...
Page 205 IN CASE OF EMERGENCY Insert the power plug into the vehicle power WARNING! WARNING! (Continued) outlet socket. Start the vehicle engine. Do not attempt to seal a tire on the side of A loose Tire Service Kit thrown forward in a ...
Page 206: Jump Starting
IN CASE OF EMERGENCY JUMP STARTING NOTE: WARNING! Replace the sealant canister prior to the expira- If your vehicle has a discharged battery, it can Tire Service Kit is not a permanent flat tire tion date at an authorized dealer. be jump started using a set of jumper cables repair.
Page 207: Preparations For Jump Starting
IN CASE OF EMERGENCY Preparations For Jump Starting WARNING! The battery in your vehicle is located in the front Take care to avoid the radiator cooling fan  of the engine compartment, behind the left whenever the hood is raised. It can start headlight assembly.
Page 208: Jump Starting Procedure
IN CASE OF EMERGENCY See below steps to prepare for jump starting: 4. Connect the opposite end of the negative (-) CAUTION! jumper cable to a good engine ground 1. Apply the parking brake, shift the Failure to follow these procedures could (exposed metal part of the discharged automatic transmission into PARK (P) and result in damage to the charging system of...
Page 209: If Your Engine Overheats
IN CASE OF EMERGENCY Disconnecting The Jumper Cables NOTE: CAUTION! There are steps that you can take to slow down 1. Disconnect the negative (-) end of the Accessories plugged into the vehicle power an impending overheat condition: jumper cable from the engine ground of outlets draw power from the vehicle’s battery, the vehicle with the discharged battery.
Page 210: Ignition Key Removal Override
IN CASE OF EMERGENCY 4. Pull the steering wheel outward until it is in CAUTION! the end of the travel position, then lock the Driving with a hot cooling system could steering column in position, push the damage your vehicle. If the temperature control handle up until fully engaged.
Page 211: Gear Selector Override
IN CASE OF EMERGENCY GEAR SELECTOR OVERRIDE FREEING A STUCK VEHICLE 5. Insert a small screwdriver or a similar tool into the gear selector override access hole If a malfunction occurs and the gear selector If your vehicle becomes stuck in mud, sand, or (at the right front corner of the gear selector cannot be moved out of the PARK (P) position, snow, it can often be moved using a rocking...
Page 212 IN CASE OF EMERGENCY WARNING! CAUTION! CAUTION! Fast spinning tires can be dangerous. Forces Racing the engine or spinning the wheels may When “rocking” a stuck vehicle by shifting  between DRIVE and REVERSE, do not spin generated by excessive wheel speeds may lead to transmission overheating and failure.
Page 213: Towing A Disabled Vehicle
IN CASE OF EMERGENCY TOWING A DISABLED VEHICLE This section describes procedures for towing a disabled vehicle using a commercial towing service. Towing Condition Wheel OFF The Ground ALL MODELS Flat Tow NONE NOT ALLOWED Front Wheel Lift Or Dolly Tow Rear NOT ALLOWED Flatbed...
Page 214: Enhanced Accident Response System (Ears)
IN CASE OF EMERGENCY ENHANCED ACCIDENT RESPONSE SYSTEM EVENT DATA RECORDER (EDR) FCA US LLC recommends towing your vehicle with all four wheels OFF the ground using a (EARS) This vehicle is equipped with an Event Data flatbed. Recorder (EDR). The main purpose of an EDR is This vehicle is equipped with an Enhanced NOTE: to record data that will assist in understanding...
Page 215: Bulb Replacement
IN CASE OF EMERGENCY BULB REPLACEMENT Replacement Bulbs NOTE: See an Authorized Dealer for LED bulb replacement. Interior Bulbs Lamps Bulb Number Front Courtesy Lamps C10W Rear Courtesy Lamps C10W Luggage Lamp Exterior Bulbs Lamps Bulb Number Front Low Beam Headlamp Front High Beam Headlamps Front Side Marker Lamps LED (Serviced at an Authorized Dealer)
Page 216: Replacing Exterior Bulbs
IN CASE OF EMERGENCY Exterior Bulbs Lamps Bulb Number Rear Side Marker Lamps LED (Serviced at an Authorized Dealer) Center Mount Brake Lamp Reverse Light W16W Front Fog Lamps NOTE: Numbers refer to commercial bulb types that can be purchased from an authorized dealer. If a bulb needs to be replaced visit an authorized dealer or refer to the applicable Service Manual.
Page 217: Replacing Interior Bulbs
IN CASE OF EMERGENCY Front/Rear Side Marker Lamps The bulbs are arranged inside the light cluster License Plate Lights as follows: See below steps to replace: See below steps to replace: The front/rear side marker lamps are LED and Third Brake Light (Center Mount) 1.
Page 218 IN CASE OF EMERGENCY 2. Open protective cover. 3. Replace the bulb releasing them from the side contacts making sure that the new bulbs are correctly secured between the contacts. Roof Lamp 2. Open the cover. Dome Lamp 1 — Protective Cover 2 —...
Page 219: Servicing And Maintenance
SERVICING AND MAINTENANCE SCHEDULED SERVICING NOTE: Check tire pressure and look for unusual  Under no circumstances should oil change wear or damage. Rotate tires at the first sign Your vehicle is equipped with an automatic oil of irregular wear, even if it occurs before the intervals exceed 10,000 miles (16,000 km), change indicator system.
Page 220 SERVICING AND MAINTENANCE At Every Oil Change Interval As Indicated By Oil Change Indicator System: Change oil and filter  Rotate the tires  Rotate at the first sign of irregular wear, even if it occurs before the oil indicator system turns on ...
Page 221 SERVICING AND MAINTENANCE Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Additional Inspections Inspect the CV/Universal joints. Inspect front suspension, boot seals, tie rod ends, and replace if necessary. Inspect the brake linings, parking brake function. Inspect front accessory drive belt, tensioner, idler pulley, and replace if necessary.
Page 222 SERVICING AND MAINTENANCE Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Flush and replace the engine coolant at 10 years or 150,000 miles (240,000 km) whichever comes first. Inspect and replace PCV valve if necessary. 1. Change engine air filter every 10,000 miles (16,000 km) if operated in dusty and off-road environment. 2.
Page 223: Engine Compartment
SERVICING AND MAINTENANCE ENGINE COMPARTMENT Engine Compartment — 2.4L 1 — Air Cleaner Filter Cover 5 — Power Distribution Center (Fuses) 2 — Power Steering Fluid Reservoir Cap 6 — Washer Fluid Reservoir Cap 3 — Oil Fill Cap 7 — Engine Coolant Pressure Cap 4 —...
Page 224: Checking Oil Level
SERVICING AND MAINTENANCE Checking Oil Level CAUTION! WARNING! To ensure proper engine lubrication, the engine Overfilling or underfilling the crankcase will Commercially available windshield washer oil must be maintained at the correct level. cause aeration or loss of oil pressure. This solvents are flammable.
Page 225: Pressure Washing
SERVICING AND MAINTENANCE Pressure Washing WARNING! WARNING! (Continued) Cleaning the engine compartment with a high You can be badly injured working on or Battery gas is flammable and explosive.  pressure washer is not recommended. Keep flame or sparks away from the around a motor vehicle.
Page 226: Engine Oil Filter
SERVICING AND MAINTENANCE Disposing Of Used Engine Oil And Oil Filters NOTE: CAUTION! Be sure to follow the Severe Duty Conditions Care should be taken in disposing of used Do not use chemical flushes in your engine oil maintenance interval if applicable Ú page 217. engine oil and oil filters from your vehicle.
Page 227: Air Conditioner Maintenance
SERVICING AND MAINTENANCE Air Conditioner Maintenance periodically with a lithium-based grease, such CAUTION! as Mopar Spray White Lube to ensure quiet, For best possible performance, your air Do not use chemical flushes in your air easy operation and to protect against rust and conditioner should be checked and serviced by conditioning system as the chemicals can wear.
Page 228: Exhaust System
SERVICING AND MAINTENANCE Avoid using the wiper blades to remove frost or NOTE: mispositioned parts. Open seams or loose ice from the windshield. Keep the blade rubber The previous operation can be repeated up to connections could permit exhaust fumes to out of contact with petroleum products such as three times in order to move the blades to the seep into the passenger compartment.
Page 229: Cooling System
SERVICING AND MAINTENANCE NOTE: Cooling System CAUTION! Intentional tampering with emissions control WARNING! The catalytic converter requires the use of systems can result in civil penalties being  unleaded fuel only. Leaded gasoline will assessed against you. You or others can be badly burned by hot ...
Page 230 SERVICING AND MAINTENANCE Engine Coolant Checks If the engine coolant is dirty or contains visible they may not be compatible with the radiator engine coolant and may plug the radiator. sediment, have an authorized dealer clean and Check the engine coolant (antifreeze) flush with OAT coolant (conforming to protection every 12 months (before the onset of This vehicle has not been designed for use...
Page 231 SERVICING AND MAINTENANCE Please review these recommendations for Some vehicles require special tools to add  WARNING! using OAT engine coolant that meets the coolant properly. Failure to fill these systems properly could lead to severe internal engine requirements of FCA Material Standard Do not open hot engine cooling system.
Page 232: Brake System
SERVICING AND MAINTENANCE Coolant Level the radiator and being vaporized when the ther- Keep the front of the radiator clean. If your  vehicle is equipped with air conditioning, mostat opens, allowing hot engine coolant to The coolant expansion bottle provides a quick enter the radiator.
Page 233: Automatic Transmission
SERVICING AND MAINTENANCE Brake Master Cylinder Automatic Transmission WARNING! (Continued) The fluid in the master cylinder should be Selection Of Lubricant To avoid contamination from foreign matter  checked when performing under hood services It is important to use the proper transmission or moisture, use only new brake fluid or or immediately if the “Brake Warning Light”...
Page 234: Upfitter Connectors - If Equipped
SERVICING AND MAINTENANCE Special Additives immediately to have the transmission fluid level Upfitter Connectors — If Equipped checked. Operating the vehicle with an It is strongly recommended against using any The preparation connectors are to be only used improper fluid level can cause severe special additives in the transmission.
Page 235 SERVICING AND MAINTENANCE 15 Way Vehicle Connector Functions and View 2 Way Vehicle Connector Functions and View Function Not Connected Ignition Run/Start Output Not Connected Not Connected Connector Pin Numbers Connector Pins Function Function Not Connected Power Supply Generator Voltage Sensor 2 Vehicle Speed Signal Upfitter Connector Not Connected...
Page 236: Tires
LT-Metric tires is the same as for P-Metric connectors as well as general technical tires except for the letters “LT” that are questions about upfitting your Ram product, molded into the sidewall preceding the size Tire Markings refer to https://www.ramtrucks.com/ designation.
Page 237 SERVICING AND MAINTENANCE Tire Sizing Chart EXAMPLE: Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT P = Passenger car tire size based on US design standards, or "..blank.." = Passenger car tire based on European design standards, or LT = Light truck tire based on US design standards, or T or S = Temporary spare tire or 31 = Overall diameter in inches (in)
Page 238 SERVICING AND MAINTENANCE EXAMPLE: Service Description: 95 = Load Index A numerical code associated with the maximum load a tire can carry  H = Speed Symbol A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions ...
Page 239 SERVICING AND MAINTENANCE Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle.
Page 240 SERVICING AND MAINTENANCE Tire Terminology And Definitions Term Definition The vehicle B-Pillar is the structural member of the body located behind B-Pillar the front door. Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least three hours, or driven less than Cold Tire Inflation Pressure 1 mile (1.6 km) after sitting for a minimum of three hours.
Page 241 SERVICING AND MAINTENANCE Tire Loading And Tire Pressure This placard tells you important information about the: NOTE: 1. Number of people that can be carried in The proper cold tire inflation pressure is listed the vehicle. on the driver’s side B-Pillar or the rear edge of the driver's side door.
Page 242 SERVICING AND MAINTENANCE NOTE: (3) Subtract the combined weight of the Metric Example For Load Limit Under a maximum loaded vehicle condition, driver and passengers from XXX kg or For example, if “XXX” amount equals 635 kg gross axle weight ratings (GAWRs) for the front and there will be five 68 kg passengers in your XXX lbs.
Page 243 SERVICING AND MAINTENANCE WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them.
Page 244: Tires - General Information
SERVICING AND MAINTENANCE Tires — General Information Fuel Economy WARNING! (Continued) Under-inflated tires will increase tire rolling Tire Pressure Over-inflated or under-inflated tires can  resistance resulting in higher fuel consumption. Proper tire inflation pressure is essential to the affect vehicle handling and can fail Tread Wear safe and satisfactory operation of your vehicle.
Page 245 SERVICING AND MAINTENANCE Example: If garage temperature = 68°F (20°C) CAUTION! WARNING! and the outside temperature = 32°F (0°C) then After inspecting or adjusting the tire pressure, the cold tire inflation pressure should be High speed driving with your vehicle under increased by 3 psi (21 kPa), which equals 1 psi always reinstall the valve stem cap.
Page 246 SERVICING AND MAINTENANCE Tire Repair limited driving capabilities and needs to be WARNING! replaced immediately. A Run Flat tire is not If your tire becomes damaged, it may be repairable. When a Run Flat tire is changed Fast spinning tires can be dangerous. Forces repaired if it meets the following criteria: after driving with under-inflated tire condition, generated by excessive wheel speeds may...
Page 247 SERVICING AND MAINTENANCE Life Of Tire NOTE: you ever replace a wheel, make sure that the Wheel valve stem must be replaced as well wheel’s specifications match those of the The service life of a tire is dependent upon when installing new tires due to wear and tear original wheels.
Page 248: Tire Types
SERVICING AND MAINTENANCE failure to do so may adversely affect the safety Snow Tires WARNING! (Continued) and handling of your vehicle. Some areas of the country require the use of Never use a tire with a smaller load index or ...
Page 249: Spare Tires - If Equipped
SERVICING AND MAINTENANCE Spare Tires — If Equipped Compact Spare Tire — If Equipped WARNING! The compact spare is for temporary emergency NOTE: Compact and collapsible spares are for use only. You can identify if your vehicle is For vehicles equipped with Tire Service Kit temporary emergency use only.
Page 250: Wheel And Wheel Trim Care
SERVICING AND MAINTENANCE Since this tire has limited tread life, the original Full Size Spare — If Equipped WARNING! equipment tire should be repaired (or replaced) The full size spare is for temporary emergency and reinstalled on your vehicle at the first Limited use spares are for emergency use use only.
Page 251: Tire Chains And Traction Devices
SERVICING AND MAINTENANCE Your wheels are susceptible to deterioration Chrome Cleaner or their equivalent is Dark Vapor Chrome, Black Satin Chrome, or caused by salt, sodium chloride, magnesium recommended or select a non-abrasive, Low Gloss Clear Coat Wheels chloride, calcium chloride, etc., and other road non-acidic cleaner for aluminum or chrome CAUTION! wheels.
Page 252: Tire Rotation Recommendations
SERVICING AND MAINTENANCE Tire Rotation Recommendations All passenger vehicle tires must conform to Federal safety requirements in The tires on the front and rear of your vehicle addition to these grades. operate at different loads and perform different steering, driving, and braking functions. For Treadwear these reasons, they wear at unequal rates.
Page 253: Traction Grades
SERVICING AND MAINTENANCE STORING THE VEHICLE Sustained high temperature can cause Traction Grades the material of the tire to degenerate The Traction grades, from highest to If you are storing your vehicle for more than 3 and reduce tire life, and excessive lowest, are AA, A, B, and C.
Page 254: Bodywork
SERVICING AND MAINTENANCE BODYWORK Insects, tree sap and tar Preserving The Bodywork  Salt in the air near seacoast localities Washing  Protection From Atmospheric Agents Wash your vehicle regularly. Always wash  Atmospheric fallout/industrial pollutants  Vehicle body care requirements vary according your vehicle in the shade using Mopar Car to geographic locations and usage.
Page 255: Interiors
SERVICING AND MAINTENANCE If you carry special cargo such as chemicals, Plastic And Coated Parts  CAUTION! fertilizers, de-icer salt, etc., be sure that such Use Mopar Total Clean to clean vinyl upholstery. materials are well packaged and sealed. Do not use abrasive or strong cleaning ...
Page 256: Leather Surfaces
SERVICING AND MAINTENANCE Leather Surfaces NOTE: Glass Surfaces If equipped with light colored leather, it tends to Mopar Total Clean is specifically recommended All glass surfaces should be cleaned on a show any foreign material, dirt, and fabric dye for leather upholstery. regular basis with Mopar Glass Cleaner, or any transfer more so than darker colors.
Page 257: Technical Specifications
TECHNICAL SPECIFICATIONS VEHICLE IDENTIFICATION NUMBER BRAKE SYSTEM WHEEL AND TIRE TORQUE SPECIFICATIONS The Vehicle Identification Number (VIN) is found Your vehicle is equipped with dual hydraulic Proper lug nut/bolt torque is very important to on the left front corner of the instrument panel, brake systems.
Page 258: Fuel Requirements
TECHNICAL SPECIFICATIONS Inspect the wheel mounting surface prior to After 25 miles (40 km), check the lug nut/bolt knocking sound, see an authorized dealer mounting the tire and remove any corrosion or torque to be sure that all the lug nuts/bolts are immediately.
Page 259: Gasoline/Oxygenate Blends
TECHNICAL SPECIFICATIONS Gasoline/Oxygenate Blends E-85 Usage In Non-Flex Fuel Vehicles MMT In Gasoline Some fuel suppliers blend unleaded gasoline Non-Flex Fuel Vehicles (FFV) are compatible Methylcyclopentadienyl Manganese Tricarbonyl with oxygenates such as ethanol. with gasoline containing up to 15% ethanol (MMT) is a manganese-containing metallic (E-15).
Page 260: Fuel System Cautions
TECHNICAL SPECIFICATIONS Designated TOP TIER Detergent Carbon Monoxide Warnings CAUTION! (Continued) Gasoline contains a higher level of WARNING! detergents to further aide in An out-of-tune engine or certain fuel or igni-  minimizing engine and fuel system tion malfunctions can cause the catalytic Carbon monoxide (CO) in exhaust gases is deposits.
Page 261: Fluid Capacities
TECHNICAL SPECIFICATIONS FLUID CAPACITIES Metric Fuel (Approximate) 2.4L Engine 16 Gallons 60.5 Liters Engine Oil With Filter 2.4L Engine 5.5 Quarts 5.2 Liters Cooling System* 2.4L Engine 7.2 Quarts 6.8 Liters * Includes heater and coolant reservoir filled to MAX level. ENGINE FLUIDS AND LUBRICANTS Component Fluid, Lubricant, or Genuine Part...
Page 262 TECHNICAL SPECIFICATIONS CAUTION! CAUTION! (Continued) Mixing of engine coolant (antifreeze) other Do not use water alone or alcohol-based   than specified Organic Additive Technology engine coolant products. Do not use addi- (OAT) engine coolant, may result in engine tional rust inhibitors or antirust products, damage and may decrease corrosion as they may not be compatible with the protection.
Page 263: Chassis Fluids And Lubricants
TECHNICAL SPECIFICATIONS CHASSIS FLUIDS AND LUBRICANTS Component Fluid, Lubricant, or Genuine Part Use only Mopar ZF 8&9 Speed ATF Automatic Transmission Fluid, or equivalent. Automatic Transmission Failure to use the correct fluid may affect the function or performance of your transmission. We recommend you use Mopar DOT 4.
Page 264: Customer Assistance
CUSTOMER ASSISTANCE SUGGESTIONS FOR OBTAINING SERVICE IF YOU NEED ASSISTANCE Any communication to the FCA US LLC's customer center should include the following FOR YOUR VEHICLE FCA US LLC and its authorized dealers are vitally information: interested in your satisfaction. We want you to Owner's name and address ...
Page 265: Mexico
CUSTOMER ASSISTANCE Mexico Canadian residents with hearing difficulties that FCA US LLC is not responsible for any service require assistance can use the special needs contract you may have purchased from another Av. Prolongacion Paseo de la Reforma, 1240 relay service offered by Bell Canada. For TTY manufacturer.
Page 266: Warranty Information
CUSTOMER ASSISTANCE WARRANTY INFORMATION that a safety defect exists in a group of Investigations and Recalls at vehicles, it may order a recall and 1-800-333-0510 or go to See the Warranty Information for the terms and remedy campaign. However, NHTSA wwwapps.tc.gc.ca/Saf-Sec-Sur/7/ provisions of FCA US LLC warranties applicable cannot become involved in individual...
Page 267: General Information
CUSTOMER ASSISTANCE GENERAL INFORMATION Owner's Manuals 1. l'appareil ne doit pas produire de brouillage, et These Owner's Manuals have been prepared The following regulatory statement applies to all with the assistance of service and engineering 2. l'utilisateur de l'appareil doit accepter tout Radio Frequency (RF) devices equipped in this specialists to acquaint you with specific FCA US brouillage radioélectrique subi, même si le...
Page 268: Index
INDEX Air Pressure ....228 ............242 ........... 50 Adding Engine Coolant (Antifreeze) Tires Battery ..........257 .........50 Additives, Fuel Alarm Charging System Light ......118 ..........13 ....11 Advance Phone Connectivity Security Alarm Keyless Key Fob Replacement ............ 185 Air Bag Alterations/Modifications Belts, Seat ........163 ............
Page 269 Locating The LATCH Anchorages ....177 Camera, Rear ..........73 Lower Anchors And Tethers For Children .. 175 Dealer Service ..........223 Capacities, Fluid ..........259 Older Children And Child Restraints ..172 Defroster, Windshield ........186 Caps, Filler Seating Positions ........
Page 270 ..51 ........256 Electronic Throttle Control Warning Light Octane Rating Emergency, In Case Of ........... 259 Filters Specifications ......209 Freeing Vehicle When Stuck ..........224 ........... 259 Air Cleaner Tank Capacity ............194 Jacking ...........34 ............188 Air Conditioning Fuses ..........204 Jump Starting ........
Page 271 Heated Seats ........... 20 Brake Warning ..........49 Heater, Engine Block ........59 Jack Location ..........194 Bulb Replacement ........213 Hill Start Assist ..........148 Jack Operation ..........194 Cruise ............55 Hitches Jacking And Tire Changing ......194 Daytime Running .........27 Trailer Towing ..........
Page 272 .......... 224 ..........87 Oil Filter, Change Personal Settings ......222 ........224 ............... 184 Maintenance Free Battery Oil Filter, Selection Pets ........217 ..........51 ..........109 Maintenance Schedule Oil Pressure Light Phone Mode ............46 ..239 Malfunction Indicator Light (Check Oil Reset Placard, Tire And Loading Information .............
Page 273 Replacement Keys ........... 11 Pretensioners ........... 159 Snow Tires ............ 246 Replacement Tires .........245 Rear Seat ..........155 Spare Tires ........... 247 Reporting Safety Defects .......264 Reminder ..........52 Spark Plugs ........... 259 Restraints, Child ..........170 Seat Belt Pretensioner ......159 Specifications Restraints, Head ..........
Page 274 ..........80 Trailer Towing ......23 ......244 Telescoping Steering Column Tread Wear Indicators Uconnect ......... 116 ........38 ........255 Phone Call Features Tie Down Hooks, Cargo Wheel Nut Torque Things You Should Know About Your ........23 ..........37 Tilt Steering Column To Open Hood ........
Page 275 Pair A Bluetooth Streaming Audio Water Device ...........113 Vehicle Certification Label .......75 Driving Through ...........84 Phonebook Download .......115 Vehicle Loading .......75 Wheel And Wheel Tire Care ......248 Place/Retrieve A Call From Hold ....118 Vehicle Modifications/Alterations ...... 8 Wheel And Wheel Tire Trim ......
Page 279 It is always the driver’s responsibility to comply with all local laws. This Owner’s Manual has been prepared to help you get acquainted with your new Ram brand vehicle and to provide a convenient reference for common questions.
Page 280 ©2020 FCA US LLC. All Rights Reserved. Tous droits réservés. Ram is a registered trademark of FCA US LLC. Ram est une marque déposée de FCA US LLC. App Store is a registered trademark of Apple Inc. Google Play Store is a registered trademark of Google.

RAM PROMASTER CITY Owner's Manual

Quick Links

Need help?

Questions and answers

Related Manuals for RAM PROMASTER CITY

Summary of Contents for RAM PROMASTER CITY

Table of Contents
