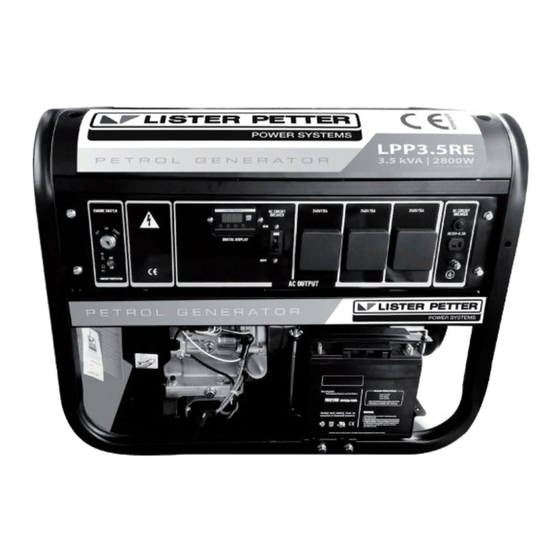

Lister Petter LPP Series Operator's Handbook Manual

Petrol genset
Hide thumbs

Advertisement

Table of Contents

LPP SERIES
LPP PetroL genset
oPerators' Handbook
ORIGINAL INSTRUCTIONS
P027-10760

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lister Petter LPP Series

Summary of Contents for Lister Petter LPP Series

  • Page 1 LPP SERIES LPP PetroL genset oPerators' Handbook ORIGINAL INSTRUCTIONS P027-10760...
  • Page 2 This Company does not guarantee that the same results will be obtained elsewhere under different conditions. Parts that have not been approved by the Lister Petter Power Systems organisation cannot be relied upon for correct material, dimensions or finish. The Company cannot therefore be held responsible for any damage arising from the use of such parts, and the guarantee will be invalidated.

  • Page 3: Table Of Contents

    CoNteNts SAFETY INFORMATION ..................4 SAFETY AND OPERATION RULES ..............5 SELECTING A GENERATOR ................12 OPERATING VOLTAGE ................... 15 INSTALLATION ....................16 PRE-OPERATION CHECK ................18 START THE UNIT .................... 22 MAINTENANCE ....................25 SERVICE AND STORAGE ................31 TROUBLESHOOTING GUIDE ................

  • Page 4: Safety Information

    LPP PetRoL GeNset oPeRAtoRs' hANdbook sAfety INfoRmAtIoN Read the information in this section carefully and follow all the advice given. Pay special attention to the cautions and warnings demonstrated below, which are used throughout this handbook. dANGeR DANGER INDICATES A POTENTIALLY HAzARDOUS SITUATION WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS INJURY.

  • Page 5: Safety And Operation Rules

    LPP PetRoL GeNset oPeRAtoRs' hANdbook sAfety ANd oPeRAtIoN RULes WARNING Failure to follow these instructions and warnings may result in severe injury or death to the engine operator, a bystander, or person inspecting or repairing the engine or property damage. 1.
  • Page 6 LPP PetRoL GeNset oPeRAtoRs' hANdbook 8. Units should not be operated or stored in wet or damp conditions or on highly conductive locations such as metal decking and steel work. Keep the generator clean and free of oil, mud, and other foreign matter. 10.
  • Page 7 LPP PetRoL GeNset oPeRAtoRs' hANdbook DANGER - CARBON MONOXIDE HAZARD: The engine exhaust contains carbon monoxide, a poisonous, odourless, invisible gas which, if breathed, may cause death or serious personal injury. If you start to feel sick, dizzy or weak while using the generator, shut it off and get to fresh air right away;...
  • Page 8 LPP PetRoL GeNset oPeRAtoRs' hANdbook e.The muffler and air cleaner must be installed and in good condition at all times. f. Do not smoke near the generator. 15. Ensure that generator is properly grounded. 16. Do not wear loose clothing, jewelry, or anything that may be caught in the starter or other rotating parts.
  • Page 9 LPP PetRoL GeNset oPeRAtoRs' hANdbook 22. To avoid burns, do not touch engine muffler or other engine or generator surfaces which became hot during operation. 23. Know how to stop the generator quickly and understand operation of all the controls. Never permit anyone to operate the generator without proper instructions.
  • Page 10 LPP PetRoL GeNset oPeRAtoRs' hANdbook LeAkAGe CURReNt One of the most important checks to be sure a tool is safe is for excessive leakage current. Leakage current flows from the internal wiring to metal portions of the equipment housing or enclosure. The skin offers a barrier to the flow of leakage current.
  • Page 11 LPP PetRoL GeNset oPeRAtoRs' hANdbook • At about 100 milliamperes (less than half that used by a 25-watt lamp) ventricular fibrillation ocuurs, the muscle fibers lose control and the heart is no longer able to pump blood. • When a tool is operating normally, electricity passes through one wire the tool and back out the second wire.

  • Page 12: Selecting A Generator

    LPP PetRoL GeNset oPeRAtoRs' hANdbook seLeCtING A GeNeRAtoR WAttAGe CALCULAtIoN The biggest problem in selecting a generator is determining the power requirements that must be met under operating conditions. Under-sizing of the generator is the single most common mistake and can be avoided by considering all the loads to be connected to the generator.
  • Page 13 LPP PetRoL GeNset oPeRAtoRs' hANdbook Times (x) Tools / Equipment Nameplate Running Watts Starting Watts 1, 2, 3 Radiant heater 1250 1250 Freezer 1200 Small refrigerator 1200 Microwave Oven 4 Sixty-watt Light Bulbs Total 3840 4640 A total of 4640 starting watts are required if all the items were started simultaneously. This would require the use of generator with a minimum continuous rating of 5000 watts.
  • Page 14 LPP PetRoL GeNset oPeRAtoRs' hANdbook Watts required to start motor Motor size (HP) Running watts Repulsion induction Capacitor Split phase 1200 2050 1050 2400 1350 2700 1300 1800 3600 1900 2600 1100 2500 3300...

  • Page 15: Operating Voltage

    LPP PetRoL GeNset oPeRAtoRs' hANdbook oPeRAtING VoLtAGe CAUtIoN Operating voltage and frequency requirement of all electronic equipment should be checked prior to plugging them into the generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage variation, and +/- 2 Hz for frequency variation from the nameplate ratings.

  • Page 16: Installation

    LPP PetRoL GeNset oPeRAtoRs' hANdbook INstALLAtIoN WARNING To avoid possible personal injury or equipment damage, a registered electrician or an authorized service representative should perform installation and all service. Under no circumstances should an unqualified person attempt to wire into a utility circuit. To avoid backfeeding into utility systems, isolation of the residence electrical system is required.
  • Page 17 LPP PetRoL GeNset oPeRAtoRs' hANdbook WARNING To avoid backfeeding into utility systems, isolation of the residence electrical system is required. Before temporary connection of a generator to the residence electrical system turn off the main switch. Before making permanent connections a double throw transfer switch must be installed. To avoid electrocution or property damage, only a trained electrician should connect generator to the residence electrical system.

  • Page 18: Pre-Operation Check

    LPP PetRoL GeNset oPeRAtoRs' hANdbook PRe-oPeRAtIoN CheCk GRoUNdING Be sure to ground (earth) the generator. • The ground terminal connected to the frame of the generator has been provided for grounding purpose. • Be sure that the ground wire have sufficient current capacity. (1) Ground wire diameter: 0.12 mm (0.005in) per ampere •...
  • Page 19 LPP PetRoL GeNset oPeRAtoRs' hANdbook It is recommended to: 1. Use electrical devices with 3 prong power cords. 2. Use an extension cord with a 3 hole receptacle and a 3 prong plug at opposite ends to ensure continuity of the ground protection from the generator to appliance.
  • Page 20 LPP PetRoL GeNset oPeRAtoRs' hANdbook eNGINe oIL ReCommeNdAtIoNs • Oil is a major factor affecting performance and service life. • Using 4-stroke automotive detergent oil. SAE 10W-30 is recommended for general use. • Selecting the viscosity is based on the air temperature at the time of operation.
  • Page 21 LPP PetRoL GeNset oPeRAtoRs' hANdbook CAUtIoN Do not overfill the tank. Keep maximum fuel level 1/4 inch below the top of the fuel tank or do not fill above the fuel strainer shoulder. This will allow expansion in hot weather and prevent overflow. Spilled fuel is not only a fire hazard, it causes environmental damage.

  • Page 22: Start The Unit

    LPP PetRoL GeNset oPeRAtoRs' hANdbook stARt the UNIt WARNING Petrol is very dangerous. Serious injury or death may result from fire caused as a result of not adhearing to the following: 1. Do not fill fuel tank with engine running. 2.
  • Page 23 LPP PetRoL GeNset oPeRAtoRs' hANdbook 6. Pull on the starter rope with fast steady pull. As the engine warms up, readjust the choke (1). On electric start models, turn the key switch to "START". Release key switch after the engine starts. dANGeR Provide adequate ventilation for toxic exhaust gases and cooling air flow.
  • Page 24 LPP PetRoL GeNset oPeRAtoRs' hANdbook shUttING the GeNeRAtoR off 1. Remove entire electrical load. 2. Let the engine run for a few minutes at no load. 3. Move the engine switch to the “OFF” position (or “ STOP” position 1) (Turn the key switch to “OFF”...

  • Page 25: Maintenance

    LPP PetRoL GeNset oPeRAtoRs' hANdbook mAINteNANCe dAILy INsPeCtIoN Before running the engine, check the following service items. • Loose or broken bolts and nuts • Clean air cleaner element • Enough clean engine oil • Leakage of petrol and engine oil •...
  • Page 26 LPP PetRoL GeNset oPeRAtoRs' hANdbook PERIODIC MAINTENANCE Items Notes dAILy INItIAL eVeRy eVeRy eVeRy (before operation) hours hours hours hours EXHAUST Check muffler screen • SYSTEM (spark arrester). Clean/replace if necessary. VALVE Check and adjust • CLEARANCE when engine is cold (*Note 2) COMBUSTION Remove carbon...
  • Page 27 LPP PetRoL GeNset oPeRAtoRs' hANdbook • Magneto or electronic ignition system • Spark advance / retard system, if applicable • Exhaust manifold, if applicable • Fuel hoses, connectors and fuel tank cup The maintenance schedule indicated in the above table is based on normal engine operation.
  • Page 28 LPP PetRoL GeNset oPeRAtoRs' hANdbook oIL RePLACemeNt 1.Change oil while engine is warm. 2.Place the generator unit on a level surface. 3.Remove the oil filler cap or dipstick (3). 4.Open the oil drain plug (1) and let oil drain completely into a pan placed under the engine.
  • Page 29 LPP PetRoL GeNset oPeRAtoRs' hANdbook fUeL VALVe fILteR CLeANING 1.Remove the cup at the bottom of the fuel valve with a small wrench. 2.Remove the fuel valve filter. 3.Clean and wash out the filter and cup and replace. fUeL stRAINeR CLeANING 1.Remove the plastic fuel strainer, located below the fuel tank cap.
  • Page 30 LPP PetRoL GeNset oPeRAtoRs' hANdbook • Brushless type Use a capacitor to re-excite the field (choose a capacitor with similar capacity). Firstly use 12-volt battery to charge the capacitor, then touch two terminals of capacitor into the output receptacle with two wire leads to restore the magnetism.

  • Page 31: Service And Storage

    LPP PetRoL GeNset oPeRAtoRs' hANdbook seRVICe ANd stoRAGe INfReqUeNt seRVICe If the unit is used infrequently, difficult starting may result. To eliminate hard starting, run the generator at least 30 minutes every month. Also, if the unit will not be used for some time, it is a good idea to drain the fuel from the carburetor and petrol tank.

  • Page 32: Troubleshooting Guide

    LPP PetRoL GeNset oPeRAtoRs' hANdbook tRoUbLeshootING GUIde Problem Possible Cause (s) Corrective Action 1. Engine speed is too slow 1. Adjust engine speed 2. Open or shorted wiring 2. Clean and reconnect all wiring Zero output 1. Faulty capacitor 3. Replace capacitor from 2.

  • Page 33: Limited Warranty

    (90) days from the date of purchase. 2.Who gives this warranty (Warrantor) Lister Petter Power Systems 3.Who receives this warranty (Purchaser) The original purchaser (other than for purposes of resale) of the Warrantor’s generator.
  • Page 34 LPP PetRoL GeNset oPeRAtoRs' hANdbook exclusions and Limitations: Warrantor makes no other warranty of any kind, express or implied. Implied warranties, including warranties of merchantability and of fitness for a particular purpose, are hereby disclaimed. This warranty service described above is the exclusive remedy under this warranty;...

  • Page 35: Parts List

    LPP PetRoL GeNset oPeRAtoRs' hANdbook PARts LIst...
  • Page 36 LPP PetRoL GeNset oPeRAtoRs' hANdbook yf168fd-2 PARts LIst Item Part / Reference Number Description Quantity LPP-10000 Flange bolt M6×8 LPP-10010 Recoil starter cover LPP-10020 Recoil starter spring LPP-10030 Rope (ø5×1300) LPP-10040 Recoil starter reel LPP-10050 Spring, ratchet LPP-10060 Starter ratchet (iron) LPP-10070 Spring, ratchet guide LPP-10080...
  • Page 37 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-10310 Bushing, governor gear LPP-10320 Gasket, insulator LPP-10330 Insulator, carburetor LPP-10340 Air guide, right side LPP-10350 Stud bolt (M6×90) LPP-10360 Crankcase (200) LPP-10370 Oil level sensor LPP-10380 Cylinder head (200) LPP-10390 Connecting rod LPP-10400...
  • Page 38 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-10630 Bolt, drain (M10×1.25×25) LPP-10640 Piston LPP-10650 Wrist pin LPP-10660 Circlip (ø18×ø1) LPP-10670 Ring, oil LPP-10680 Ring, second piston LPP-10690 Ring, first piston LPP-10700 Gasket, cylinder head (200) LPP-10710 Dowel pin (ø10×14) LPP-10720...
  • Page 39 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-10950 Element, air cleaner LPP-10960 Stud. bolt (M8×35) LPP-10970 Clip (ø8×ø6) LPP-10980 Cover, air cleaner LPP-10990 Coil, charging LPP-11000 Dowel pin (ø8×10) LPP-11010 Flange bolt 6×29 LPP-11020 Starter motor assembly...
  • Page 40 LPP PetRoL GeNset oPeRAtoRs' hANdbook...
  • Page 41 LPP PetRoL GeNset oPeRAtoRs' hANdbook yf190fd-2 PARts LIst Item Part / Reference Number Description Quantity LPP-11030 Handle LPP-11040 Flange bolt M6×8 LPP-11050 Recoil starter cover LPP-11060 Recoil starter spring LPP-11070 Recoil starter reel LPP-11080 Rope (ø5×1550) LPP-11090 Spring, ratchet LPP-11100 Starter ratchet (iron) LPP-11110 Spring, ratchet guide...
  • Page 42 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-11340 Dowel pin (ø9×14) LPP-11350 Recoil assembly LPP-11360 Bearing 6207 LPP-11370 Oil dipstick assembly LPP-11380 Cover, crankcase LPP-11390 Flange bolt 8×40 LPP-11400 Washer (ø6.4×ø13×1) LPP-11410 Shaft, governor gear LPP-11420 Gear, governor LPP-11430...
  • Page 43 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-11660 Valve, intake LPP-11670 Valve, exhaust LPP-11680 Push rod LPP-11690 Retainer, valve spring (down) LPP-11700 Oil seal, valve LPP-11710 Spring, valve LPP-11720 Bolt, rocker arm LPP-11730 Retainer, intake valve spring (up) LPP-11740 Retainer, exhaust valve spring (up) LPP-11750...
  • Page 44 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-11980 Bolt, governor arm (M6×21) LPP-11990 Rod governor LPP-12000 Spring, throttle return LPP-12010 Spring, governor LPP-12020 Air guide, upper LPP-12030 Diode assembly LPP-12040 Enrichment srt assembly LPP-12050 Clamp (ø15×12.2) LPP-12060 Buffer (ø15×7.5) LPP-12070...
  • Page 45 LPP PetRoL GeNset oPeRAtoRs' hANdbook...
  • Page 46 LPP PetRoL GeNset oPeRAtoRs' hANdbook yf192fd PARts LIst Item Part / Reference Number Description Quantity LPP-12110 Handle LPP-12120 Flange bolt M6×8 LPP-12130 Recoil starter cover LPP-12140 Recoil starter spring LPP-12150 Recoil starter reel LPP-12160 Rope (ø5×1550) LPP-12170 Spring, ratchet LPP-12180 Starter ratchet (iron) LPP-12190 Spring, ratchet guide...
  • Page 47 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-12420 Dowel pin (ø9×14) LPP-12430 Recoil assembly LPP-12440 Bearing 6207 LPP-12450 Oil dipstick assembly LPP-12460 Cover, crankcase LPP-12470 Flange bolt 8×40 LPP-12480 Washer (ø6.4×ø13×1) LPP-12490 Shaft, governor gear LPP-12500 Gear, governor LPP-12510...
  • Page 48 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-12740 Valve, intake LPP-12750 Valve, exhaust LPP-12760 Push rod LPP-12770 Retainer, valve spring (down) LPP-12780 Oil seal, valve LPP-12790 Spring, valve LPP-12800 Bolt, rocker arm LPP-12810 Retainer, intake valve spring (up) LPP-12820 Retainer, exhaust valve spring (up) LPP-12830...
  • Page 49 LPP PetRoL GeNset oPeRAtoRs' hANdbook Item Part / Reference Number Description Quantity LPP-13060 Bolt, governor arm (M6×21) LPP-13070 Rod governor LPP-13080 Spring, throttle return LPP-13090 Spring, governor LPP-13100 Air guide, upper LPP-13110 Diode assembly LPP-13120 Starter motor assembly LPP-13130 Plate, coil LPP-13140 Coil, charging LPP-13150...
  • Page 52 LPP PETROL GENSET OPERATORS' HANDbOOk, P027-10760, EDITION 1, MARCH 2021 © LISTER PETTER POWER SYSTEMS Head Office LISTER PETTER POWER SySTEMS LIMITED Unit 14 Estuary Court, Broadmeadow Industrial Estate Teignmouth, TQ14 9FA T: +44 (0) 1285 702211 sales@listerpetter.com www.listerpetter.com...
