USER MANUAL

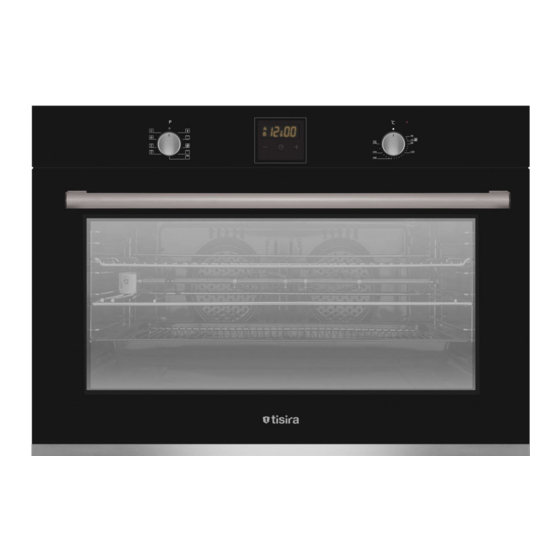

900 // ELECTRIC OVENS
TOC969E
IMPORTANT //
Please ensure that you read through this user manual prior to installation and use. This manual
contains important information to ensure optimal performance and keep you safe. Please retain your proof of
purchase, as this will be required in the event you require a warranty service. Remember to keep this manual for
future reference.
www.tisira.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tisira TOC969E
Summary of Contents for Tisira TOC969E
- Page 1 USER MANUAL 900 // ELECTRIC OVENS TOC969E IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This manual contains important information to ensure optimal performance and keep you safe. Please retain your proof of purchase, as this will be required in the event you require a warranty service.
- Page 2 Hello CONGRATULATIONS ON THE SELECTION OF THIS TISIRA APPLIANCE. TISIRA APPLIANCES HAVE BEEN SPECIFICALLY DESIGNED FOR AUSTRALIAN AND NEW ZEALAND KITCHENS. Please read through this user manual carefully as it contains information that will ensure that your appliance is installed correctly, important operating & care instructions and some advice of what you need to do if this appliance is not performing as intended.
-
Page 3: Table Of Contents
Contents Warning & Safety Instructions Product Overview Control Panel Technical Specifications Installation 7-11 Using the oven Program types Cooking table Maintenance and Cleaning Cleaning and mounting oven door Cleaning oven glass Replacing oven lamp Package disposal information Contact information Electric Oven User Manual Page 3... -
Page 4: Warning & Safety Instructions
Warning & Safety Information IMPORTANT // To ensure best performance, avoid risk of damage or accidents. • This appliance is designed for indoor domestic use only. The manufacturer will not be held • This appliance must be installed correctly by a suitably qualified person, strictly in accordance liable for any damages that might arise out of •... -
Page 5: Product Overview
Product Overview Control Panel Deep Tray In Tray Wire Grill Roast Chicken Skewer Oven Door Handle Lamp Electric Oven User Manual Page 5... -
Page 6: Control Panel
CONTROL PANEL 1. Function button 2. Digital timer 3. Thermostat WARNING: The control panel above is only for illustrative purposes. Consider the control panel on your device. Thermostat Button: Helps to set cooking temperature of the food to be cooked in the oven. You can set the desired temperature by turning the button after placing the food into the oven. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS SPECIFICATIONS 90 cm Built-In Oven Lamp Power 15-25W 40-240 / Max °C Thermostat Lower Heater 2000W Upper Heater 1500W Turbo Heater 1 x 2200 W / 2 x 1250 W Grill Heater 3250W Supply Voltage 220-240V AC 50/60 Hz Technical specifications can be changed without prior notice to improve product quality. - Page 8 IMPORTANT WARNINGS FOR INSTALLATION: Cooling fan shall take extra steam out and prevent outer surfaces of appliance from overheating during operation of oven. This is a necessary condition for better appliance operation and better cooking. Cooling fan shall continue operation after cooking is finished.
-
Page 9: Installation
Installation Under Counter Cabin must match the dimensions provided in Figure 2. A clearance must be provided at the rear part of the cabin as indicated in the figure so that necessary ventilation can be achieved. After mounting, the clearance between lower and upper part of the counter is indicated in Figure 5 with "A". - Page 10 Mounting Figure 2 Figure 3 Page 10 Electric Oven User Manual...
- Page 11 Figure 4 Figure 5 Electric Oven User Manual Page 11...
-
Page 12: Using The Oven
USING THE OVEN Initial Use of Oven Here are the things you must do at first use of your oven after making its necessary connections as per instructions: 1. Remove labels or accessories attached inside the oven. If any, take out the protective folio on front side of the appliance. -
Page 13: Program Types
PROGRAM TYPES Program button Helps to set with which heaters the food placed in oven will be cooked. Heater program types in this button and their functions are stated below. Every model might not have all heater types and thus program types of these heaters. Heating program types in your appliance and important explanations of them are provided below for you can cook different foods appealing to your taste. -
Page 14: Cooking Table
Cooking recommendations You can find in the following table the information of food types which we tested and identified their cooking values in our labs. Cooking times can vary depending on the network voltage, quality of material to be cooked, quantity and temperature. Dishes to cook by using these values might not appeal to your taste. -
Page 15: Maintenance And Cleaning
MAINTENANCE AND CLEANING 1. Remove the power plug from electrical socket. 2. Do not clean inner parts, panel, trays and other parts of the product with hard tools such as bristle brush, wire wool or knife. Do not use abrasive, scratching materials or detergent. 3. -
Page 16: Cleaning And Mounting Oven Door
Cleaning and mounting oven door Figure 8 Figure 9 Figure 8.1 Figure 8.2 Figure 9.1 Figure 9.2 Set the hinge lock to Later, close the opened For easier removal of Open the door fully by the widest angle as in oven door so that it will oven door, when it pulling the oven door... -
Page 17: Cleaning Oven Glass
Cleaning Oven Glass Lift by pressing on plastic latches on left and right side as shown in Figure 13 and pulling the profile toward yourself as in Figure 14. Glass is released after profile is removed as shown in Figure 15. Remove the released glass by pulling toward yourself carefully. Outer glass is fixed to oven door profile. -
Page 18: Replacing Oven Lamp
Rack Positions: It is important to place the wire grill into the oven properly. DO not allow wire rack to touch rear wall of the oven. Rack positions are shown in the next figure. You may place a deep tray or a standard tray in the lower and upper wire racks. -
Page 19: Package Disposal Information
ENVIRONMENTALLY-FRIENDLY DISPOSAL Dispose of packaging in an environmentally friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout to the EU. -
Page 20: Contact Information
F // 09 302 0077 sales@aristonappliances.co.nz TISIRA IS COMMITTED TO ONGOING RESEARCH AND DEVELOPMENT. EVERY EFFORT HAS BEEN MADE TO ENSURE AS A REFERENCE ONLY AND ACTUAL DIMENSIONS SHOULD BE TAKEN FROM THE PHYSICAL PRODUCT ONLY. MANUFACTURER RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.
