FB2100/FB2200 Flow Computer
Coin Cell Battery
Field Replacement Guide
For Part Numbers (Kits):
Remote Automation Solutions
FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide
395620-03-1: Coin Cell Battery
D301855X012
November 2020

Advertisement

loading

  Related Manuals for Emerson 395620-03-1

No related manuals

  Summary of Contents for Emerson 395620-03-1

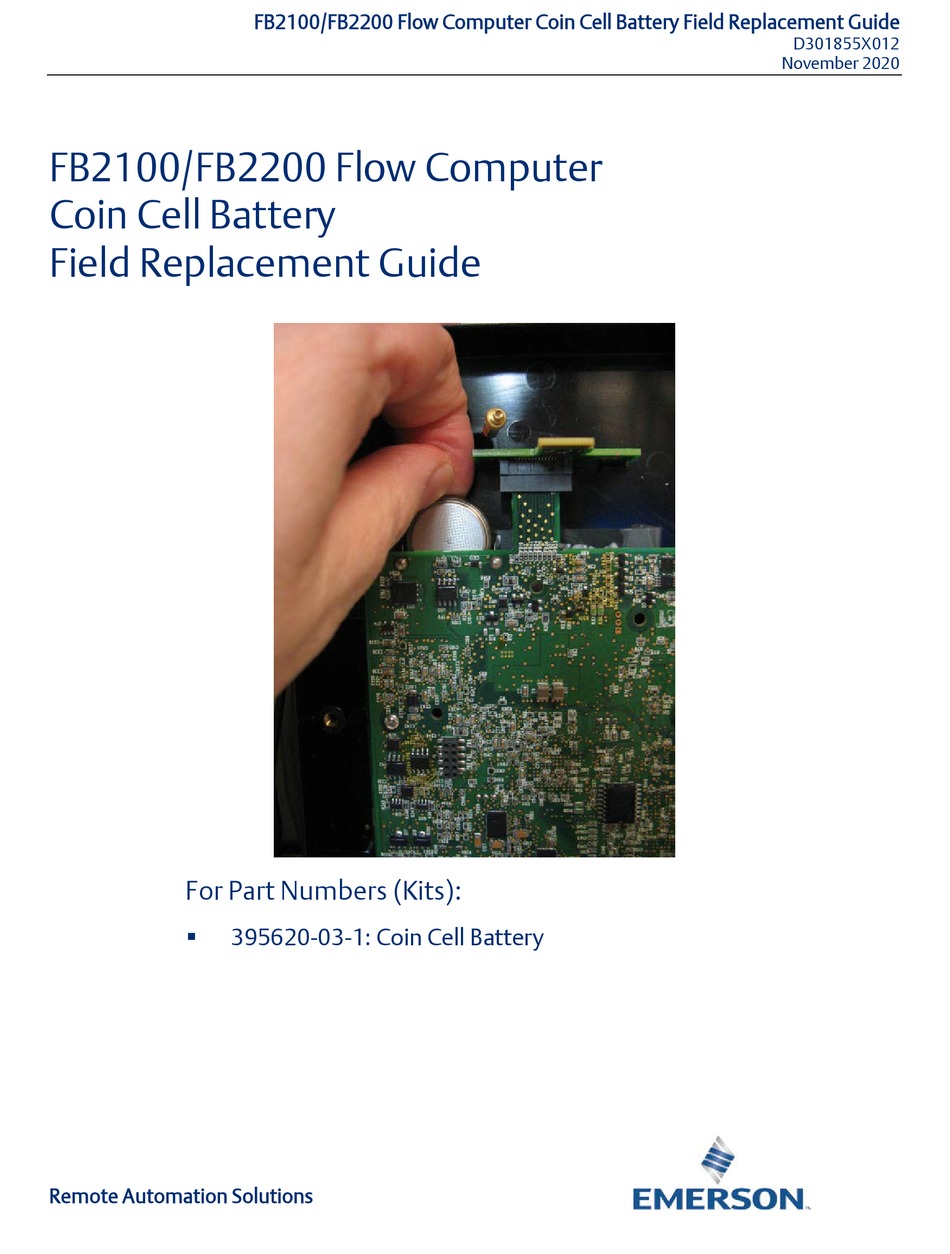

  • Page 1 FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide D301855X012 November 2020 FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide For Part Numbers (Kits): 395620-03-1: Coin Cell Battery  Remote Automation Solutions...
  • Page 2: System Training

    Our full-time professional instructors can conduct classroom training at several of our corporate offices, at your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote Automation Solutions Training Department at 800-338-8158 or email us at education@emerson.com.
  • Page 3 Upgrading or substituting different parts violates hazardous area certification. Important Use only accessories (batteries) supplied with the flow computer or sold by Emerson as spare parts for this flow computer. Substituting a part you obtain elsewhere (such as a battery) voids your approval certification.
  • Page 4 UL Listed Coin Cell Battery Field Installed Accessory Kit for Use in Class I, Division 2, Groups A, B, C, and D Flow Computer Coin Cell Battery Field Installed Accessory Kit Part No. 395620-03-1 for Use  with UL Listed Class I, Division 2, Groups A, B, C, & D Model Series FB2100 and FB2200 A lithium coin cell battery provides backup power for the SRAM and the real-time clock.
  • Page 5 FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide D301855X012 November 2020 Loosen the Captive Fastening Screws Removing the CPU Enclosure Cover Grasp the coin cell battery and, with your fingernail in the groove of the top of the battery, slide it out of its slot.
  • Page 6 FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide D301855X012 November 2020 Coin Cell Battery Removal/Replacement Insert the new coin cell battery in the slot. The negative side (shiny with no writing on it) must be facing outwards (towards where the CPU enclosure cover would be). Reattach the cover of the CPU enclosure.
  • Page 7 FB2100/FB2200 Flow Computer Coin Cell Battery Field Replacement Guide D301855X012 November 2020...
  • Page 8 Emerson Automation Solutions Remote Automation Solutions Emerson FZE P.O. Box 17033 © 2018-2020 Remote Automation Solutions, a business unit of Emerson Automation Jebel Ali Free Zone – South 2 Solutions. All rights reserved. Dubai U.A.E. This publication is for informational purposes only. While every effort has been made to ensure...
