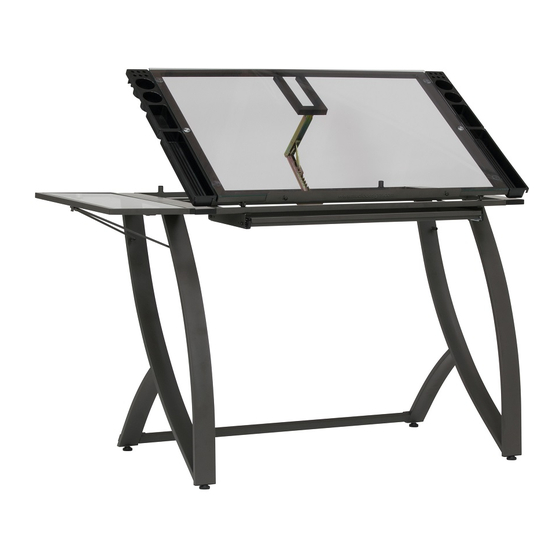

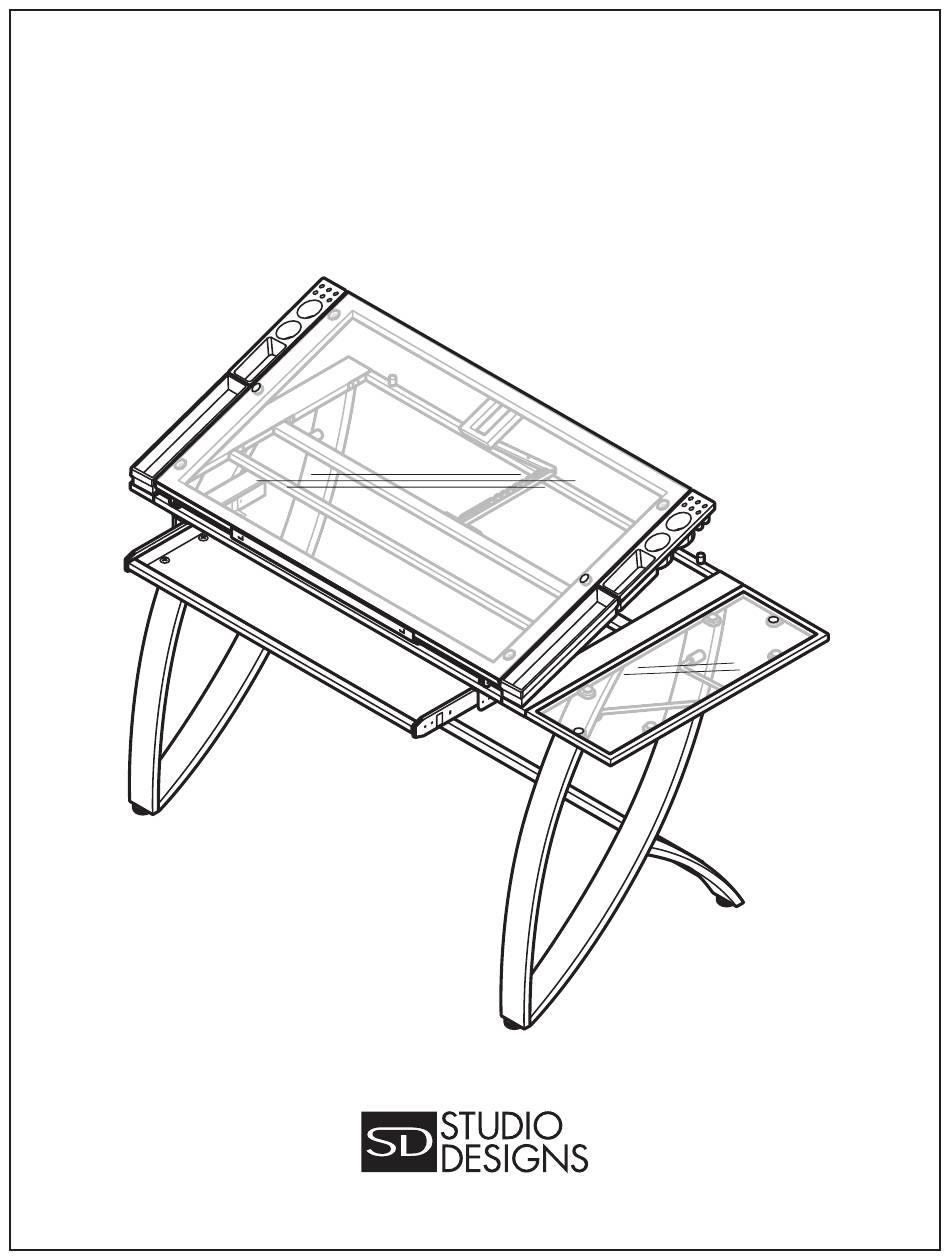

Thank you for purchasing our Studio Designs, Inc. Gracias por comprar nuestro mueble Studio Designs, Inc. Merci d’avoir acheté un meuble Studio Designs, Inc. FUTURA LUXE CRAFT TABLE #10079 Pewter/Clear Glass • Estaño/Vidrio Transparente • Étain/Verre Transparent Office: 562.942.0492 Product Support Line: 866.942.0492 www.studiodesigns.com...
Page 2
ASSEMBLY INSTRUCTIONS - IMPORTANT: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. Do not use power tools to assemble.
Page 3
PARTS LIST / LISTA DE PARTES / LISTE DES PIÈCES DÈTACHÉES DESCRIPTION / DESCRIPCIÓN / DESCRIPTION QTY / CANT/ QTÉ PICTURE / DIBUJO / IMAGE 1. Left Leg Pata Izquierda Jambe Gauche 2. Right Leg Pata Derecha Jambe Droite 3. Top Frame Marco Superior Cadre Supérieure 4.
Page 4
PARTS LIST / LISTA DE PARTES / LISTE DES PIÈCES DÈTACHÉES DESCRIPTION / DESCRIPCIÓN / DESCRIPTION QTY / CANT/ QTÉ PICTURE / DIBUJO / IMAGE 11. Pencil Drawer Gaveta para Lápiz Tiroir pour Crayon 12. Shelf Support Soporte para Estante Support pour Tiroir 13.
Page 5
PARTS LIST / LISTA DE PARTES / LISTE DES PIÈCES DÈTACHÉES DESCRIPTION / DESCRIPCIÓN / DESCRIPTION QTY / CANT/ QTÉ PICTURE / DIBUJO / IMAGE 20. Allen Bolt - 5/8" Perno Allen - 16mm Boulon Allen - 16mm 21. Allen Bolt - 1/4" x 5/16" Perno Allen - 6mm x 8mm Boulon Allen - 6mm x 8mm 22.
Page 6
Do not fully tighten any bolt. No apriete completamente nungun perno. Ne serrez pas complètement aucun boulon. Futura Luxe Craft Table...
Page 7
Fully tighten all bolts from Step 1-2. Apriete completamente todos los pernos del paso 1-2. Serrer tous les boulons des étapes 1-2. Futura Luxe Craft Table...
Page 8
This step shows Shelf Frame (8) installed on right side as shown on cover page. It can be installed on left side by attaching to holes on opposite leg - see arrows. Este paso muestra el Marco de Estante (8) instalado en el lado derecho como se muestra en la portada. Se puede instalar en el lado izquierdo fijándolo a los agujeros en la pata opuesta - vea las flechas.
Page 10
Caution: Use two people. Precaución: Use dos personas. Précaution: Utilisez deux personnes. Futura Luxe Craft Table p.10...
Page 11
Connect the Trays (16 and 17) then attach to brackets. Conecte las Bandejas (16 y 17) y luego fíjelas a los soportes. Connectez les Plateaux (16 et 17) puis fixez-les aux supports. Futura Luxe Craft Table p.11...
Page 12
Attach Slider (18 and 19) to Panel (10), then attach Panel (10) to hole under metal ring. Fije el Deslizador (18 y 19) al Panel (10), luego fije el Panel (10) al agujero debajo del anillo de metal. Attachez le Glisseur (18 et 19) au Panneau (10), puis attachez Panneau (10) au trou sous l’anneau en métal. Futura Luxe Craft Table p.12...
GARANTIE LIMITÉE Studio Designs (la « Compagnie ») garantit à l’acheteur original que ce produit sera exempt de tout défaut de fabrication et matériel s’il est utilisé à la maison et dans des conditions d’exploitation normales, tel que décrit à la présente. La Compagnie réparera ou remplacera, à...
