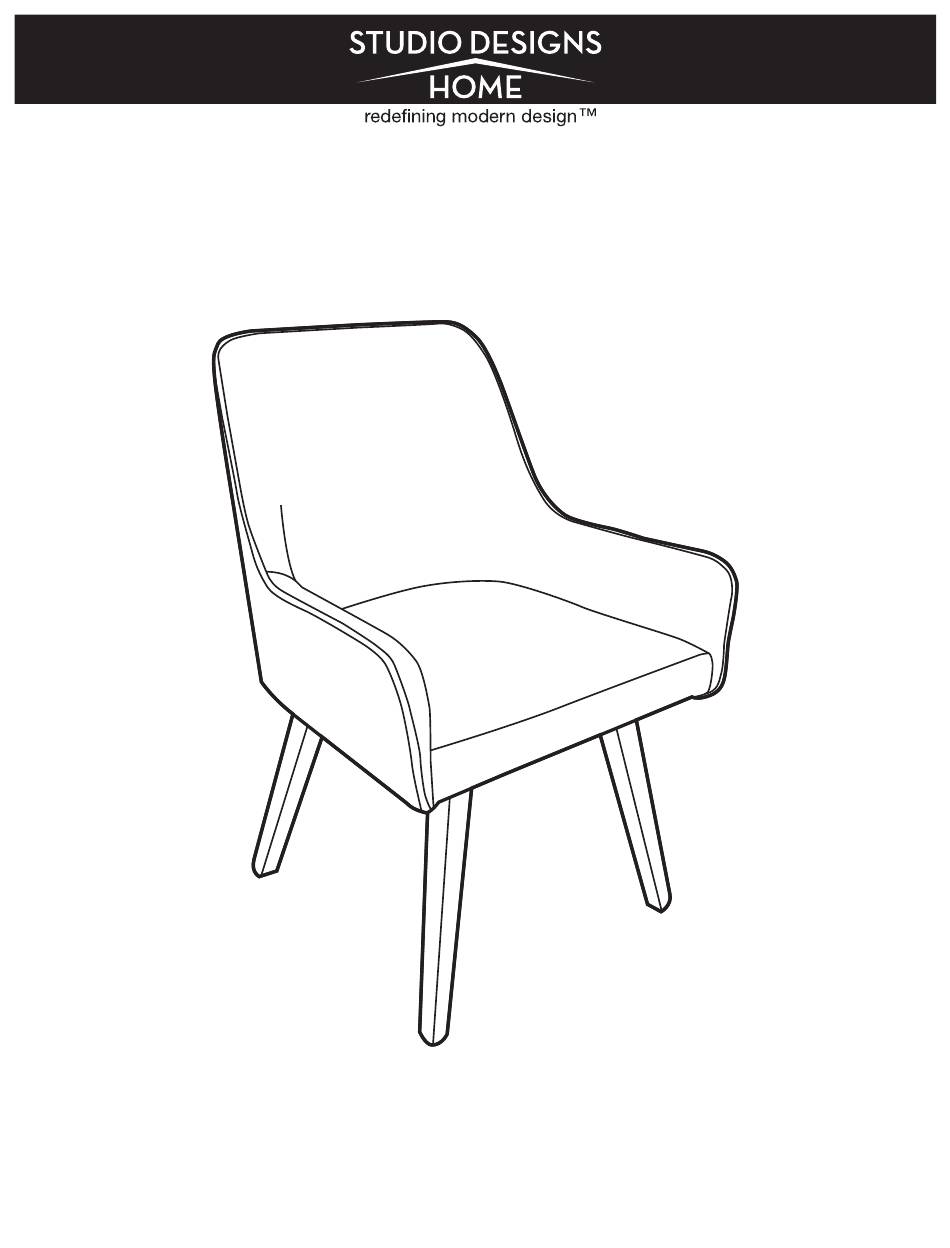

- Page 1 SPIRE LUXE CHAIR #70184 #70185 #70186 #70187 #70188 Commerce, CA 90040 | T 562.942.0492 | F 562.942.0531 | www.studiodesigns.com...
- Page 2 ASSEMBLY INSTRUCTIONS | INSTRUCCIONES PARA ARMAR | DIRECTIVES DE MONTAGE Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. Do not use power tools to assemble. A Phillips screwdriver may be required for assembly.
- Page 3 PARTS | PIEZAS | PIÈCES 1/4" x 3/4" 1/4" x 3/16" 6mm x 20mm 6mm x 5mm SPIRE LUXE CHAIR...
- Page 4 Rotate plate to reveal holes - see arrow. Either side of bracket can be installed (top or bottom). Fully tighten bolts. Gire la placa para revelar los agujeros - vea la flecha. La placa se puede instalar por cualquier lado (arriba o abajo).
- Page 5 Turn the plate over. Fully tighten bolts. De vuelta a la placa. Apriete los pernos. Tourner la plaque. Serrer les boluons. Front of chair. Frente de la silla. Devant la chaise SPIRE LUXE CHAIR...
- Page 6 SPIRE LUXE CHAIR...
- Page 7 SPIRE LUXE CHAIR...
- Page 8 Agradecemos sus comentarios y le invitamos a visitar www.studiodesigns.com/crc para que nos envíe nuestro formulario. Studio Designs Home (la « Compagnie ») garantit à l’acheteur original que ce produit sera exempt de tout défaut de fabrication et matériel s’il est utilisé à la maison et dans des conditions d’exploitation normales, tel que décrit à la présente. La Compagnie réparera ou remplacera, à...
