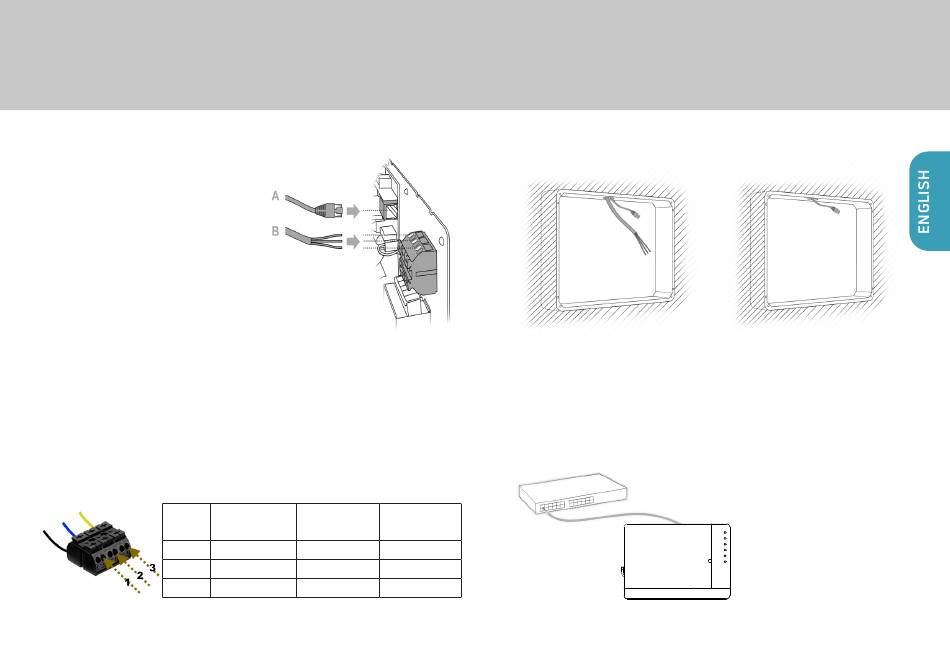

1. Connect network cable (A)
and optional power cable
(B) to the connectors on the
mainboard of the back panel.
Power cable is only needed if
you choose to power the unit
through 110 - 240 V AC.
Option I: Connecting 110-240VAC
Connect the wires to the terminal according to color-code.
Number
1
2
3
This information is supplied without liability.
Page 5
European stan- US standard
dard color code color code
black black
blue white neutral (N)
yellow/green green ground (PE)
Option I: LAN & 110-240V AC
Option II: PoE+ Switch or Injector
Naming
PoE + CAT5e/6
cable
hot (L)
for iRoom's iTop OnWall
Option II: PoE+ (IEEE 802.3at)
PoE + (IEEE 802.3at)
Switch or Injector
iRoom's iTop OnWall
