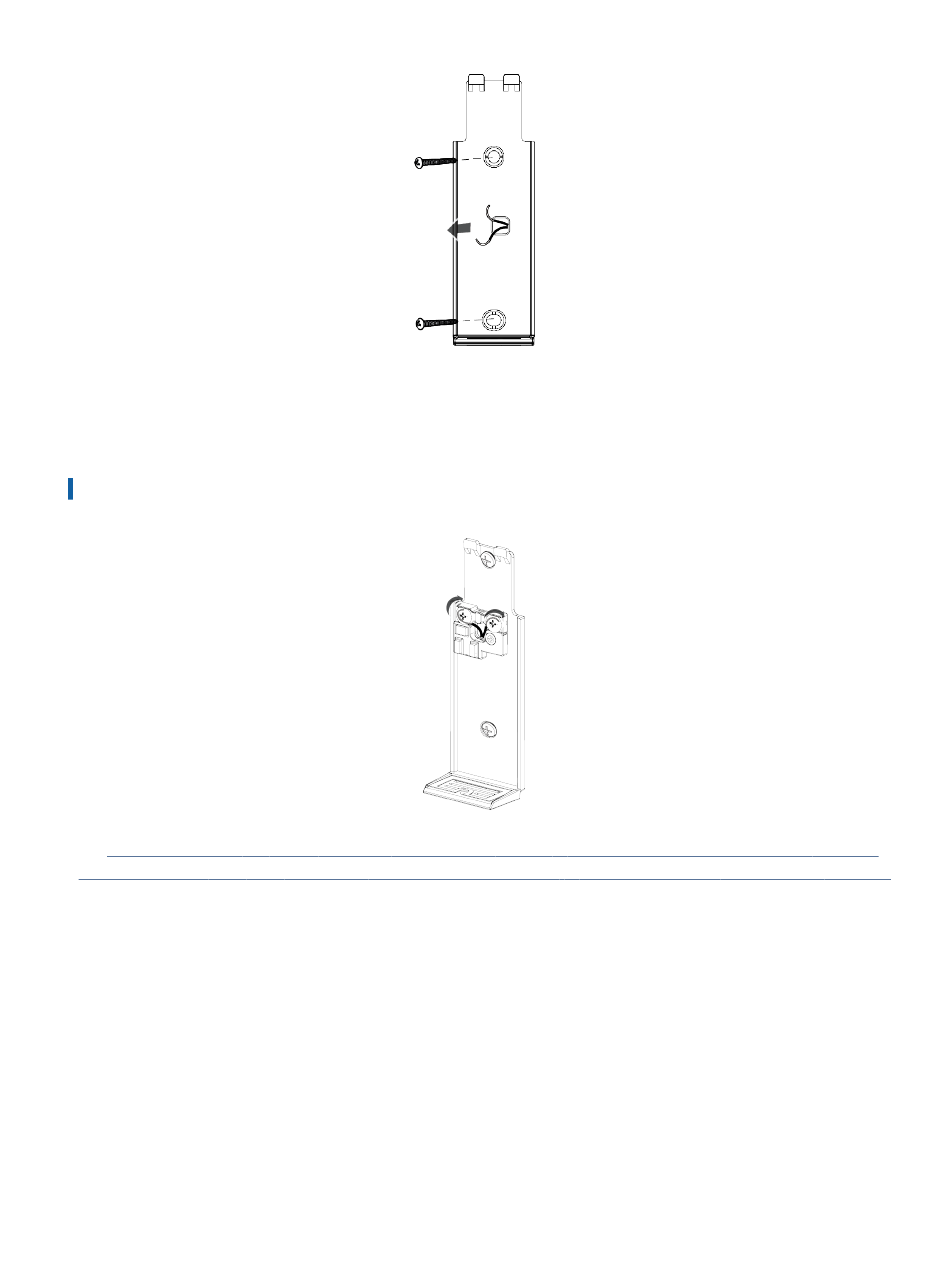

After connecting to the metal bracket, you will need to push any extra length in the doorbell
cable back into the hollow wall space. Trim the cable if needed.
5. Connect the two doorbell wires to the terminals on the metal bracket
After connecting the doorbell wires, push any excess length back into the wall cavity.
Important! Wire polarity doesn't matter.
CONNECTING TO THE POWER ADAPTER WITH A MECHANICAL DOORBELL CHIME
Go to
CONNECTING TO THE POWER ADAPTER WITHOUT A MECHANICAL DOORBELL CHIME
or
