Technote 3: Setting up PC-525 Channel Processors
PC-Series are fully agile Channel processors for the VHF/UHF band. The channel processor
has a built-in double FOS filter, so that it is possible to program the output with adjacent
channels.

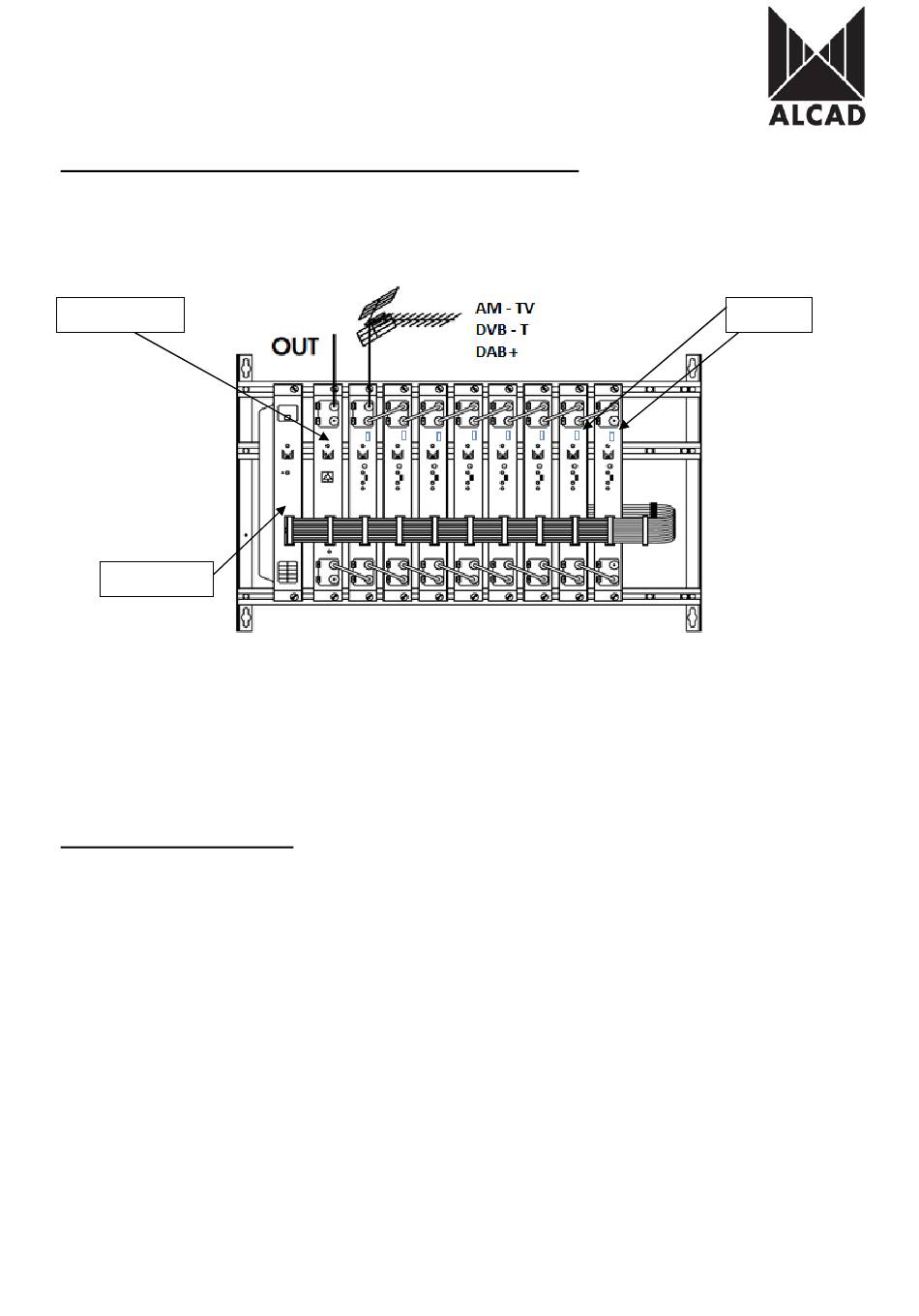

Launch Amplifier
Power Supply
IMPORTANT: Layout of the modules must be as shown above. Power Supply (FA-310/312)
must be located on the far left hand side and launch amplifier (PA-720) must be the next
module in the chain. Please look at the above picture.
AIM PROGRAMMER TO IR SENSOR LOCATED ON EACH PROCESSOR
WHEN PROGRAMMING
Programming of Modules
Ensure the following prior to programming:
• It is necessary to connect all the modules to the support frame SP-226 (code 9120130)
for the system to function.
• It is also recommended that you make the earth connection to the building using a cable
with a section of at least 4 mm.
• Ensure that you have the Alcad programmer PS-003 with firmware version 4.7 or later.
• Power supply/Control cable must be plugged into each module.
REMOVE
modules without disconnecting mains supply power from wall outlet. Always
disconnect the equipment, and then reconnect it to the mains supply so that the
amplifier recognises the new module. Failure to do so can cause equipment to fail.
IR Sensors
DO NOT ADD OR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alcad PC-525
Summary of Contents for Alcad PC-525
- Page 1 • It is also recommended that you make the earth connection to the building using a cable with a section of at least 4 mm. • Ensure that you have the Alcad programmer PS-003 with firmware version 4.7 or later. • Power supply/Control cable must be plugged into each module.
- Page 2 1.0 Programming of the Processor To program the channel processor, place the programming switch in the ON (upward) position which can be seen from picture below. When you turn the switch in the “ON” position the programming indicator will light up. While the programming indicator remains lit, the channel processor is ready to receive data from the PS programmer.
- Page 3 Press the arrow up once and you will then see the screenshot that enables you to select the “Table Channel frequency” for the input/output frequency. Then press the down arrow twice that will take you to screen you see the below which requires you to enter the output frequency of the carrier you are processing without the offset.
- Page 4 AUSTRALIAN DIGITAL/ANALOGUE FREQUENCY TABLE...
- Page 5 Once you have entered the Output frequency press the down arrow to take you to screenshot below which requires you to enter the input frequency of the carrier you are processing or converting without the offset. Once you have the entered the desired input centre frequency press transmit and you will see the LED on the processor you are programming flash twice.
- Page 6 You will be taken to the “Adjust Levels “screen which enables you to alter the output power level. The manual adjustment of the power output can be changed by pressing arrow buttons to select desired output level. The range of the level is +25 to -25. Press transmit to send the information.
