Alcad ZA-431 Quick Start Manual

Technote 1: Setting up ZA- 431/331 processor modules
The ZA-331 and ZA-431 are modular programmable processors for terrestrial digital, DAB+
and analogue TV. Each processor module, ZA-431 (UHF) or ZA-331(VHF), consists of a super
selective mono channel filter (FOS).
IR Sensor

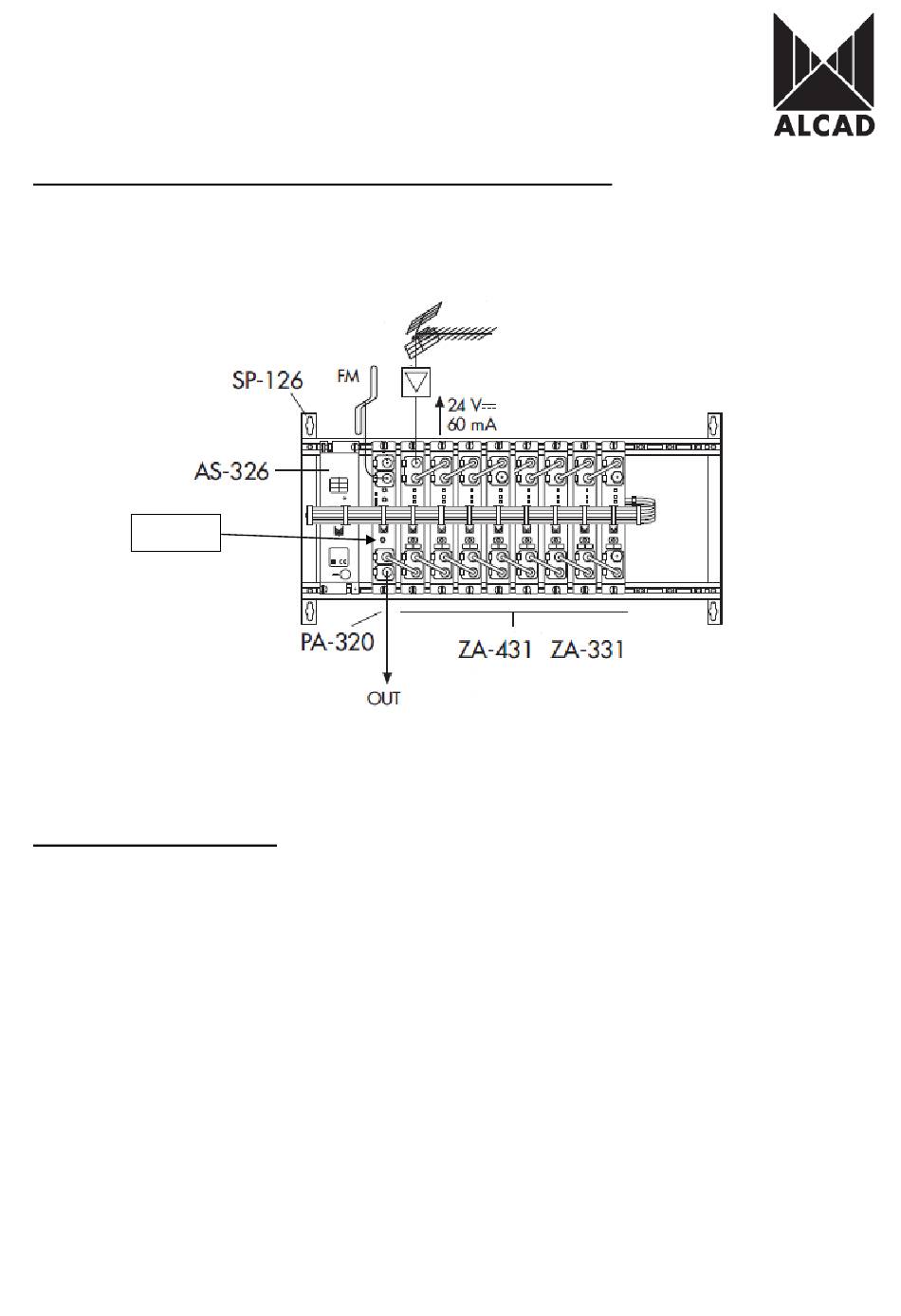

IMPORTANT: Layout of the modules must be as shown above. Power Supply(AS-326) must
be located on the far left hand side and launch amplifier(PA-320) must be the next module in
the chain. Please look at the above picture.
Programming of Modules
Ensure the following prior to programming:
• It is necessary to connect all the modules to the support frame SP-126 (code 9050100)
for the system to function.
• It is also recommended that you make the earth connection to the building using a cable
with a section of at least 4 mm.
• Ensure that you have the Alcad programmer PS-003 with firmware version 4.7 or later.
• Power supply/Control cable must be plugged into each module.
REMOVE modules without disconnecting mains supply power from wall outlet. Always
disconnect the equipment, and then reconnect it to the mains supply so that the
amplifier recognises the new module. Failure to do so can cause equipment to fail.
DO NOT ADD OR
