INSTALLATION MANUAL TOYOTA TACOMA / Table of Contents 1. PRODUCT DESCRIPTION ............................... 5 2. PACKAGING CONTENTS ................................ 6 3. TECHNICAL SPECIFICATIONS .............................. 7 4. CONNECTIONS LAYOUT FOR LEFT-HAND DRIVE VEHICLES ..................8 5. REMOVAL OF DASH SPEAKERS ............................9 6. REMOVAL OF FRONT LEFT SEAT, LEFT DOOR SILL AND LEFT KICK PANEL ............10 7.
Page 4
Warranty For the warranty conditions please visit our website www.audison.eu or contact your Audison specialized centre. Safe sound USE COMMON SENSE AND PRACTICE SAFE SOUND. PLEASE REMEMBER THAT LONG EXPOSURE TO EXCESSIVELY HIGH SOUND PRESSURE LEVELS MAY DAMAGE YOUR HEARING.
Should a malfunction occur during the kit installation, check the “TROUBLESHOOTING” section at the end of this manual. If you have consulted the aforesaid section and are still unable to solve the problem, please visit the www.audison.eu website or contact your Audison authorized specialized centre or the official assistance via email: support@elettromedia.it.
INSTALLATION MANUAL TOYOTA TACOMA / 2. PACKAGING CONTENTS APBX 8 DS TACOMA SUB BRACKETS AP TACOMA P&P HARNESS SC TOYOTA TACOMA FRONT WF FOAM RINGS FOR TACOMA AP 690 SR TOYOTA TACOMA 2016-> FRONT WF FOAM RINGS FOR TACOMA AP 2 SR TOYOTA TACOMA 2016->...
Digital Digital Digital Remark: Please refer to the user’s manual of the AP5.9 bit for detailed information about the product, its installation and for the use of the “AP Prima PC Software”. All information is available on the website www.audison.eu.
INSTALLATION MANUAL TOYOTA TACOMA / 5. REMOVAL OF DASH SPEAKERS WARNING: the information below refers to the left-hand drive 4-door version. Remove the key from the car’s ignition and pull the lever to release the bonnet. Close the doors and wait for 5 minutes, then open the bonnet and disconnect the negative pole from the vehicle’s battery.
INSTALLATION MANUAL TOYOTA TACOMA / 6. REMOVAL OF FRONT LEFT SEAT, LEFT DOOR SILL AND LEFT KICK PANEL Remove Front Left Door sill 6.1.1 Lift the cover and pull it out. (Fig.3a/3b) Fig. 3a Fig. 3b Remove Front Left Kick Panel 6.2.1 Pull the footrest straight out and lift the Kick Panel and pull it out (fig.4a)
INSTALLATION MANUAL TOYOTA TACOMA / 7. AP TACOMA P&P HARNESS CABLES ROUTING Amplifier power wiring (not included) routing 7.1.1 Ground to Toyota OEM ground bolt in kick panel (Fig6). 7.1.2 Positive from battery direct (Fig7). GROUND GROUND Fig. 6 Fig. 7 Instructions for cables routing from the Driver seat to the left and right side of the dashboard (Fig.8) Fig.
Page 12
INSTALLATION MANUAL TOYOTA TACOMA / 7.2.1 Route sections of the P&P HARNESS cable from under the seat to the left side of the dashboard passing through the door sill. 7.2.2 Drive the cable to the housing of the left speaker. 7.2.3 Connect the 4 pin connector with the one belonging to the OEM TW fig.
INSTALLATION MANUAL TOYOTA TACOMA / 8. INSTALLATION OF AP5.9 bit INSTALLATION of Prima Tower Kit 8.1.1 Pull the carpet up. 8.1.2 Remove underseat heater duct temporarily. 8.1.3 Position Prima Tower Kit under carpet, centered on the duct location. 8.1.4 Make small cuts in the carpet to allow threaded studs on the plate to protrude up through the carpet. 8.1.5 Reinsert duct.
INSTALLATION MANUAL TOYOTA TACOMA / 10. INSTALLATION OF AP 2 WIDE RANGE 10.1 AP 2 INSTALLATION 10.1.1 Fix the AP 2 speakers to mounting adapters from underneath using supplied hardware and the FOAM GASKET over the mounting adapters. (Fig. 15) Fig. 15 10.1.2 Connect the cable “F” to left AP2 and the “G” to the right one. fig.16 Fig.

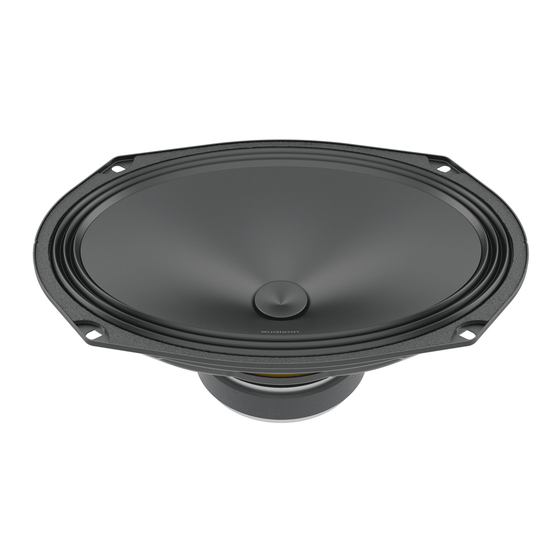

INSTALLATION MANUAL TOYOTA TACOMA / 11. INSTALLATION OF AP690 WOOFER 11.1 REMOVAL OF FRONT DOOR PANELS 11.1.1 Remove left and right door panels. (Fig 18) Fig. 18 11.2 REMOVAL OF FRONT DOOR SPEAKERS 11.2.1 Unplug and remove OEM speakers. Retain hardware to use to install new speaker (Fig 19) Fig.
Page 17
INSTALLATION MANUAL TOYOTA TACOMA / 11.4 SECURE WIRING ADAPTER TO AP690 WOOFER (Fig. 21) Fig. 21 11.5 BOLT SPEAKER AND MOUNT TO DOOR, AND PLUG INTO SPEAKER CONNECTOR HARNESS (Fig. 22) Fig. 22 11.6 FIX THE FOAM RING TO THE BACK OF THE DOOR PANEL AROUND THE GRILL (Fig.
JBL-equipped vehicles have the OEM subwoofer and the JBL amplifier on the back wall, under a different trim panel. You will have to take responsibility for fitting a subwoofer enclosure into the vehicle, since the pocket this enclosure fits into is not present. The AP5.9 bit is optimized for a 2-ohm load on the subwoofer channel. Use the Maestro AR interface and the iDatalink optional integration harness for this vehicle. Connect the Audison speakers directly to the OEM speaker leads, as you would in a traditional installation. Modify the Integration Harness - Connect the speaker-wire harness from iDatalink to the Integration Harness (using the Integration Harness to extend to the JBL amplifier location). The Integration Harness no longer connects directly to the vehicle in this scenario. A...
AP5.9 bit, sec. 4.12. The user’s manual blue,blue/red, red. sound can be heard is loaded in the CD-ROM provided or available for download from the website ww.audison.eu. The AP8.9 bit G7 logo is correctly The Head Unit volume is too low. Incorrect setting of volume / Adjust the OEM source controls.
Page 20
PART OF ELETTROMEDIA 62018 Potenza Picena (MC) Italy T +39 0733 870 870 - F +39 0733 870 880 www.elettromedia.it...
