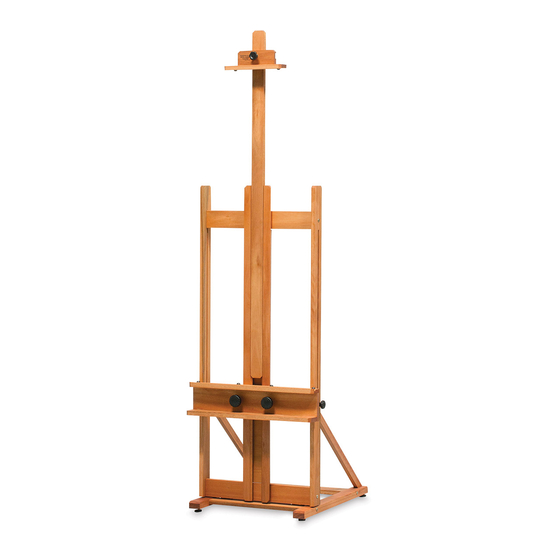

Jack Richeson Giant Dulce Easel How To Assemble

Imported Easels by Jack Richeson & Co., Inc. - Kimberly, WI - Phone: 1-800-233-2404 - www.richesonart.com
Easel Dimensions:
Maximum canvas height: 87"
Base width/depth: 22 ⁄
1
Extended easel height: 112
Compact easel height: 62"
Bottom painting tray width: 30"
Box dimensions: 23 ⁄ " x 69
1
2
Shipping weight: 38lbs.
A. Top Canvas Holder
B. Mast
C. Top Cross Bar
D. Frame Assembly
E. Bottom Canvas
Holder – part #1
F. Bottom Canvas
Holder – part #2
G. Bottom
Mast Stop
H. Leveling Feet
" x 30"
2
⁄ "
1
2
⁄ " x 4
1
2
HOW TO ASSEMBLE THE
Giant Dulce Easel
#840201 Made from Lyptus ® Wood
Please open box, take out all pieces and check
for damage before beginning assembly.
Parts Bag
2
3
1
4
5
Step One:
Assemble Bottom Canvas Holder. Secure Part #1 (E) to Part #2 (F)
using 4 wood screws.
Step Two:
Assemble Easel Frame Assembly (D) by using 2 Bolts, 2 Slide Guides,
2 Plastic Washers and 2 Black Knobs.
Step 2
1. 4 - Adjustable Feet
2. 2 - Slide Guides
3. 2 - 1 / " Plastic Washers
3
8
6
4. 2 - 2 / " Bolts
1
2
5. 2 - Black Knobs
6. 7 - 1 / " Wood Screws
3
8
Step 1
8/09
