Jack Richeson Santa Fe II Easel How To Assemble

Imported Easels by Jack Richeson & Co., Inc. - Kimberly, WI - Phone: 1-800-233-2404 - www.richesonart.com
Slide Guides make
angle and height adjust-
ments on the easel
smooth. These circular
plastic inserts are used
wherever there is
a slot in the wood of the
easel. This part allows for smooth movement and
protects the wood from the metal bolt.
Pulley System Insert
rope through Pulley
1, then through
Pulley 2. Pull rope
down through Pulley
4
2
1
3, then back up
through Pulley 2's
hook attachment.
To
winch Thread rope through
hook screw on right.
3
Wrap back around
rope itself sev-
eral times then knot
securely.

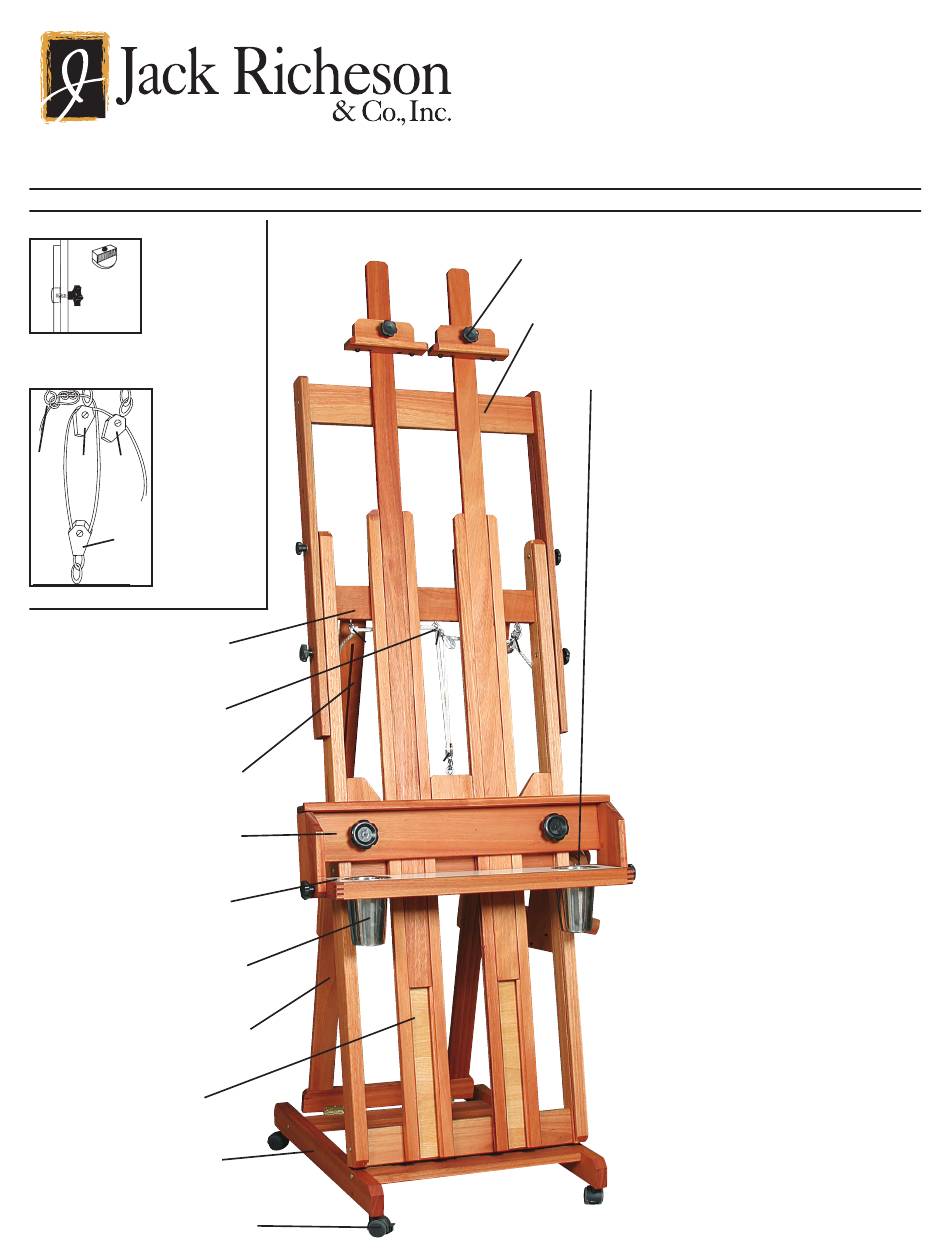

Top Cross Piece
Pulley System
Top Back Support Leg
Large Painting Tray
Melamine Shelf
Stainless Steel Canister
Bottom Back Support Leg
Mast
Base
Front Locking Plastic Caster
HOW TO ASSEMBLE THE
Santa Fe II Easel
#886025 Made from Lyptus ® Wood
Upper Painting Tray
Extension Frame
4
2
1
3
Lyptus ® is a registered trademark of Weyerhaueser.
Easel Assembly - Lyptus Santa Fe II
1.) Take out all pieces.
2.) Take out main easel frame.
3.) Set main easel frame on the floor.
Note: you may need to loosen dual
masts and slide upward so easel can
unhinge and stand fully erect.
Winch
4.) Locate bag with 4 black knobs.
Secure knobs to slide guide systems
that are already in place on sides of
easel frame.
5.) Find hinged back leg supports and
position so that top support leg with
slot, overlaps bottom support leg
with raised track. Locate bag with 2
black knobs and slide guide system.
Secure so that slide guide goes
in slot with bolt to the interior of the
easel, black knob next to slide guide.
6.) Locate side of easel with
3 pre-drilled holes.
7.) Locate bag with 5 wood screws.
Attach wooden winch support and
winch (already attached) using the
screws and the pre-drilled holes.
8.) Unscrew washer head from winch.
Attach handle and tighten washer
with ratchet socket wrench.
9.) Find large painting tray and thread
from top of easel. Tighten black
knobs to position.
10.) Find side tray pieces and insert
wooden dowels on tray into holes in
side pieces. Secure each side piece
with 1 wood screw at the top of the
tray and one allen bolt and plastic
barrel nut on the side of the tray.
Use enclosed allen wrench to
tighten. Finish with black plastic
plugs on top of tray.
11.) Locate melamine tray and 2 black
knobs with bolts and washer.
Secure by threading bolt from inside
to out, followed by the washer and
the knob. (Continued on back)
