Azden WXT-PRO Connecting Manual

1 4 7 N E W H Y D E P A R K R O A D , F R A N K L I N S Q U A R E , N Y 1 1 0 1 0
Tel: 516.328.7500 e-mail:azdenus@aol.com
Fax: 516.328.7506 web: www.azdencorp.com
Note: The WX/T-PRO is designed to turn any wired dynamic metal-body microphone which has XLR output into a
wireless microphone.

Connecting the WX/T-PRO:

Disconnect the microphone cable from the microphone by pushing down on the release button where the micro-
phone and cable connect. Connect the WX/T-PRO by lining up the pins on the microphone with the holes on the
transmitter, and insert. Push the WX/T-PRO into the microphone until it locks.

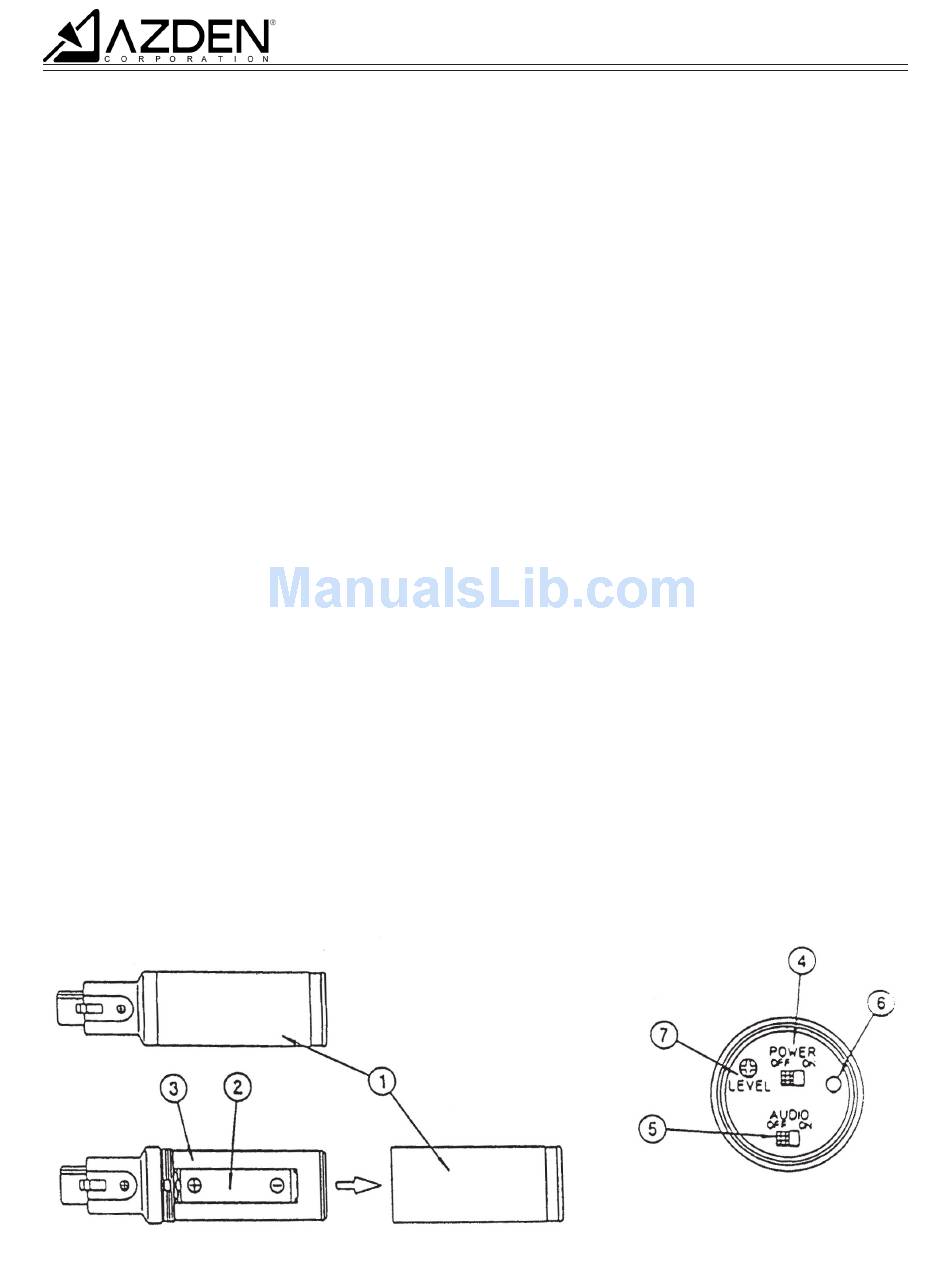

(1) Turn the bottom half of the case counter-clockwise until it is completely off.
(2) Insert one fresh "AA" battery into the compartment. Make sure battery polarity is correct. Replace the bottom
half of the case and turn clockwise until snug. DO NOT OVER-TIGHTEN.
(3) Frequency Label: The frequency label indicates what frequency (MHz) the transmitter broadcasts on. The
AZDEN receiver in use must also be on the same frequency.
(4) Power Off/On: Switches the transmitter off or on.
(5) Audio Off/On: Slide the switch to "On" for normal operation. Slide it to "Off" to mute the audio.
Note: When turning the transmitter on, slide the Power "On" first, and then slide the Audio to "On". When turning
the transmitter "Off", first slide the Audio to "off".
(6) LED: Turns red when the Power is "on" and the Audio is "off'. Turns green when the Power and Audio are "on".
(7) Level: Turn clockwise to increase, or counter-clockwise to decrease the input level. A small screwdriver is sup-
plied to make adjustments. The level control is factory-preset in the center position.
NOTE: Remove the battery if the transmitter will not be used for a long period of time.
Removing the WX/T-PRO: Push down on the release button and pull out.
