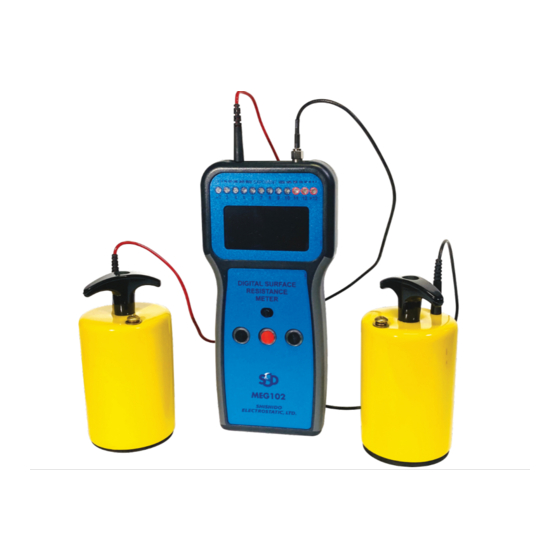

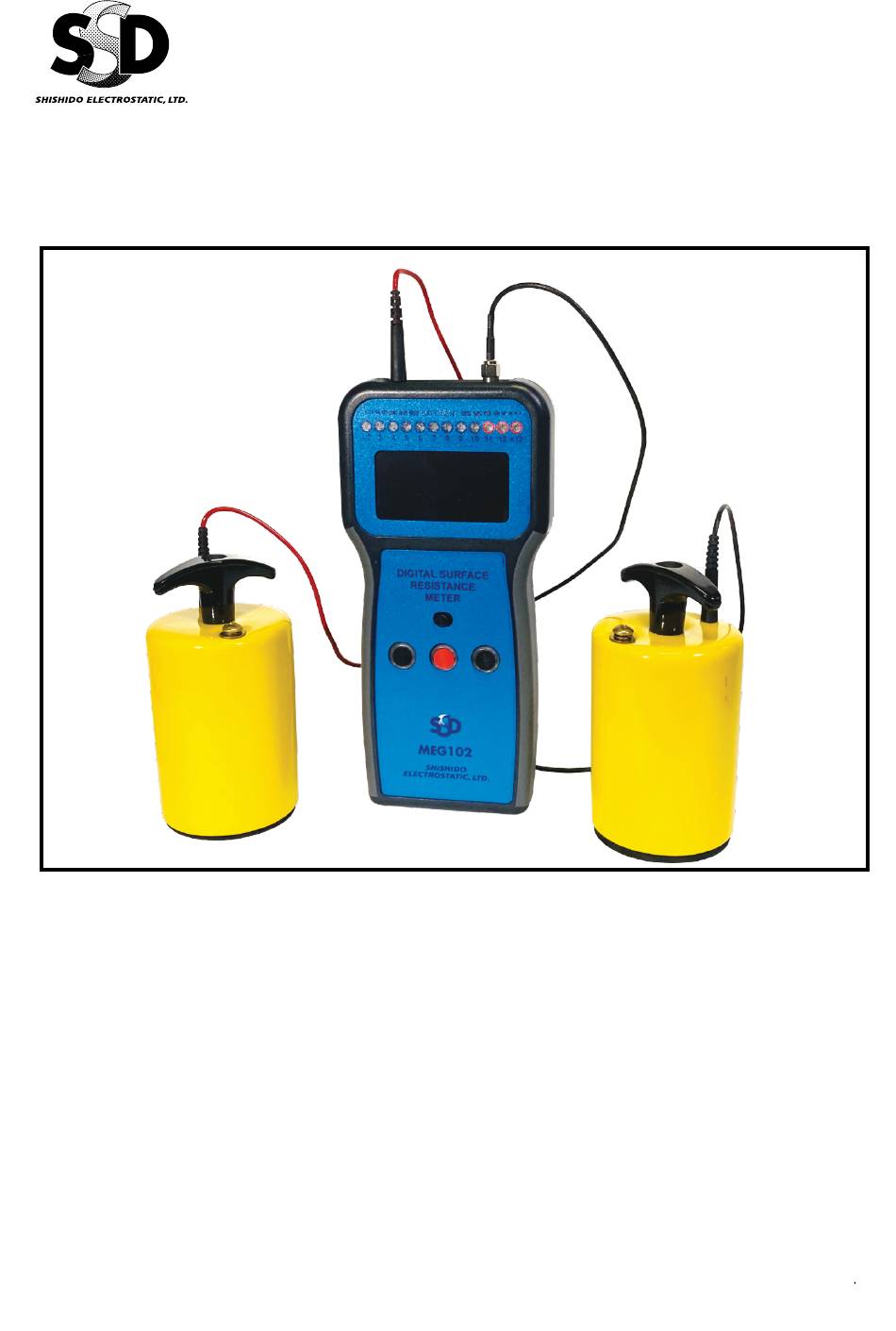

SURFACE RESISTANCE METER
Thank you for purchasing MEG102 TESTER. Please read this manual before
using the product in order to fully understand its functions. Also make sure
to store this manual so that it can be referred to in the future.
Measuring Standard
Resisatnce Measurement
Work surface
Floors
Foot Grounder
Garments
Seating
Floor/Footware(with person) : ANSI/ESD STM97.1
Operation Manual
: ESD TR53
: ANSI/ESD S4.1
: ANSI/ESD 7.1
: ESD SP9.2
: ANSI/ESD STM2.1
: ANSI/ESD STM12/1
MEG102
Features
1. With Wide range and it is suitable for many
material check
2. Easy operation with AUTO range control
3. With several optional probe, it makes suitable
measurement available.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEG102 and is the answer not in the manual?

Questions and answers

Related Manuals for SSD MEG102

Summary of Contents for SSD MEG102

  • Page 1 SURFACE RESISTANCE METER MEG102 Thank you for purchasing MEG102 TESTER. Please read this manual before using the product in order to fully understand its functions. Also make sure to store this manual so that it can be referred to in the future.

  • Page 2: Safety Precautions

    Safety Precautions This device is a presiion electrical instrument and using high voltage supply. For sake of sfety, be sure to follow the instructions described in this manual. marks are precautions that must be followed in order to use the product safety. This device does not conform to explosion-proof specifications.
  • Page 3 Items included with product and the name of each part Confirm that the following items are included with the device before using it for the first time. ■Instruction manual/warranty x 1 (this document) ③ Side View ① ② ④ Back side View ⑤...
  • Page 4 Standard Accesories Gator Crip OMEG-CLIP Test Cable OMEG102-CA OMEG102-CA-R (Red) OMEG102-CA-B (Black) Ground plug adaptor Electrode 2.27kg (5lbs) x 2 pcs OMEG-EP Electrode spacer 254mm (10") Operation Manual 914mm (36") OPTIONAL PROBE OMEG-RING (Optional Probe) OMEG-B (Optional) For varous shapes you can measure the resistivity with Two small pins.

  • Page 5: Before Measuring

    Before measuring. Check the test jack to keep clean. In case any dirty or wet condition, the measurement result will be not stable or incorrect. Be sure to any ESD sensitive equipment around mearuing area. Each probes must be hold with the materials, unless to be incorrect measuring. While measuring, sometime it happens unstable result with Electrical Noize.
  • Page 6 Preparation Setup the Battery and Probe 1. Opent the battery cover and set the AA type battery and put the cover. NOTE Check the battery level Normal Operation and cautions Home / Test result screen A. Battery level indicator : Displays the approximate level of the meter's 4 AA alkaline batteries.
  • Page 7 Setting Menu F. Firmware Version : Display the meter's firmware vversion. G. Temperture : Sets the unit of measurement for temperture to either Farrenheit(°F) or Celsius (°C) H. Stabilization Mode : Sets the meter's clecrification period setting to either Auto and Fixed Stabilization.

  • Page 8: Operation

    OPERATION Resistance to ground measurement: Use one OMEG-EP (2.27kg=5lbs) electrode, and connect the black test cable to the ground for Resistance-to-Ground(Rtg) measurements. Resistance to Top(Surface point to point): Use two OMEG-EP (2.27kg=5lbs) electrodes for resistance Point to Point(Rtt) measurements. Ensure that the item being measured is elecrically isolated (placed on an insulative surface). The meter will measure the lowest resistance path.

  • Page 9: Precautions For Measurement

    Measure Resistance Point -to-Point(Rtt) 1. Do not cean the surface of material 2. Remove from the surface only those items that might interfere with the test. ESD sensitive devices shall also be removed. 3. Connect both test cable to both (2.27kg=5lbs) electrodes, and place the electrode on the most commonly used area of the surface.

  • Page 10: Maintenance

    Maintenance The digital surface Resistance Meter requires little maintenance. There are no user servieable parts. If the meter requires service beyond cleaning the electrodes or replacing the batteried, please contact SHISHIDO Local agents or SHISHIDO Japan. Battery replacement Replace the batteires onece the battery life indicator is empty. Open the battery cover at the back side to replace the batteries.

  • Page 11: Dimension Diagram

    <3 3 4 5 6 7 8 9 10 11 12 >12 OLED Display DIGITAL SURFACE Black Push Bottons RESISTANCE METER Red Push Bottun MEG102 MEG102 main body to Test Jacks Φ3.2 Contact Pins φ63 with spring OMEG-B OMEG-EP Optional...
  • Page 12 Warranty Valid for: 1 year after deliver Product name Digital Surface Resistance meter Model MEG102 Serial Number Date of Inspector Delivery This product has passed our company’s product inspection. Even though the product has been used correctly, if any malfunctions or damages occur during the warranty period due to a defect in our design or production, we will repair the product free of charge.
