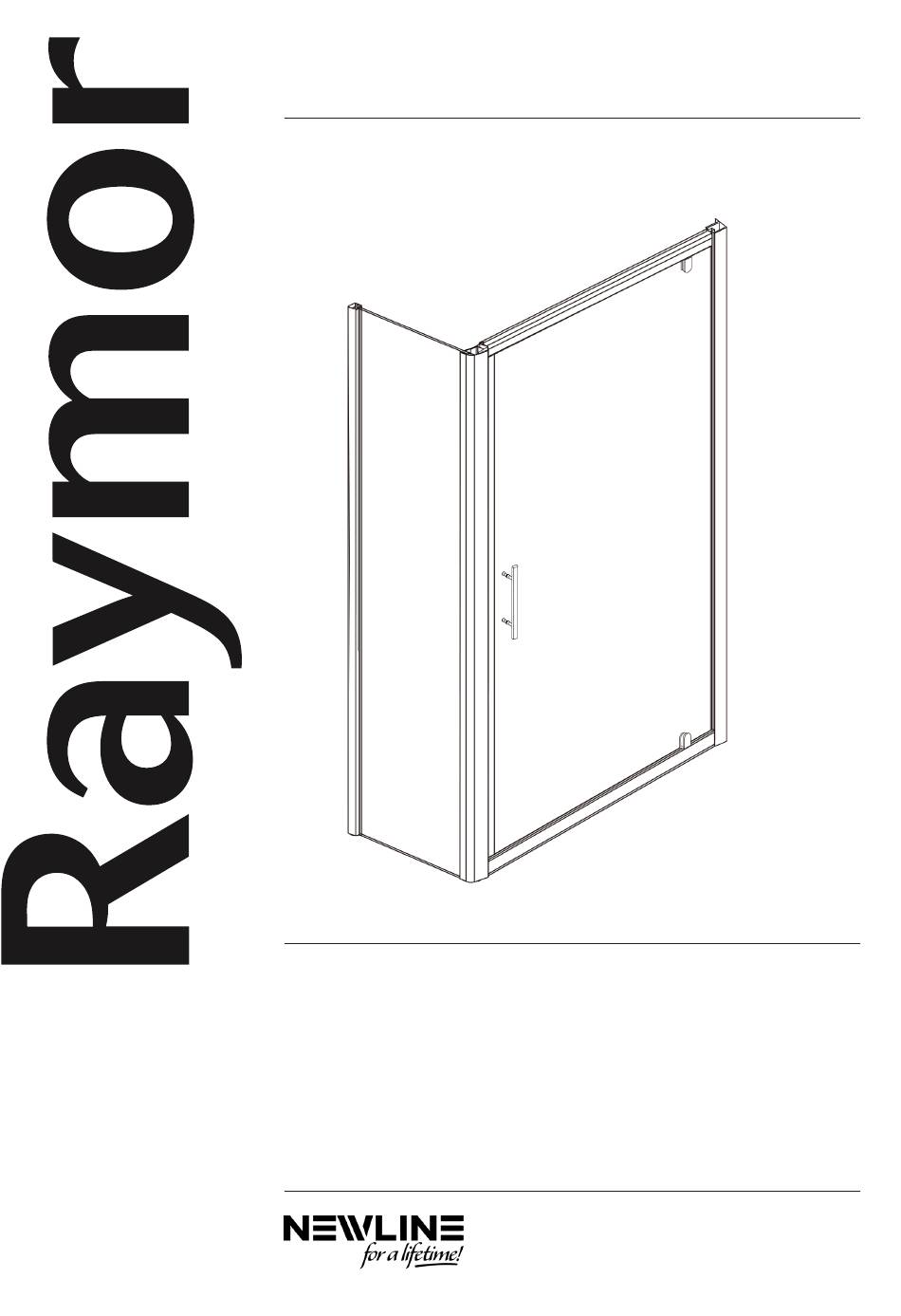

- Page 1 PIVOT DOOR SET INSTRUCTION MANUAL PRODUCT CODES: RAY1000WHT-PIVOT RAY900CHR-PIVOT RAY1200CHR-PIVOT RAY900WHT-PIVOT RAY1200WHT-PIVOT RAY1000CHR-PIVOT INSTRUCTION MANUAL VERSION: 16/0003 Newline Group Limited Freephone 0508 639 5463 | www.newline.co.nz...
-
Page 2: Table Of Contents
Layout Procedure / 2-Sided Configurations ... 5 Installation Steps / 2-Sided Configurations ... 6 Layout Procedure / Alcove (3-Sided) Configurations ... 8 Installation Steps / Alcove (3-Sided) Configurations ... 9 Newline Group Limited | Freephone 0508 639 5463 | www.newline.co.nz... -
Page 3: Important Information
If there is freight damage damage, faults or an incorrect component supplied advise your supplier within 12 hours. Do not proceed with installation as this will invalidate any claims. WARRANTY Faulty goods are covered under warranty. Visit www.newline.co.nz for warranty information. Breakages incurred during installation are not covered under warranty. HEALTH AND SAFETY Toughened Glass: •... -
Page 4: Preparation Checklist
2 Sided Shower: Ensure the floor is level and the walls are plumb and flat. Position all framing for solid fixing for the shower tray, shower and plumbing fittings (refer to the specific tray, liner and shower instruction manual at www.newline.co.nz). Ensure all plumbing items have been installed prior to the lining being attached. -
Page 5: Supplied Components / 900 And 1000 Showers
PARTS LIST / 900 and 1000 Showers Description Parts Number Wall Posts Screws M4x35mm FASTE Screws M4x8mm FASTENING PACK Screw Cover Caps Return Panel Bottom Horizontal Rail Pivot Top Horizontal Rail Door Panel Handle Set Bottom Door Gasket Posts Magnectic Door Strip Raymor Showers / Pivot Door Set Page 3... -
Page 6: Supplied Components / 1200 Showers
PARTS LIST / 1200 Showers [17] Description Parts Number Wall channels Screws M4 x 35mm Screws M4 x 8mm FASTENING PACK Screw cover caps Return panel Bottom horizontal rail Pivot Top horizontal rail Door panel Handle set Bottom door gasket Fixed panel Screws M4 x 10mm Glass clamp... -
Page 7: Layout Procedure / 2-Sided Configurations
LAYOUT PROCEDURE / 2-Sided Configuration 22mm PROFINISH TILE TRAY WITH HOB APPLICATION ACRYLIC TRAY APPLICATION • The desired position for the boundary line is • It is recommended that the position of the wall channels approximately in the centre of the hob to 5mm is 22mm off the tray edge (refer Diagram A). -
Page 8: Installation Steps / 2-Sided Configurations
INSTALLATION STEPS / 2-Sided Configuration STEP 1 1. Referring to the Assembly Layout Plan (Page 5), set up and plumb Wall Channels on boundary line. 2. Apply silicone to back of wall channels and fasten to the wall ensuring that they remain plumb. - Page 9 STEP 3 1. Adjust the Door and Return Panels evenly on the tray and into the Wall Channels. 2. Bring the corner joint together and drill and fasten this point (A1, A2 and A3). 3. Align the Door Assembly and Return Panel evenly to the walls and tray. 4.
-
Page 10: Layout Procedure / Alcove (3-Sided) Configurations
LAYOUT PROCEDURE / Alcove Configuration ACRYLIC TRAY APPLICATION • Frame to precisely fit the specific tray you are using. • Mark out the outside boundary line at 15mm in from the outside of the tray. Plumb up the walls. Dotted Line Indicates Outside Boundary PROFINISH... -
Page 11: Installation Steps / Alcove (3-Sided) Configurations
INSTALLATION STEPS / Alcove Configuration STEP 1 1. Mark out the Wall Channels up the wall as indicated to establish the outside boundary line. Tiling Note: Some authorities do not allow the waterproof layer to be penetrated. Use Bostik V60 to fix Wall Channels and allow to cure as per manufacturers instructions. - Page 12 STEP 3 Drill and fasten as detail (A) 3.2 DRILL STEP 4 1. Fasten the handle in place (A1). 2. Apply silicone to the outer boundaries as indicated by dotted line (A2). Note: Sealing on the inside of the shower will void the warranty. ALLOW 24 HOURS FOR SILICONE TO DRY BEFORE USE...
