Warning

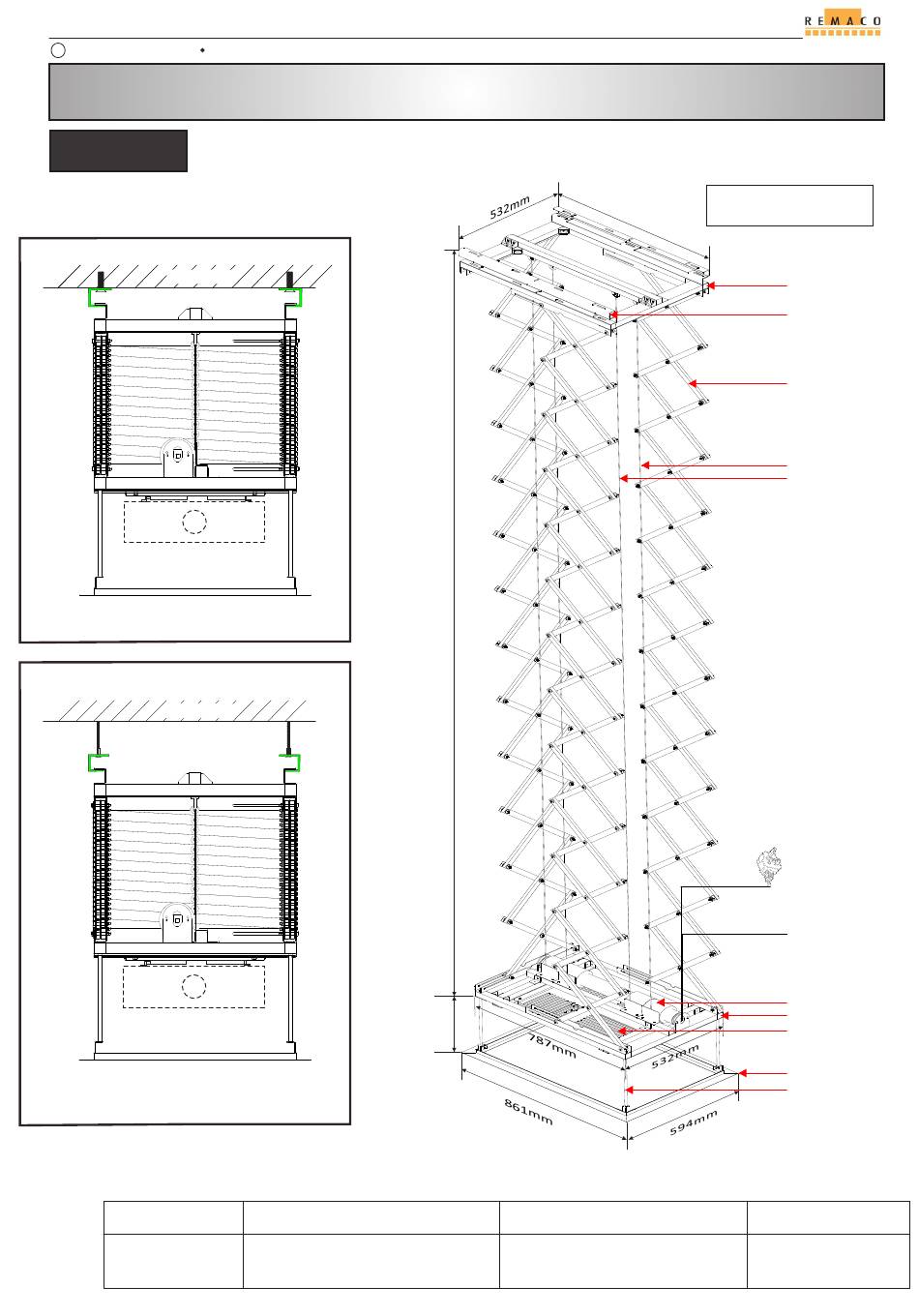

Types of Installation Mounts
Mount Directly To Concrete Ceiling
Concrete
LCD/Laser Projector
Front View
Suspended From Concret Ceiling
with Threaded Rod
Concrete
←Threaded Rod (Optional)→
LCD/Laser Projector
Front View
Model
PLT-418C
REMACO TECHNOLOGIES PTE LTD
Installation Guide (PLT-418C)
Take pre-caution when handling main supply and live wires. Install with qualified
technician or trained personnel.
Kept Position Height
863mm
*Depending on the lift drop height
4630mm
Back
333mm
Maximum Travel Distance
Website: www.remacotech.com
Load Capacity: 20kgs
7 8 7
Drop Height: 120cm
m m
Front
4100mm
V: 6.0
PLT
Top Frame
C-Hook
Bracket
Scissor Bar
Stainless Steel
Wire
(4 nos)
3-Core
3-Core
Power Supply
Power Supply
AC Cable
AC Cable
4-Core DC Control
(Contact Closure)
Motor
Bottom Frame
Perforated Hole
Ceiling Enclosure
Threaded Rod
Load Capacity
70kg
