C
COPYRIGHTS 1998

Warning

Steps for Installation

Step 1

10mm Drill
35
Power Drill
A) Drill Dia. 10mm holes to a depth of 35mm.
(Note: Do not drill too deep)

Step 2

M8 Anchor
Pin Punch
Hammer
B) Insert M8 anchor into the hole.
C) Use pin punch to expand the anchor.

Step 3

Sensor
UP
STOP
DO WN
MPC
4-Channel
IR Remote
Wall
Swtich
Projector Lift
Projector
D) Connection of all cables to the
MPC-850 (Refer to Installation
Guide for MPC-850)

Step 4

Adjust " + " : More lift retraction
-
Adjust "
" : Less lift retraction
Upper Limit
Lower Limit
+
Adjust "
" : More lift drop
Adjust " - " : Less lift drop
REMACO TECHNOLOGIES PTE LTD

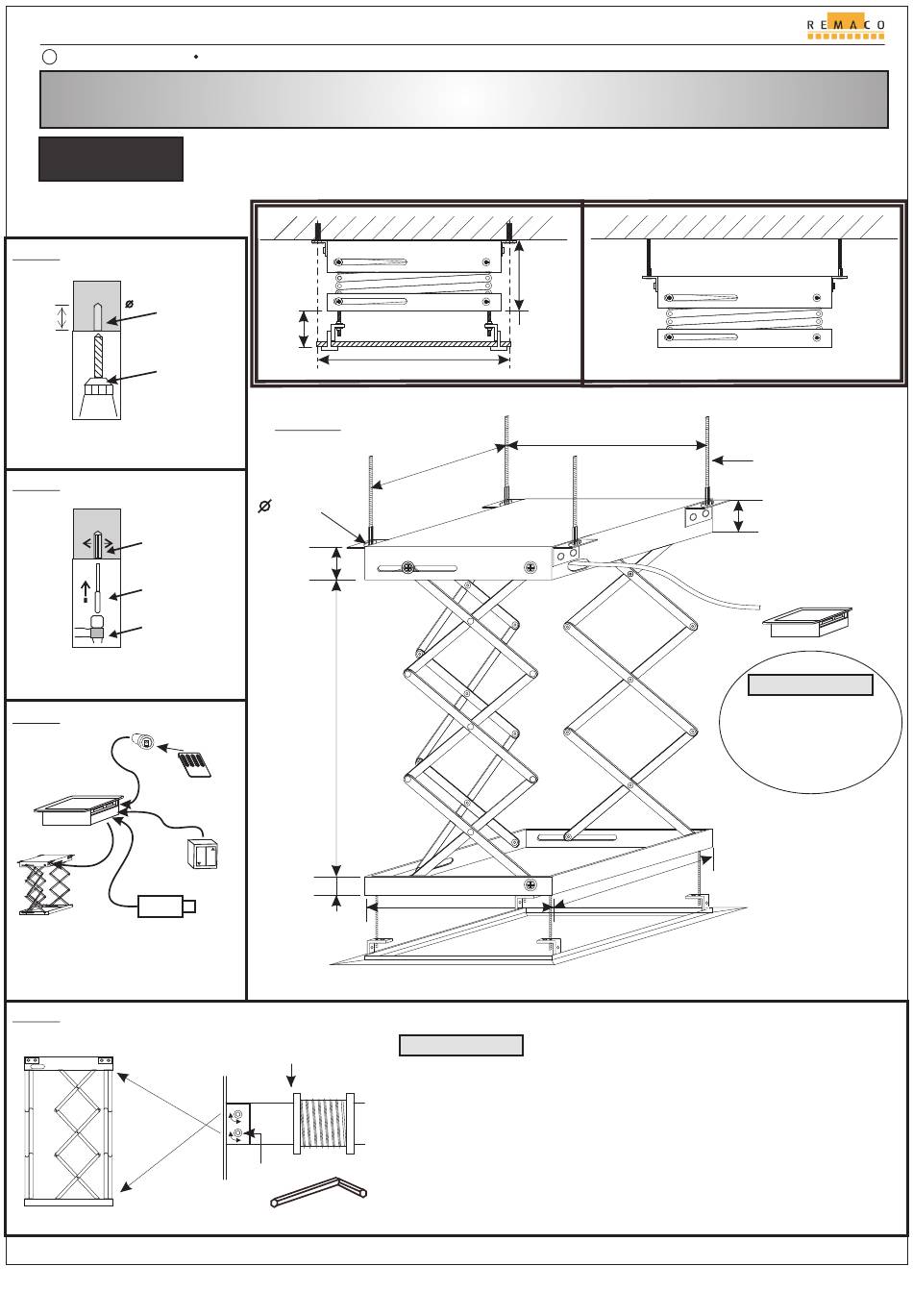

Installation Guide
Caution with main supply and live wires. Install with qualified technician or trained
personnel.
Back
Adjustable
20-32cm
PLT-412
12 x 4 Nos.
8.00 cm
Adjustable
7 cm to
138 cm
UP
UP
UP
STOP
STOP
STOP
DO WN
DO WN
DO WN
Ch1
Ch2
Ch3
Ch4
Screen Infrared Remote
(4-Channel Control)
4.50 cm
Front
View
-
+
-
+
Red Knob
Allen Key

Types of Installation Mount

Front
18.50 cm
Ceiling Mount
54.50 cm
c m
5 . 0
4 5
51.00 cm
Important Note
Do not adjust the Upper Limit of the lift higher than the original factory
preset position.
If adjusted, the lift will move into the frame and be stopped by force
and not the Upper Limit Switch. This will cause overheating of the
motor, rendering the lift to being unable to operate properly.
Continue next page
Website: www.remacotech.com
(PLT-412)
Back
Ceiling Suspension
55.00 cm
m
0 c
1 0
5 .
V: 1.0
PLT
Front
M8 Threaded
(Optional)
8.00 cm
Connect
to the MPC
MPC
Important Note
All connections
are to the MPC
For connection details,
please refer to the
Installation Guide
provided
