Remaco PLT-418C Installation Manual

C COPYRIGHTS 1998
Warning

Steps for Installation

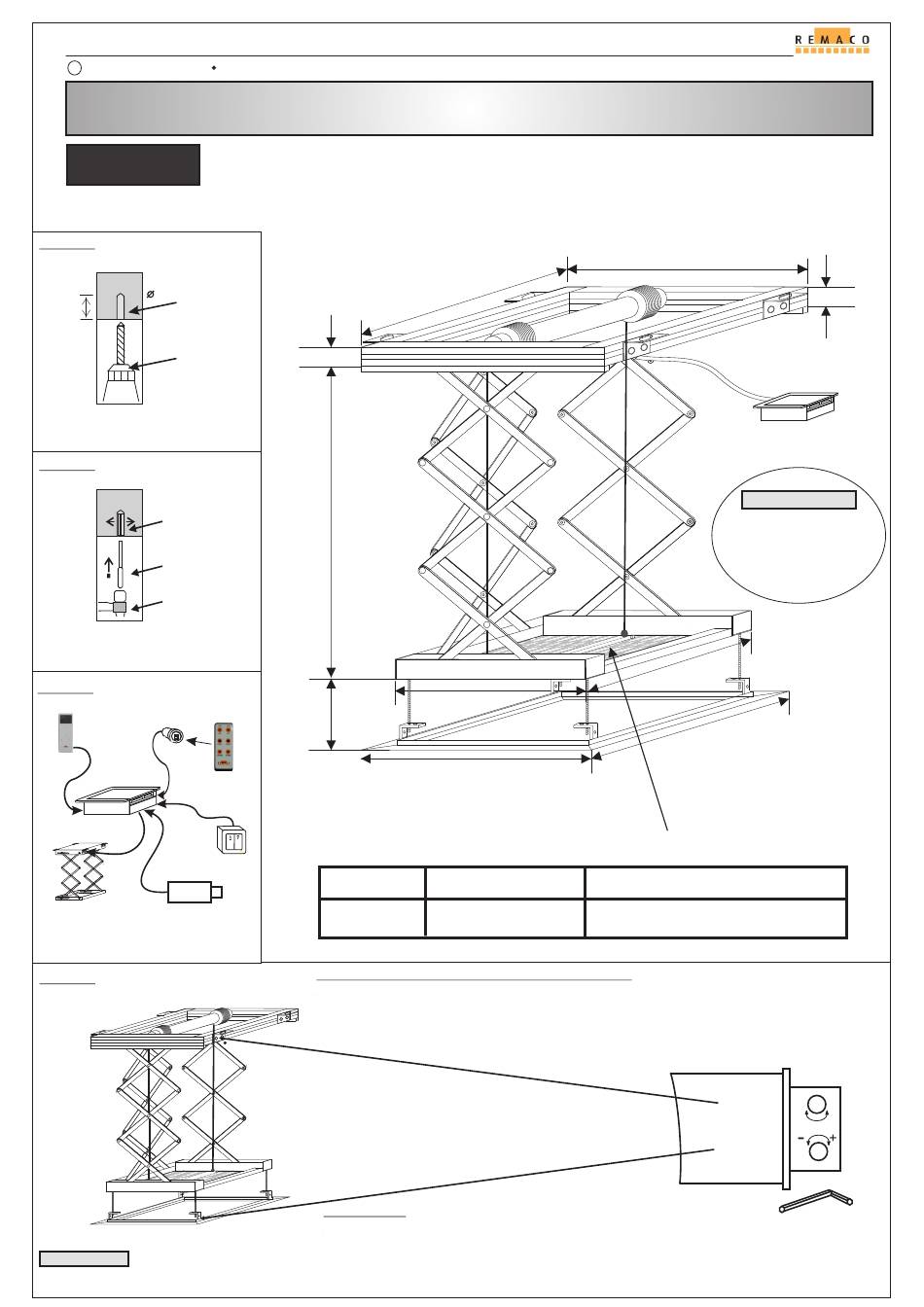

Step 1

10mm Drill
35
Power Drill
A) Drill Dia. 10mm holes to a depth of 35mm.
(Note: Do not drill too deep)

Step 2

M8 Anchor
Pin Punch
Hammer
B) Insert M8 anchor into the hole.
C) Use pin punch to expand the anchor.

Step 3

AVA-210A
Sensor
AVA-316
15-Channel
RF Remote
AVA-301
2-Channel
Infrared Remote
MPC-851
Motor Power Control
Projector Lift Projector
D) Connection of all cables to the MPC-851
(Refer to Installation Guide for MPC-851)

Step 4

Important Note
Do not adjust the Upper Limit of the lift higher than the original factory preset position. If adjusted, the lift will move into the frame and be stopped by force and not the Upper
Limit Switch. This will cause overheating of the motor, rendering the lift to being unable to operate properly.
REMACO TECHNOLOGIES PTE LTD
Installation Guide (PLT-418C)
Caution with main supply and live wires. Install with qualified technician or trained
personnel.
3.0cm
A
38.0cm
DOWN STOP UP
AVA-200
Wall Switch
Model
PLT-418C
Upper Limit (no need adjust unless required)
Press "UP button" and adjust motor upper limit " - " (lift move away
Frame
from the frame) Then adjust upper limit " + " and let the lift move
more into the frame until reaches maximum height (scissor bars just
about fully close)
Lower Limit
Press "Down button" and adjust motor lower limit "-" to have
less drop first. Adjust lower limit "+" to let lift have more drop
to required height.
0 c m
7 8 .
52.0cm
60.0cm
* Put the projector here
Kept Position
Maximum Extended Position
A = 71cm to 94cm
Website: www.remacotech.com
52.0cm
3.0cm
Connect
to the MPC
MPC-851
Motor Power Control
Important Note
All connections
are to the MPC
For connection details,
please refer to the
Installation Guide
provided
0 c m
7 8 .
0 c m
8 6 .
A = 448cm to 471cm
Bottom View
(Motor)
Red Knob
(upper limit)
+
White Knob
(lower limit)
Alen Key Adjusting Tool
(to set knob limit switch)
