Related Manuals for Kanto YU6
Summary of Contents for Kanto YU6

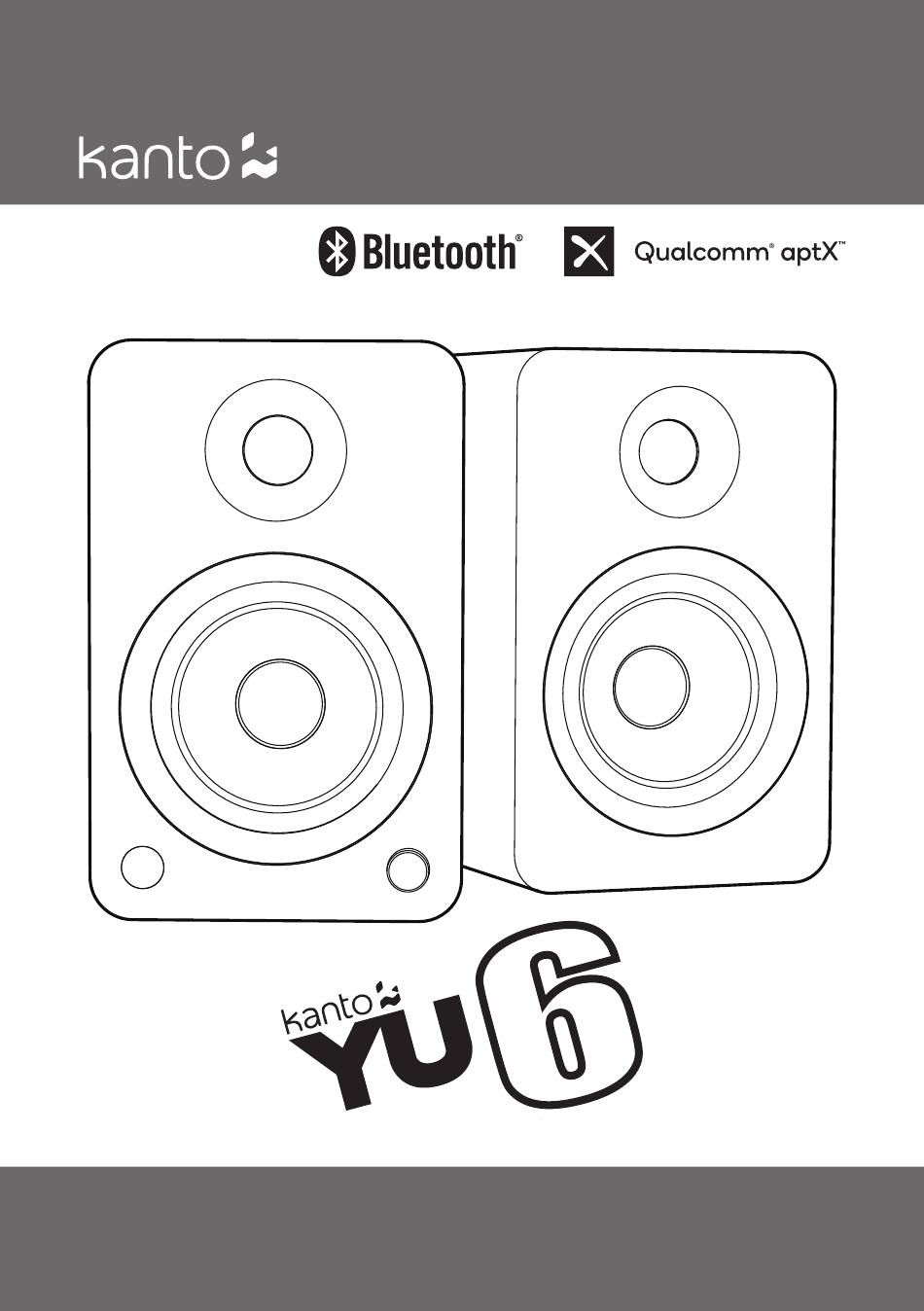

- Page 1 English User Manual YU6 Powered Speaker YUMI POWERED SPEAKERS ™ Supporting your digital lifestyle...
-
Page 2: Important Safety Precautions
Important Safety Precautions DANGEROUS VOLTAGE ATTENTION CAUTION: TO REDUCE THE RISK OF The lightning flash with arrowhead, within an The exclamation point within an equilateral ELECTRIC SHOCK, DO NOT REMOVE equilateral triangle, is intended to alert the user of triangle is intended to alert the user of BACK PANEL.NO USER SERVICEABLE the presence of non-insulated “dangerous voltage”... -
Page 3: What's In The Box
YU6 is an amazingly flexible speaker system that can accept five input sources and connect to a subwoofer for enhanced low frequency response. Additionally, it is equipped with the latest Bluetooth technology and a USB port for charging your devices. -
Page 4: Front And Rear Panels
Right Channel Out Volume/Input Select Knob USB Charge 5V / 1A YU6’s volume knob functions as an input select knob as well. Push the knob to select an input source - it cycles through the following inputs depending on what input source was last used. -
Page 5: Remote Control
Remote Control Install two supplied AAA batteries in the back of your YU6 remote. Remote Control functions are listed below. Standby Button - press to enter Standby Mode or return to Playback Mode RCA Input Select 3.5 mm Stereo AUX... -
Page 6: Setting Up Your Speakers
When the volume is high, this system can produce noise levels that could permanently damage your hearing. YU6 is a self-powered speaker system. Do not connect the speaker terminals to the speaker intputs of a stereo amplifier. Damage may occur. Use only the power cord provided with the speakers. -
Page 7: Connecting Audio Sources
Stereo RCA to 3.5 mm stereo mini-jack ‘Y’ cable • Optical Toslink cable Connecting a Turntable YU6 features a built in Phono Pre-Amp that allows you to connect directly to a turntable. • connect your turntable to the RCA L/R inputs on the back of the YU6 •... -
Page 8: Connecting A Subwoofer
Auto Power-up / Auto Power-down The YU6 is designed to save power when not in use. When no audio signal has been detected for 15 minutes, the YU6 Amp will put itself into stand-by mode. If the audio signal returns via the same input that the YU6 was playing when it entered standby, the YU6 will wake up and resume playing. -
Page 9: Bluetooth Pairing
The same behavior and functionality apply to the second device. USB Charging Operation YU6 features one 5V 1.0 A USB charging port on the back panel. This is a convenient power source to charge your devices. When YU6 is in Playback Mode (LED White) and Standby Mode (LED yellow), the port is active, and whatever device is connected is able to draw up to 1.0 A of power. - Page 10 Audio Troubleshooting Guide Frequently asked questions about Kanto’s YU6 speakers. None of the lights on the front panel are You are experiencing poor audio quality. illuminated. • Set the volume of the source to its highest level. Low source volume can negatively affect dynamic range.
-
Page 11: Specifications
Bluetooth SIG, ® Inc. and any use of such marks by Kanto Distribution Inc. is under license. NOTICE: Qualcomm aptX is a product of Qualcomm Technologies International, Ltd. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. - Page 12 2 years. If equipment fails because of such defects and Kanto is notified within 2 years from the date of shipment with proof of original invoice from an authorized reseller, Kanto will, at its option, provide replacement parts or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
Need help?
Do you have a question about the YU6 and is the answer not in the manual?
Questions and answers
My Kantu YU6 speakers are connected to my Pro-ject Evo turntable. The speaker turns off about 10-15 minutes into play. This repeatedly happens every 10-15 minutes. What can I do to remedy this?
To prevent the Kanto YU6 speakers from turning off every 10-15 minutes when connected to a Pro-ject Evo turntable, disable the Auto Power-up (APU) feature. Press and hold the Balance Reset button on the remote for 5 seconds until the Status LED blinks once.
This answer is automatically generated
