- Page 1 ® R&S Handheld Vector Network Analyzer Getting Started (=RÉÝ2) 1334597902 Version 03...
- Page 2 ® This manual applies to the following R&S ZNH models with firmware version 1.10 and higher ● R&S ® ZNH4 (1321.1611.04) ● R&S ® ZNH8 (1321.1611.08) ● R&S ® ZNH18 (1321.1611.18) ● R&S ® ZNH26 (1321.1611.26) ● R&S ® ZNH4 (1321.1611.54, equivalent to 1321.1611.04) ●...
- Page 3 Safety Instructions Instrucciones de seguridad Sicherheitshinweise Consignes de sécurité Risk of injury and instrument damage The instrument must be used in an appropriate manner to prevent electric shock, fire, personal injury or instrument damage. Do not open the instrument casing. ●...
- Page 4 Gefahr von Verletzungen und Schäden am Gerät Betreiben Sie das Gerät immer ordnungsgemäß, um elektrischen Schlag, Brand, Verletzungen von Personen oder Geräteschäden zu verhindern. Öffnen Sie das Gerätegehäuse nicht. ● Lesen und beachten Sie die "Grundlegenden Sicherheitshinweise", die als ● gedruckte Broschüre dem Gerät beiliegen.
- Page 5 Safety instructions for rechargeable lithium ion batteries Risk of serious personal injury or even death. You must fully observe the following instructions in order to avoid serious personal injury ‒ or even death ‒ due to an explosion and/or fire. 1.
- Page 6 Instrucciones de seguridad para baterías recargables de ión litio Posibilidad de lesiones graves que en determinadas circunstancias puede causar la muerte. Tenga en cuenta los siguientes avisos en caso de explosión y/o incendio para impedir lesiones graves en personas que, en determinadas circunstancias, podrían incluso causar la muerte.
- Page 7 Sicherheitshinweise für wiederaufladbare Li-Ion-Batterien Mögliche schwere Verletzungen, unter Umständen mit Todesfolge. Beachten Sie die folgenden Hinweise vollständig, um schwere Verletzungen von Personen - unter Umständen mit Todesfolge - durch Explosion und/oder Brand zu verhindern. 1. Batterien nicht zerlegen, öffnen, zerkleinern oder aus großer Höhe fallen lassen. Bei mechanischer Beschädigung besteht die Gefahr des Austritts von Chemikalien.
- Page 8 Consignes de sécurité pour batteries rechargeables lithium-ion Risque de blessures graves pouvant entraîner la mort. Respecter intégralement les consignes ci-dessous afin d'éliminer tout risque de blessures graves voire mortelles par suite d'explosion et/ou d'incendie. 1. Ne pas démonter, ouvrir ou découper les batteries ni les faire tomber d'une hauteur importante.
- Page 9 Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...
-
Page 10: Table Of Contents
® Contents R&S Contents 1 Documentation Overview............5 1.1 Manuals....................5 1.2 Data Sheet..................... 6 1.3 Calibration Certificate................6 1.4 Release Notes, Open Source Acknowledgment........ 6 1.5 Application Notes, Application Cards, Videos........6 2 Welcome to the R&S ZNH............. 7 3 Preparing for Use..............8 3.1 Putting into Operation................ - Page 11 ® Contents R&S Getting Started 1334.5979.02 ─ 03...
-
Page 12: Documentation Overview
® Documentation Overview R&S Manuals Documentation Overview This section provides an overview of the R&S ZNH user documentation. Manuals You find the documents on the R&S ZNH product page at: http://www.rohde-schwarz.com/manual/znh Getting started manual Introduces the R&S ZNH and describes how to set up and start working with the product. -
Page 13: Data Sheet
® Documentation Overview R&S Application Notes, Application Cards, Videos Data Sheet The data sheet contains the technical specifications of the R&S ZNH. It also lists the options and their order numbers as well as optional accessories. The brochure provides an overview of the R&S ZNH and shows its specific char- acteristics. -
Page 14: Welcome To The R&S Znh
® Welcome to the R&S ZNH R&S Welcome to the R&S ZNH The R&S ZNH is a new generation Rohde & Schwarz vector network analyzer developed to meet demanding customer requirements. Offering touchscreen input, the analyzer enhances user experience in making measurements fast and easy. -
Page 15: Preparing For Use
® Preparing for Use R&S Putting into Operation Preparing for Use Putting into Operation This chapter describes the basic steps to be taken when setting up the R&S ZNH for the first time. Risk of injury due to disregarding safety information Observe the information on appropriate operating conditions provided in the data sheet to prevent personal injury or damage to the instrument. -
Page 16: Unpacking And Checking The Instrument
® Preparing for Use R&S Putting into Operation Risk of instrument damage during operation An unsuitable operating site or test setup can cause damage to the instru- ment and to connected devices. Ensure the following operating conditions before you switch on the instrument: ●... -
Page 17: Accessory List
® Preparing for Use R&S Putting into Operation Risk of damage during transportation and shipment Insufficient protection against mechanical and electrostatic effects during transportation and shipment can damage the instrument. ● Always make sure that sufficient mechanical and electrostatic protection is provided. - Page 18 ® Preparing for Use R&S Putting into Operation When laid out horizontally for operation from above, the R&S ZNH is tilted slightly due to the micro-stand at the back. This position provides the optimum viewing angle for the display. To allow easy operation from the front and still be able to read the display, you can swing out the support on the back of the R&S ZNH.
-
Page 19: Using The Ac Adapter
® Preparing for Use R&S Putting into Operation 3.1.4 Using the AC Adapter Risk of instrument damage To avoid instrument damage: ● Only use the power supply (R&S HA-Z301, order number 1321.1386.02) included in the delivery. ● Make sure that the AC supply voltage is compatible to the voltage speci- fied on the power supply unit. -
Page 20: Battery Operation
® Preparing for Use R&S Putting into Operation 3.1.5 Battery Operation The R&S ZNH has a smart battery indicator which displays the battery charging status on the [Power] key as well as the battery icon shown at the top right corner of the display screen. - Page 21 ® Preparing for Use R&S Putting into Operation Battery dispatched during delivery is not fully charged, for battery operation you have to charge it first. To charge the battery, connect the charger to AC power adapter included in the delivery. For more information, see "Using an external battery charger"...
-
Page 22: Battery Maintenance
® Preparing for Use R&S Putting into Operation 3.1.6 Battery Maintenance The R&S ZNH comes with a lithium-ion battery. In general, these batteries are easy to handle. When you handle the battery, follow the instruction mentioned in the safety instructions and in the following chapters. 3.1.6.1 Handling ●... -
Page 23: Switching The Instrument On And Off
® Preparing for Use R&S Switching the Instrument On and Off – The maximum consumption of electronic devices – The self-discharge of the battery - the higher the state of charge, the higher the rate of self-discharge ● Avoid a deep discharge of the battery. A deep discharge occurs when the state of charge falls below 5% of the battery's capacity. - Page 24 ® Preparing for Use R&S Switching the Instrument On and Off Risk of losing data If a running instrument (without battery) is disconnected directly from the power cord, the instrument loses its current settings. Furthermore, program data may be lost. Press [Power] key first to shut down the application properly.
-
Page 25: Instrument Tour

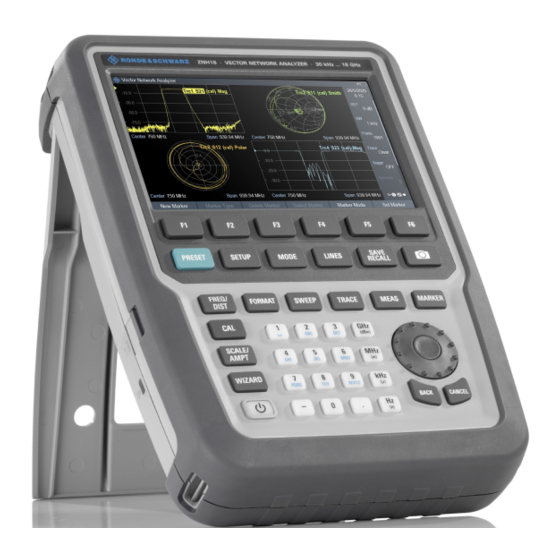

® Instrument Tour R&S Front View Instrument Tour This chapter describes the instrument in different views. Front View Figure 4-1: Front view of R&S ZNH RF port 1 BNC connector Headphone jack USB ports RF port 2 Touch-sensitive screen area 7 = Softkey labels (on display) 8 = Softkey 9 = Systems keys... -
Page 26: Top View
® Instrument Tour R&S Top View 17 = Cancel key 18 = Rotary knob 19 = Screenshot key 20 = LAN and mini USB port (behind protective cap) 21 = Micro-SD card slot (not visible as it is located behind the battery compartment) For a description of the keys, see "Front Panel Keys"... - Page 27 ® Instrument Tour R&S Top View ● Type N connectors for model 04 / 08 / 18 ● RPC 3.5 mm connectors for model 26 The RF ports serve as output for the RF stimulus signal and as input for the mea- sured RF signals from the DUT (response signals).
- Page 28 ® Instrument Tour R&S Top View Risk of DUT damage The R&S ZNH displays a signal source indicator on the title bar. When the indicator shows a full green circle, signal source is present on the RF out connector. To prevent damage on DUT, it is important to consider maximum input power on DUT before connection.
- Page 29 ® Instrument Tour R&S Top View Risk of instrument damage To avoid damage to the tracking generator output, never apply currents greater than 600 mA or voltages greater than 20 V to the BNC connectors if the BNC connectors are not configured as BIAS output ports. If they are configured as BIAS ports, never apply currents greater than 600 mA or voltages greater than 50 V.
-
Page 30: Left View
® Instrument Tour R&S Right View Left View 1 = DC input 2 = Kensington lock slot DC input The R&S ZNH is supplied with power by the AC/DC transformer power supply via the DC connector. You can also use the DC connector to charge the battery. Kensington lock slot A Kensington lock can be anchored to the R&S ZNH housing to secure it to a workstation mechanically. -
Page 31: Rear View
® Instrument Tour R&S Display Overview USB type B connector (mini USB) Mini USB connector to connect a computer for remote control of the instrument and transfer data in both directions. Rear View The micro-SD card slot is located behind the battery compartment of the R&S ZNH. - Page 32 ® Instrument Tour R&S Display Overview Figure 4-2: Display overview 1 = Title bar 2 = Measurement result view 3 = Measurement trace window 4 = Parameter view 5 = Softkey functions Risk of touchscreen damage during operation ● Never touch the screen with ball point pens or other pointed objects with sharp edges.
-
Page 33: Index
® Index R&S Index Switching on and off the instrument ..16 AC adapter ..........12 Application cards ........6 Unpacking and checking the instrument ... 9 Application notes ........6 User manual ..........5 Battery insertion ........10 White papers ..........6 Battery maintenance .......
